Whether you’re running a brad nailer, topping off car tires, or blowing dust out of a mower deck, a 3-gallon air compressor sits in the sweet spot between portability and real work capability. The challenge is that this category spans everything from bargain-bin pancakes to precision-built quiet machines, and picking the wrong one means either being tethered to a wall outlet waiting for a refill or buying far more noise than you bargained for.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I spend my time cross-referencing motor specs, pump CFM curves, and decibel claims against aggregated owner feedback to isolate which small compressors actually deliver on their promises for intermittent diy and light commercial use.
To find the right unit for your workshop, garage, or job site, start here with my hands‑off analysis of the best 3 gallon air compressor options available today.
How To Choose The Best 3 Gallon Air Compressor
Unlike larger stationary units, a 3‑gallon compressor is all about compromise: you trade tank volume for portability, and you trade horsepower for a manageable footprint. Knowing which specs matter for your actual tasks is the fastest way to avoid a regretful purchase.
CFM at 90 PSI — The Real Number
Maximum PSI numbers grab attention, but the single most important spec for tool performance is the compressor’s SCFM (Standard Cubic Feet per Minute) at 90 PSI. A framing nailer typically needs 2.0‑2.2 SCFM at that pressure, while a trim nailer or stapler can run on 0.5‑1.0 SCFM. If your compressor falls short here, the tool will starve for air and the pump will cycle constantly, overheating and wearing prematurely. Cross‑check the SCFM @ 90 PSI against the tools you actually own — not the ones you dream about.
Noise Level and Pump Design
Most 3‑gallon models use an oil‑free direct‑drive pump. Oil‑free means zero maintenance and zero oil changes, but the trade‑off is noise: these pumps spin at higher RPMs (typically 3,000‑4,000 RPM) and can push 80‑90 dB, which is loud enough to require hearing protection indoors. Premium “quiet series” units drop to 60‑70 dB by running a slower motor (around 1,750 RPM) and using larger internal air passages. If your compressor will live in a home garage, basement, or near occupied living space, the decibel difference is transformative.
Pancake vs. Hotdog Tank Layout
“Pancake” compressors have a wide, flat tank that offers stability and a low center of gravity, making them harder to tip over. “Hotdog” style tanks are cylindrical and laid horizontally, which is more compact but can be tippy on uneven floors. Neither holds more air at 3 gallons — the choice is ergonomics and footprint. Pancake models usually win for stability on job sites, while hotdog models fit into tighter shelf spaces.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Makita MAC320Q | Premium | Quiet indoor work | 60 dB noise level | Amazon |
| Craftsman CMXECXA0200341 | Premium | High‑PSI tool operation | 155 PSI max / 2.6 SCFM @ 90 PSI | Amazon |
| Baotree Ultra Quiet | Mid-Range | Low‑noise shop use | 70 dB / 50‑second cold start | Amazon |
| ECOMAX 3 Gallon | Mid-Range | All‑in‑one kit value | 11‑piece accessory kit included | Amazon |
| FORNAX Pancake | Mid-Range | Light‑duty inflation | 0.8 SCFM @ 90 PSI | Amazon |
| Ironton Oil‑Free | Budget | Entry‑level nailing | 0.33 HP motor | Amazon |
| McGraw 3 Gal Pancake | Budget | Lightest carry option | 16.3 lb weight | Amazon |
In‑Depth Reviews
1. Makita MAC320Q Quiet Series
The Makita MAC320Q is the quietest option in the 3‑gallon class, operating at just 60 dB — roughly the volume of a normal conversation and a full 20 dB quieter than standard pancake units. This noise reduction comes from a dual‑piston pump that runs at a low 1,750 RPM, which also extends motor and pump life significantly compared to high‑RPM oil‑free designs.
Despite its compact size, it delivers enough air to run a framing nailer continuously without the pump lagging. The roll‑cage construction protects the tank and components during transport and job‑site stacking, and the dual quick‑coupler ports let two tools connect simultaneously — a feature rarely seen at this tank size. It’s noticeably heavier than most 3‑gallon competitors at roughly 52 pounds, so it’s not a one‑hand carry, but the cage design includes a built‑in handle on the back for two‑handed lugging.
The primary trade‑off is cost: the MAC320Q commands a premium that rivals larger 6‑gallon units. It also lacks built‑in wheels, so rolling it across a garage floor requires an aftermarket cart. For users who value low noise, fast recovery, and a commercial‑grade build, however, this unit is the class leader.
What works
- Exceptionally quiet 60 dB operation ideal for indoor use
- Dual quick‑coupler ports for running two tools
- Low 1,750 RPM motor extends pump life
- Protective roll‑cage withstands job‑site abuse
What doesn’t
- Heavy at 52 pounds with no wheels
- Premium price well above category average
- Max PSI limited to 135 PSI
2. Craftsman CMXECXA0200341
The Craftsman CMXECXA0200341 stands out with a maximum pressure of 155 PSI — significantly higher than the standard 110‑120 PSI found on most 3‑gallon units. That extra headroom means the pump cycles less frequently between tools having a higher usable pressure band, and at 2.6 SCFM at 90 PSI, it provides enough flow to drive framing nailers, staplers, and even paint sprayers without the motor struggling to keep up.
The hotdog‑style tank layout keeps the footprint compact, and at just 16 pounds, this is one of the lightest units in its class, making it genuinely portable for moving between job sites in a truck bed. The oil‑free pump requires zero maintenance, and the built‑in gauge lets you dial in tool pressure directly. The 1.5 HP motor uses copper windings for reliable start‑up torque, and the recovery time from cut‑in to cut‑out is impressively short, usually under 30 seconds.
Noise output is typical for a direct‑drive oil‑free design — owners report it’s louder than quieter series models but not obnoxious for outdoor or open‑garage use. The plastic gauge panel feels less durable than the rest of the build, and the one‑year warranty is shorter than some competitors. For users who need high PSI and SCFM in a lightweight portable package, this Craftsman is a strong contender.
What works
- High 155 PSI maximum for longer runtime between cycles
- Lightweight at 16 pounds for easy transport
- Strong 2.6 SCFM at 90 PSI powers multiple tools
- Oil‑free, maintenance‑free pump
What doesn’t
- Plastic gauge panel feels fragile
- Noisier than quiet‑series alternatives
- Only 1‑year limited warranty

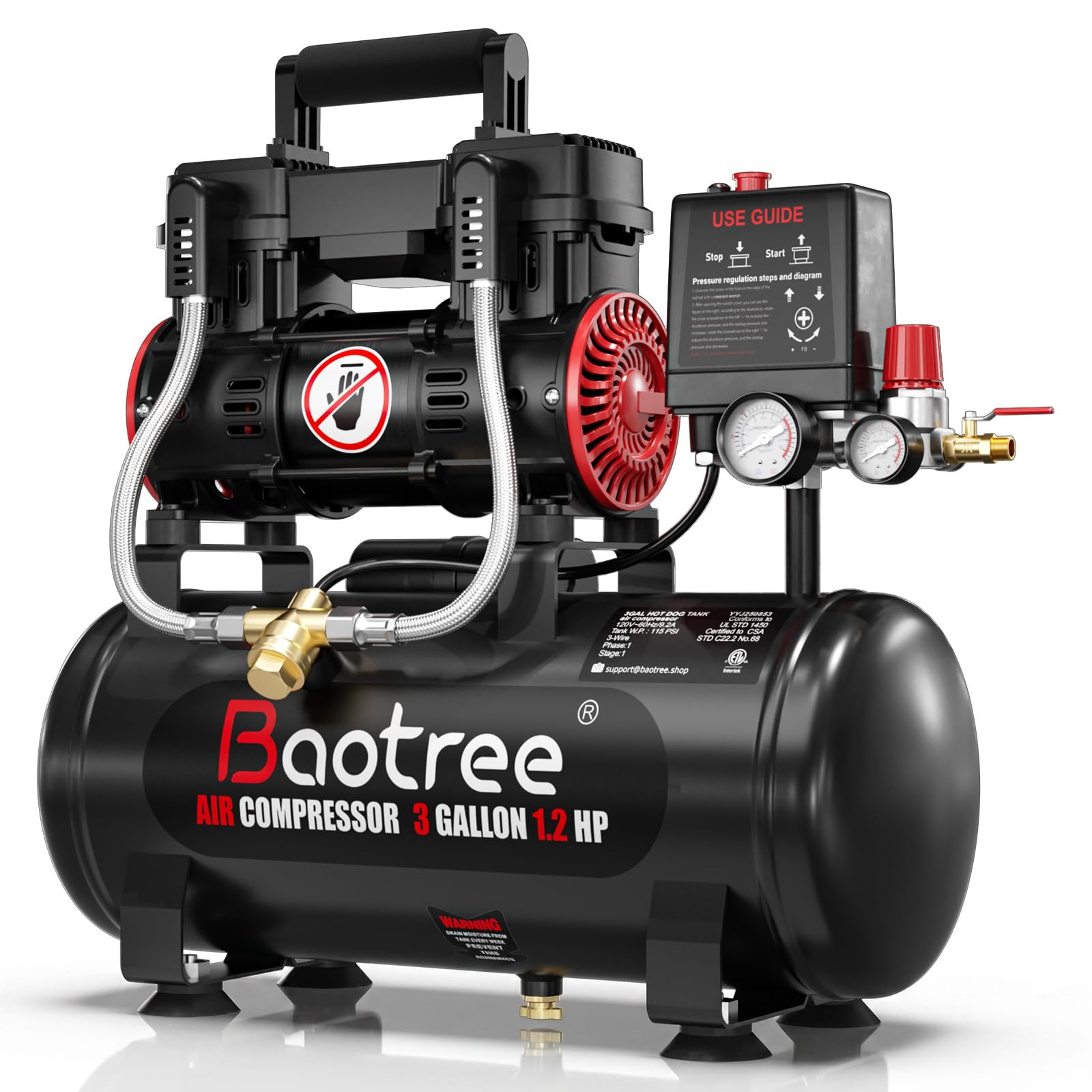

3. Baotree Ultra Quiet Air Compressor
The Baotree Ultra Quiet compressor brings industrial noise reduction to the 3‑gallon segment without the price tag of a true quiet‑series brand. Rated at 70 dB, it cuts noise roughly in half compared to a standard 80‑85 dB pancake unit, making it viable for basement workshops or garages attached to living spaces. The silence tech comes from a redesigned intake muffler and optimized air flow channels, plus a patented valve system that dumps exhaust more gradually.
Performance is solid for the noise level: the 1.2 HP motor fills the 3‑gallon steel tank to 115 PSI in about 50 seconds from a cold start, and subsequent refill cycles take only about 20 seconds. The tank is constructed from high‑strength alloy steel with a multi‑layer anti‑wear coating, and all sealed joints are pressure‑tested to prevent leaks. It includes dual quick couplers, and the addition of both a carry handle and built‑in wheels means you can roll it across a garage floor rather than lugging it.
Build quality is above average for the mid‑range price point, with a cast‑iron cylinder sleeve and stainless steel components where they matter most. The primary downsides are that the included tool kit is minimal — you get a coupler and a blow gun, but no hose — and some owners reported a defective unit on the first try, though replacements performed well. For those seeking quiet operation on a moderate budget, this Baotree delivers exceptional value.
What works
- Very quiet 70 dB operation for indoor use
- Fast recovery with 50‑second cold fill time
- Rolls on built‑in wheels with carry handle
- High‑strength alloy steel tank with anti‑wear coating
What doesn’t
- No air hose included in the box
- Occasional quality‑control issues on first units
- Mid‑range motor may struggle with high‑draw tools
4. ECOMAX 3 Gallon Pancake
The ECOMAX 3‑gallon pancake compressor stands out by including an 11‑piece accessory kit that covers nearly every common task out of the box — a 25‑foot air hose, two quick couplers, tire chuck, blow gun, inflation needles, and sealing tape. For a first‑time buyer who doesn’t already own pneumatic accessories, this eliminates the immediate need for a separate trip to the hardware store. The pump delivers 0.6 SCFM at 90 PSI, which is modest but sufficient for brad nailers, staplers, and tire inflation.
The unit weighs 16.3 pounds and the flip‑up handle makes it easy to carry one‑handed. The dual‑gauge system gives you tank pressure and regulated output pressure on separate dials, so you can dial in the exact tool pressure without guesswork. The oil‑free pump requires no maintenance, and the wide pancake base provides excellent stability even on soft or uneven ground. The red paint is more than cosmetic — the iron tank material resists corrosion better than bare steel.
On the downside, the 0.6 SCFM at 90 PSI means it will struggle with continuous‑use tools like orbital sanders or cutoff tools that pull over 1.5 SCFM. Some owners also noted that the included accessories, particularly the blow gun, feel somewhat cheap and may need replacement within a year. For light‑duty tasks and occasional inflation, though, the ECOMAX kit offers the best per‑dollar accessory value in this category.
What works
- Includes 11‑piece accessory kit with 25‑ft hose
- Lightweight at 16.3 pounds with flip‑up handle
- Dual pressure gauges for precise output control
- Stable pancake base design
What doesn’t
- Low 0.6 SCFM at 90 PSI limits tool compatibility
- Included accessories have a cheap feel
- Inconsistent air flow reported by some users
5. FORNAX Pancake Air Compressor
The FORNAX pancake compressor bridges the gap between entry‑level and mid‑range by offering a 0.8 SCFM at 90 PSI rating along with a 14‑piece accessory kit that includes multiple quick couplers, a tire chuck, blow gun, and inflation needles. At 18.9 pounds, it’s slightly heavier than the ECOMAX but still easily portable, and the pancake footprint keeps it planted on workbenches and job‑site floors without tipping.
The motor spins at 4,950 RPM to push 120 PSI max, which is a bit higher than the standard 110 PSI found on most budget pancakes. That extra PSI headroom lets the pump cycle less frequently, reducing wear on the valve system over time. The oil‑free pump design means zero maintenance, and the noise level is rated at 75 dB — quieter than many oil‑free direct‑drive units but still loud enough to warrant hearing protection for extended indoor use. The unit fits easily in a truck seat, as several owners noted, and the fold‑down handle is ergonomically good for one‑hand carries.
The caveats are that the 0.8 SCFM at 90 PSI still won’t sustain a framing nailer or a paint sprayer continuously — it’s best for intermittent tools like brad nailers, staplers, and tire inflators. A few owners found the motor struggled with air hammers and larger brad nailers. The included accessory kit covers the basics but the hose is short. For general maintenance and light pneumatic work, the FORNAX is a solid mid‑range choice.
What works
- Good 0.8 SCFM at 90 PSI for light pneumatic tools
- 120 PSI max reduces pump cycle frequency
- Includes 14‑piece accessory kit
- Compact pancake shape fits in tight spaces
What doesn’t
- Not enough flow for continuous‑draw tools
- Motor struggles with air hammers or heavy nailers
- Included hose could be longer
6. Ironton Oil‑Free Pancake
The Ironton 3‑gallon pancake compressor is the entry‑level workhorse for users who need a compressor for occasional nailing, stapling, and tire inflation without spending on features they won’t use. The 0.33 HP motor and 110 PSI max pressure are modest, but for a homeowner running a brad nailer or topping off car tires once a week, it’s more than adequate. The oil‑free pump eliminates maintenance and the wide pancake base stays stable on garage floors.
Design touches like a fold‑down handle, a cord wrap, and a hose retainer built into the shroud show that Ironton considered storage and organization even at this price tier. The unit weighs 20.6 pounds, which is heavier than some competitors but still manageable for short carries from garage to driveway. Owners report that it holds pressure well between cycles and doesn’t leak down overnight — a common issue with budget compressors.
The big compromises are noise and SCFM. This unit is loud — owners consistently note that it’s not a quiet compressor — and the relatively low flow means it can’t keep up with paint sprayers or framing nailers. The included components are just the compressor itself, so you’ll need to buy a hose and fittings separately. For the price, it’s a capable starter compressor that gets the job done without fuss.
What works
- Budget‑friendly entry point for home users
- Fold‑down handle, cord wrap, and hose retainer for storage
- Holds pressure well between cycles
- Oil‑free pump requires zero maintenance
What doesn’t
- Loud operation — hearing protection recommended
- Low SCFM limits tool compatibility
- No hose or accessories included
7. McGraw 3 Gal Pancake
The McGraw 3‑gallon pancake compressor is the lightest unit in this comparison at just 16.3 pounds, making it the most portable option for users who need to carry their compressor up stairs, onto roofs, or between multiple job sites throughout the day. The 0.33 HP motor delivers 110 PSI, and the oil‑free pump requires no maintenance. The wide base provides the stability you expect from a pancake design, and the fold‑down handle tucks away for compact storage.
At 62 dB, the noise rating is notably lower than most budget pancakes — though real‑world owner reviews suggest it’s not as quiet as that figure implies, with several describing it as noisy for its size. The unit includes a cord wrap and hose retainer built into the shroud, which helps keep the workspace tidy. Its small footprint means it can sit on a shelf or in a cabinet when not in use.
The main trade‑offs are minimal included components (no hose or additional fittings) and a pump that takes a while to fill tires compared to higher‑output units. Some owners reported the tank cap popping off under pressure, which raises a durability concern. For users who prioritize weight above all else and need a compressor that’s easy to grab and go, the McGraw is a compelling ultra‑light option, but it’s not the most robust choice for regular use.
What works
- Lightest option at 16.3 pounds for maximum portability
- Wide pancake base for stable operation
- Fold‑down handle and cord management built in
- Oil‑free pump requires no maintenance
What doesn’t
- Slow tire inflation due to low air flow
- Reported durability issues with tank cap
- No accessories included in the box
Hardware & Specs Guide
SCFM at 90 PSI vs. Max PSI
Maximum PSI is the ceiling pressure the compressor reaches before shutting off, but SCFM at 90 PSI is the flow rate your tool actually receives. A high max PSI (e.g., 155 PSI on the Craftsman) provides a wider pressure band between cut‑in and cut‑out, meaning the pump cycles less frequently. A high SCFM at 90 PSI (2.6 on the Craftsman, 0.6‑0.8 on budget units) determines whether the tool stalls mid‑operation. Always prioritize SCFM at 90 PSI over max PSI when matching to continuous‑use tools.
Oil‑Free Pump RPM and Longevity
Budget and mid‑range 3‑gallon compressors use oil‑free pumps that spin at 3,000‑4,950 RPM to generate pressure. This high speed produces heat and noise, and the Teflon‑based piston rings wear faster than lubricated designs. Premium quiet series units like the Makita MAC320Q run at 1,750 RPM with a dual‑piston pump, which reduces wear dramatically — owners commonly report 10+ years of service. If you plan to store the compressor for long periods or cycle it daily, the slower‑RPM pump is the better long‑term investment.
FAQ
Can a 3 gallon air compressor run a framing nailer?
Why are quiet 3 gallon compressors so much heavier?
What does oil‑free mean and do I want it?
Final Thoughts: The Verdict
For most diyers and home workshop users seeking a 3 gallon air compressor that balances noise, power, and build quality, the winner is the Makita MAC320Q because it delivers true 60 dB quiet operation, commercial‑grade roll‑cage durability, and dual‑coupler convenience that no other 3‑gallon unit matches. If you need maximum PSI and portability for framing nailers and high‑demand tools, grab the Craftsman CMXECXA0200341. And for the best quiet option that won’t break the bank, nothing beats the Baotree Ultra Quiet.
