The SatLink ST-7000 bridges the gap between entry-level composite modulators and fully commercial encoding gear. It accepts a 1080p HDMI input and re-encodes it as an ATSC or QAM (J.83B) channel that any modern television can tune without a set-top box. The output power is adjustable up to 75 dBμV, which means you can push a clean signal through long coax runs and multiple splitters before the picture degrades. Owners report that dialing the power output and adding a distribution amplifier resolves pixelation on distant TVs.

Video quality at 1080p is excellent for a modulator in this tier—MPEG2 encoding preserves enough detail that text on security camera overlays or sports tickers remains readable. The unit lacks overscan handling, so the outermost pixels of the source image are clipped on some displays; this is a minor issue for video content but worth noting if your source has critical information at the screen edges. Setup is handled via IP configuration in a browser, which is straightforward for installers who understand basic network settings.

Audio performance has been polarizing in owner reports. Some users experienced jumbled or distorted audio that made the unit unusable, while the majority report clean Dolby Digital output once the input source is set to PCM. This suggests the ST-7000 is sensitive to the audio format fed into its HDMI input—using a source that outputs bitstream rather than PCM may cause issues. For security camera NVRs and streaming boxes set to PCM audio, the ST-7000 delivers a reliable 1080p channel to every TV on the coax network.

Check Price on Amazon

The Thor Broadcast H-HDMI-RF-PETIT packs an MPEG2 encoder, Dolby Audio support, and dual ATSC/QAM modulation into a chassis roughly the size of a deck of cards. This form factor makes it the go-to choice for motorhome owners and small commercial installations where rack space is limited. Despite its tiny footprint, the unit accepts 720p, 1080i, and 1080p HDMI sources and produces a full-resolution RF output that owners consistently describe as near-HDMI quality. The latency sits around 600ms according to measured owner reports—noticeable during live camera switching but acceptable for hotel-style video loops and movie distribution.

Setup is handled either through front-panel controls or by connecting the unit to a PC via Ethernet and using Thor’s proprietary GUI. Owners who have replaced older PVI Vecoax MiniMod2 units report better picture quality and no audio distortion with the Thor unit. The Ethernet port also allows remote adjustments, which is useful for integrators managing multiple modulators across a campus. The F-type output connects directly to any coax distribution system, and the unit can be combined with an existing antenna or cable feed.

The primary limitation is the lack of 4K passthrough—the Thor unit encodes at 1080p maximum, which means any 4K source must be downscaled before it enters the modulator. For most distribution scenarios this is acceptable, but if you aim to distribute native 4K signals to modern TVs that can decode higher resolutions, you will need to look at newer hardware. Some owners also note that the Ethernet setup can be finicky on closed networks without DHCP, requiring manual IP assignment via a direct PC connection.

Check Price on Amazon

The MINIMOD 2 from Vecoax (PVI) is the most refined HDMI-to-coax modulator in this lineup. It accepts a 1080p HDMI source and re-encodes it with Dolby Digital audio, then injects the resulting RF channel into an existing coax network. The color display on the front of the unit lets you set the channel number and name without needing a laptop—a significant convenience for field installations. Owners report that the MINIMOD 2 produces the best picture quality of any modulator they have tested, with compression artifacts that are comparable to commercial cable TV broadcasts when viewed on RV or secondary televisions.

The unit combines the modulated channel with existing antenna or cable signals, so TVs can tune both the new channel and whatever broadcast channels were already on the coax. This is critical for motorhome installations where a single cable feeds an antenna booster. Several owners note that the default output mode is set to cable (QAM) and must be switched to ATSC OTA mode for the new channel to appear when scanning over-the-air. Once configured correctly, the MINIMOD 2 delivers a stable 1080p channel to every TV without requiring a separate converter box at each display.

Where the MINIMOD 2 falls short is audio compatibility with some satellite receivers. A few owners report that the unit does not properly handle AC3 audio from DirecTV boxes, resulting in a silent or distorted channel. The recommended workaround is to set the source device to PCM audio output, which the MINIMOD 2 encodes into Dolby Digital without issue. The price is also the highest in this guide, positioning it as a specialist tool for installers who need guaranteed picture quality and a fast, display-based setup in environments like RV parks, church buildings, and small hotels.

Check Price on Amazon

The HDHomeRun Flex Quatro takes a fundamentally different approach to TV distribution. Instead of modulating HDMI into an RF coax channel, it connects to an over-the-air antenna via coax input and streams the received channels over your home Ethernet network. Four ATSC 1.0 tuners mean four separate TVs or devices can watch four different live channels simultaneously—or one device can record multiple shows to a connected USB hard drive. The Flex Quatro is not a modulator in the traditional sense, but it solves the same core problem: getting live TV to multiple displays without a separate box at each TV.

Setup is famously fast: connect an antenna, plug in Ethernet, and download the HDHomeRun app on any Android, FireTV, AppleTV, Roku, or Windows device. The app provides a cable-like TV guide with a one-time guide subscription available for automatic DVR scheduling. Owners consistently rate the HDHomeRun app as more stable and faster than competing solutions like Tablo or Sling AirTV. Channel changes are nearly instant, and the picture quality matches what a direct coax connection from the antenna to a single TV would deliver.

The limitations are network-dependent. Because the Flex Quatro streams over Wi-Fi or Ethernet, a weak home network will produce buffering or pixelation. The device also lacks ATSC 3.0 tuners, which means it cannot receive the newer, higher-bitrate broadcast channels that some markets are rolling out. For owners who already have a strong wired network and want to avoid running coax to every TV, the HDHomeRun Flex Quatro is a cleaner, more flexible alternative to a traditional RF modulator—but it requires a compatible streaming device at each TV, unlike a coax modulator that works with the TV’s built-in tuner.

Check Price on Amazon

The AV Access 4KMX44-H2 is a full HDMI 2.0 matrix switch that routes four 4K@60Hz sources to four separate displays, with each output supporting independent downscaling from 4K to 1080p. This is not a modulator—it distributes video over HDMI cables, not coax—but it solves the same multi-room distribution challenge for installations where running HDMI is feasible. The built-in downscaler is particularly valuable in mixed-resolution environments: a 4K Apple TV can feed one 4K display at full resolution while simultaneously sending a downscaled 1080p signal to an older projector in another room.

Each of the four HDMI outputs includes a dedicated SPDIF optical audio extractor, allowing soundbars or amplifiers to receive 5.1-channel audio independently of the video signal. This eliminates the need for a separate audio extractor at each display location. The matrix supports EDID management presets and smart EDID assignment to prevent the common installation headaches of black screens or audio mismatches when a source connects to multiple displays with different capabilities. Control is available through front-panel buttons, IR remote, RS232, or IP/TCP API, making it integration-ready for professional automation systems.

Owner reports are overwhelmingly positive, with many noting that the AV Access matrix replaced several splitters and switches in their system. The primary complaint involves power cycling—some users find that the matrix must be power-cycled periodically to maintain audio sync with certain receivers and soundbars. This can be mitigated by placing the matrix on a switched outlet that powers off and on with the rest of the AV system. The IP interface has also been described as limited in functionality, so heavy automation users should test control commands before committing to a full deployment.

Check Price on Amazon

The OREI UHD-401MV is a 4×1 HDMI multi-viewer that takes four separate HDMI sources and combines them onto a single screen in quad, PiP, triple, or split-screen layouts. This is a different distribution problem than most modulators solve—rather than sending one source to many TVs, the UHD-401MV displays up to four sources simultaneously on one display. It outputs at 4K@60Hz and supports simultaneous digital optical and analog L/R audio extraction, which is useful for feeding audio to an external sound system while keeping the video clean.

Owners highlight the excellent video quality at 4K and the flexibility of the five display modes. The optical audio output supports DTS and Dolby Digital pass-through, and gamers have used the unit to extract audio from a PS5 Pro to an Astro A40 headset without noticeable degradation. The quad-view mode is popular in security camera and surveillance setups where operators need to monitor multiple camera feeds on a single display.

The main drawbacks center on the remote control interface. The on-screen menu is slow and unintuitive, and the buttons on the chassis are described as clumsy. Some owners report occasional black screens that require a power cycle via the remote to resolve. The unit is also sensitive to HDMI cable quality—cheap cables can cause intermittent signal loss, so budget for high-bandwidth HDMI cables when installing. Overall, the UHD-401MV is a purpose-built tool for multi-feed monitoring, not a general-purpose modulator for coax distribution.

Check Price on Amazon

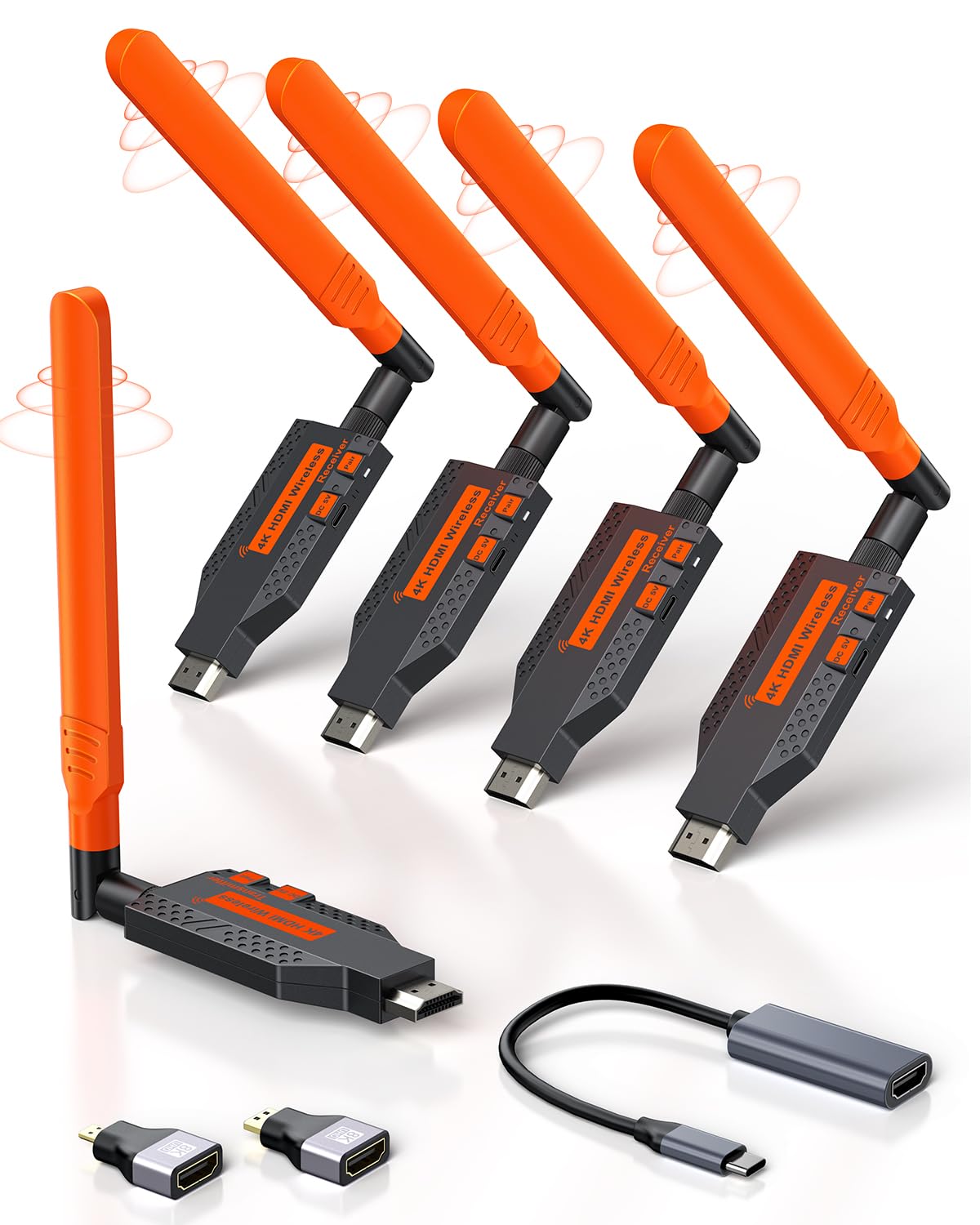

The Coolpie wireless HDMI system provides an alternative to coax distribution by transmitting video wirelessly from one source to up to four receivers. It accepts a 4K input but decodes and outputs at 1080p@60Hz, which makes it a practical choice for distributing a single streaming source to multiple displays in a bar, classroom, or event space without running any cables. The 5.8GHz single-band connection delivers a range of 165 feet in open air, with owners confirming solid performance at 70 feet through walls and floors.

Setup is genuinely plug-and-play—the transmitter and receivers are pre-paired, and simply connecting HDMI and USB power gets the signal flowing in seconds. The package includes a full set of adapters for mini HDMI, micro HDMI, and USB-C to HDMI, covering laptops, cameras, and tablets. Owners using the system for major events report flawless transmission over multiple sessions, with zero pixelation or audio dropout. The ultra-low latency of roughly 0.1 seconds is imperceptible for video playback and presentations.

Reliability is the weak point. A small but notable number of owners report the transmitter failing after a single use, with the unit refusing to pair again. The manufacturer has been responsive to these failures, providing immediate replacements. The range falls short of the claimed 350 feet in real-world conditions—closer to 70-100 feet for stable transmission. The unit also requires a 5V/1A power adapter for sustained operation; powering the receivers from a laptop USB port may cause instability. For budget-minded installations where wireless convenience outweighs absolute reliability, the Coolpie system delivers strong value.

Check Price on Amazon

The Visoud wireless HDMI system differentiates itself with a built-in LCD display on both the transmitter and receivers that shows connection status, signal strength, resolution, and power level in real time. This is a practical feature for installers troubleshooting placement or interference issues during setup. The system operates on 5.8GHz and 2.4GHz dual-band technology with automatic frequency hopping to avoid congested channels, and it claims a line-of-sight range of 492 feet. It accepts 4K input and decodes to 2K@60Hz output, offering higher resolution than the 1080p ceiling of many competing wireless systems.

Expandability is a strength—the system can support up to six receivers when additional units are purchased separately. The transmitter works with most HDMI-enabled sources, including laptops, TV boxes, and projectors. Owners who successfully paired the devices praise the straightforward plug-and-play nature and the excellent picture quality at 2K resolution. The package includes a wide array of adapters for different source devices, similar to the Coolpie system.

The biggest risk is inconsistent pairing success. Several owners report being unable to get the transmitter and receivers to pair at all, even after following the instructions closely. This suggests quality control variability in the manufacturing batch or a flaw in the pairing procedure. One owner switched to a different brand and had no issues, which is a red flag for reliability. The audio is stereo only, with no 5.1 channel support, limiting its use for home theater distribution. For installers who get a working unit, the Visoud system offers the longest advertised range and a useful diagnostic display; for those who receive a defective unit, the experience is frustrating.

Check Price on Amazon

The YUYUNLOMN G58F is a wireless HDMI system designed with heat dissipation as a priority—an unusual but thoughtful specification for devices that can run for hours in enclosed spaces. The transmitter supports up to six receivers out of the box (four included) and uses dual-band 2.4GHz/5GHz technology with external antennas for stable transmission. It accepts a 4K input and decodes to 1080p@60Hz output, with the manufacturer emphasizing that the unit remains cool to the touch even after prolonged use.

Owners consistently report flawless performance out of the box, with zero pairing issues and instant synchronization. The system is pre-paired, so connecting to a source and receivers is truly plug-and-play. The build quality is described as heavy duty, and the compact form factor (roughly the size of a deck of cards) makes it easy to mount behind a TV or projector. The transmission range is listed at 165 feet in open air, dropping to approximately 50 feet when connecting all four receivers simultaneously through walls—a realistic assessment that aligns with owner experiences.

The main physical drawback is the receiver bulk. Some owners note that the receiver units are too large to plug directly into tight HDMI ports on the back of a TV without an extension cable. The package includes HDMI extension cables, so this is a minor inconvenience rather than a dealbreaker. Power requirements are standard 5V/1A via USB-C, and the units can be powered from a TV’s USB port if the port can deliver enough current. The system also supports the TuTuPlay app for wireless screen mirroring to phones and tablets, though this feature is not the primary reason to choose this unit for distribution.
