A wooden post sitting directly in wet concrete is a ticking clock — moisture wicks up through the end grain, and within a few seasons you’re cutting out rotted, spongy lumber. Properly elevating that post off the slab or footing with a metal connector is the only way to guarantee a dry bottom and a long-lasting structure, whether you’re building a deck, a pergola, or a heavy-duty fence gate.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I’ve spent years comparing connector hardware specifications, studying load-test data from the IPIA and ASTM standards, and cross-referencing thousands of owner reviews to separate the anchors that actually hold from those that rust out in a single winter.
After evaluating gauge thickness, coating durability, anchor-bolt compatibility, and real-world uplift resistance, the following list represents the most reliable 4×4 post base for concrete options currently on the market that deliver genuine structural value without overpaying for brand logos.
How To Choose The Best 4×4 Post Base For Concrete
Choosing a post base is not about picking the shiniest bracket. The connector’s gauge, its coating, the standoff height, and the hardware it ships with directly determine whether your deck railing stays level or your pergola develops a lean. Understand these four criteria before you buy.
Steel Gauge — 16-Gauge vs 13-Gauge vs 11-Gauge
Gauge numbers are inverse — a lower number means thicker steel. Budget options often use 16-gauge material (around 1.5 mm), which is adequate for light-duty mailbox posts or short fence pickets. Mid-range and premium bases jump to 13-gauge (2.3 mm) or even 11-gauge (3 mm). The extra thickness resists bending under lateral wind loads and prevents the bracket wings from spreading open when fully loaded.
Coating Type and Corrosion Protection
Concrete is alkaline and traps moisture against the metal. Standard galvanizing offers decent protection, but ZMAX galvanizing — a proprietary Simpson Strong-Tie finish with a thicker zinc layer — provides significantly better corrosion resistance for treated lumber contact. Powder-coated black finishes look clean but can chip during bolt tightening; exposed steel then becomes a rust starting point. For coastal areas or wet basements, prioritize galvanized coatings over painted finishes.
Standoff Height and Moisture Gap
The standoff is the gap between the bottom of the wood post and the concrete surface. A 1-inch standoff meets most building codes for structural posts in basements or exterior applications because it allows airflow and prevents standing water from wicking into the post. Products without a raised bottom (flat bases) do not provide this critical gap — avoid them for any ground-contact installation.
Hardware Quality and Anchor Compatibility
Many post bases come with expansion anchors and self-tapping screws. The quality of these fasteners varies wildly. Premium connectors typically include hardened steel expansion bolts that bite cleanly into concrete. Budget kits often include soft-threaded screws that strip under torque. If the provided hardware feels flimsy, upgrade to 3/8-inch or 1/2-inch concrete wedge anchors separately — the fastener investment is cheaper than replacing a collapsed structure.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| AXWHYS 4-Pack (B0BGXT52DG) | Premium 4-Pack | Best Overall heavy-duty deck builds | 13-gauge steel, partition bottom, 5.4 in height | Amazon |
| TPSHKE U-Shape 4-Pack | Premium U-Shape | Wet-set concrete embedment | 3mm (11-ga) thickness, patented H-design | Amazon |
| AXWHYS 4-Pack (B0BJNKXSQQ) | Mid-Range 4-Pack | Pergola and gazebo anchoring | Solid steel, black powder coat, 16 anchors included | Amazon |
| SPACEEUP 2-Pack | Mid-Range 2-Pack | Small decks and porch railings | 2.1 mm thick steel, matte black finish | Amazon |
| Simpson Strong-Tie ABA44Z | Entry-Level Single | Code-compliant standoff for single posts | 16-gauge steel, 1-inch standoff, ZMAX coating | Amazon |
In‑Depth Reviews
1. AXWHYS 4×4 Post Base 4 Pcs (B0BGXT52DG)
This 4-pack from AXWHYS strikes the hardest balance between thickness and value. At 13-gauge carbon steel (about 2.3 mm), the walls resist spreading even when you cinch down heavily on the bolts. The partition at the bottom lifts the post away from the concrete floor — a detail that budget brackets skip entirely — and the small internal square box adds a secondary stabilizing contact point that reduces wobble during installation.
The kit ships with 24 expansion anchors for concrete, 24 socket-head wood screws, and 32 self-tapping screws, plus a wrench. That’s enough hardware to seat four posts on a single slab without a separate trip to the hardware store. Owners note the black powder coating held up through a winter of road-salt spray, though the manufacturer recommends sticking with the provided mounting sleeves rather than using contractor-grade Tapcons, which can rust where they pierce the paint layer.
One minor complaint from customers: the internal width of 3.6 inches requires a standard treated 4×4 to fit snugly with no slop, but if your lumber is on the larger side of the sizing tolerance (some treated 4x4s measure 3.625 inches), you’ll need a few passes on the table saw. That tight fit also means zero lateral play, which is exactly what a railing or deck base needs.
What works
- 13-gauge steel feels genuinely heavy-duty and resists bending
- Partition bottom prevents wood-to-concrete contact
- Comprehensive hardware kit covers concrete and wood mounting
What doesn’t
- Oversized 4×4 lumber may require table saw trimming
- Powder coating can chip if bolt heads are overtightened

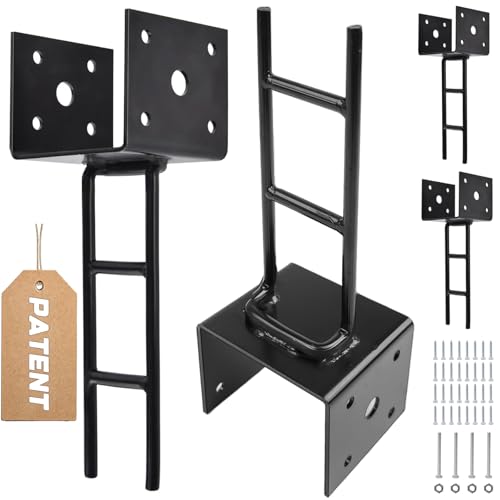

2. TPSHKE U Shape Post Anchor 4 Pack
The TPSHKE anchor is the only unit in this lineup that uses 11-gauge steel — a full 3 mm thick — and it earns the “Heavy Duty” tag honestly. Instead of a standard U-channel, the patented H-shaped design incorporates two horizontal bars at the bottom that increase the welding surface area and reduce flex under extreme uplift loads. If you are setting posts for a gazebo that will catch high winds, this bracket is the most overbuilt option here.
The design is intended for wet-set concrete installation: you insert the U-shape anchor directly into fresh concrete, let it cure, and then drop the trimmed post into the slot. The 10 pre-drilled holes on each side give you ample flexibility for bolting through the post, and the included M6x40mm self-tapping screws bite cleanly into wood. For retrofit slab mounting, the base plate still works with expansion anchors, though the footprint is larger than typical standoff bases.
Owner feedback is overwhelmingly positive, with several buyers using these 4×4 anchors to repair rotted post ends by cutting the damage off, pouring a small concrete pad, and setting the bracket directly. The only knock is that the black powder coating is adequate but not as chip-resistant as galvanizing — a few shipments arrived with minor scuffs, though no rust was reported after six months of exposure.
What works
- 3mm thickness is the thickest in this guide
- H-shaped weld joint resists uplift spreading
- Works for both wet-set and retrofit mounting
What doesn’t
- Coating is prone to minor cosmetic scuffs
- Larger footprint may feel bulky on narrow footings
3. AXWHYS 4×4 Post Base 4 Pcs (B0BJNKXSQQ)
This second AXWHYS 4-pack sits in a mid-range price point but uses a similar partition-bottom and powder-coated construction as the premium 4-pack above. The key difference is steel thickness — this unit uses a slightly lighter steel than the 13-gauge premium option, though it still feels noticeably heavier than the 16-gauge Simpson product. For pergolas, mailbox mounts, and light-to-medium deck railing, it delivers more than enough rigidity.
The included accessories are generous: 16 expansion anchors for concrete floors, 16 socket-head wood screws for the wooden subfloor option, and 32 Phillips-head self-tapping screws for fixing the post to the bracket. A wrench is also supplied. Owners report that the bolts provided are a step above the usual bargain-bracket hardware — the expansion anchors seat firmly without stripping the hex head — though for a main structural beam you’ll still want to swap to 3/8-inch wedge anchors for absolute peace of mind.
The internal 3.6-inch width fits most standard pressure-treated 4×4 lumber. A small number of buyers noted that the black paint can arrive with minor shipping wear, but the underlying carbon steel is still protected by the coating layer. The 5.5-inch height is sufficient for most residential standoff needs, and the square-box internal rib adds a satisfying click when the post drops into place.
What works
- Per-unit cost is excellent for a solid-steel 4-pack
- Partition bottom prevents direct wood-to-concrete contact
- Plentiful hardware included with decent anchor quality
What doesn’t
- Steel gauge is lighter than the premium 13-gauge option
- Coating scuffs easily during installation
4. SPACEEUP 4×4 Post Base 2 Pcs
The SPACEEUP post base comes in a 2-pack that is ideal for smaller builds — a single porch step, a mailbox post, or a modest pergola that doesn’t require a full 4-pack. The steel thickness measures 2.1 mm, which sits between 14-gauge and 13-gauge; it is noticeably sturdier than the 16-gauge Simpson but not as thick as the premium AXWHYS or TPSHKE options.
The matte black powder coating provides a clean, modern look that blends into dark-stained decking. The bracket’s height of 5.4 inches and internal width of 3.6 inches match typical 4×4 nominal lumber. One area where the SPACEEUP lags behind the competition is fastener quality: the included expansion bolts have a narrower shaft diameter than standard 3/8-inch anchors, and several owners reported a larger-than-expected gap between the post and the bolt holes, which allowed a slight racking motion before the screws were fully torqued.
Customer reviews consistently highlight the value proposition — at roughly a third of the per-unit cost of Simpson Strong-Tie at a local big-box store, the SPACEEUP anchors hold well for light-duty applications. However, if you are building a railing that will see lateral force from leaning or heavy wind, the looser bolt tolerance becomes a notable drawback. Use these for fence posts, planter supports, or low-traffic railings.
What works
- Very low per-unit cost compared to name-brand alternatives
- 2.1mm steel is a step above entry-level 16-gauge
- Matte black finish looks clean and modern
What doesn’t
- Expansion bolt holes can leave a loose gap around the post
- Included anchors are narrower than standard wedge bolts

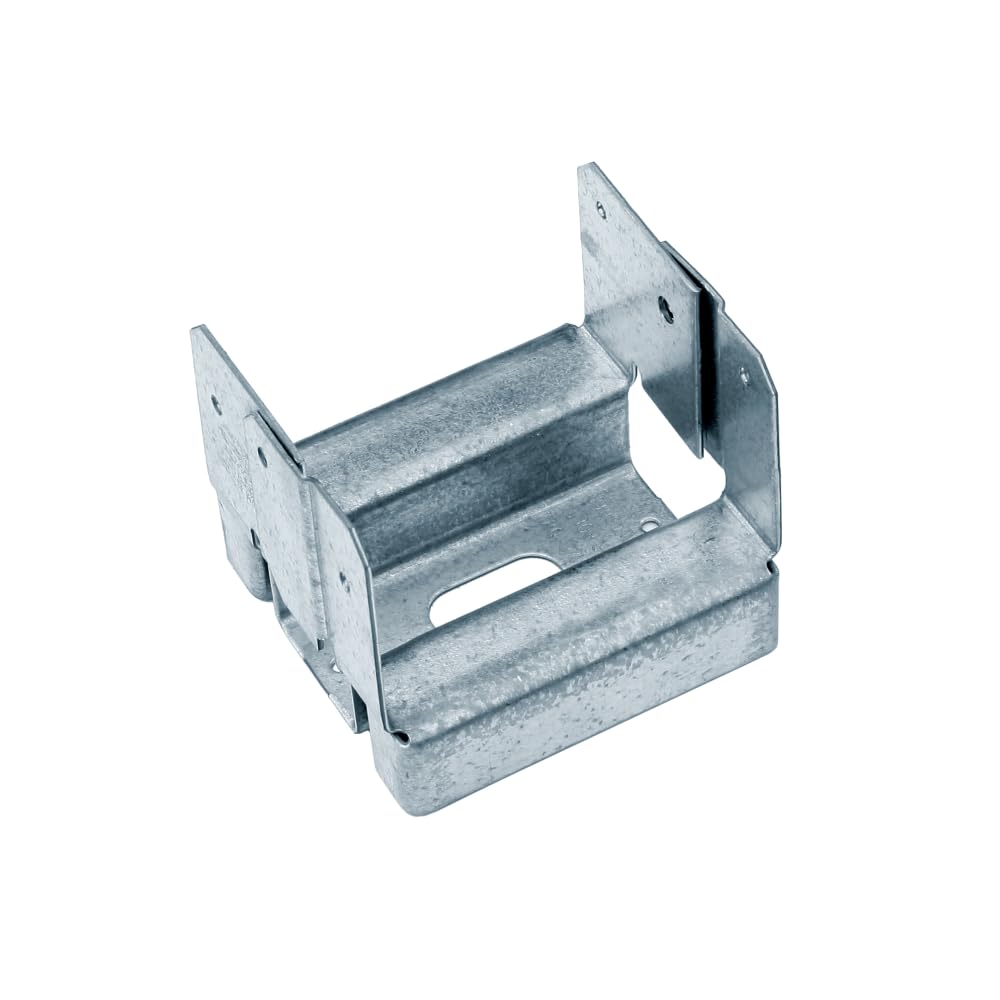

5. Simpson Strong-Tie ABA44Z
The Simpson Strong-Tie ABA44Z is the only single-post option in this guide, and it earns its keep with engineering you can trust. The 1-inch standoff meets ICC-ES code requirements for structural posts in basements and exterior applications — a detail that matters if you are pulling a permit. The adjustable slot in the base allows you to slide the anchor bolt position by about 1/2 inch in either direction, which is invaluable when your concrete anchor bolt missed the exact center of your layout.
Made from 16-gauge steel with Simpson’s proprietary ZMAX galvanized coating, this base provides superior corrosion resistance compared to standard galvanized or powder-coated finishes. The galvanizing extends the service life significantly when the bracket is exposed to treated-lumber chemicals, which are highly corrosive to uncoated steel. The uplift load capacity is rated higher than most budget 4-packs because the steel composition is precisely controlled rather than stamped from generic sheet metal.
The downside is pure economics: buying a single ABA44Z costs nearly as much as a full 2-pack of SPACEEUP brackets. For a small project requiring just one or two posts — a mailboox or a single railing end — the Simpson is a worthy investment. For a full deck with 8 posts, the per-unit cost becomes prohibitive. Owners unanimously praise the quality: “this is the real 4×4 post base, strong stuff,” one verified review notes, and the galvanized finish shows zero corrosion after years of exposure.
What works
- ZMAX galvanizing resists treated-lumber corrosion exceptionally well
- 1-inch standoff meets structural building codes
- Adjustable anchor slot simplifies installation with misaligned bolts
What doesn’t
- Expensive on a per-unit basis
- Only rated for nominal 4×4 lumber — no oversized lumber tolerance
Hardware & Specs Guide
Steel Gauge & Thickness
Gauge numbers work inversely — 11-gauge is thicker than 16-gauge. For most residential deck and pergola applications, 13-gauge (2.3 mm) is the sweet spot: it is thick enough to resist spreading under lateral load without being so heavy that drilling pilot holes becomes a chore. Entry-level 16-gauge (1.5 mm) works for light-duty mailbox posts but can flex under heavy wind or leaning loads. The TPSHKE U-shape stands alone at 3 mm (11-gauge), which is overkill for most projects but ideal for high-wind coastal areas.
Standoff Height & Bottom Partition
A 1-inch standoff is the standard required by most building codes for structural posts in basements or exterior concrete applications. Products with a solid flat bottom (no gap) allow water to sit between the post end and the concrete, wicking moisture up and rotting the wood from the inside out. The best designs — like both AXWHYS 4-packs — include a raised internal partition that physically separates the wood from the concrete surface, providing a ventilation gap that extends post life by years.
FAQ
Can I install a 4×4 post base on existing hardened concrete?
Does a 4×4 post base need to be bolted to the concrete or can it be embedded?
What size concrete anchor do I need for a 4×4 post base?
Is ZMAX galvanizing better than powder coating for concrete contact?
Final Thoughts: The Verdict
For most gardeners and DIY builders, the 4×4 post base for concrete winner is the AXWHYS 4-Pack (B0BGXT52DG) because it combines proper 13-gauge thickness, a wood-saving partition bottom, and a full hardware kit at a per-unit cost that beats big-box store singles. If you want an overbuilt bracket that handles high wind and extreme uplift, grab the TPSHKE U-Shape 4-Pack with its 3 mm steel and patented H-design. And for a single code-compliant post where engineering certification matters, nothing beats the Simpson Strong-Tie ABA44Z with its ZMAX galvanizing and adjustable anchor slot.
