The biggest pain with watering a garden isn’t the heat—it’s hauling a hose around and watching half the water evaporate before it hits the soil. Whether you are fighting dry patches on a lawn, keeping raised beds alive through a heat wave, or setting up a greenhouse, the gear you choose dictates how much time and water you waste. An oscillating head, a drip line, or an impact sprinkler all serve fundamentally different jobs, and picking the wrong type doubles your effort.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I spend my days comparing market analysis reports, studying aggregate owner feedback across hundreds of real-world setups, and cross-referencing technical specs like GPH flow rates, PSI ranges, nozzle counts, and tubing diameters to find what actually holds up season after season.
This guide cuts through the noise to give you a data-backed shortlist of the best above ground garden sprinkler systems available today. best above ground garden sprinkler systems cover drip kits for precision watering, gear-drive units for broad lawn coverage, and impact tripods for deep-root orchard soaking—so you can match your setup to your garden’s actual layout and water pressure.
How To Choose The Best Above Ground Garden Sprinkler Systems
The first decision is simple: are you watering a lawn surface, a grid of raised beds, or individual trees? Each scenario demands a different delivery mechanism—oscillating heads for rectangular lawns, drip tubing for root-zone targeted irrigation, and impact sprinklers on tripods for tall crops and wide orchard arcs. Ignoring this fit is why many kits end up relegated to the garage after a single season.
Match the system to your water source pressure
A drip kit with push-to-connect fittings works reliably between 20 and 80 PSI, but an oscillating sprinkler with 20 precision nozzles needs at least 40 PSI to reach its rated 4,900 sq. ft. coverage. Check your outdoor spigot’s static pressure with a cheap gauge before buying. Systems that require high flow (GPM) lose coverage fast on low-pressure supply lines—especially if you plan to daisy-chain multiple heads.
Decide between barbed, quick-connect, or push-to-connect fittings
Barbed connectors are the old standard but require soaking tubing in hot water to soften the polyethylene—a genuine frustration. Quick-connect fittings (plug-and-play with locking collars) cut installation time by roughly 80% compared to barbs. The latest push-to-connect fittings use internal O-rings and locking clips that grip tubing instantly without tools, and they resist pop-offs during pressure fluctuations. For a beginner who wants a weekend project instead of a multi-day ordeal, push-to-connect is the clear upgrade.
Evaluate coverage pattern and adjustability
Gear-drive sprinklers offer adjustable arcs from 25° to 360° and can throw water up to 50 feet in diameter, making them ideal for irregularly shaped lots. Impact sprinklers with brass heads give you a consistent rotating stream and can cover up to 86 feet of radius if your pressure is above 20 PSI—but they produce heavier droplets that work best on bare soil or established lawns, not delicate seedlings. Drip emitters, on the other hand, let you fine-tune flow per plant using stream or vortex nozzles, which eliminates overspray and evaporation almost entirely.
Check the mainline diameter and total tubing length
A kit with a 1/2-inch mainline can carry up to 200 GPH, while 5/16-inch or 1/4-inch branch lines reduce flow proportionally. If you are covering more than 50 feet of mainline run, look for a system that starts with at least 50 feet of 1/2-inch tubing before splitting into smaller branch lines. Kits that skimp on the mainline length force you to tee everything off a thin hose, which starves emitters at the far end of the run.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Eden 96216 | Oscillating | Large lawns, wide rectangular coverage | 4,900 sq. ft. coverage | Amazon |
| RESTMO Gear Drive (2 Pack) | Gear Drive | Adjustable arcs, irregular yard shapes | 50 ft diameter, 360° arc | Amazon |
| Triumpeek Impact Tripod (2 Pack) | Impact | Orchards, large gardens, tall crops | 86 ft max throw radius | Amazon |
| Bonviee Drip System | Drip | Raised beds, pots, greenhouses | 230 ft total tubing | Amazon |
| Spalolen Push-to-Connect Kit | Drip | Leak-free DIY layouts, beginners | 50 ft 1/2″ mainline | Amazon |
| MIXC 230FT Kit | Drip | Versatile layouts, three emitter types | 230 ft total tubing | Amazon |
| Landtouch Drip Kit | Drip | Entry-level kits, small plots | 140 ft total tubing | Amazon |
In‑Depth Reviews
1. Eden 96216 Heavy Duty Turbo Oscillating Sprinkler
The Eden 96216 earns the top spot because it bridges the gap between a simple oscillating head and a full irrigation controller. Its 20 precision nozzles distribute water evenly across nearly 5,000 sq. ft., which is enough to cover a half-acre lot without moving the sprinkler. The metal base and stainless steel construction give it a durability advantage over all-plastic oscillators that crack after one summer of UV exposure.
Three on/off nozzle switches on each side let you trim the spray width down to a narrow strip, and the sliding range tabs adjust the throw length on the fly. This means you can water a 50-foot-long rectangular lawn without soaking the driveway or the house foundation. The flow control knob provides fine pressure regulation, so you can dial down the intensity for newly seeded areas without swapping heads.
Note that the maximum recommended pressure is 40 PSI—above that, the internal turbine may overspeed and reduce longevity. If your spigot runs at 60-80 PSI, install a pressure reducer inline. The quick-connect starter set is a nice inclusion, letting you swap between hose attachments in seconds. For a mid-range investment, this unit delivers the best coverage-to-cost ratio in the oscillating category.
What works
- Triple nozzle switches for precise width control prevent overspray onto hardscapes
- Sliding range tabs allow targeted watering without complex tools
What doesn’t
- 40 PSI pressure ceiling requires a regulator on high-pressure systems
- All-plastic end caps feel less robust than full-metal competitors
2. RESTMO Gear Drive Sprinkler with Metal Spike Base (2 Pack)
The RESTMO gear-drive pair is built for gardeners who need to change patterns frequently without disassembling the head. The five spray options—Jet, Flat, Cone, Full, and Vertical—cover everything from a focused stream for deep root soaking to a gentle mist for flower beds. The adjustment collar rotates through a 25° to 360° arc, which makes it one of the most flexible units for irregularly shaped yards.
What sets the RESTMO apart from most plastic spike sprinklers is the zinc alloy metal spike base. It drives into turf or soil with a simple foot press and stays put even at high water pressure. The flow-through design lets you connect multiple sprinklers in series, so you can cover a long, narrow strip without moving the hose. Each unit can throw water up to 50 feet in diameter, covering roughly 1,900 sq. ft. per head.
Owner feedback shows that some units can stop rotating after a few months of use, but RESTMO’s 18-month warranty and responsive email support handle replacements smoothly. The high-impact plastic housing withstands accidental knocks from lawn equipment better than thinner oscillating models. For a two-pack at a mid-range price, the versatility per dollar is hard to beat.
What works
- Five distinct spray patterns adapt to different plant types without nozzle changes
- Zinc alloy spike base provides stable anchoring even in loose soil
What doesn’t
- Occasional rotation failures reported, though warranty service is reliable
- High-impact plastic housing may feel less premium than full-metal impact heads
3. Triumpeek Impact Sprinkler on Tripod Base (2 Pack)
When you need to water tall crops, orchards, or large garden blocks without changing the sprinkler position, the Triumpeek impact head on a tripod is the right tool. The brass sprinkler head is inherently more durable than plastic gear mechanisms, and the 3/4-inch NH inlet handles higher flow rates without restriction. The two-pack includes all hardware—sprinkler heads, tripods, and ground stakes—assembled into two complete units.
The adjustable tripod legs offer three height settings from 19.7 to 37 inches, letting you raise the head above tomato cages or bushy shrubs for unobstructed water throw. The rotating silver rings control the arc from 0° to 360°, and the deflector shield fine-tunes the stream distance. At 80 PSI maximum pressure, the unit can reach up to 86 feet in radius—more than enough for large gardens.
Some buyers reported that the heads stopped rotating after limited use, which is a known weak point with budget impact sprinklers. The included filter screen seal at the inlet helps prevent nozzle clogging from dirty water, which is a leading cause of internal wear. If you maintain clean water and stay within the 20-80 PSI range, these tripod units will last several seasons. They are the best option for overhead irrigation on tall plants where ground-level drippers would be blocked.
What works
- Brass head and 3/4-inch inlet handle high flow and resist corrosion better than plastic impact heads
- Adjustable tripod height clears tall crops for unobstructed 360° coverage
What doesn’t
- Some units stop rotating after a few uses, indicating inconsistent manufacturing quality
- Fragile feel in the plastic tripod assembly may not survive accidental drops
4. Bonviee Drip Irrigation System 230FT
The Bonviee kit delivers 230 feet of total tubing—197 feet of 1/4-inch line plus 33 feet of 5/16-inch mainline—which gives you enough length to snake through multiple raised beds or a greenhouse layout. The quick-connect fittings push and lock without tools, eliminating the barbed-frustration problem. A hose timer can be attached directly to the faucet connector, turning the system into an automatic watering setup for vacations or busy weeks.
The kit includes three types of adjustable stake sprayers: stream emitters for targeted root watering, vortex emitters for wider coverage, and misting nozzles for humidity-sensitive plants. Each emitter can be individually adjusted, so you can give tomatoes a deep drip while keeping lettuce rows on a lighter mist. The 5/16-inch mainline offers slightly higher flow capacity than standard 1/4-inch-only kits, reducing pressure drop across long runs.
Owner reviews consistently highlight the ease of installation and the completeness of the kit—no additional trips to the hardware store for missing connectors. The tubing is UV-resistant polyethylene that won’t become brittle after one summer of sun exposure. For a premium-priced drip kit that is ready to automate, the Bonviee is a strong contender for anyone with long, complex garden layouts.
What works
- Quick-connect fittings install in minutes without soaking tubing in hot water
- Three emitter types provide flexibility across different plant watering needs
What doesn’t
- 5/16-inch mainline is less common than 1/2-inch, limiting expansion parts availability
- No included pressure regulator, so high PSI systems may need an add-on

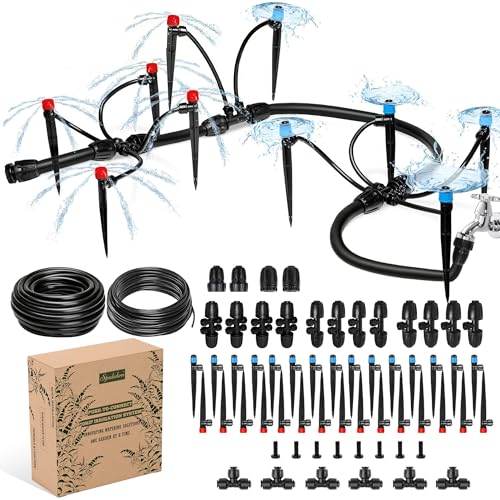

5. Spalolen Push-to-Connect Drip Irrigation System Kit
The Spalolen kit solves the two biggest annoyances with traditional drip systems: difficult barbed fittings and leak-prone connections. The push-to-connect fittings lock tubing in about one second using internal sealing O-rings and locking clips. The result is a system that resists pop-offs when pressure fluctuates and eliminates the need to heat tubing for installation—a genuine time-saver for first-time drip users.
With 50 feet of 1/2-inch mainline and 100 feet of 1/4-inch branch tubing, the kit provides better flow stability at the far end of the run compared to kits that start with only 33 feet of mainline. The 30 included emitters split evenly between stream and vortex types, giving you both targeted root irrigation and wider coverage modes. Two faucet adapters and multiple splitter fittings let you branch off in different directions from a single water source.
The kit is designed for a single DIY weekend project: you can lay the mainline, tee into branch lines, and stake emitters at each plant in an afternoon. The UV-resistant polyethylene retains its flexibility in direct sun. If you need to expand later, Spalolen offers compatible fittings. For a mid-range price, the push-to-connect feature alone justifies the purchase for anyone who values setup speed over the old barbed method.
What works
- Push-to-connect fittings cut installation time drastically—no soaking or force required
- 50-foot 1/2-inch mainline supports longer runs without pressure drop at the far emitters
What doesn’t
- Plastic emitters may clog if water source has heavy sediment without a filter
- Kits are manual pressure-driven—no built-in timer or automatic shut-off
6. MIXC 230FT Quick-Connect Drip Irrigation System Kit
The MIXC 230FT kit uses the newer quick-connect technology with a plug-and-play design that prevents leaks at junction points. The 197 feet of 1/4-inch tubing branches off a 33-foot 1/2-inch mainline, and the lock barbed Tee connectors secure firmly without loosening under pressure changes. The kit supports up to 32 drip emitters simultaneously, which is enough for a medium-sized vegetable garden or a greenhouse with multiple benches.
A standout feature is the inclusion of three distinct emitter modes: micro-droplets, sprays, and steady watering. Each emitter adjusts individually, so a single system can water shallow-rooted lettuce on a mist setting while delivering a steady stream to deep-rooted peppers. The 3/4-inch faucet connector provides full bore flow before the system splits into smaller lines.
Installation from box to full operation takes roughly 10 minutes if you follow the included instructions. The tubing is made from flexible PE plastic that cuts easily with scissors, and the stakes hold branch lines in place. One limitation is the 33-foot mainline, which is shorter than some premium kits—if your garden requires more than 30 feet of mainline run, you may need to combine two kits or buy an extension. For gardeners who want a balanced mix of three watering modes in one package, this is the most adaptable entry-level-to-mid kit available.
What works
- Three emitter modes (micro-droplet, spray, steady) cover different root depths within the same layout
- Lock barbed Tee connectors resist loosening under fluctuating water pressure
What doesn’t
- 33-foot mainline is shorter than premium kits, limiting runs without extensions
- Barbed fittings still require some hand force compared to full push-to-connect systems
7. Landtouch Drip Irrigation System 40FT/100FT
The Landtouch kit is the budget-friendly entry point for gardeners who want to test a drip system without a large upfront investment. It includes 40 feet of 1/2-inch mainline and 100 feet of 1/4-inch branch tubing—enough for a small raised bed setup or a couple of flower borders. The 92 total pieces include 30 emitters (10 vortex, 10 spray, 10 misting) plus all the connectors and stakes needed to complete a basic layout.
All fittings use quick connectors rather than traditional barbed drippers. According to the manufacturer, this design saves roughly 80% of installation time compared to barbed systems. The 1/2-inch mainline supports up to 200 GPH, which is more than adequate for a small plot. The kit comes with both paper and video instructions, making it accessible to complete beginners who may not have prior irrigation experience.
Some owners noted that the plastic components feel less durable than premium kits, which is expected at this price tier. The emitters are not individually labeled for flow rate, so you may need to experiment to dial in the right output per plant. Given the pricing, this is a low-risk way to evaluate whether drip irrigation fits your gardening routine before upgrading to a larger system with push-to-connect fittings or a hose timer.
What works
- Quick connectors replace barbed fittings, saving significant installation time for beginners
- Low-cost entry point lets users test drip irrigation without a large upfront expense
What doesn’t
- Plastic components feel less robust than mid-range and premium drip kits
- Emitter flow rates are not individually marked, requiring trial-and-error adjustment
Hardware & Specs Guide
1/2 vs 1/4 vs 5/16 inch tubing
Tubing diameter determines flow capacity and pressure drop across the run. A 1/2-inch mainline carries roughly 200 GPH, while 1/4-inch tubing drops to about 30 GPH. Use 1/2-inch for the supply line from the faucet to the garden, then branch off with 1/4-inch to individual plants. The 5/16-inch size sits between them and is used by some premium kits for a slight flow boost over standard 1/4-inch branch lines without the bulk of 1/2-inch.
PSI ranges and pressure regulation
Most drip systems operate best between 20 and 50 PSI. Oscillating and impact sprinklers usually need at least 40 PSI to throw water the full rated distance. If your home spigot delivers 60-80 PSI (common in many areas), install a pressure reducer at the faucet before connecting the system. Without regulation, high pressure can blow out drip fittings, cause misting instead of droplets, and shorten the lifespan of gear-drive units.
Emitters: stream, vortex, misting, and adjustable
Stream emitters deliver a narrow, targeted drip directly to the root zone—good for tomato cages or individual shrubs. Vortex emitters create a wider spray pattern for covering soil around groups of plants. Misting nozzles produce a fine fog ideal for greenhouses or humidity-loving ferns. Adjustable emitters let you rotate the head to switch between these modes. For a mixed garden, a kit with at least two emitter types offers the most practical flexibility.
Gear drive versus impact versus oscillating mechanisms
A gear-drive sprinkler uses an internal turbine to rotate the head slowly, producing a gentle spray that won’t erode soil. Impact sprinklers use a spring-loaded arm that hits the water stream, creating a rotating jet that can reach longer distances—up to 86 feet in radius. Oscillating sprinklers sweep a fan-shaped stream back and forth across a rectangular area. Choose gear drive for soil conservation, impact for distance and height, and oscillating for uniform rectangular coverage.
FAQ
Can I connect a drip irrigation system to a hose timer?
How do I prevent drip emitters from clogging?
What is the difference between a 1/2-inch and a 1/4-inch mainline?
Final Thoughts: The Verdict
For most gardeners, the best above ground garden sprinkler systems winner is the Eden 96216 because it delivers the highest coverage area per dollar with practical width and length controls that suit rectangular lawns. If you want to water tall crops or orchards with overhead spray, grab the Triumpeek Impact Tripod. And for precise root-zone irrigation in raised beds, nothing beats the Spalolen Push-to-Connect Kit with its tool-free, leak-resistant installation.
