Choosing to integrate an air purification system directly into your HVAC ductwork marks a serious upgrade from portable units — you gain whole-home coverage with a single installation, no floor clutter, and silent operation that works in concert with your existing furnace or air handler. But the technical leap from a plug-in appliance to a hardwired or duct-mounted system introduces variables that trip up even experienced homeowners: UV wavelength precision, ionizer technology trade-offs, voltage compatibility, and the real-world trade-off between lamp-based and carbon-cell designs.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I dig deep into the technical data sheets, study the latest HVAC-specific research on UVC efficacy and PCO catalysis, and cross-reference hundreds of verified owner experiences to separate durable, code-compliant hardware from gear that fails inside a season or two.
Whether you are retrofitting an existing handler or building a new system, this guide cuts through the marketing spin to help you select one of the best air purification systems for hvac integration that actually keeps your coils clean, your energy bills stable, and your indoor air genuinely healthier.
How To Choose The Best Air Purification Systems For HVAC Integration
An HVAC-integrated purifier is a long-term investment in your equipment and respiratory health. Choosing incorrectly means either insufficient air treatment or a failed component that leaves a gaping hole in your plenum. Focus on three decision pillars: the wavelength and power of the UV source, the secondary filtration or ionization technology, and the electrical compatibility with your existing system.
Wavelength, Wattage, and Placement
The germicidal UV spectrum sits at 254 nanometers (or 253.7nm for some lamps). This specific wavelength breaks down the DNA of mold, bacteria, and viruses as air passes the lamp. Wattage dictates the intensity: a 30W to 36W single lamp works for standard residential plenums (14–18 inches deep), while dual-lamp or 72W systems cover larger handlers or commercial-grade ductwork. Crucially, the lamp must be mounted downstream of the coil and as close to it as possible — if the UV light shines directly on the coil surface, it prevents biofilm accumulation that can slash efficiency by 37% in a thin 0.002-inch layer.
Secondary Technologies: PCO, Carbon, and Ionization
UV light alone handles biological contaminants but does little for VOCs (volatile organic compounds) from paint, carpets, or cleaning products. Photocatalytic Oxidation (PCO) uses a titanium dioxide catalyst activated by UV to break down VOCs and odors. Activated carbon cells physically trap gaseous pollutants and odors, then the UV self-cleans the cells — this is the most maintenance-friendly design. Bipolar ionization (needlepoint bi-polar ionization) releases charged ions that clump airborne particles together so your filter catches them more easily, but it does not actively destroy VOCs. Choose PCO or carbon if you have new construction, pets, or strong cooking odors; choose pure UV if your primary concern is coil hygiene and microbial control.
Voltage Class and Installation Path
Most in-duct purifiers run on either 24VAC (common for furnace control boards) or 120VAC (standard household outlet). 24V systems are safer for DIY integration if you can tap into the existing transformer, and they often include a remote power supply. 120V units need a nearby outlet and may require a licensed electrician. Always verify that the purifier ships with a power adapter matching your voltage range — some premium models come with a 24V transformer but can also work with 18–32 VAC. If you are not comfortable cutting into ductwork and wiring a low-voltage circuit, budget for professional installation: a licensed HVAC contractor is often required for warranty validation.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Coway Airmega 400 | Standalone HEPA | Whole-room coverage (no ducting needed) | 1,560 sq ft coverage (HEPA + Carbon) | Amazon |
| Fresh-Aire UV AKTIV8 | Dual-Lamp In-Duct | Full-spectrum UV + carbon oxidation | 11-inch full spectrum lamp + carbon catalyst | Amazon |
| RGF Reme Halo (24V) | Bipolar Ionization | Whole-home particle agglomeration | Needlepoint bi-polar ionization | Amazon |
| APCO Carbon Cell Matrix | UV + Carbon Cell | VOC and odor removal with self-cleaning cells | UV-C lamp + activated carbon matrix | Amazon |
| Halo LED Whole Home Kit | Bipolar Ionization | Low-power LED ionization with countdown timer | LED needlepoint ionization + 24V transformer | Amazon |
| Air Health Haven Plus | UV-C + PCO + Carbon | All-in-one treatment (UV + VOC + odor) | 30W UV-C (253.7nm) + PCO + carbon filter | Amazon |
| OdorStop OS72PRO | High-Wattage UV | Large ducts needing 72W total UV output | Two 36W UVC bulbs (254nm) | Amazon |
| iWave-R | Bipolar Ionizer | Maintenance-free ion generation | Needlepoint bi-polar ionization (no lamp) | Amazon |
| Fresh-Aire UV 24V System | Single-Lamp UV-C | Budget entry into coil UV protection | Single 254nm UVC lamp (24V) | Amazon |
In‑Depth Reviews
1. Coway Airmega 400 (AP-2015F)
While this is a standalone floor unit rather than an in-duct fixture, the Coway Airmega 400 deserves its “Best Overall” slot because it delivers 1,560 sq. ft. of coverage with a HyperCaptive filtration system that combines a pre-filter, active carbon filter, and true HEPA filter capturing 99.97% of 0.3-micron particles. The dual-intake design pulls air from two sides, making it efficient enough to cycle a large open-plan zone quickly without needing ductwork modifications. Smart Mode adjusts fan speed based on real-time sensor readings, and Eco Mode shuts the fan off after 30 minutes of clean air detection.
Verified owners consistently praise the near-silent operation on low speed, the noticeable reduction in dust accumulation, and the easing of allergy symptoms — including sinus congestion that improved substantially in an 800 sq. ft. open area. The magnetic front doors make filter swaps tool-free, and the build quality feels premium for the price. Automatic mode tends to stay blue most of the time in already-clean rooms, which some users found unhelpful, but the manual controls are straightforward.
This unit is not designed for duct integration, so if your absolute requirement is a hidden in-plenum device, look at the in-duct options further down. But for sheer air-cleaning horsepower per dollar, no other product in this lineup matches the combination of filter media, coverage area, and user-friendly intelligence that the Airmega 400 offers. It is the benchmark that every integrated system must beat on raw particulate removal.
What works
- Exceptional HEPA + carbon filtration for particles, allergens, and VOCs
- Near-silent operation on low speed
- Tool-free magnetic door access for filter changes
What doesn’t
- Standalone unit — does not integrate into HVAC ducts
- Replacement filter sets are pricey (lasts 6+ months)
- Auto mode rarely activates higher speeds in moderately clean rooms
2. Fresh-Aire UV AKTIV8 In-Duct System
The AKTIV8 steps beyond basic UV-C by pairing an 11-inch quartz-insulated oxidizing full-spectrum lamp with an activated carbon catalyst. This combination actively treats biological contaminants on the coil surface while also breaking down VOCs and odors — a capability missing from standard single-wavelength UV fixtures. The 2-year lamp life is a genuine differentiator: most residential UV bulbs need annual replacement, so this effectively halves the long-term consumable cost. The unit operates on 24VAC and comes with a duct board kit for mounting in metal or fiberglass plenums.
Owners report significant mold elimination in humid climates, with one user noting that the cost of replacing bulbs every two years is negligible compared to health expenses from mold exposure. Professional installation is recommended, and some buyers found the 24V wiring trivial if they had basic electrical comfort. A small number of units arrived with defective bulbs, and the manufacturer’s customer service has been described as slow for warranty claims, so verify the lamp illuminates immediately after installation.
If your priority is a combination of biological control and VOC reduction with the longest possible interval between lamp changes, the AKTIV8 is the smartest mid-range choice. The carbon catalyst adds a layer of chemical remediation that pure UV systems cannot match, and the 2-year lamp cycle makes the total cost of ownership competitive with cheaper units that burn bulbs annually.
What works
- 2-year lamp life saves money on replacements
- Full-spectrum UV + carbon catalyst for VOCs and odors
- Easy 24V connection with included duct board kit
What doesn’t
- Manufacturer customer service is slow for warranty claims
- Not recommended for DIYers without electrical experience
- Larger footprint in plenum (21.56 x 8.37 x 8.5 inches)
3. RGF Reme Halo (24 Volt) In-Duct System
The RGF Reme Halo is the most widely recognized name in residential bipolar ionization. It uses needlepoint bi-polar ionization combined with an enhanced zinc catalyst to produce ionized hydro-peroxides that travel through the ductwork and agglomerate particles so the existing filter catches them more efficiently. The newest version features a tool-free cell replacement design, adjustable output, and a built-in countdown timer that shows remaining lamp life. It installs directly into the supply plenum and requires a 24VAC connection, making it compatible with most standard furnaces and air handlers.
Verified feedback highlights dramatic reduction in pet odors and noticeable improvement in overall air freshness. One user reported that dog allergies in the household improved within two days. The unit is extremely compact at 17 x 11 x 11 inches and weighs essentially nothing, so it fits into tight plenum spaces. However, the major caveat is that RGF does not honor the warranty for units purchased online from unauthorized resellers — multiple buyers reported spending + on two units that failed within six months with zero manufacturer support.
If you buy this unit, confirm the seller is an authorized RGF distributor, or accept that you are essentially getting a no-warranty product. When it works, the Reme Halo is one of the most effective particle-agglomeration systems available. The technology is passive (no UV lamp to change), but the cell still needs eventual replacement. It is a trade-off: no bulb cost but a higher upfront price and a stricter purchase channel requirement.
What works
- Extremely effective at reducing pet dander, dust, and odors
- No UV lamp to replace — passive ionization cell
- Compact size fits tight plenum spaces
What doesn’t
- Manufacturer warranty voided on non-authorized online purchases
- Does not actively destroy VOCs or mold (only agglomerates particles)
- Some units failed within months of installation
4. APCO Carbon Cell Matrix UV Air Purifier
The APCO (Advanced Photocatalytic Oxidation) system from Fresh-Aire UV uses a matrix of activated carbon cells positioned in front of a UV-C lamp. As air passes through the carbon cells, odors and VOCs are adsorbed, and the UV light continuously catalyses the trapped contaminants, keeping the cells self-cleaning and maintenance-free. This is the only residential unit in this lineup that combines a replaceable UV lamp with a permanent carbon medium — no filters to buy, no media to replace. The whole assembly mounts in the supply plenum and comes with a 1-year water-resistant shielded UV-C lamp.
Feedback from owners is overwhelmingly positive, with consistent reports of improved breathing, reduced airborne germs, and cleaner-smelling air. The technology was originally developed for NASA plant-growth chambers, which adds credibility to its effectiveness. The unit requires a 18-32 VAC connection (0.68 Amps, 16 VA) and must be installed by a licensed contractor per the manufacturer — warranty support is tied to professional installation. A few users experienced short-circuit failures or difficult refund processes with third-party sellers, so purchasing directly from Fresh-Aire UV or an authorized distributor is strongly advised.
If you want an in-duct system that handles both biological contaminants AND gaseous pollutants without ever needing to replace a carbon filter, the APCO Matrix is the most maintenance-friendly design on the market. The upfront cost is higher than a basic UV fixture, but the total cost of ownership over 5 years will likely be lower because you are only replacing the UV lamp annually. The carbon cell truly self-cleans — no scrubbing, no media replacement.
What works
- Self-cleaning carbon cells — no filter media to replace
- Simultaneously kills microbes and adsorbs VOCs/odors
- NASA-originated technology with proven efficacy
What doesn’t
- Expensive upfront compared to basic UV-C fixtures
- Requires licensed contractor installation for warranty
- Third-party seller refund/customer service issues reported

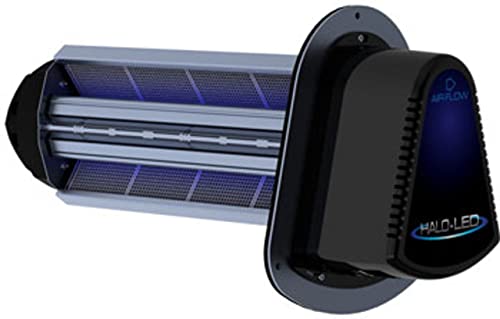

5. Halo LED Whole Home In-Duct Kit
The Halo LED is the ionization-based counterpart to the Reme Halo, using LED-driven needlepoint bi-polar ionization instead of a UV lamp. The key advantage is that LEDs last far longer than UV bulbs — the unit includes a countdown timer that tracks remaining cell life, typically measured in years. It ships with a 24V transformer and is designed for mounting in the supply duct. An optional air sensing kit (HLED-AS) is required for variable-speed furnace blowers, and the manufacturer explicitly states the unit cannot be wired directly to an EAC (Electronic Air Cleaner) terminal without voiding the warranty.
Early adopter feedback is mixed. Some owners report dramatically less dust in the home and noticeable improvements in overall air freshness, with one user describing it as “unbelievable positive difference.” Others experienced unit failures within a few months, and the manufacturer’s warranty is not honored for Amazon purchases — you must go through the distributor, which creates a frustrating service loop. The built-in countdown continues even on days the fan does not run, which annoyed some users who felt they were losing lamp life unnecessarily.
If you already have a variable-speed furnace, factor the cost of the optional air sensor kit (sold separately) into your total budget. The Halo LED is a well-engineered ionization platform, but the warranty situation means you should only buy it from a local HVAC supply house where you can enforce a return if it fails. For the same price range, the APCO Matrix offers a more comprehensive treatment (UV + carbon) with a clearer warranty path.
What works
- LED ionization lasts years longer than UV lamps
- Compact design fits in standard plenums
- Reduces dust and improves overall air freshness
What doesn’t
- Manufacturer warranty voided on Amazon purchases
- Requires optional air sensor for variable-speed blowers (extra cost)
- Countdown timer runs even when HVAC fan is off
6. Air Health Haven Plus HVAC Air Purifier
The Air Health Haven Plus integrates three technologies into one plenum-mounted housing: a 30W UVC lamp (253.7nm), a photocatalytic oxidation (PCO) stage with a titanium dioxide catalyst, and a permanent carbon filter for odor adsorption. The PCO stage generates hydroxyl radicals that break down VOCs, while the carbon filter catches the gaseous by-products before they re-enter the living space. The unit comes with a 10-year limited warranty on the device itself (90 days on the lamp), and includes a hole saw and mounting plate for DIY installation in either metal or duct board plenums.
Owners consistently highlight how easy the installation is — one user described replacing a professional system with this unit in under 15 minutes and achieving better results. Another reported that the system completely eliminated VOC off-gassing odors in a new home after returning from vacation. Negative feedback centers on bulb reliability: several units arrived with damaged or non-functional lamps, and the replacement process through Air Health took over a week. The locking mechanism on one unit also failed, requiring a makeshift fix.
For the price, the Haven Plus packs more technology per dollar than any other single product in this list — UV, PCO, and carbon filtration in one box. The 10-year warranty provides peace of mind that the ballast and housing will last, even if the lamp needs annual replacement. If you want a true “install and forget” solution that handles both biological and chemical pollutants, this is the strongest mid-range contender available.
What works
- Triple-treatment (UV + PCO + carbon) handles microbes, VOCs, and odors
- 10-year limited warranty on the unit
- Straightforward DIY installation with included hole saw kit
What doesn’t
- Bulbs sometimes arrive damaged or fail early
- Replacements can take over a week to arrive
- Plastic locking mechanism feels less robust than metal alternatives
7. OdorStop OS72PRO UV Air Purifier
The OdorStop OS72PRO is the highest-wattage residential UV system in this lineup, featuring two 16-inch 36W UVC bulbs (254nm) for a combined 72W output. The energy-saving airflow sensor activates the lamps only when the HVAC blower is running, preserving bulb life and reducing power consumption. LED indicator lights confirm bulb and system status at a glance. The unit is designed for ducts with a minimum depth of 17 inches, making it suitable for larger plenums and commercial-light applications. Installation uses tin snips to cut a rectangular opening, and the entire housing slides into place with a sealed flange.
Owner experience is a mixed bag. The first reviews praise the “complete UVC solution” and note that the auto on/off functionality prevents humidity issues during off-cycles. But a pattern of ballast failures emerges after 2–3 years of use, with multiple owners reporting that the ballast died and replacement parts are not available — forcing a full unit repurchase at –300. One reviewer had two separate units fail (lamps and ballasts) within 8 months, though customer service did send replacements. The replacement bulbs cost approximately per pair annually, adding to the long-term cost.
If you need maximum UV intensity for a large duct or a heavily contaminated coil (visible mold growth), the OS72PRO delivers germicidal power unmatched by single-lamp systems. However, the reliability data suggests you should budget for potential ballast failure within the third year. Buying a multi-year protection plan may mitigate the financial risk. For smaller residential plenums, a single 30W–36W lamp from a brand with better long-term reliability records is a safer bet.
What works
- 72W combined UV output — strongest in this class
- Airflow sensor saves power and extends lamp life
- Installation is straightforward with tin snips and included template
What doesn’t
- Ballast failures reported after 2–3 years (no replacement parts available)
- Replacement bulbs cost ~ per pair and last ~1 year
- Requires duct depth of at least 17 inches
8. iWave-R Residential IAQ Ion Generator
The iWave-R uses needlepoint bi-polar ionization to generate positive and negative ions that charge airborne particles — mold spores, bacteria, viruses, dust, and allergens — causing them to clump together so your existing HVAC filter captures them more effectively. It lists “self-cleaning, no-maintenance” as primary features, and the included mounting magnets make installation as simple as sticking the unit to the duct wall near the return side and connecting 24V power. There are no lamps to replace, no filters to wash, and no carbon media to refresh.
Users report that the iWave-R effectively neutralizes odors, including air fresheners and cooking smells, to the point that the air becomes essentially scent-neutral. One HVAC technician recommended it to a customer specifically to avoid the short-circuit risks associated with electronic air scrubbers. Installation takes about 10 minutes for a confident DIYer — one owner connected it to the blower activation terminal so it only runs when the system moves air. There is no noticeable difference in air “feeling” after installation for some users, which makes sense given the technology does not actively remove particles but rather helps the filter do its job better.
The biggest concern is the lack of proven scientific data for bipolar ionization at this scale. Unlike UV-C, which has decades of peer-reviewed germicidal research, ionization technology remains controversial regarding real-world effectiveness. If you are comfortable with the “charge and catch” mechanism and value absolute maintenance-free operation (no bulbs, no filters), the iWave-R is the simplest integration on the market. But if you want guaranteed microbial kill, stick with a UV-C system.
What works
- Truly maintenance-free — no lamps, filters, or media to replace
- 10-minute DIY installation with magnetic mount
- Neutralizes odors effectively
What doesn’t
- Limited peer-reviewed data on real-world effectiveness
- Does not actively kill microbes — only causes particle agglomeration
- Neutralizes fragrances completely, including desired scents
9. Fresh-Aire UV 24V HVAC UV Light System
The Fresh-Aire UV 24V system is the entry-level workhorse of HVAC-integrated air purification. It uses a single T8-form UVC lamp (254nm wavelength) powered by a 24VAC remote power supply, designed to be mounted in the supply plenum above or below the A-coil. The kit includes the lamp, ballast, mounting bracket, and hardware — everything needed for a clean install. The lamp has a 1-year effective life, after which the UV output diminishes significantly. This is a pure UV-C system with no PCO, carbon, or ionization stage, so its function is strictly coil hygiene and microbial reduction.
Owner feedback highlights the ease of installation — multiple reviewers described the process as “easy install” that took under an hour using basic tools. Users consistently report that mold growth on the coil stops completely after installation, and several note fewer respiratory infections among household members. The product demands professional installation for warranty registration, and a few buyers discovered that non-certified HVAC technicians cannot register the warranty with the manufacturer — the company accepts registration for “metrics only” in that case.
If you need to keep your condenser coil and drain pan free of biofilm and your budget is tight, this is the most cost-effective entry point into HVAC-integrated purification. It will not address VOCs or odors, but it will prevent the 37% efficiency loss caused by biofilm buildup and reduce airborne microbial load. The simple design has fewer failure points than multi-stage systems, and the brand reliability is among the best in the UV market. Just budget for an annual lamp replacement and factor in professional installation if you want the warranty.
What works
- Lowest-cost entry into in-duct UV-C purification
- Reliable 254nm lamp eliminates coil biofilm effectively
- Simple installation with included mounting hardware
What doesn’t
- No VOC, odor, or PCO treatment — strictly UV-C only
- Lamp needs annual replacement
- Warranty registration requires certified HVAC contractor
Hardware & Specs Guide
UV-C Wavelength (253.7nm vs 254nm)
The industry standard for germicidal UV is the 254nm wavelength (produced by standard low-pressure mercury lamps). Some systems specify 253.7nm, which is effectively the same spectral output — the 0.3nm difference is negligible for residential use. Both wavelengths create thymine dimers in microbial DNA, preventing replication. Verify your system’s wavelength spec to ensure it falls within the 250–280nm UVC band, which is the germicidal range. Avoid systems that emit at 185nm (ozone-producing) unless you specifically want ozone for odor control — ozone is a lung irritant and banned in some states for residential use.
Plenum Clearance and Lamp Length
HVAC plenums vary in depth from 12 inches (narrow return ducts) to 20+ inches in larger systems. Always measure your plenum depth before selecting a unit. A 16-inch lamp requires at least 17 inches of clearance for mounting and airflow, while an 11-inch lamp fits tighter spaces. The lamp must be oriented parallel to the coil face to maximize UV exposure. If your plenum is too shallow, consider the 11-inch AKTIV8 or the compact iWave-R ionizer (no lamp length requirement). Installing a lamp that touches plenum walls reduces airflow and may overheat the lamp, shortening its life.
Voltage Compatibility (24VAC vs 120VAC)
Most residential furnaces and air handlers have a 24VAC transformer that powers the thermostat and control board. Tapping into this circuit is straightforward for a competent DIYer — connect the purifier’s power leads to the 24VAC terminals. 120VAC units require a standard outlet near the plenum, which may necessitate running new wiring. Mixed-voltage systems (18–32 VAC) offer flexibility but require verifying your transformer’s capacity (minimum 16 VA recommended). Overloading a 24VAC transformer with multiple accessories (humidifier, UV light, iWave) can cause the transformer to fail.
Ballast and Lamp Life Expectancy
The ballast (power supply) is the most failure-prone component in UV-C systems. Quality ballasts from Fresh-Aire UV and Air Health typically last 3–5 years, while budget ballasts may fail in 2 years. The lamp itself degrades at about 10–15% per year, which is why annual replacement is recommended — a 2-year-old lamp still glows but outputs only 70–80% of original UV intensity. LED-based ionization systems (Halo LED, iWave-R) have no lamp to degrade, but the ionizer cell still loses efficiency over time and needs replacement every 3–5 years. Check replacement part availability before buying: systems with proprietary lamp sizes or discontinued ballasts become expensive paperweights when components fail.
FAQ
Does a UV-C light in my HVAC duct actually prevent mold on the coil?
Can I install an in-duct air purifier myself or do I need a licensed contractor?
How often do I need to replace the UV lamp in an in-duct system?
Will an in-duct air purifier eliminate pet odors and cooking smells?
What is the difference between PCO (photocatalytic oxidation) and bipolar ionization?
Can I use an in-duct system with a heat pump or geothermal HVAC?
Final Thoughts: The Verdict
For most households seeking whole-home air purification without floor clutter or complex wiring, the air purification systems for hvac integration winner is the Fresh-Aire UV AKTIV8 because it combines a 2-year lamp life, full-spectrum UV against biology, and a carbon catalyst for VOCs and odors in one reliable package. If you need maximum raw particle filtration and can accept a standalone unit, the Coway Airmega 400 delivers unmatched HEPA performance and coverage. And for the tightest budgets where coil hygiene is the primary goal, the Fresh-Aire UV 24V System provides proven UV-C protection at the lowest entry cost — just plan for annual lamp swaps and contractor installation if you want the warranty.
