An alcove shower sits between three finished walls, making the doorway the only opening. The best alcove shower kits eliminate the flimsy curtain or the custom-glass quote, delivering a waterproof, polished look directly from a box. The challenge is filtering through adjustable widths, glass thicknesses, and hardware finishes to find a kit that seals tight and slides smooth for years.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I’ve analyzed dozens of alcove shower kits across price tiers, studying installation specs, glass certifications, seal designs, and aggregated owner feedback to identify which kits deliver lasting performance.
After researching the market data and customer experiences, the best alcove shower kit for most homeowners balances a thick glass panel, smooth rolling hardware, and a leak-proof threshold at a reasonable price point.
How To Choose The Best Alcove Shower Kit
Selecting the right alcove shower kit requires matching your opening dimensions, wall condition, and finish preferences to a door that will seal water and glide for years. Focus on these four criteria to narrow the field.
Glass Thickness and Certification
Glass thickness is the primary indicator of rigidity and perceived quality. Entry-level kits use 1/4-inch (6mm) tempered glass, which is adequate for standard use but can flex and wobble over time. Premium kits step up to 5/16-inch (8mm) or 3/8-inch (10mm) glass, which feels substantially heavier, reduces vibration, and creates a more solid opening and closing action. Regardless of thickness, always verify SGCC and ANSI Z97.1 certification stamps — these ensure the glass is heat-treated to shatter into blunt granules rather than sharp shards.
Width Adjustment and Rail Fit
Alcove openings vary widely, even within claimed ranges. Most kits offer 4 inches of horizontal adjustment by trimming the top and bottom rails with a hacksaw. Always measure the exact width of your finished opening after tile or backer board is installed. A kit that adjusts from 56 to 60 inches will not fit a 55.5-inch opening without forcing the seals. Also check the threshold depth requirement — most sliding doors need a minimum of 2-3/8 inches of curb to mount the bottom guide.
Roller Quality and Track Design
Smooth, quiet operation depends on the rollers and track. Look for kits with stainless steel or copper-alloy rollers rather than basic nylon wheels. Larger diameter rollers (60mm or more) distribute weight better and glide more easily. A top-hung, bottom-guided bypass system is the standard for alcove kits — the top track bears the weight while the bottom track keeps the glass aligned. Hidden top rails offer a cleaner aesthetic but can be harder to adjust after installation.
Sealing and Water Protection
An alcove shower door must contain water on three sides. Evaluate the included sealing components: bottom threshold sweep, vertical jamb seals, and side splash guards. Kits with PVC or silicone seals that run the full length of the door frame provide the best leak prevention. Some premium kits add a dual-layer waterproof barrier with both a threshold and a magnetic strip to prevent splashing through the center gap where the two doors meet.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| BATHWILLER 56-60 x 80 | Premium | High traffic, tall openings | 3/8″ (10mm) glass, 60mm rollers | Amazon |
| YINVANI DS01-6079BL | Premium | Maximum durability, dual towel bars | 3/8″ (10mm) glass, dual roller | Amazon |
| DreamLine Enigma-XO | Premium | Luxury finish, frameless look | 3/8″ (10mm) glass, ClearMax coating | Amazon |
| MORVANO 56-60 x 75 | Mid-Range | Thicker glass on a budget | 5/16″ (8mm) glass, nano coating | Amazon |
| Glazenclos SH05-6072-BN | Mid-Range | Smooth sliding, classic brushed nickel | 1/4″ (6mm) glass, quiet track | Amazon |
| ENSO SENKA B020-SA6122C | Mid-Range | Water-repellent glass, easy cleaning | 1/4″ (6mm) glass, water-repellent coating | Amazon |
| ELEGANT B020-4872CB | Entry | Compact 48-inch openings | 1/4″ (6mm) glass, copper rollers | Amazon |
| Botwinkle MB-4872 | Entry | 44-48 inch openings, matte black | 1/4″ (6mm) glass, nano coating | Amazon |
| YELNA Brushed Nickel Door | Budget | Large 60-inch openings, low cost | 1/4″ (6mm) glass, anti-leak threshold | Amazon |
In‑Depth Reviews
1. BATHWILLER 56-60 x 80 Frameless
The BATHWILLER kit uses 3/8-inch SGCC-certified tempered glass, which is four times stronger than standard 1/4-inch panels. The 80-inch height covers taller alcove openings without a gap at the top, and the 60mm stainless steel rollers glide almost silently. Owners consistently note the massive wall brackets and top roller beam as signs of overbuilt quality compared to typical mid-range kits.
The frameless design leaves more glass visible and reduces the aluminum frame profile, giving a high-end custom look for a fraction of the price. Dual towel bars double as handles, and the reversible sliding configuration allows entry from either side. The kit ships with a cardboard template for marking mounting holes, which simplifies alignment for DIY installers.
Professional installation is recommended because each door panel weighs over 70 pounds. The 10mm glass requires careful handling to avoid chipping edges during placement. The leak-proof seals and nano coating keep water contained and glass clear with minimal wiping. For homeowners wanting a premium feel without a custom glass company quote, this is the strongest value in the category.
What works
- 10mm glass feels rock solid and stops wobble
- Large 60mm rollers deliver whisper-quiet sliding
- Cardboard mounting template aids precise installation
- Leak-proof seals keep the floor dry
What doesn’t
- Heavy panels require at least two strong people to lift
- Professional installation is nearly mandatory
2. YINVANI DS01-6079BL
The YINVANI DS01-6079BL is built with 10mm transparent tempered glass that avoids the green tint common in cheaper panels. The double sliding bypass frame uses 304 stainless steel for all hardware, including 60mm rollers and anti-hop knobs. The kit also includes a pre-drilled aluminum positioning plate that helps align the top track accurately before committing to screws.
The dual-layer waterproofing uses premium PVC sealing strips combined with a stainless steel threshold to block water at the source. Owners report that the silicone seals are more substantial than those found on competitors in the same price tier. The 79-inch height provides a full enclosure for taller alcoves, and the reversible design works for left or right entry.
The package is heavy at 190 pounds due to the 10mm glass and stainless steel frame. Shipping in a wooden crate ensures the glass arrives without cracks, but lifting and maneuvering the crate requires planning. The five-year manufacturer warranty is significantly longer than the typical one-year coverage, reflecting confidence in the hardware finish and roller durability. For buyers who prioritize cold-forged stainless hardware and a true clear-glass appearance, this kit justifies its premium position.
What works
- Crystal-clear 10mm glass has no green tint
- Dual-layer seals prevent water escape effectively
- Five-year warranty on components
- Positioning plate simplifies track alignment
What doesn’t
- Very heavy crate requires a team for handling
- Higher upfront investment
3. DreamLine Enigma-XO SHDR-61607620-06
The DreamLine Enigma-XO is a fully frameless sliding door with 3/8-inch tempered glass and an oil-rubbed bronze finish that pairs well with traditional or transitional bathroom fixtures. The ClearMax stain-resistant coating helps prevent hard water spots and soap scum buildup, keeping the glass clear between cleanings. The walk-in opening measures 22 to 26 inches, suitable for standard alcove tubs.
The frameless construction uses minimal metal — only the top rail, bottom guide, and a slim wall jamb — maximizing the glass surface. The top track is hidden, giving the appearance of an all-glass partition. The hardware kit includes stainless steel rollers that operate smoothly, though owners note the included instructions are sparse and can extend installation time to five or six hours for a first-timer.
A critical distinction: this door offers no adjustment for out-of-plumb walls. The alcove must be square, with a minimum threshold depth of 2-3/4 inches. A fully plumb opening is essential before purchase. The oil-rubbed bronze finish adds about 30 percent to the price compared to brushed nickel or chrome versions, but the look is distinctive. Professional installation is strongly advised due to the weight of the 10mm glass and the zero-tolerance fit requirement.
What works
- Stunning frameless look with hidden top track
- ClearMax coating reduces water spot frequency
- Oil-rubbed bronze finish matches high-end fixtures
- Solid, wobble-free sliding action
What doesn’t
- No plumb adjustment — walls must be perfectly square
- Difficult installation with poor manual
- Higher price than comparable semi-frameless kits

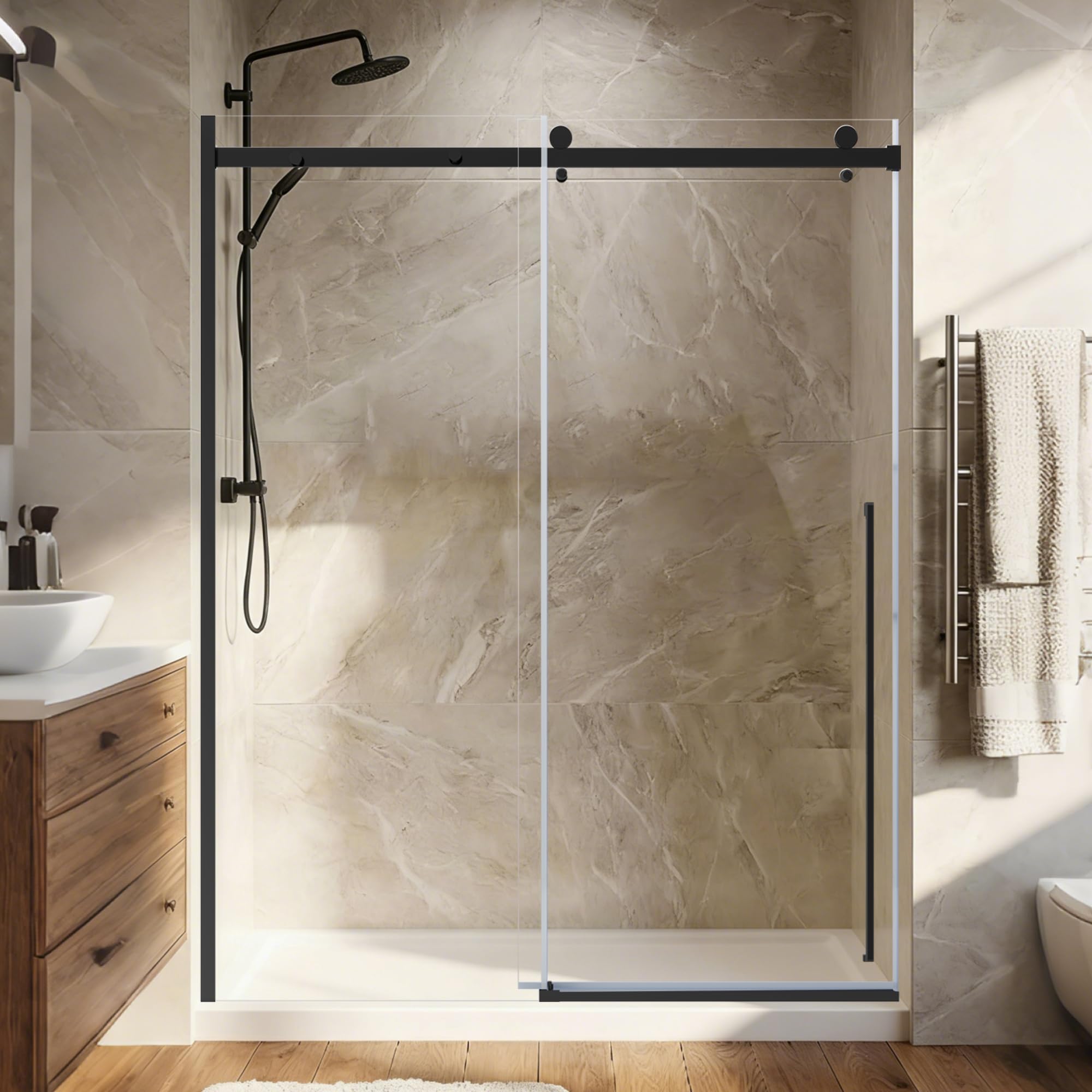

4. MORVANO 56-60 x 75
The MORVANO kit steps up to 5/16-inch (8mm) SGCC and ANSI certified tempered glass, which is thicker than the standard 6mm panels found at similar price points. The nano waterproof coating helps repel soap residue and mineral deposits. A notable safety feature is the explosion-proof film laminated to the glass — if the panel does break, shards stay adhered to the film rather than scattering across the floor.
Built-in side and bottom seal strips run the full length of the frame, creating a continuous barrier against splashes. The top track uses 304 stainless steel rollers that slide smoothly, and the brushed matte black finish resists fingerprint visibility. The 75-inch height is two inches shorter than most 72-inch track kits, which could leave a gap in 76-inch finished alcoves.
The adjustable out-of-plumb feature allows up to 3/5 inch of correction for non-level curbs or uneven wall conditions — a practical advantage for older homes with settled foundations. Owners praise the after-sale support, with reports of replacement parts shipped quickly for warranty claims. For those wanting thicker glass on a tighter budget, this is the most accessible entry point without sacrificing certification.
What works
- 8mm glass at an entry-to-mid price point
- Explosion-proof film adds real safety margin
- Full-length seals prevent water escape
- Adjustable for out-of-plumb walls
What doesn’t
- 75-inch height may be short for some alcoves
- Matte black finish shows water spot residue
5. Glazenclos SH05-6072-BN
The Glazenclos SH05-6072-BN features a silent sliding system with hidden top rollers that eliminate the rattling noise common in budget bypass doors. The 1/4-inch tempered glass is double certified to SGCC and ANSI standards. The brushed nickel finish uses 304 stainless steel handles and an aluminum alloy frame that resists corrosion in humid bathroom conditions.
The semi-frameless design retains a thin aluminum border around each glass panel, reducing the chance of handle-to-glass chipping during installation. The reversible door works for left or right sliding, and the track allows up to 4 inches of width adjustment by trimming the rails. Owners highlight that the roller mechanism is so responsive that the door opens and closes with a single finger.
Two caveats: the 72-inch frame height gives a roughly 68-inch clear opening, which tall users may find restrictive. Also, the pan-head screws included with the kit can interfere with tapered screw holes — owners recommend swapping them for flathead screws. For standard height alcoves and homeowners who prioritize quiet operation, this kit delivers hotel-quality sliding performance without the hotel price tag.
What works
- Near-silent top-roller sliding system
- Double-certified 6mm tempered glass
- Single-finger operation after adjustment
- Rust-resistant hardware
What doesn’t
- Clear opening height around 68 inches is short for tall people
- Pan-head screws require replacement for proper fit
6. ENSO SENKA B020-SA6122C
The ENSO SENKA stands out for its factory-applied water-repellent coating on the 1/4-inch SGCC and ANSI certified glass. This treatment resists soap and mineral buildup, reducing the frequency of cleaning. The brushed nickel hardware uses anti-oxidation materials that maintain their finish longer in steam-heavy environments.
The semi-frameless bypass design includes waterproof seal strips on the side jambs and bottom threshold. Rails can be trimmed for openings narrower than 60 inches, and the reversible door panels allow either side entry. Owners consistently rate the packaging highly — the glass arrives well-padded in foam and cardboard layers, reducing the chance of damage in transit.
A minor complaint involves the center gap between the two sliding panels: some owners report a rattle during opening and closing, which can be resolved by adding self-adhesive foam padding at the meeting point. The 108-pound total weight makes this a two-person assembly job, but the instructions are clear enough for an experienced DIYer. For buyers who want a low-maintenance glass finish from day one, this kit delivers the best pre-applied coating in its tier.
What works
- Factory water-repellent coating works immediately
- Exceptional packaging prevents shipping damage
- Anti-oxidation hardware lasts in humid bathrooms
- Clear installation instructions
What doesn’t
- Center gap may rattle without added foam
- 6mm glass feels less substantial than 8mm alternatives
7. ELEGANT B020-4872CB
The ELEGANT B020-4872CB is purpose-built for narrower alcove openings, adjusting from 46.5 to 48 inches wide. The 72-inch height is standard for most tub surrounds. Interior copper rollers provide smooth sliding with less friction than basic nylon wheels, and the brushed nickel aluminum hardware resists rust and corrosion over time.
The exterior door handle can double as a towel bar, adding utility without extra installation. The 1/4-inch tempered glass is ANSI Z97.1-2004 certified. Owners report that installation is straightforward with common sense and basic tools, though a few mention missing hardware kits in their deliveries — a point worth verifying upon arrival.
One limitation: the semi-frameless design uses relatively thin aluminum profiles compared to premium kits, which may flex slightly if over-tightened during installation. The glass should be tightened only until snug to avoid stress cracks. Despite this, the majority of owners praise the look and value. For bathrooms with a 47-inch finished opening, this is one of the few kits that fits without excessive trimming or shimming.
What works
- Fits 46.5 to 48-inch openings precisely
- Copper rollers provide low-friction sliding
- Handle doubles as towel bar
- Attractive price for a name-brand kit
What doesn’t
- Some shipments missing hardware accessories
- Aluminum frame can flex if screws are over-tightened

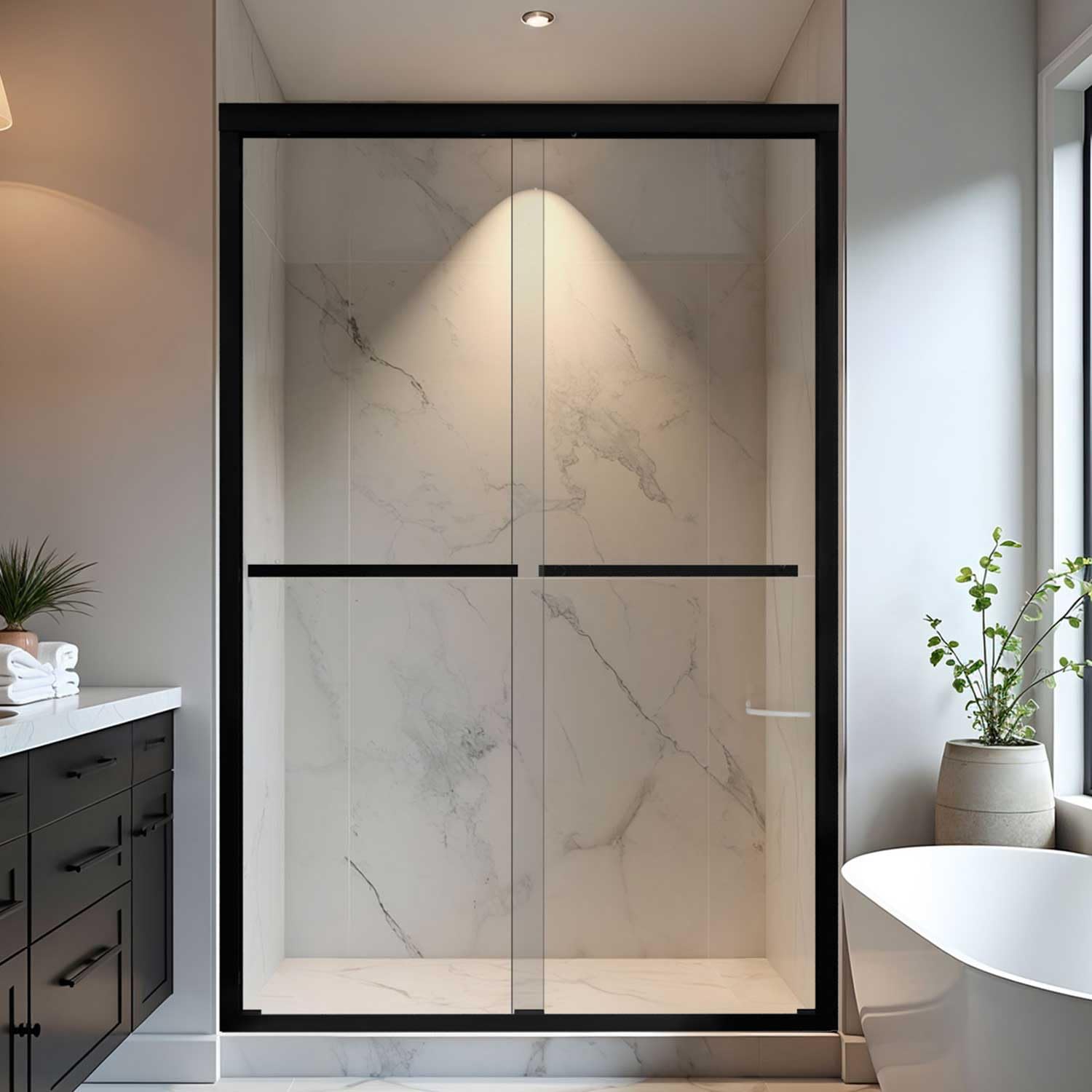

8. Botwinkle MB-4872
The Botwinkle MB-4872 covers smaller alcove openings from 44 to 48 inches wide with a height of 72 inches. The 1/4-inch SGCC certified tempered glass has a nano protective coating that repels water and soap residue. The matte black finish uses 304 stainless steel for the frame, providing rust resistance at an entry-level price point.
The semi-frameless sliding design includes a thickened top track to prevent deformation over time. Owners find the glass arrives well-protected in packaging, and the instructions are clear enough for a two-person installation. The matte black finish hides water spots better than polished nickel or chrome, making it a practical choice for busy households.
The main compromise with this kit is the roller quality — while functional, the included rollers lack the diameter and precision of premium kits, leading to a slightly less smooth glide. Some owners note that the handle mounts on the doors can rub against each other at the meeting point, requiring minor adjustment. For budget-conscious buyers with a 44-48 inch opening who want a matte black finish, this kit offers the lowest cost of entry without sacrificing certification.
What works
- Nano coating simplifies cleaning
- Matte black finish hides water marks effectively
- Thickened top track prevents sagging
- Lowest entry price for matte black finish
What doesn’t
- Roller feel is less refined than mid-range kits
- Handle mounts can rub and need adjustment

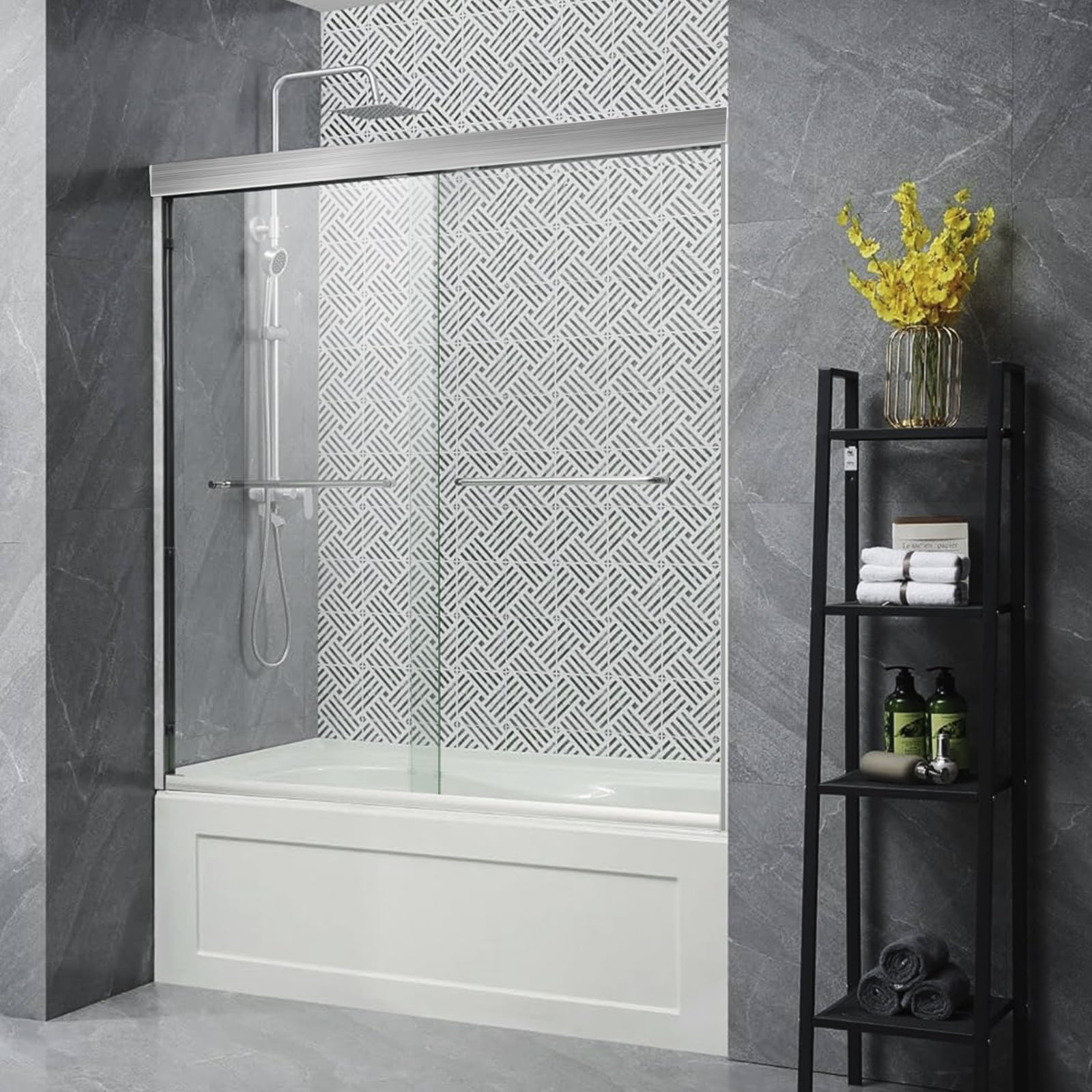

9. YELNA Brushed Nickel Door
The YELNA Brushed Nickel Door covers large alcove openings from 56 to 60 inches wide with a 57-inch height, which is notably shorter than most kits. The 1/4-inch SGCC certified tempered glass is impact resistant and includes a safety film. The anti-splash threshold and full waterproof panel help contain water inside the shower area.
The semi-frameless barn-style design uses stainless steel rollers and aluminum frames. Owners consistently rate the quality as high for the price, noting that the glass is heavy-duty and the sliding action is smooth. The brushed nickel finish blends well with chrome or nickel bathroom fixtures, and the reversible door panels allow flexible entry.
The primary limitation is the 57-inch height — this kit is designed for tub surrounds, not full-height shower alcoves. Tall bathers will find the opening too low. Additionally, some owners report that the doors don’t close perfectly flush, leaving a minor gap. For shallow tub surrounds where a low-profile door is acceptable, this is the most affordable option for 60-inch wide openings.
What works
- Very low price for 60-inch wide coverage
- Anti-leak threshold and waterproof panel included
- Safety film added to tempered glass
- Stainless steel hardware resists rust
What doesn’t
- 57-inch height unsuitable for standard 72-inch alcoves
- Doors may not close perfectly flush
- Thinner glass feel compared to premium options
Hardware & Specs Guide
Glass Thickness
Measured in inches or millimeters, glass thickness directly impacts rigidity and safety. Standard kits use 1/4-inch (6mm). Premium kits jump to 5/16-inch (8mm) or 3/8-inch (10mm). Thicker glass reduces flex and vibration during sliding and feels more substantial when closing. All glass must carry SGCC certification (Safety Glazing Certification Council) and meet ANSI Z97.1 impact standards. Some top-tier kits also apply an explosion-proof film that holds shards together if the glass breaks.
Rollers and Track
Roller diameter determines how much weight each wheel carries and how smoothly the door glides. Entry-level rollers measure 40-50mm. Premium 60mm or larger rollers distribute weight better and reduce friction. Material matters: stainless steel or copper-alloy rollers last longer than nylon or basic steel. A top-hung design with bottom guide is the most common configuration for alcove kits — the top track bears the glass weight while the bottom channel keeps the door aligned.
Width Adjustment and Trim
Most sliding doors offer 4 inches of horizontal adjustment by cutting the top and bottom rails to fit the finished opening. The measurement must be taken after tile or backer board is installed. A kit listed as 56-60 inches cannot shrink below 56 inches without forcing the seals. Also check the threshold depth requirement: sliding doors need a minimum curb depth (typically 2-3/8 to 2-3/4 inches) to mount the bottom guide block.
Water Sealing System
Effective sealing combines a bottom threshold sweep, vertical jamb seals, and side splash guards. PVC or silicone seals that run the full length of the door frame provide the best barrier. Some premium kits add a dual-layer design with both a stainless steel threshold and a magnetic strip at the center meeting point. The bottom seal should contact the curb evenly across the full width to prevent pooling water from escaping onto the bathroom floor.
FAQ
What is the difference between semi-frameless and fully frameless alcove shower kits?
Can I install an alcove shower kit myself?
How do I measure my alcove for a sliding shower door?
What finish is best for hiding water spots?
Why does my sliding shower door rattle and how do I fix it?
Final Thoughts: The Verdict
For most homeowners, the alcove shower kit that checks every box is the BATHWILLER 56-60 x 80 because it pairs 10mm SGCC-certified glass with 60mm stainless steel rollers at a price far below custom glass companies. If you want a crystal-clear glass panel that avoids the green tint and includes a five-year warranty, grab the YINVANI DS01-6079BL. And for a luxury frameless look with an oil-rubbed bronze finish that matches high-end fixtures, nothing beats the DreamLine Enigma-XO.
