That low-frequency rumble from your air compressor isn’t just annoying — it travels through concrete slabs, into living spaces, and can even loosen floor fasteners over time. The right isolation pad stops that mechanical energy from turning your shop floor into a speaker cone, turning a wall-shaking start-up into a contained thump that stays under the machine.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I’ve spent years comparing industrial-grade isolation materials, studying durometer ratings and static deflection data, and cross-referencing owner feedback from hundreds of real-world compressor installs to separate effective pads from marketing gimmicks.
Whether you’re parking a 60-gallon vertical tank on a basement slab or taming a portable unit on a wooden workbench, this guide breaks down the most effective anti vibration pads for air compressor and the specific specs that determine whether they actually work under your rig.
How To Choose The Best Anti Vibration Pads For Air Compressor
Not all rubber squares perform the same. A pad that works under a washing machine will feel like a solid brick under a 200-pound compressor tank because the static load and frequency range are completely different. To choose correctly, you need to look at three things: material construction, thickness, and the load rating relative to your compressor’s weight distribution.
Solid Rubber vs. Sandwich Construction
Solid-rubber pads offer uniform density and predictable compression — ideal for heavy stationary compressors where you want the machine to sit level without sagging over time. Sandwich pads (rubber-EVA-rubber) add an intermediate foam layer that increases vibration absorption at higher frequencies, but under a heavy tank the foam can compress permanently, reducing effectiveness. For 60-gallon and larger compressors, solid high-density rubber is the safer bet.
Thickness Determines Isolation Range
Thicker pads — 1 inch and above — provide more static deflection space, which directly translates to better isolation of low-frequency vibrations (the kind that shake walls and floors). Pads under 7/8 inch thick can still reduce high-frequency noise but will transmit most of that low-end rumble straight into the concrete. If your compressor is on a suspended wooden floor, go with 1.2-inch thickness minimum.
Load Capacity Per Pad Must Exceed Foot Pressure
Every pad has a maximum load rating per square inch. Measure the footprint of each compressor foot, divide the total machine weight by the number of feet, and compare that to the pad’s rating. A pad rated at 60 PSI with a 960-pound max per pad is standard for 60-80 gallon compressors. Undersized pads bottom out, transferring vibration directly through the rubber rather than absorbing it.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Air Jade 4 Pack | Sandwich Layer | HVAC & portable compressors | 7/8 in. thick, 960 lb./pad | Amazon |
| KCHEX 3 Pack | Solid Rubber | 60-gallon stationary units | 1 in. thick, solid dense rubber | Amazon |
| Ftzynqur 4 Pack | Solid Rubber | Heavy 80-gallon compressors | 1.2 in. thick, 960 lb./pad | Amazon |
| LikeLion 3 Pack | Solid Rubber | Bolt-down installations | 1 in. thick, center hole | Amazon |
| Huivlei 4 Pack | Heavy Duty Solid | Multi-equipment damping | 1.18 in. thick, diamond texture | Amazon |
In‑Depth Reviews
1. Air Jade 4 Pack Rubber Anti-Vibration Pads
The Air Jade pads use a rubber-EVA-rubber sandwich structure that absorbs a wider frequency range than solid rubber alone, making them effective for both low-frequency compressor thrum and higher-pitched motor whine. At 7/8 inch thick with a 960-pound per-pad capacity, they handle most 60-gallon tanks without bottoming out, and the ribbed top-and-bottom texture prevents the compressor from walking during startup cycles.
Owner reports confirm these pads stayed in place for over two cooling seasons under an AC condenser and effectively isolated a shop compressor’s 45 Hz resonance from a crawl space below. One buyer noted slight thickness variation between pads, but the majority found them level enough for 3D printer bases and front-load washers. The initial rubber smell dissipates within a few days of airing out.
For mixed-use scenarios where the same pads might shift between a compressor, a treadmill, and outdoor furniture, this set offers the most versatile combination of grip, thickness, and chemical resistance. The 4-pack quantity also allows two pads per foot on larger machines for increased stability.
What works
- Sandwich construction dampens a broader vibration spectrum than solid rubber
- Ribbed surface prevents sliding on smooth concrete and metal feet
- Weather-proof and oil-resistant for outdoor or garage environments
What doesn’t
- Minor thickness variance reported between individual pads
- EVA foam layer may compress permanently under extreme sustained loads
2. KCHEX 3 Pack Anti Vibration Pads
The KCHEX pads strip away any foam core and go with a solid, high-density rubber formula that delivers predictable compression under heavy stationary loads. At a full 1 inch thick, they provide enough static deflection to absorb the low-frequency shake of a 60-gallon compressor without the risk of foam creep that sandwich designs can exhibit over years of use. Owners report negligible odor compared to many rubber pads, which is a real advantage in an enclosed shop.
Buyers using these under 60- and 80-gallon compressors consistently describe them as “better than expected” for taming the floor walk that happens when a pressure switch kicks in at full tank. The 3-pack configuration works well for tripod-footed compressors, and several users mounted them between the tank frame and a pallet platform for additional isolation. The 5x5x5 inch package dimensions suggest the pads are generous enough to fit under most standard compressor feet.
These pads have been a consistent product on Amazon since 2016, which speaks to their durability and the manufacturer’s refusal to cut corners on material density. If you want a no-complications solid rubber block that just works under a heavy stationary compressor, this is the most cost-effective route.
What works
- Thick solid rubber provides reliable long-term performance without material creep
- Low odor out of the package — suitable for indoor/garage use
- Proven track record since 2016 with consistent positive owner feedback
What doesn’t
- Only 3 pads — may need more for four-corner compressor stands
- No center hole for bolt-down anchoring
3. Ftzynqur 4 Pack Shock Pad
If you’re parking an 80-gallon industrial compressor on a concrete slab and want the thickest isolation possible without moving to specialized machinery mounts, the Ftzynqur pads deliver 1.2 inches of solid rubber — the highest thickness in this comparison. That extra 0.2 inches over the 1-inch competition provides noticeably more deflection room, which is exactly what you need to kill the ground-transmitted rumble that makes a compressor sound like it’s shaking the whole house.
Owners of large DeWalt compressors and 80-gallon units report these pads work well when paired with floor anchors, and the 4-pack allows you to double up under each foot for machines that exceed 200 pounds per corner. The main trade-off is a very strong rubber smell that multiple buyers noted upon unboxing — it does dissipate over several days, but you’ll want to air them out before installing in a tight workshop.
The high-density material is noticeably stiffer than budget options, which is ideal for heavy static loads but means these pads will not conform to uneven floors as easily. For a perfectly level concrete slab, they’re the best choice for maximum vibration isolation.
What works
- Thickest pads in the roundup at 1.2 inches for maximum low-frequency isolation
- 4-pack provides enough material for large compressors and multiple machines
- Stiff high-density rubber resists deformation under heavy loads
What doesn’t
- Strong initial rubber smell that requires airing out before installation
- Too stiff to conform to uneven or slightly sloped floors

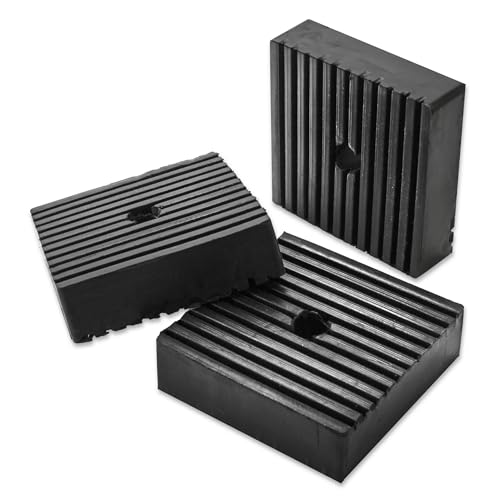

4. LikeLion 3 Pack Anti Vibration Pads
The LikeLion pads stand apart from every other product in this comparison because they include a pre-drilled center hole, which simplifies the process of bolting your compressor directly through the pad into the floor. This is critical for anyone who wants to permanently anchor a large compressor to prevent tip-over or lateral movement while still maintaining vibration isolation. The solid rubber construction at 1 inch thick matches the stiffness of the KCHEX set but with the added convenience of guided fastener placement.
Owners of 60- and 80-gallon compressors report that aligning the hole with concrete anchors was straightforward, though you need to mark your anchor locations carefully before drilling. The pads are heavy at over 2 pounds each, which indicates dense material with no voids. A few buyers repurposed these as dock cleat risers, which speaks to their rigidity.
If you’re installing a compressor in a garage or workshop where the machine needs to stay put permanently and you already plan to use floor anchors, the LikeLion pads remove the extra step of drilling through solid rubber yourself. The 3-pack is ideal for three-point foot designs common on many vertical tank compressors.
What works
- Pre-drilled center hole for direct bolt-through anchor installation
- Very dense, heavy rubber with no voids or air pockets
- Ideal for permanent installations with concrete anchors
What doesn’t
- Only 3 pads — four-corner stands will need an extra set
- Hole placement may not align with all compressor foot patterns
5. Huivlei 4 Pack Heavy-Duty Anti-Vibration Pads
The Huivlei pads combine a 1.18-inch thickness with a diamond-patterned surface on both sides that aggressively grabs equipment feet and flooring, making them the most slip-resistant option for compressors on smooth epoxy or painted garage floors. The pack includes four pads plus a bubble level and a transparent measuring template, which is a thoughtful addition for users who want to precisely center their compressor over the pads.
Reviews from owners using these under roof-mounted AC condensers report immediate cessation of wall and floor vibration — a strong test of low-frequency isolation. The high-density solid rubber construction weighs over 3 pounds per set, indicating the material is packed tight without fillers. Like the Ftzynqur set, there is some initial rubber odor, but buyers generally found it less intense than thicker competitors.
The included leveler and area template add genuine utility for first-time buyers who aren’t sure about pad placement or floor evenness. For a comprehensive kit that covers mounting, leveling, and vibration damping in one box, the Huivlei set provides the most complete package.
What works
- Diamond-textured surface provides exceptional grip on smooth floors
- Includes leveler and measuring template for precise installation
- Proven effective at stopping vibration transfer through multi-story buildings
What doesn’t
- Minor rubber odor during first few days of use
- No center hole for bolt-through anchoring
Hardware & Specs Guide
Static Deflection
This is the amount the pad compresses under the weight of the compressor. For effective vibration isolation, you need at least 0.1 to 0.3 inches of deflection. Pads that are too stiff (deflection under 0.05 inches) transmit most of the vibration. Pads that are too soft (deflection over 0.4 inches) may cause the machine to wobble. The 1-inch and 1.2-inch thick pads in this guide provide enough material to achieve useful deflection under 60-80 gallon tanks without collapsing.
Durometer Rating (Hardness)
Measured on the Shore A scale, durometer tells you how hard the rubber is. Pads in the 60-70 Shore A range offer the best balance of load support and vibration absorption for air compressors. Softer pads (40-50 Shore A) are better for lighter appliances but deform under compressor weight. Harder pads (80+ Shore A) resist compression too much and pass vibration through. None of the brands in this guide publish their durometer, but solid-rubber pads that feel firm but have some give when pressed are typically in the right range.
FAQ
Can I use washing machine pads under my air compressor?
Should I bolt my compressor through the pads into the floor?
How many pads do I need for a three-legged compressor stand?
Final Thoughts: The Verdict
For most gardeners, the anti vibration pads for air compressor winner is the Air Jade 4 Pack because its sandwich construction dampens the widest frequency range while offering enough thickness for 60-gallon tanks. If you want solid rubber without any foam that could creep over the years, grab the KCHEX 3 Pack. And for a bolt-down installation where the compressor stays anchored permanently, nothing beats the LikeLion 3 Pack with its pre-drilled center hole.
