A lawn tractor that cranks weakly on a cool spring morning isn’t just an inconvenience—it’s a broken promise of productivity. The difference between a three-second start and a grinding, clicking hesitation often comes down to a single specification printed on the battery label: Cold Cranking Amps. Yet most owners buy the same group size their old battery had, ignoring the fact that a tractor used on a sloped property or stored in an unheated shed has very different electrical demands than one living in a climate-controlled garage.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I’ve spent years studying lead-acid and AGM chemistry data sheets, cross-referencing OEM replacement guides, and analyzing aggregated owner feedback across riding mower forums to understand which batteries actually survive past their warranty window.
This guide compares seven specific models across CCA ratings, reserve capacity, and physical dimensions to help you identify the most reliable battery for lawn tractor based on your machine’s actual starting load and storage conditions.
How To Choose The Best Battery For Lawn Tractor
A lawn tractor battery is a simple device with one job: deliver enough current to spin a cold engine fast enough to fire. But the market offers multiple chemistries and ratings that directly affect whether that job gets done on the first attempt or the tenth. Understanding a few key specs eliminates guesswork.
Cold Cranking Amps (CCA) Is The Starting Benchmark
CCA measures how many amps the battery can deliver at zero degrees Fahrenheit for thirty seconds while maintaining at least 7.2 volts. A 300 CCA battery will spin a single-cylinder engine reliably down to about 20°F. If your tractor lives in a colder climate or sits through a deep freeze, stepping up to 330 CCA provides a measurable cranking margin. Going lower than 280 CCA on a standard riding mower invites slow cranking on cool mornings.
AGM Construction Means No Maintenance And Mounting Flexibility
Absorbent Glass Mat (AGM) batteries use fiberglass separators to hold the electrolyte in suspension rather than flooding the case with liquid. This makes them spill-proof, vibration-resistant, and tolerant of mounting positions that would ruin a flooded battery. Every battery in this roundup is sealed AGM, which means no water topping, no acid leaks, and the ability to mount in tight or angled trays without risk.
Group Size U1 Is The Standard—But Verify Your Tray
Almost every lawn tractor from John Deere, Cub Cadet, Toro, Craftsman, and Ariens uses a BCI Group U1 battery. The nominal footprint is roughly 7.68 inches long by 5.12 inches wide, but height varies between 6 and 7 inches depending on the terminal design and internal plate count. Measuring your existing battery’s height before ordering prevents a situation where the terminals fail to reach the cables.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| UPLUS UP-U1-330 | Premium | High-cranking confidence | 330 CCA, 14.6 lbs | Amazon |
| MARXON U1-330 | Premium | Extreme cold starts | 330 CCA, shockproof case | Amazon |
| WEIZE U1-300 CCA | Mid-Range | Proven quality balance | 300 CCA, 18.68 lbs | Amazon |
| Mighty Max ML-U1-CCAHR | Mid-Range | All-temperature reliability | 320 CCA, 14 lbs | Amazon |
| Autocessking U1-320CCA | Mid-Range | Extended runtime needs | 320 CCA, 28Ah capacity | Amazon |
| MARXON U1-280 | Value | Budget-friendly replacement | 280 CCA, 14.1 lbs | Amazon |
| CB CHROMEBATTERY 35AH | Specialty | Deep-cycle applications | 35 Ah, T3 terminal | Amazon |
In‑Depth Reviews
1. UPLUS UP-U1-330
The UPLUS UP-U1-330 hits the sweet spot between cranking power and build quality for the vast majority of lawn tractors. Its 330 CCA rating is among the highest in the Group U1 format, giving it enough reserve to start even a twin-cylinder tractor in sub-freezing temperatures without hesitation. Owner reports confirm it fired John Deere Z345R units on the first crank after OEM replacements that had been sluggish for two seasons.
What makes this battery stand out beyond the raw CCA number is the purity of its lead composition. UPLUS uses 99.99% primary lead rather than recycled material, which reduces internal resistance and minimizes the release of toxic fumes during charging cycles. The calcium-calcium grid technology also slows grid corrosion, addressing the primary failure mode of budget AGM batteries that die after two seasons.
The 15-month warranty with a 60-day refund window is generous for this price tier, and the California-based support team responds within hours rather than days. The dimensions (7.68L x 4.92W x 6.93H inches) fit standard Group U1 trays, and the integrated handle makes lifting into tight compartments notably easier than bare-case alternatives.
What works
- Highest CCA in its class ensures reliable cold starts
- Primary lead construction reduces internal degradation
- 15-month warranty with responsive US-based support
What doesn’t
- Slightly narrower than some U1 trays may require shimming
- Not designed for deep-cycle drain applications
2. MARXON U1-330
The MARXON U1-330 shares the same 330 CCA peak as the UPLUS but distinguishes itself through a shockproof case designed specifically for rough-terrain tractors and mowers. The proprietary alloy construction resists deformation under high engine vibration, a common killer of standard AGM batteries in machines operating on uneven ground or commercial zero-turn decks.
MARXON’s compatibility list is exhaustive, covering not just the typical John Deere, Cub Cadet, and Toro models but also commercial-grade brands like Scag, Exmark, Grasshopper, and Hustler. The 15-month US-backed warranty and local warehouse support mirror the UPLUS, but the shockproof case gives this battery an edge for owners who mow rough acreage or store their tractor in unheated outbuildings.
The physical dimensions (7.68 x 4.92 x 6.14 inches) are slightly shorter than the UPLUS, which can be an advantage in tight battery compartments. The polarity is standard Group U1 with positive on the left, and the included screw set matches the nut-and-bolt terminal style used by most OEM cables. Owners report consistent first-crank starts down to temperatures where previous batteries required multiple attempts.
What works
- Shockproof case resists vibration damage on rough ground
- Exceptional cold-weather starting reliability
- Broad OEM compatibility including commercial brands
What doesn’t
- Lower Ah capacity than some U1 competitors
- Shorter height may require longer bolts for certain trays
3. WEIZE U1-300 CCA
WEIZE has built a strong reputation in the budget-friendly AGM space, and the U1-300 CCA model continues that trend with a battery that weighs 18.68 pounds—noticeably heavier than the 14-pound competitors. That extra mass comes from denser lead plates, which translates to higher reserve capacity and longer service life under moderate cranking loads.
With 300 CCA, this battery is well-suited for single-cylinder lawn tractors and light-duty garden tractors operating in climates where winter temperatures rarely dip below freezing. The extra weight also dampens vibration better than lighter units, making it a solid choice for tractors that see frequent use on bumpy terrain. The terminal layout follows the standard Group U1 convention with positive on the left and nut-and-bolt connections.
The one-year warranty is shorter than some premium competitors, but WEIZE’s customer service team is responsive and straightforward about replacement procedures. The dimensions (7.68 x 5.12 x 6.22 inches) fit standard U1 trays without modification, and the total height of 7.09 inches with terminals is compatible with most cable harnesses.
What works
- Heavy plate construction extends service life
- Good vibration damping from higher mass
- Universal fit for standard U1 trays
What doesn’t
- 300 CCA may struggle in very cold climates
- One-year warranty is shorter than some alternatives
4. Mighty Max ML-U1-CCAHR
Its 320 CCA rating punches above many similarly priced units, and the SLA/AGM construction provides spill-proof operation and the ability to mount in any position—an important feature for tractors with awkward battery access.
The battery’s dimensions (7.62 x 5.0 x 7.0 inches) are slightly narrower than the standard U1 footprint, which can be an advantage in trays that are slightly undersized but may require a small foam shim in loose compartments. The high discharge rate and deep discharge recovery characteristics make this a forgiving battery for tractors that sit idle for weeks between mowing sessions.
The full one-year warranty is standard, but Mighty Max’s long market presence means replacement units are typically processed quickly. The 14-pound weight makes installation easy, and the included screw set accommodates both standard and metric terminal bolts. Owners consistently praise its ability to start tractors that had been on battery tenders for months.
What works
- Excellent value for a 320 CCA battery
- Deep discharge recovery handles storage periods well
- Lightweight and easy to install
What doesn’t
- Slightly narrower fit may require shimming
- No handle for lifting in tight compartments
5. Autocessking U1-320CCA
The Autocessking U1-320CCA stands out for its 28Ah capacity, which is significantly higher than the 20-25Ah range typical of most Group U1 batteries. This extra amp-hour reserve means the battery can support longer cranking cycles without voltage sag and provides more power for accessories like headlights, electric PTO engagement, or cigarette-lighter phone chargers without draining the starting reserve.
The integrated Battery Management System adds protection against over-charge, over-discharge, and short-circuit conditions—features rarely seen at this price tier. This makes the Autocessking a particularly safe choice for tractors with older charging systems that may not regulate voltage as precisely as modern units. The dimensions (7.68 x 5.12 x 6.81 inches) fit standard U1 trays.
The one-year warranty is adequate, though the brand is newer to the market compared to Mighty Max or WEIZE. The terminal layout follows the standard positive-on-left convention, and the included screws match the nut-and-bolt style. Owners report strong cranking performance across multiple OEM models including John Deere, Toro, and Cub Cadet.
What works
- High 28Ah capacity supports accessories and long cranking
- Built-in BMS adds over-charge protection
- Universal fit for standard U1 compartments
What doesn’t
- Newer brand with less long-term reliability data
- No included handle for lifting
6. MARXON U1-280
The MARXON U1-280 is the entry-level option in this roundup, offering 280 CCA at a budget-friendly price point that appeals to owners of smaller, single-cylinder lawn tractors used primarily in mild weather. While 280 CCA is below the 300+ threshold preferred for cold-climate reliability, it is perfectly adequate for tractors stored in heated garages or operated only during the warm months.
The shockproof case material is shared with its higher-CCA sibling, providing the same vibration resistance and heat tolerance despite the lower cranking output. The patented alloy construction improves corrosion resistance, and the maintenance-free AGM design means no water topping is ever required. Dimensions are identical to the U1-330 at 7.68 x 4.92 x 6.14 inches.
The 15-month warranty and US-based support are the same as the premium MARXON models, which is unusual for a budget-tier battery. The included screw set matches standard terminal styles, and the 14.1-pound weight makes for easy handling. Owners report that the battery performs well within its intended use case, with the primary caveat being reduced cold-start performance compared to higher-CCA alternatives.
What works
- Budget-friendly price with good build quality
- Shockproof case adds durability for the price
- 15-month warranty exceeds typical budget terms
What doesn’t
- 280 CCA is marginal for cold-climate starting
- Shorter height may need longer terminal bolts

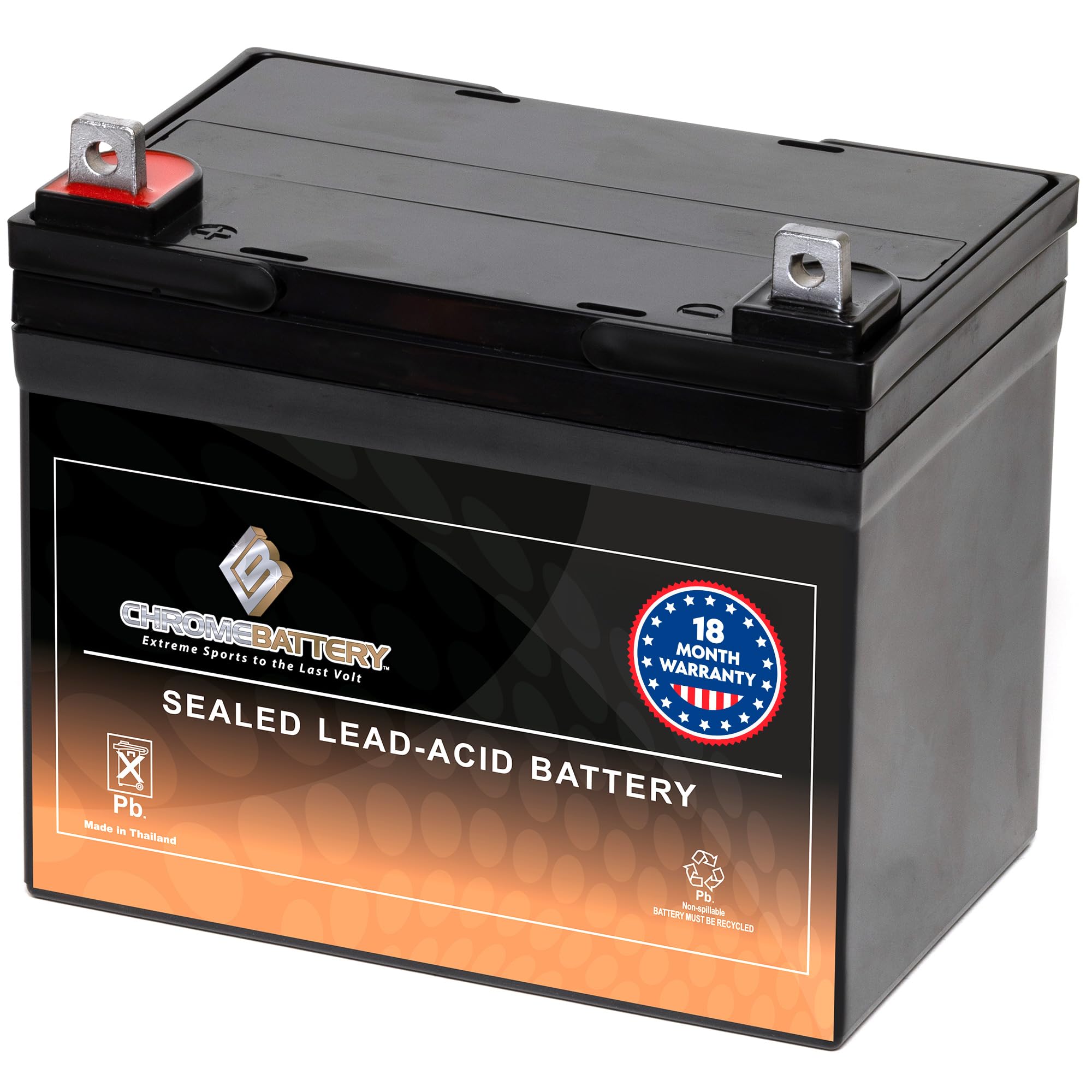

7. CB CHROMEBATTERY 35AH T3
The CB CHROMEBATTERY 35AH T3 is a different animal from the other six batteries on this list. It is not primarily a starting battery—it is a deep-cycle SLA unit designed for applications that discharge the battery significantly before recharging. This makes it a specialty choice for tractors with heavy accessory loads, solar trickle charging setups, or applications where the battery powers lighting or winches after the engine is off.
With 35Ah of reserve capacity, this battery can sustain a 1-amp draw for 35 hours before dropping below safe voltage—far more than any standard starting battery. However, its cold cranking ability is not specified in traditional CCA terms, meaning it should not be the primary choice for tractors that need reliable cold-weather starts. The T3 terminal design uses nut-and-bolt connections that are compatible with most OEM battery cables.
The 18-month warranty with a 60-day refund policy is the longest in this roundup, and Chrome Battery’s US-based customer service team is knowledgeable about SLA applications. The dimensions (7.68 x 5.12 x 6.06 inches) fit standard U1 trays, and the UL certification adds a safety layer for installations in enclosed battery compartments.
What works
- 35Ah deep-cycle capacity supports heavy accessory loads
- Longest warranty in this roundup at 18 months
- UL certified for safety in enclosed spaces
What doesn’t
- Not optimized for cold-cranking starting duty
- Heavier than standard U1 starting batteries
Hardware & Specs Guide
Cold Cranking Amps (CCA)
CCA is the most critical spec for lawn tractor batteries because it directly determines whether the engine spins fast enough to fire on a cold morning. A rating of 280 CCA is the practical minimum for reliable starting in mild climates, 300 CCA handles temperatures down to freezing, and 330 CCA provides a safety margin for sub-freezing conditions. Always match the CCA to your climate and engine size—a larger twin-cylinder engine needs the higher end of this range.
Reserve Capacity (Ah or Minutes)
Reserve capacity measures how long the battery can deliver a steady current before voltage drops too low. A standard lawn tractor starting battery typically offers 20-25Ah, which is sufficient for cranking and basic accessories. Higher Ah ratings (28Ah or 35Ah) benefit tractors with electric PTO, lights, or parasitic drains from digital displays. However, higher Ah often means heavier weight and slightly lower peak CCA per pound.
AGM vs Flooded Construction
AGM (Absorbent Glass Mat) batteries use fiberglass separators to hold electrolyte in suspension, making them spill-proof and vibration-resistant. They can be mounted in any orientation and require zero maintenance. Flooded lead-acid batteries require periodic water topping, can leak if tipped, and are less tolerant of vibration. Every battery in this guide is AGM, which is the standard recommendation for modern lawn tractors.
Physical Dimensions and Terminal Placement
BCI Group U1 is the standard size for lawn tractor batteries, with a nominal footprint of 7.68 x 5.12 inches. Height varies between 6.0 and 7.1 inches depending on the model. Terminal polarity must be verified: standard Group U1 has positive on the left when facing the battery label. Installing a battery with reversed polarity can damage the charging system or cause dangerous sparking during connection.
FAQ
Can I use a deep-cycle battery like the CB CHROMEBATTERY for starting my lawn tractor?
How do I know if a Group U1 battery will fit my lawn tractor?
What does maintenance-free mean for an AGM lawn tractor battery?
Final Thoughts: The Verdict
For most gardeners, the battery for lawn tractor winner is the UPLUS UP-U1-330 because it combines the highest CCA rating in the standard Group U1 format with primary lead construction and a strong warranty. If you need a shockproof case for rough terrain and extreme cold starts, grab the MARXON U1-330. And for a budget-friendly replacement for mild-climate use, nothing beats the value of the MARXON U1-280.
