Beam torque wrenches are the overlooked workhorses of the tool world—no batteries, no complex internals, and a deflection needle that tells the truth every single time. Where a “click-type” wrench can fool you with a false release or drift out of spec without notice, a beam-style tool gives you continuous visual feedback so you can feel and see exactly when you’ve reached the right tension. Whether you’re torquing head bolts, setting lug nuts, or checking bearing preload, having a reliable beam wrench in your box separates a confident fastening job from a catastrophic overtightened failure.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I’ve spent years comparing torque wrench specifications across dozens of data sheets, studying deflection-beam engineering tolerances, and analyzing aggregated owner feedback to identify exactly which models maintain their accuracy through hundreds of cycles without needing recalibration.
This guide cuts through the confusion to help you pick a beam torque wrench that actually holds its zero, stays readable in dim light, and matches the drive size and range your work demands without wasting money on unnecessary complexity.
How To Choose The Best Beam Torque Wrench
Picking the right beam-style torque wrench is more about understanding your torque window and working environment than chasing brand logos. Unlike click-type wrenches, a beam wrench’s long-term accuracy depends almost entirely on the quality of its deflection beam and the clarity of the scale markings. Here’s what to look for.
Torque Range and Drive Size Match Your Work
Using a beam wrench outside its calibrated range invites reading errors and unnecessary beam stress. For delicate bike or small-engine work (typically 10–80 in-lb), stick with a 1/4-inch drive unit. General automotive tasks like intake manifolds and brake calipers fall comfortably in the 20–150 ft-lb range and pair naturally with a 3/8- or 1/2-inch drive. Heavy-duty lug nuts and suspension bolts often demand up to 250 ft-lb—look for a 1/2-inch drive with a corresponding scale that divides the mid-range into readable increments. Working at the very bottom or very top of any wrench’s published range reduces practical accuracy even if the beam itself is sound.
Scale Readability and Increment Granularity
A beam wrench with small, painted hash marks under a curved needle is useless in low-light garage corners or when you’re bent over a wheel well. Prioritize models with high-visibility markings—contrasting colors, deep etched or printed graduations, and a needle with a clean pointer. Check the increment spacing: a 25 in-lb jump on a 0–800 in-lb wrench is fine for rough checks, but engine builders who need fine control should look for tighter step intervals, such as 2 ft-lb on a 0–150 ft-lb scale. Dual metric and standard scales are a bonus if you frequently switch between fastener standards.
Beam Construction and Zero Stability
The deflection beam itself must be made from a consistent alloy (typically heat-treated CR-V steel) that returns to zero after every use. On cheaper units, the needle can stick off zero due to simple assembly drift or a bent pivot pin. Before buying, confirm the model allows easy manual re-zeroing—usually by gently bending the needle arm—without voiding any warranty. A polished, non-corrosive surface finish also helps the beam slide freely within its guide slot over years of use. Avoid wrenches where the beam-to-handle weld looks sloppy or where the scale plate is a glued-on sticker rather than a permanently printed metal panel.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| QUENCHING Split Beam | Premium | Heavy-duty high-torque fastening | 250 ft-lb / 15° flex head | Amazon |
| CRAFTSMAN 1/2-Inch | Premium | High-torque automotive lug nuts | 250 ft-lb / bi-material grip | Amazon |
| CRAFTSMAN 3/8-Inch | Mid-Range | General automotive and engine work | 100 ft-lb / ASME certified | Amazon |
| GEARWRENCH 1/2-Inch (2957N) | Mid-Range | Left/right-thread fastening jobs | 150 ft-lb / dual-direction use | Amazon |
| Powerbuilt 1/2-Inch | Mid-Range | Precision needle-style measuring | 150 ft-lb / blow-molded case | Amazon |
| GEARWRENCH 1/4-Inch (2955N) | Budget | Small-fastener precision to 80 in-lb | 80 in-lb / polished finish | Amazon |
| ARES 3/8-Inch (70214) | Budget | Entry-level mid-range torque checks | 800 in-lb / 0–90 Nm | Amazon |
In‑Depth Reviews

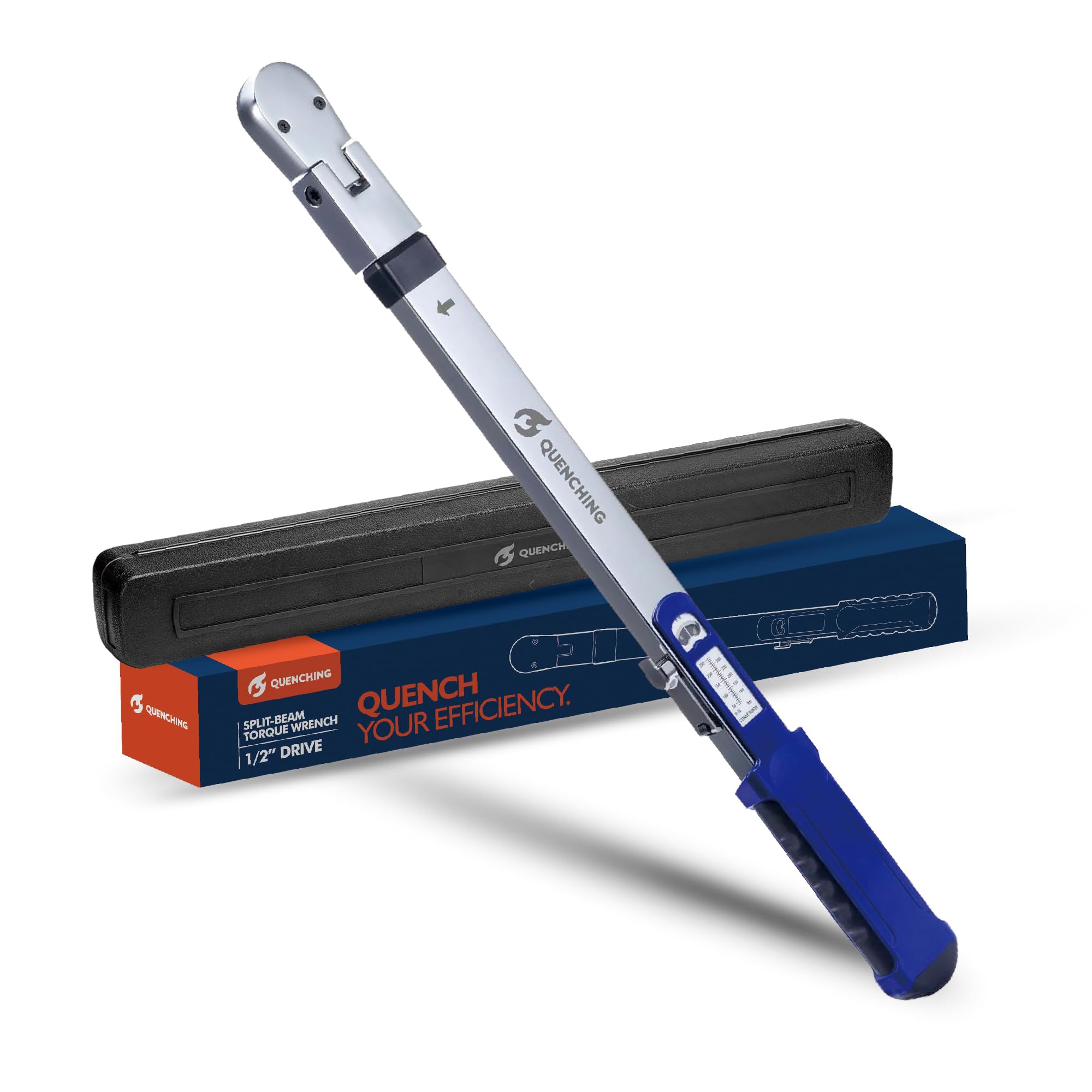

1. QUENCHING Torque Wrench 1/2 Inch Drive, Split Beam
The QUENCHING split-beam wrench is the most thoughtfully engineered option in this roundup, combining a 40–250 ft-lb range with a 15-degree flex head that clears fenders and engine-bay obstacles without sacrificing leverage. Its chrome vanadium shaft feels dense in the hand, and the ±4% accuracy exceeds what most conventional beam designs guarantee out of the box. The pre-calibrated dual scale is laser-etched rather than painted, so it won’t wear off after repeated wipes with solvent.
Owners consistently praise how quickly the split-beam mechanism resets—no need to dial down a click-style handle after every use, just flip the lever and store it. The flex head genuinely reduces hand strain when reaching recessed wheel studs, though the included plastic storage case has cheap latch hardware that might not survive heavy shop tossing. Several long-term users noted they replaced twenty-year-old Snap-on and Sears beam wrenches with this unit and saw no drop in reading consistency.
One trade-off: the dial markings skip single-digit increments, so reading exact torque to within a single ft-lb requires a bit of interpolation between the printed lines. For suspension, drivetrain, and lug-nut work where a 3–5 ft-lb window is acceptable, this is a top-tier buy. For micro-precision engine bearing work, you may want a finer-graduated 3/8-inch beam alongside this one.
What works
- Flex head reaches tight spaces under wheel wells and engine bays
- Split-beam lever adjustment is faster than twist-handle click wrenches
- CR-V steel shaft feels durable and returns to zero reliably
What doesn’t
- Storage case latches feel cheap and may break in a busy toolbox
- Scale increments skip individual ft-lb marks, requiring estimation
2. CRAFTSMAN Torque Wrench, 1/2″ Drive, 50-250 FT-LB (CMMT99434)
The CRAFTSMAN 1/2-inch click-style wrench covers a generous 50–250 ft-lb window, making it a natural fit for heavy automotive work like suspension bolts, wheel hubs, and trailer hitches. Its bi-material handle provides a cushioned grip that dampens hand fatigue during extended cranking, and the locking collar adjusts settings quickly without accidental slippage. The dual scale (ft-lb and Nm) is stamped directly into the housing for permanent legibility.
Users regularly report that the audible click at the set torque is crisp enough to hear over a busy garage floor, and that the head engages sockets without slop—a sign of solid broaching tolerances. Several purchasers noted the longer handle (29.65 inches) provides enough leverage to reach 250 ft-lb without straining your lower back, though that same length makes it awkward in confined engine bays. Build quality meets ASME specs, and owners say it holds calibration well over dozens of cycles if stored at the lowest setting.
On the downside, the left/right direction switch on some units gums up after repeated high-torque cycles—a couple of users had to free it with pliers. The 50 ft-lb minimum also means it’s useless for delicate sub-50 jobs like valve covers or small-bore fasteners. Pair this with a lower-range beam wrench for complete coverage.
What works
- Strong 250 ft-lb top end for heavy lugs and suspension work
- Long handle reduces physical effort at high torque settings
- Audible click gives clear confirmation at set value
What doesn’t
- Direction switch can seize after heavy use at 80+ ft-lb
- Too large for tight engine bay access
3. CRAFTSMAN Torque Wrench, 3/8″ Drive (CMMT99433)
This 3/8-inch drive CRAFTSMAN hits the sweet spot for the vast majority of automotive work—cylinder heads, intake manifolds, and brake calipers all fall within its 20–100 ft-lb sweet zone. The micrometer-style adjustment ring clicks positively into each half-increment position, and the scale windows on the housing allow quick set-and-forget operation without fumbling. At just 17.2 inches, it stores easily in a typical tool bag and doesn’t bang against fenders during use.
Owners consistently highlight the comfortable grip and the satisfyingly loud click that prevents overtightening. Several noted that the locking mechanism holds its setting even when the wrench is tossed loosely into a drawer. The bi-material handle provides better tactile feedback than all-metal competitors. For DIY mechanics stepping up from a budget click wrench, the CRAFTSMAN delivers a noticeably tighter ratcheting head and smoother adjustment travel. A handful of users found the click too faint below 20 ft-lb to hear reliably, and one reported breaking an aluminum bolt at under 10 ft-lb because the wrench didn’t release audibly—underscoring the limitation of any click wrench near the bottom of its range.
If your work rarely exceeds 100 ft-lb and you want a versatile mid-range torque wrench with a trusted brand name, this is an easy recommendation. Keep a separate beam wrench handy for the sub-20 ft-lb safety zone where clickers go silent.
What works
- Smooth micrometer adjuster with positive detent feel
- Comfortable bi-material grip reduces fatigue on repetitive jobs
- ASME-certified build quality at an accessible price point
What doesn’t
- Click signal becomes too faint below 20 ft-lb to trust
- Aluminum fasteners under 10 ft-lb risk overtightening
4. GEARWRENCH 1/2″ Drive Beam Torque Wrench, 0-150 ft/lbs. (2957N)
GEARWRENCH’s 1/2-inch beam model is a straightforward, no-electronics torque tool that works equally well for both right-hand and left-hand threaded fasteners. The polished steel beam flexes cleanly, and the pointer provides continuous visual feedback as you approach your target value. With a range from 0 to 150 ft-lb, it covers nearly everything a home mechanic encounters, from wheel bearings to control arms, without needing to own multiple wrenches.
User feedback emphasizes the calibration stability—multiple owners report using it for years without the needle drifting off zero. The hang hole at the handle end makes storage on a pegboard simple, and the 20-inch length gives enough leverage for stubborn fasteners without being unwieldy. Several reviewers specifically use this wrench to measure drag torque on wheel hubs, a task where beam-style continuous feedback is genuinely superior to click- or digital-type tools. The fixed square head engages sockets firmly, though the single attachment point between handle and shaft allows a tiny amount of rotational play that some users find mildly disconcerting at first.
The main limitation is the absence of a protective case—it ships in a simple blister pack. Without a case, the polished finish may get scratched when sharing a drawer with other tools. If you prefer a beam wrench that never needs recalibration and works beautifully for checking both CW and CCW torque, this GEARWRENCH is a durable, trustworthy choice.
What works
- Zero holds steady over years of use with no calibration drift
- Equally accurate for left-hand and right-hand threaded fasteners
- Smooth polished finish resists rust with basic care
What doesn’t
- No protective case included for storage protection
- Slight rotational play between handle and shaft feels odd at first

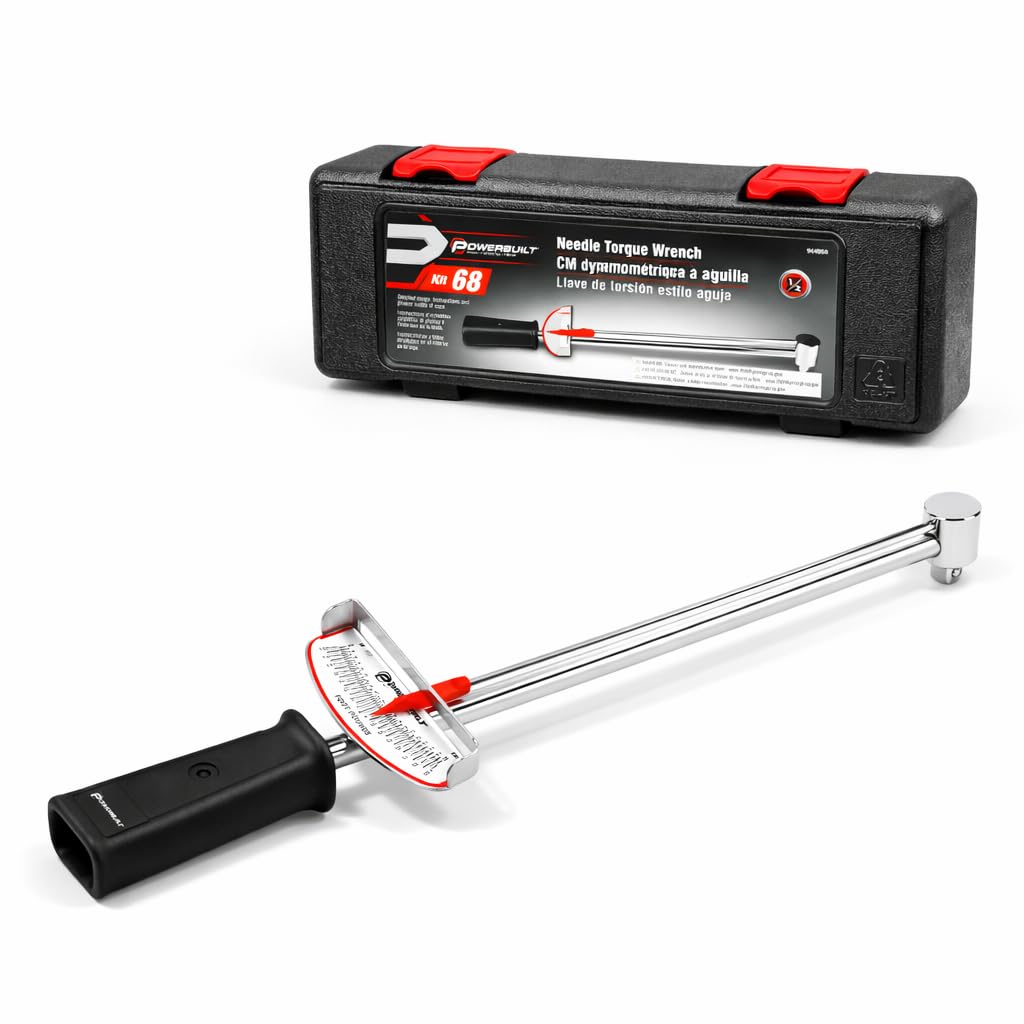

5. Powerbuilt 1/2-Inch Drive Needle Torque Wrench (944050)
The Powerbuilt needle-style beam wrench brings an unusual C-shaped head design and a included blow-molded case to the budget end of the 1/2-inch drive market. Its 0–150 ft-lb range matches the most common automotive fastening window, and the dual scale (ft-lb and kg-cm) covers both standard users and those dealing with metric workshop manuals. The heat-treated CR-V steel main beam and pinned needle give it a durable feel that belies its accessible price.
Owners praise the hard case as a legitimate value-add—keeping the delicate needle and scale board protected from dings during storage. Several users specifically bought this wrench as a reliable reference to occasionally check the accuracy of their more expensive click wrenches. The needle can be manually zeroed without tools, which is helpful if the pointer arrives slightly off its resting mark after shipping. The included photo-heavy instructions make it easy to understand proper technique, even for first-time beam wrench users.
The C-shape head can be a hindrance in recessed or tight fastener locations where a traditional straight beam would fit better—some users needed a mirror or helper to read the needle in confined spots. The pivot handle design is meant to keep distance consistent for accuracy, but it adds a moving joint that must be maintained. If you mostly work on accessible fasteners and want a kit-ready wrench, the Powerbuilt is an excellent balance of features and value.
What works
- Durable blow-molded case protects the delicate needle mechanism
- Manual zeroing is simple with no tools required
- Heat-treated beam stays strong through repeated use
What doesn’t
- C-shaped head limits access in tight or recessed spaces
- Needle can be hard to read at extreme angles without a second person
6. GEARWRENCH 1/4″ Drive Beam Torque Wrench 0-80 in/lbs. (2955N)
The GEARWRENCH 1/4-inch beam wrench is purpose-built for low-torque precision where even a light-duty click wrench can’t deliver a reliable release. Its 0–80 in-lb range is ideal for bicycle derailleur bolts, small engine cylinder heads, electronics enclosure fasteners, and instrument panel work. The polished finish makes it easy to wipe clean, and the 22-inch overall length feels balanced for controlled slow pulls without sudden torque spikes.
Users consistently note that this wrench arrived with a spot-on zero and has stayed there through dozens of sessions—a sign of careful assembly. The hang hole at the end simplifies pegboard organization. Several marine mechanics and bike shop owners keep one in their daily toolkit specifically because beam-style feedback lets them feel the engagement before the needle even reaches the target number. The fine increments on the scale allow reading down to approximately 2 in-lb per mark, making it useful for delicate calibration work.
The main drawback is that a small percentage of units have arrived with the needle off zero by a few in-lb—an easy manual fix but an extra step. The wrench also lacks a ratcheting head, so you’ll need to reposition the drive on the fastener for each pull. If you work with small fasteners that need accurate torque below 80 in-lb, this is the budget-friendly beam wrench to beat.
What works
- Fine 2 in-lb increments for delicate, low-torque fasteners
- Sturdy polished steel with reliable zero retention
- Long handle allows controlled, gradual torque application
What doesn’t
- Occasional off-zero units require manual adjustment
- No ratcheting head means resetting after each pull
7. ARES 70214 3/8-Inch Drive Beam Torque Wrench
The ARES 70214 is a compact 3/8-inch beam torque wrench offering a dual-scale readout in inch-pounds (0–800) and Newton-meter (0–90), giving it impressive versatility for both automotive and light-industrial applications. Its fixed square head eliminates any wobble during engagement, and the painted scale markings with high-visibility contrast make readings possible even in dim under-hood conditions. The 11.11-inch length is short enough to slide into tight compartments but long enough for controlled torque application.
Owners frequently mention that the ARES outperformed their expectations at this accessible price—serving as a reliable accuracy check for their more expensive click-type wrenches. Several users who previously broke click-type wrenches rely on the ARES as a durable daily driver. The +/-4% accuracy specification is typical for the beam-style category and sufficient for all but aerospace-grade tolerance work. The alloy steel shaft feels rigid and returns to zero reliably after each use.
The most common critique is that the 25 in-lb scale increments make it difficult to pin down an exact intermediate value—you’ll be estimating halfway between lines for anything that doesn’t land on a round number. The wrench also lacks a storage case, so the scale markings can get scuffed if thrown loose in a tool drawer. For budget-minded buyers who need a solid beam wrench for general maintenance and occasional engine work, the ARES delivers surprising durability.
What works
- Dual in-lb and Nm scales eliminate conversion guesswork
- Compact 11-inch length fits into tight workspaces
- Alloy steel beam holds zero reliably for long-term accuracy
What doesn’t
- 25 in-lb increments make precise intermediate settings tough
- No included case leaves scale markings vulnerable to scratches
Hardware & Specs Guide
Deflection Beam Material and Fatigue Resistance
The core of any beam torque wrench is the main beam—typically a flat strip of heat-treated alloy steel. Unlike click-type wrenches that rely on spring-loaded internal mechanisms that can fatigue or drift over time, a properly designed deflection beam operates within its elastic limit for the tool’s entire service life. Quality manufacturers use chrome vanadium or chrome molybdenum steel, then precisely heat-treat it to ensure the beam returns to its exact zero position after every use. Avoid wrenches where the beam feels thin or flexes with very light hand pressure—this often indicates insufficient material thickness, making the tool prone to permanent deformation if you briefly exceed the upper torque limit.
Scale Plate Design and Readability
The scale plate is where many budget beam wrenches cut corners. Look for a scale that is permanently bonded to the handle (or stamped directly into the metal) rather than a thin adhesive sticker that can peel or bubble under oil exposure. The pointer needle should be a formed metal piece with a sharp tip, not a bent wire. Increment spacing matters: a wrench covering 0–150 ft-lb with 2 ft-lb divisions is considerably easier to read at a glance than one with 5 ft-lb jumps. Dual metric/standard scales are helpful only if the markings are kept large enough to read comfortably—crowding both scales onto one small plate often makes both harder to interpret.
FAQ
Can a beam torque wrench be used for both tightening and loosening?
How often does a beam torque wrench need calibration?
What does the split-beam design do differently?
Can I use a beam torque wrench with a crowfoot or extension?
Final Thoughts: The Verdict
For most mechanics and serious DIYers, the beam torque wrench that offers the best balance of build quality, range, and accuracy is the QUENCHING 1/2-Inch Split Beam because its 15-degree flex head and pre-calibrated split-beam mechanism eliminate the two biggest frustrations of traditional beam wrenches: difficult access and slow re-zeroing. If you need a high-torque click-style wrench for lug nuts and suspension work, grab the CRAFTSMAN 1/2-Inch CMMT99434. And for entry-level mid-range torque checking with a durable, no-surprises beam tool, nothing beats the value of the ARES 70214—especially if you want to keep a dedicated wrench for verifying your click-type tools.
