A frame feeder that drowns workers or leaks syrup into the brood box isn’t a convenience—it’s a liability. The wrong internal feeder stresses a colony during dearths, triggers robbing, and wastes expensive sugar syrup. Choosing a design that seals against pests, floats a reliable ladder, and matches your hive’s frame depth keeps your bees fed without the mess.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I have spent years comparing beekeeping equipment specifications, studying hive management data, and analyzing aggregated owner feedback to identify what separates a nuisance feeder from one that works as quietly as a natural honey super.
Whether you are feeding a weak nuc in early spring or supplementing a strong colony through a summer dearth, the right bee frame feeder determines whether your syrup reaches the cluster or ends up on the bottom board.
How To Choose The Best Bee Frame Feeder
A frame feeder replaces one or two frames inside the hive box, placing syrup directly where the cluster lives. This proximity is both its advantage and its danger. Selecting the right unit means checking four things before you pour a drop.
Frame Depth and Feeder Height Must Match
Deep (9 5/8″), medium (6 5/8″), and shallow (5 11/16″) hive bodies all require a feeder with the correct vertical height. A feeder that is too tall leaves a gap under the inner cover where robber bees enter; a feeder that is too short forces the colony to build burr comb over the syrup reservoir. Always confirm the feeder’s height against your box depth.
Ladder Design: Grip vs. Drowning Risk
The ladder—the textured surface inside the feeder—provides a foothold for bees to reach syrup without falling in and drowning. Coarse cross-hatch plastic or embedded mesh prevents drownings far better than a smooth slope. Avoid feeders that rely solely on a floating wood piece that can tip or absorb syrup and rot.
Capacity and Refill Frequency
Quart-size feeders hold enough syrup for a small nuc or package installation for a few days. Gallon-size units feed a full-strength colony for up to a week. Larger capacity reduces disturbance during cold snaps but adds weight; a full gallon feeder weighs roughly 8 pounds and requires a secure hanger or tab system that won’t sag.
Material and Cleaning Requirements
Food-grade plastic resists mold and cleans easily with hot water and a bottle brush. Wooden parts, especially unsealed caps, absorb syrup and become a breeding ground for fungal spores within one season. If you prefer a feeder with a wood cap for weight reduction, plan to replace that cap annually. Transparent plastic reservoirs let you gauge remaining syrup without opening the hive.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Little Giant 3 Quart | Premium | Strong colonies & minimal refills | 3 quart capacity / 1.75” ladder | Amazon |
| Mann Lake Deep Pro Feeder | Mid-Range | Deep 10-frame box precision fit | 1 gallon / 2” feeder ears | Amazon |
| Pierco 9 5/8 Deep Frame Feeder | Mid-Range | Reliable value for deep frames | 1 gallon / integrated ladder | Amazon |
| BeeCastle Pro Feeder | Mid-Range | Budget friendly deep feeding | 1 gallon / cross-hatch ladder | Amazon |
| MayBee 2 Pack 6.5L | Value | Multi-hive feeding at low cost | 6.5 L capacity / twin pack | Amazon |
In‑Depth Reviews

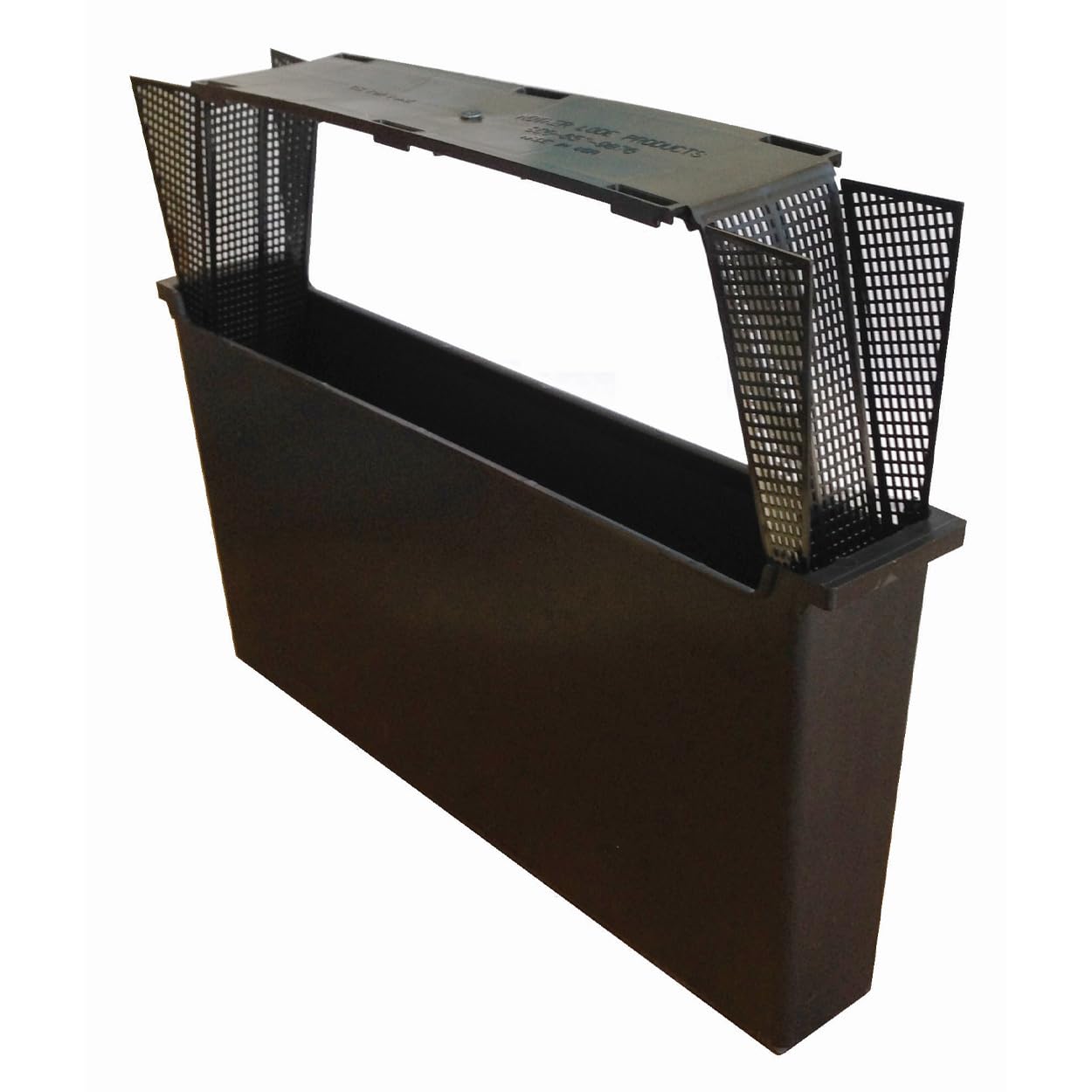

1. Little Giant Beehive Feeder Frame 3 Quart
The Little Giant 3 Quart feeder is the premium option for keepers who want a single-unit solution that can go days between refills. Its deeper reservoir (roughly 2.8 liters actual fill) supports a full Langstroth deep colony without the beekeeper returning every 48 hours—critical during cold fronts or when the apiary is off-site.
The internal ladder sits approximately 1.75 inches above the bottom, providing a wide grip surface that prevents drownings even when the syrup level is low. The feeder body is molded from opaque food-grade plastic, which reduces light exposure that can degrade syrup quality. A user reported filling this unit on Monday and not needing to return until Thursday with a ten-frame population at peak flow.
Being made in the USA, the plastic feels noticeably stiffer than the imported competitors, and the ear tabs slot securely into most frame rests without sagging. The only catch is the price—it sits at the high end of the category—but the reduced refills and sturdy build justify the premium for keepers running 20+ hives.
What works
- 3-quart capacity cuts refill frequency in half versus gallon units
- Thick, food-grade plastic resists warping in hot weather
- Ladder depth provides safe access even for young bees
What doesn’t
- Heavier than quartz feeders when full—around 7 lbs
- No included cap or sealing lid; inner cover fits directly above
2. Mann Lake Deep Pro Feeder for Bee Hive
The Mann Lake Deep Pro Feeder is a workhorse for deep 10-frame boxes. Its 2-inch feeder ears—wider than many competing units—ensure the feeder sits flush without tilting, even when fully loaded with syrup. The 1-gallon reservoir is the sweet spot for medium-to-large colonies, offering enough supply for four to six days depending on nectar availability.
The unit comes with a wood cap and feeding ladders. The wood cap is light but requires careful drying between uses; owners who soak it in bleach solution between seasons report two-plus years of service. The ladders are molded into the plastic, not a separate floating piece, so they stay put when bees cluster on them overnight.
At 19 inches long, it replaces one deep frame cleanly and leaves space for nine working frames. The black color absorbs solar warmth on cool spring days, speeding up syrup consumption. A few keepers noted the plastic around the fill hole can feel thin if over-tightened, so hand-tightening the cap is recommended.
What works
- Wide 2-inch ears prevent tipping inside the box
- Molded ladders eliminate floating parts that can trap bees
- 1 gallon capacity balances weight and refill convenience
What doesn’t
- Wood cap can absorb syrup and develop mold over time
- Plastic fill-hole threads feel delicate; over-tightening cracks them
3. Pierco 9 5/8 Deep Frame Feeder | 1 Gallon
The Pierco 9 5/8 Deep Frame Feeder offers a straightforward design that appeals to keepers who just want the feeder to work without extra features. Its 1-gallon capacity is identical to the Mann Lake unit, and the included cap—a solid plastic plug—seals tighter than the wood cap alternatives, reducing evaporation and odor leakage that can trigger robbing.
The ladder is integrated into the reservoir wall, angled enough to give bees a safe climb but shallow enough that a cluster can fully surround the syrup surface. Users running top-entrance hives appreciated that this unit’s low profile doesn’t block ventilation at the inner cover notch.
The plastic body is translucent, allowing a quick visual check of syrup level through the inner cover without removing the feeder. On the downside, some owners found that the feeder ear tabs are slightly narrower than standard—around 1.5 inches—so it may shift in boxes with thick frame rests. Shimming with a thin wooden wedge solves the instability.
What works
- Plastic cap seals better than most wood caps
- Translucent body allows syrup level check without lifting
- Angled ladder surface keeps bees out of the syrup reservoir
What doesn’t
- Narrower ears can slip in some manufacturer’s frame rests
- No mesh or cross-hatch pattern—just a smooth slope
4. BeeCastle Bee Pro Feeder Beehive Frame Feeder
The BeeCastle Pro Feeder is the most wallet-friendly entry in the deep frame feeder category, but it does not cut corners on the one feature that matters most: ladder texture. The reservoir floor and walls feature a pronounced cross-hatch pattern that provides exceptional grip, even for smaller bees that struggle with smooth plastic slopes.
Rated for deep boxes, this unit holds a full gallon of syrup and includes a plastic cap that seals tightly. The cap’s gasket is integrated into the lid itself, reducing the number of small parts that can be lost during cleaning. First-time beekeepers building their initial setup will appreciate that the feeder fits standard Langstroth frames without modification.
The plastic feels slightly thinner than the Mann Lake or Little Giant, but for one-season use—or as a backup feeder for splits—it holds up well. A handful of reviews mention that the plastic can warp if filled with syrup above 120°F, so let your sugar mixture cool to lukewarm before pouring. With that minor caution, this unit delivers solid performance at a low entry cost.
What works
- Cross-hatch ladder pattern gives bees excellent footing
- Integrated gasket in the cap—no loose parts
- Lowest price point among full-gallon deep feeders
What doesn’t
- Thinner plastic wall may warp with very hot syrup
- Cap threads can strip if tightened too aggressively
5. MayBee 2 Pack 6.5L Bee Pro Feeder
The MayBee 2 Pack stands apart because of its 6.5-liter (roughly 1.7 gallon) capacity per feeder—nearly double the standard deep frame feeder volume. This is the clear choice for sideliner beekeepers who want to minimize disturbance during cold snaps or for anyone feeding heavy syrup in early spring when opening the hive is risky.
Each unit comes as a two-pack, which immediately solves the “which hive gets the feeder?” dilemma. The ladder is molded with vertical ridges, not a cross-hatch pattern, which still provides safe access but requires the syrup level to stay above the lowest ridge. If the syrup drops too low, small bees may struggle to climb back out.
The extra capacity does come with a trade-off: at 6.5 liters full, each feeder weighs about 14 pounds, making it the heaviest option in the roundup. Ensure your box’s frame rest is sturdy enough to support the load without sagging. Keepers using 8-frame equipment may find the ears too wide to sit securely; this feeder is best suited for 10-frame deeps.
What works
- Huge 6.5L capacity extends refill intervals significantly
- Two-pack value covers multiple hives immediately
- Rigid plastic maintains shape even at full weight
What doesn’t
- Very heavy when full—needs strong frame rests
- Vertical ladder ridges less forgiving than cross-hatch when syrup is low
Hardware & Specs Guide
Frame Feeder Capacity
Capacity directly affects how often you refill and the weight the box must support. Quart-size feeders (3 quart units like the Little Giant) hold roughly 0.75 gallons and weigh about 6 pounds full. Gallon-size units weigh approximately 8 pounds. The MayBee 6.5L feeder tips the scales at 14 pounds when filled—nearly the weight of a full honey super. Match capacity to colony strength: nucs and packages need smaller reservoirs to avoid the syrup fermenting before consumption, while strong hives can empty a gallon in four days.
Ladder Depth and Pattern
The ladder is the textured surface that bees grip while drinking. Cross-hatch plastic (used by BeeCastle) offers the most surface area per square inch, giving multiple footholds. Vertical ridges (MayBee) work well as long as the syrup level stays above the shallowest ridge. A smooth slope (basic Pierco) relies on surface tension and bee saliva to keep workers from slipping. Shallow ladders—less than 1.5 inches deep—pose drowning risks when the syrup level is drawn down. Deep ladders over 2 inches (Little Giant) ensure bees can always climb out, even from a nearly empty feeder.
FAQ
How do I prevent drowning in a frame feeder?
Why does my syrup leak into the brood box?
Can I use a frame feeder in an 8-frame box?
Final Thoughts: The Verdict
For most gardeners, the bee frame feeder winner is the Mann Lake Deep Pro Feeder because it balances a secure 2-inch ear fit, a full-gallon capacity, and molded ladders that prevent drownings without the wood-cap mold problems. If you want minimal refills with a sealed top, grab the Little Giant 3 Quart. And for a multi-hive setup on a budget, nothing beats the MayBee 2 Pack 6.5L.
