Drilling into brick isn’t like boring through wood. The difference is abrasive friction against a material that crushes standard steel in seconds. Use the wrong bit and you’ll spend an hour fighting, burning the tip, and staring at a shallow divot. The right bit punches clean and fast, leaving dust and a properly sized anchor hole.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I study masonry drilling datasets, compare vendor heat-treatment specs, and cross-reference owner feedback to surface the bits that truly survive hard-fired clay and mortar lines.
After combing through carbide-tipped SDS and hex-shank masonry bits across five lengths and tip geometries, I’ve narrowed the field to the top contenders for every common brick-drilling job. This is the definitive guide to the bit for drilling brick for homeowners and pros alike.
How To Choose The Best Bit For Drilling Brick
Brick is a dense, abrasive ceramic. A general-purpose twist bit will dull within a few inches. The right masonry bit uses two defining features: a carbide tip that shatters rather than smears, and a shank that locks into a hammer drill without spinning loose. Here are the three specs that matter most.
Carbide Tip Grade and Geometry
Look for YG6X tungsten carbide — the same grade used in industrial rock drilling. The tip should feature a self-centering split point or crosshead to stop the bit from walking across the brick face. A sharper tip angle (around 45 degrees) bites quicker into fired clay.
Shank Type: SDS-Plus vs. Hex vs. Round
For brick, a rotary hammer drill with an SDS-Plus shank is the gold standard. The slot-and-groove design transfers the hammering impact directly to the tip without the chuck slipping. Hex shanks work with impact drivers and standard hammer drills but can torque-loose under heavy resistance. Round shanks without a flat face should be avoided for brick entirely.
Flute Design for Debris Evacuation
A two- or three-flute spiral design pulls brick dust out of the hole as you drill. Straight flutes clear less efficiently and generate more heat through recutting. For deep holes, slight helix angle and a polished flute surface make the difference between a five-minute hole and a fifteen-minute burnout.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Sabre Tools 4-Piece SDS Set | Set | Multi-size brick and block | Carbide tip, self-centering | Amazon |
| Sabre Tools Single 3/8″ x 18″ SDS | Single Extra Long | Deep-wall through-holes | 18 inch drilled length | Amazon |
| GRENPRO 12-Piece Hex Set | Set | Standard drill compatibility | YG6X carbide, 40Cr shank | Amazon |
| DKIBBITH 2-Pack 1/2″ x 12″ SDS | 2-Pack | Rough concrete and rock | Carbide tip, hardened steel | Amazon |
| BGTEC 10-Piece Hex Set | Set | Tile, glass, and brick | Crosshead tip, water-cool | Amazon |
In‑Depth Reviews
1. Sabre Tools 4-Piece 12in SDS Plus Drill Bit Set
The Sabre 4-piece set covers the four most requested diameters for brick drilling: 1/4″, 5/16″, 3/8″, and 1/2″, each at a full 12 inches of working length. The self-centering carbide tip mates cleanly with an SDS-Plus rotary hammer, reducing walk at the start of the hole. Owner feedback consistently reports penetrating block walls and brick facades with minimal effort — one reviewer drilled through cinder block without slowing down.
The two-flute spiral design evacuates brick dust effectively, preventing the bit from binding in deeper penetrations. The alloy steel body resists torsional twist common when the bit hits a mortar seam. Users note that the 1/2″ bit handles rebar encounters better than budget single-piece bits, although repetitive use in very hard poured concrete eventually dulls the edge faster than high-cobalt alternatives.
For the DIY homeowner running a weekend anchor installation or the tradesman needing a spare backup set, this Sabre kit delivers the right lengths at a package price that undercuts buying four singles. The only gap is the lack of a carrying case; the bits ship loose in a poly bag. Overall, the best balanced all-rounder on this list.
What works
- Four useful diameters in one purchase
- Self-centering tip reduces bit walk on glazed brick
- Spiral flute clears debris in deep holes
What doesn’t
- No storage case included
- Tip dulls faster in reinforced concrete
2. Sabre Tools 3/8 Inch x 18 Inch SDS Plus Rotary Hammer Drill Bit
When you need to punch through a double-wythe brick wall or a 14-inch rock-faced foundation, standard 6-inch bits hit air far too early. This Sabre single bit provides 18 inches of reach with a 3/8-inch diameter — the sweet spot between structural rigidity and manageable chip load. The carbide split point stays centered even against uneven mortar joints.
Real-world feedback is emphatic. One owner drove through a full concrete wall to install a Starlink cable and compared the cut to “a sharp knife through butter.” Another completed a 15-inch penetration in roughly ten minutes using a Dewalt SDS hammer drill, noting that the spiral flute cleared cuttings effectively when he added water cooling. The carbon steel body does flex slightly under extreme side load, but for straight axial drilling the bit holds angle well.
The primary tradeoff is that this bit runs hot fast if you neglect water cooling. Multiple reviews emphasize that cooling the bit every 20–30 seconds prevents the carbide tip from losing its edge. It also delivers a solid arm workout — as one buyer put it, a free upper body session with every deep hole. Perfect for anyone running conduit, plumbing, or cable through thick masonry.
What works
- Full 18-inch length for through-wall work
- Split point stays centered on brick and block
- Spiral flute clears deep-hole dust effectively
What doesn’t
- Overheats quickly without water cooling
- Carbon steel body can flex under side pressure

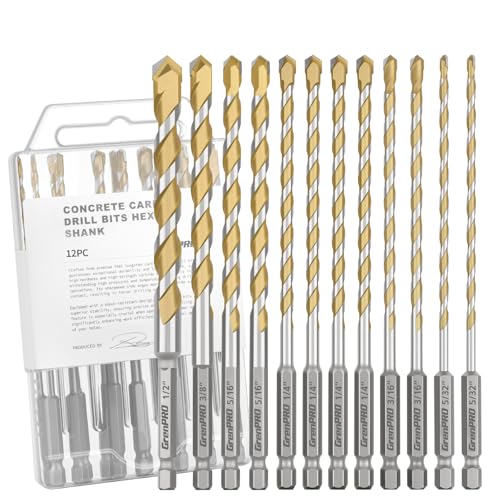

3. GRENPRO 12PCS Concrete Carbide Drill Bits, Hex Shank Masonry Set
The GRENPRO set solves the most common DIY problem: needing multiple sizes without paying per bit. Twelve pieces span six diameters from 5/32″ up to 1/2″, with four copies of the frequently lost 1/4″ size. The hex shank locks into impact drivers and standard hammer drills — no rotary hammer required. The YG6X tungsten carbide tip resists chipping on the abrasive edges of brick and concrete block.
Owner reports confirm the durability claim holds up under daily use. One reviewer used this set for two months of routine masonry drilling and found the tips still sharp. The 40Cr steel shank, hardened to 50 HRC, resists bending when drilling with aggressive hammer mode. The 4-inch working length is adequate for most anchor and fastener holes; deeper cavities will need a longer bit.
The only downside is that the straight flute design clears dust less effectively than a spiral flute. For shallow holes up to 2 inches that isn’t a problem, but deeper bores may require pecking to remove dust. Also, the 5/32″ bits are quite thin and can snap under extreme side torque if the drill is canted. Overall, the best entry-level set for the homeowner who keeps losing bits mid-project.
What works
- 12-piece set covers six diameters
- Hex shank fits most impact drivers and drills
- YG6X carbide tip resists chipping on brick
What doesn’t
- Straight flute clogs in deep holes
- Small 5/32″ bits can snap at extreme angles

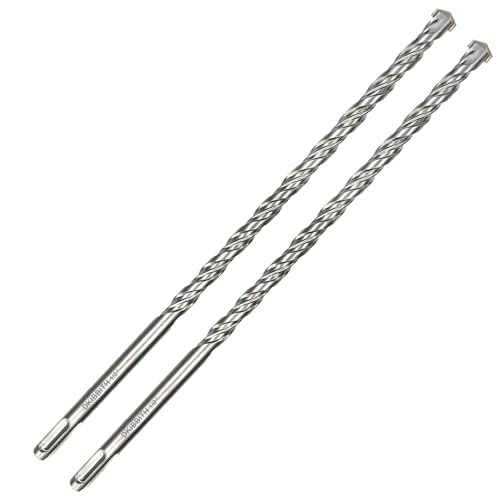

4. DKIBBITH 2-Pack SDS Plus Masonry Bits, 1/2 Inch x 12 Inch
Sometimes the key spec is sheer mass: a half-inch diameter SDS bit with 12 inches of hardened steel. The DKIBBITH 2-pack delivers two identical bits for jobs where a single bit might encounter hidden rebar or aggregate stone. The carbide tip uses a two-flute configuration optimized for fast penetration in concrete, cement, and stone — not just soft brick.
Field experience is telling: one owner drilled 20 holes into rock with a single bit and reported it was still cutting when he stopped. Another reviewer directly compared these bits against Bosch and DeWalt equivalents and found the DKIBBITH outperformed them in hard concrete, where three out of five Bosch bits had broken or melted. The high-heat welding process on the carbide-to-steel joint resists the thermal stress from extended rotary hammer use.
The tradeoff is that these bits demand water cooling more acutely than many others — the review comment “needs cooling water” appears repeatedly. Without liquid cooling, the carbide tip can overheat and glaze, losing cutting efficiency. Also, the 1/2″ diameter is overkill for standard 3/16″ or 1/4″ wall anchors. Best for heavy anchor installations like structural shelves, TV mounts, or fence posts in solid masonry.
What works
- Two bits in one pack for rough conditions
- High-heat welding resists tip separation
- Outperformed major brands in hard concrete tests
What doesn’t
- Requires frequent water cooling
- 1/2″ diameter is too large for small anchors
5. BGTEC Masonry Drill Bits, 10-Piece Hex Shank Set
The BGTEC set targets a specific dual-use scenario: drilling through porcelain or ceramic tile into the brick behind. The precision crosshead tip prevents the bit from skating across the glazed tile surface — a common failure point for standard masonry bits. The ten-piece kit offers metric sizes from 5 mm up to 12 mm, covering most European and Asian anchor standards.
Customer results are striking for tile work. One reviewer drilled 24 clean holes through porcelain tile for mirrors and hooks, reporting zero chipping or cracking. Another used the pointed bit first to create a 1/8-inch pilot dimple, then followed with the round bit — a technique that reduced drill time to under two minutes per hole when combined with cold-water dipping. The three-flute straight design provides a stable cutting geometry for brittle materials.
These bits are less suited for straight-up brick drilling at full hammer force. The hex shank can slip in a standard drill chuck under heavy load, and the tungsten carbide tips are optimized for tile first, masonry second. Also, the included size range omits the common 1/4-inch (6.35 mm) inch-based diameter that American anchor hardware uses. Nonetheless, for anyone mounting shelf brackets onto tiled brick walls, this is the cleanest solution on the list.
What works
- Crosshead tip prevents skating on glazed tile
- Produced chip-free holes in porcelain
- Metric sizes suit European anchor hardware
What doesn’t
- Hex shank can torque-slip in standard chucks
- No 1/4-inch bit for common US anchors
Hardware & Specs Guide
SDS-Plus vs. Hex Shank
SDS-Plus shanks feature two open grooves that lock into the hammer drill’s chuck via spring-loaded balls. This design prevents rotation and pull-out under the high-frequency hammering action required for brick drilling. Hex shanks, while compatible with impact drivers, rely on the tool’s collet friction and can twist loose at torque spikes over 50 in-lbs. For more than occasional brick work, an SDS-Plus system dramatically improves bit life and user control.
Carbide Tip Composition
YG6X tungsten carbide contains roughly 6% cobalt binder, offering peak hardness around 91.5 HRA. This grade excels at fracturing brittle materials like fired brick and concrete without the tip spalling. Standard HSS (high-speed steel) tips cannot maintain edge geometry beyond a few inches of brick — the abrasive silica particles hone the steel edge away rapidly. A visible carbide brazing joint signals quality; cold-welded tips detach under heat cycling.
FAQ
Can I use a regular wood drill bit for brick?
Do I need to use water when drilling brick?
What’s the difference between SDS and SDS-Plus?
Final Thoughts: The Verdict
For most gardeners drilling into brick, the bit for drilling brick winner is the Sabre Tools 4-Piece SDS Set because it balances four essential diameters with a reliable self-centering carbide tip at a per-bit cost that beats buying singles. If you need to punch through 18-inch foundation walls, grab the Sabre single 3/8″ x 18″. And for drilling through tile into brick without chipping, nothing beats the BGTEC 10-Piece Hex Set.
