Blackberry canes left to sprawl on the soil invite rot, harbor pests, and turn harvest into a thorny nightmare. A purpose-built trellis lifts the canes into clean rows, maximizes sun exposure on every berry, and turns a wild thicket into a productive, pickable alley. The difference between a tangled patch and a high-yield berry wall is entirely in the support system you choose.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I spend my time dissecting trellis geometry, studying cane-training techniques, and cross-referencing hundreds of owner reports to identify which structures actually hold up under a full crop load through multiple seasons.
This guide walks through the seven strongest contenders on the market and explains exactly which blackberry trellis design fits your space, your cane type, and your long-term yield goals. Each pick was evaluated for real metal thickness, assembly logic, and how well it keeps primocanes and floricanes separated for maximum fruiting.
How To Choose The Best Blackberry Trellis Design
Blackberry canes produce the heaviest fruit when they are trained to a support that keeps each cane separate and exposes the fruiting laterals to direct light. The wrong trellis leads to shaded inner canes, poor air circulation that invites fungal infection, and a harvest that requires ducking under sagging wires. Focus on these three factors before buying.
Cane Type Determines Trellis Geometry
Erect blackberries (e.g., ‘Navaho’, ‘Apache’) need a simple two-wire trellis with wires at 24 and 48 inches to hold canes upright. Trailing varieties (e.g., ‘Boysen’, ‘Logan’) require a wider, taller V- or T-shaped system that lets canes drape and exposes fruiting laterals from both sides. Semi-erect types sit in the middle — a rotating cross-arm or three-wire trellis works best. Match the design to your variety before anything else.
Weight Capacity and Metal Gauge
A loaded blackberry cane can easily add five to ten pounds of fruit and foliage per running foot. The trellis must handle that load without bowing. Look for welded steel tubing with a wall thickness of at least 1.2 mm for vertical posts and 0.8 mm for cross wires. Powder-coated or marine-grade 316 stainless steel resists the rust that forms when irrigation mist and decomposing fruit settle on joints.
Ease of Seasonal Retraining
The best designs let you drop old floricanes and tie new primocanes without untangling the entire structure. Removable cross-arms, hinged posts, or modular wire clips reduce the annual retraining chore from a half-day wrestling match to a focused 30-minute task. If the trellis requires unwinding wires or unbolting fixed arms every spring, it will cost you time year after year.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| VEVOR 4-Pack Trellis | Premium | Multi-cane rows, permanent install | 87 in tall, Q195 steel, powder-coated | Amazon |
| AIMUCT Garden Arch | Premium | Arched tunnel for trailing varieties | 86 in tall, 71 in long, triangular frame | Amazon |
| DoCred Arch Trellis | Premium | Walk-through arch for small patch | 87 in tall, PE-coated steel tubing | Amazon |
| RECTOO Cable System | Mid-Range | Custom multi-wire rows, DIY trellis | 200 ft 1/8 in 316 SS cable, 1700 lb break | Amazon |
| Toriexon A-Frame | Mid-Range | Double-row raised bed blackberries | 48 x 34 in, steel wire, powder-coated | Amazon |
| Quibbay Mushroom Trellis | Mid-Range | Single erect cane in large pot | 65 in tall, metal tube with plastic coating | Amazon |
| Thealyn 4-Pack Mini Trellis | Budget | Low-growing potted cane support | 24 in tall, solid iron, powder-coated | Amazon |
In‑Depth Reviews
1. VEVOR Garden Trellis 4-Pack
This four-pack from VEVOR delivers the most metal per dollar for anyone setting up a permanent blackberry row. Each unit stands 87 inches tall — enough to support erect varieties on a two-tier training system with room to spare for trailing canes. The Q195 steel frame carries a heavy powder coat that resists the rust and flaking that occurs when fruit acids settle on exposed metal.
Assembly requires only two nuts and bolts per trellis, a five-minute job that beats the frustration of poorly welded knock-offs. Owners consistently report that the 26.5-pound total weight gives these trellises enough heft to remain upright in windy conditions once staked. The rectangular profile leaves you a flat face that works perfectly for attaching horizontal wire runs between posts.
For a dedicated blackberry patch, this is the set that scales. Four units spaced eight feet apart will support a 32-foot row of erect or semi-erect canes with room to train primocanes on one side and floricanes on the other. The only upgrade to consider is adding a roll of 1/8-inch stainless steel wire to bridge the posts — the included stakes are for anchoring only.
What works
- Extremely sturdy Q195 steel resists bending under heavy canes
- Rapid two-bolt assembly — no wrestling with instructions
- Tall enough for erect and trailing blackberry training systems
What doesn’t
- No included wire spool for creating horizontal runs between posts
- Rectangular shape does not allow cane draping on a V-system
2. AIMUCT Metal Garden Arch Trellis
The AIMUCT arch stands 86 inches tall and spans 71 inches long, forming a house-style tunnel that turns a row of trailing blackberries into a walk-through berry lane. The triangular cross-bracing stiffens the frame against the lateral pull of heavy floricanes, a common failure point on cheaper hoop-style arches that twist under load.
The baked-paint finish over the iron frame adds a layer of UV resistance that keeps the black finish from fading after two seasons in full sun. Owners report that the included netting and stakes help stabilize the structure, though the netting may snag birds — a quick swap to a black net solves the visual clash and the entanglement issue. Assembly requires two people for about 45 minutes because the cross braces need alignment before the bolts tighten.
This arch works best when you grow trailing varieties that can drape over the top and produce fruit on both sides of the tunnel. The 52-inch width lets you plant a double row of canes at the base, maximizing yield per square foot. For gardeners who want an edible privacy screen that doubles as a harvest station, this structure delivers.
What works
- Triangular frame resists twisting even with full cane loads
- Baked-paint finish holds up against UV and irrigation mist
- Walk-through height eliminates stooping during harvest
What doesn’t
- Assembly easier with two people — solo setup takes patience
- Included netting may trap small birds if left uncovered
3. DoCred Tall Garden Arch Trellis
The DoCred arch creates an entryway trellis that works for a single row of erect or semi-erect blackberries. The polyethylene-coated steel tubing sheds moisture and blocks UV better than bare metal, preventing the rust-through that appears at ground level on cheaper arches after one wet season.
The sure-clip connectors hold the arch sections together without rattling, but the assembly sequence is not intuitive — several owners recommend inserting the legs into the soil before connecting the top arch to avoid fighting alignment. The open design provides plenty of light penetration to the inner canes, which reduces the powdery mildew pressure that builds in dense plantings.
At 75 inches wide at the base, this arch accommodates two canes per side with room to train the primocanes horizontally during the first season. The height is generous enough for most adults to walk under without brushing the berries. The weak link is the supplied netting, which stretches out under the weight of a full crop and may need replacing mid-season.
What works
- PE coating prevents rust and UV degradation on steel tubing
- Wide base allows two canes per side for higher density
- Full walk-under height eliminates bending during harvest
What doesn’t
- Assembly sequence unclear — recommend inserting legs first
- Included netting sags under heavy fruit loads

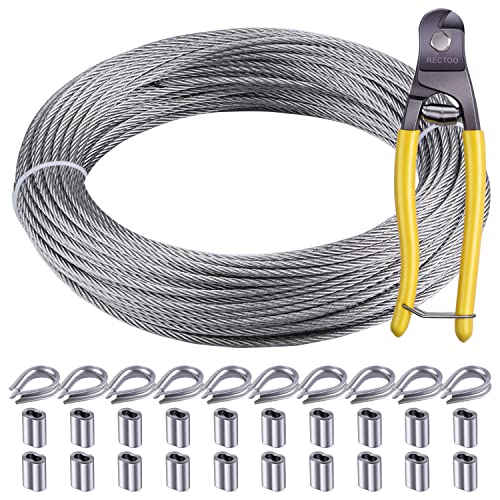

4. RECTOO 1/8 Stainless Steel Cable System
The RECTOO cable system is not a pre-built frame — it is the raw material for a custom blackberry trellis that matches your exact row length and post spacing. The 1/8-inch 316 marine-grade stainless steel wire resists the salt and acid corrosion that 304 wire suffers in gardens with overhead irrigation or coastal humidity.
The 7×7 strand construction gives the cable enough flexibility to bend around terminal posts for turnbuckle tensioning while maintaining a 1,700-pound breaking strength. For a 50-foot row you can run two horizontal wires at 24 and 48 inches, tension them with the included thimbles and sleeves, and expect zero sag under a full floricane load. The forged wire cutter handles the cable cleanly without fraying the ends.
This is the best choice for the grower who already has end posts set in concrete and needs a permanent wire system that will outlast any painted or coated alternative. The 200-foot spool gives you enough wire for four runs at 50 feet each, and the included crimps and thimbles mean you only need a turnbuckle and a wrench to finish the job.
What works
- 316 marine grade resists rust in wet and coastal conditions
- 1,700 lb breaking strength eliminates wire sag under heavy crops
- Complete kit with cutter, sleeves, and thimbles for fast setup
What doesn’t
- Requires existing end posts — no frame included
- Aluminum sleeves are softer than stainless and need crimping care
5. Toriexon Foldable Cucumber Trellis A-Frame
The Toriexon A-frame converts a raised bed into a double-sided blackberry row by letting you plant canes on both slopes of the frame. The 48-inch height suits erect varieties that need cane tip support, though trailing types will outgrow the top quickly and require additional headroom.
The steel wire grid uses a green powder coating that blends into the foliage and resists chipping when you thread canes through the openings. The fold-flat design stores in a fraction of the space of rigid trellises, making it practical for seasonal gardens where the trellis comes out after harvest. The included U-stakes and spring connectors secure the frame against wind, though the spiral top connectors can loosen if the frame is jostled during weeding.
This trellis works best in a 4×8 raised bed where you can plant four erect blackberries, two per side, and train the canes up the diagonal grid. The double-sided planting effectively doubles your yield per square foot compared to a single-row trellis. The main limitation is the total height — expect to tip the canes at 42 inches to keep them from sagging over the top edge.
What works
- Double-sided design doubles planting density in raised beds
- Fold-flat construction stores easily during off-season
- Green coating blends into foliage for a clean garden look
What doesn’t
- 48-inch height limits support for trailing blackberry varieties
- Spiral top connectors can loosen with soil disturbance
6. Quibbay Mushroom Top Trellis
The Quibbay mushroom trellis packs 65 inches of vertical support into a slim footprint that fits into a 12-inch pot or a narrow ground hole. This makes it a viable option for a single erect blackberry cane grown on a patio or balcony where space is at a premium.
The metal rods are sheathed in thick PP plastic that prevents rust and protects the cane stems from the metal edges that can abrade bark during wind. The bumps molded into the plastic give the canes purchase points, helping them stay vertical rather than sliding down after a rain. The mushroom top adds a decorative element, but its primary function is to provide a wide landing zone for the floricane laterals to spread out horizontally for better light exposure.
Assembly is straightforward — the rods stack into the base sleeve without screws — but pre-drilling holes in the soil is essential because the plastic-coated legs are thicker than bare metal stakes and will bend if forced. This trellis cannot support a full multi-cane row, but for a single specimen in a container, it provides the height needed for a respectable yield.
What works
- 65-inch height supports single erect cane to full maturity
- Plastic coating protects stems and prevents rust on metal core
- Molded bumps help canes grip and stay vertical in wind
What doesn’t
- Not designed for multi-cane rows or high-density patches
- Thick plastic legs require pre-drilled holes to avoid bending
7. Thealyn 4-Pack 24-Inch Metal Trellis
The Thealyn four-pack is not a full-season trellis for mature blackberries, but it earns a spot here as a low-cost option for young potted canes that need early support. Each unit stands 24 inches tall with a fan-shaped spread of 9.4 inches — enough to hold a first-year primocane upright and prevent the tip from rooting into a neighboring pot.
The solid iron construction with a black powder coat is surprisingly heavy for its size, and the legs push into potting soil without any assembly. Owners report these trellises holding up sunflowers that reach seven feet, which tells you the metal can handle the weight of a young blackberry cane loaded with its first small crop. The fan design spreads the lateral branches outward, keeping the center of the plant open for airflow.
These are best used in a nursery row or a potted patio setup where you move the trellis with the plant. Once the cane outgrows 24 inches, you will need to either transfer the plant to a larger support or use the four trellises around a larger container to create a wire cage. For the price of a single coffee run, this pack gets your first-year canes off the ground.
What works
- Solid iron build provides surprising stability for 24-inch height
- Zero assembly — push legs into soil and walk away
- Four-pack covers multiple starter canes at very low investment
What doesn’t
- 24-inch height limits use to first-year primocanes only
- Fan shape does not support two-tier cane training system
Hardware & Specs Guide
Post Anchoring Depth
A blackberry trellis post needs at least 18 inches of embedment in compacted soil or 12 inches in concrete to resist the lateral pull of a full crop. For A-frame or arch structures, the legs should angle outward slightly to widen the base footprint and counterbalance the load. Use a rubber mallet or post driver rather than a sledgehammer to avoid mushrooming the top of hollow metal tubes.
Wire Tension and Spacing
For erect varieties, space two wires at 24 and 48 inches above ground. For trailing varieties, a three-wire system at 24, 48, and 64 inches lets you train canes in a fan pattern. Tension the wire to 250-300 psi using an inline turnbuckle — too loose and the wire sags under fruit weight, too tight and the wire can snap under wind stress. Use 1/8-inch 316 stainless for permanent installations and 12-gauge galvanized for seasonal rows.
FAQ
How tall should a blackberry trellis be for erect varieties?
Can I use a single stake trellis for blackberries?
Final Thoughts: The Verdict
For most gardeners setting up a dedicated berry patch, the blackberry trellis design winner is the VEVOR 4-Pack Trellis because it delivers tall, heavy-duty metal posts at a per-unit cost that makes scaling a 30-foot row affordable without sacrificing structural integrity. If you want a walk-through arch that doubles as a harvest station for trailing varieties, grab the AIMUCT Metal Garden Arch Trellis. And for a custom wire system that will outlast every pre-built frame, nothing beats the RECTOO Stainless Steel Cable system paired with your own end posts.
