A chisel sharpening system removes the guesswork from creating a flat, consistent bevel on your woodworking blades. Instead of rocking a chisel freehand on a stone and hoping for a square edge, these jigs clamp the blade at a precise projection and roll it across the abrasive surface. The result is repeatable geometry — every time.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I’ve spent years comparing the hardware specifications, studying the metallurgy of edge-holding, and analyzing aggregated owner feedback across hundreds of chisel and plane iron sharpening jigs to separate the rigid from the rickety.
The goal of this guide is to help you identify which best chisel sharpening system fits your workshop workflow, your blade widths, and your budget — from simple roller guides to complete angle-fixture kits.
How To Choose The Best Chisel Sharpening System
A sharpening jig’s job is to hold the blade at a fixed angle while the user moves it across the stone. The wrong jig introduces wobble, inconsistent bevels, or a blade that slips mid-stroke. Here are the critical factors to evaluate before you buy.
Clamping Mechanism and Jaw Width
The jaw must grip the blade without canting. Look for a system that accommodates the full range of your chisels — typically 1/4″ to 3″ — and plane irons up to 3-1/4″. Knurled brass or steel knobs with a threaded stud provide the most secure lock; plastic thumb screws often strip under repeated tightening.
Roller Configuration and Stability
Single-roller designs (like the Sharp Pebble) eliminate the stone-thickness variable that dual-rollers introduce. Dual-roller systems (like the GOINGMAKE) offer better lateral stability on wider blades, but the wheels must be spaced close enough to stay on a standard 6″ or 8″ bench stone. Check the roller bearing quality; sealed bearings roll smoother and resist grit ingress.
Angle Fixture vs. Projection Method
Some jigs (HONGDUI, Gohelper) include a dedicated angle fixture or positioning block that lets you set the bevel in seconds without measuring. Others (Sharp Pebble, KAKURI) rely on blade projection distance — you measure how far the blade sticks out. If you value speed and repeatability, a fixture-based system is worth the extra cost.
Material and Build Quality
CNC-machined aluminum with an anodized finish resists corrosion and holds tight tolerances. Stainless steel bodies (440C medical-grade or 304) are even more rust-resistant but heavier. Avoid zinc-alloy castings in the clamping path; they can deform under clamping pressure over time.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| HONGDUI HD29 | Premium | Extended jaws for short plane blades | 7075 aluminum, 440C screws, 3-position roller | Amazon |
| HONGDUI D1+D3+D4+D5 | Premium | Auto-lock angle fixture, dual brass rollers | Clamps 0.1″ to 3.22″, 15°–47° auto-lock | Amazon |
| Gohelper LLT1059US | Mid-Range | Complete kit with stones and angle gauge | Includes 400/1000/3000/8000 grit stones | Amazon |
| KAKURI KBS-50 | Mid-Range | Japanese kanna and wide plane blades | Ashwood handles, steel body, 1-5/8″–2-3/4″ plane | Amazon |
| Sharp Pebble | Mid-Range | Single-wheel precision, stainless steel build | 0.7 lbs, stainless body, bronze bearing | Amazon |
| GOINGMAKE G8 | Budget | Entry-level all-metal jig with angle fixture | Aluminum alloy, 5/32″–3″, double rollers | Amazon |
| Tormek SE-77 | Premium | Tormek wet-grinder system (T-3, T-7, T-8) | Precision-cast zinc, perfect 90° alignment | Amazon |
In‑Depth Reviews

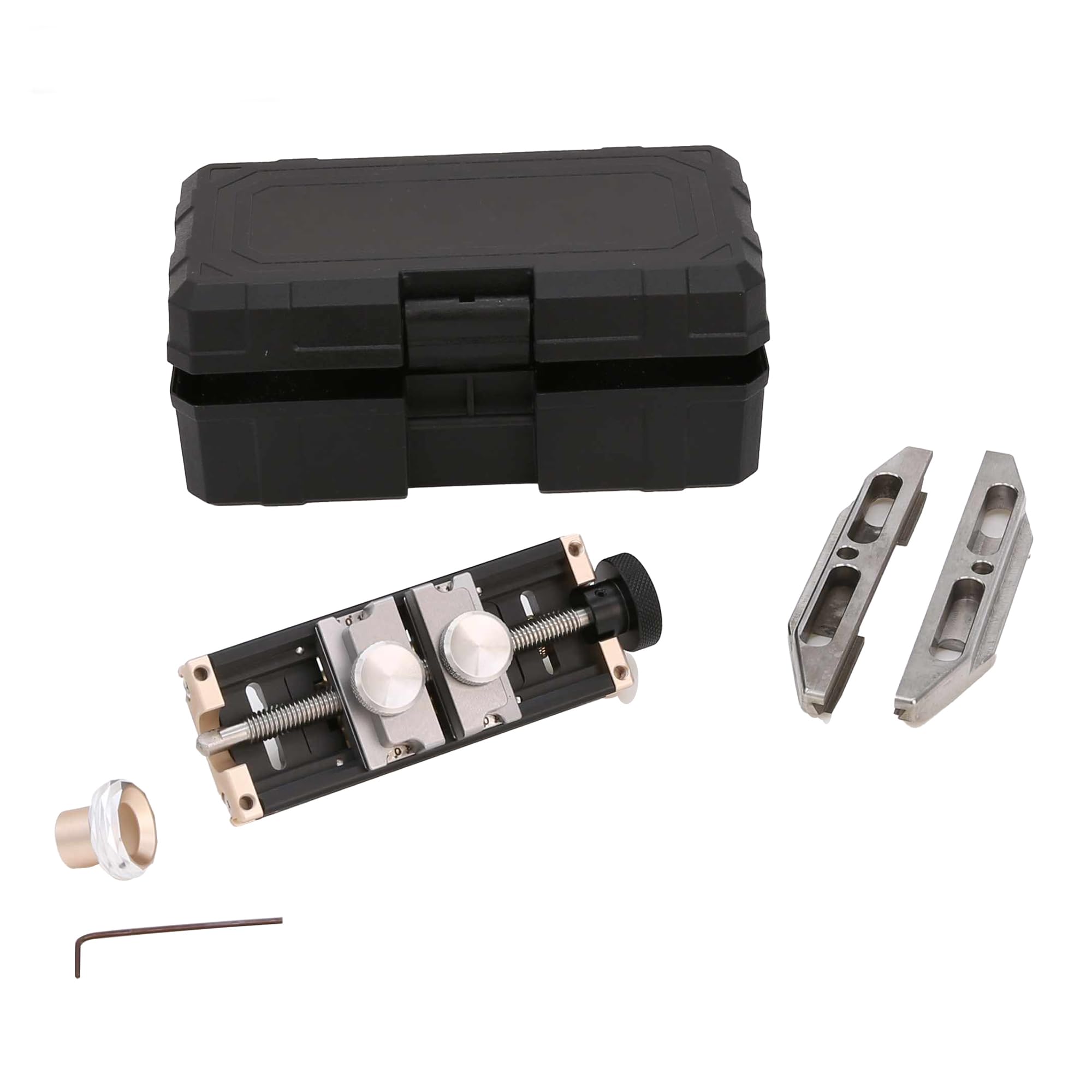

1. HONGDUI HD29 Grinding Guide (Extended Jaws)
The HONGDUI HD29 is purpose-built for woodworkers who sharpen short plane irons and chisels on bench stones. Its extended jaw design provides a longer work surface, which dramatically improves stability when honing blades that are stubby or have a low projection. The entire frame is CNC-machined from 7075 aluminum alloy with an anodized finish — this material resists corrosion and holds clamping pressure without flexing.
The integrated blade positioning tool slides out after clamping, letting you set the bevel angle in a single step without measuring projection manually. The three-position eccentric roller allows you to pull the knob, twist it, and add a micro-bevel to any angle setting. The screw rod and metal clamping parts are 440C medical-grade stainless steel, rated to HRC40 hardness, so the threads will not strip under repeated use.
Users consistently praise the build quality, stating it feels as premium as tools from Woodpeckers at a lower price point. The gyroscopic angle gauge on the side also serves as a quick reference for common bevels from 15° up to 50°. If you work with short blades that other jigs fail to stabilize, this system solves that specific pain point.
What works
- Extended jaws stabilize short plane irons and chisels
- 7075 aluminum frame with 440C stainless hardware
- Three-position eccentric roller for quick micro-bevels
- Integrated blade positioning tool for one-step angle setup
What doesn’t
- Moving eccentric roller between positions requires hex key
- Higher cost than basic roller guides
2. HONGDUI Chisel Sharpening Jig Kit (D1+D3+D4+D5)
This HONGDUI kit revolves around its auto-lock angle fixture board. Instead of measuring blade projection, you set the desired bevel angle (15° to 47°) on the fixture, and a positioning block locks the blade exactly where it needs to be. The system also includes a sharpening angle gauge for double-checking your geometry before the first pass.
The honing guide itself is built with dual brass rollers that can be mounted inboard or outboard depending on blade width. Two hidden spare rollers are included, effectively doubling the lifespan of the rolling surfaces. The jaws clamp blades from 0.1″ to 3.22″, covering everything from narrow dovetail chisels to wide plane irons.
Owners highlight the secure blade grip and the smooth, wobble-free rolling action. The kit also comes with an excellent magnetic hex key and spare rubber rings. Some users noted that the roller bearings can be initially fiddly to reposition for very wide blades, but the overall precision control makes up for this minor setup friction.
What works
- Auto-lock angle fixture eliminates measurement guesswork
- Dual brass rollers with two spare bearings included
- Wide clamping range (0.1″–3.22″)
- Feels robust and precision-machined
What doesn’t
- Roller repositioning for wider blades uses small hex key
- Fixture board adds bulk to the storage footprint
3. Gohelper Chisel Sharpening Jig (LLT1059US)
The Gohelper LLT1059US is the rare all-in-one kit that includes both the honing jig and a set of four diamond sharpening stones (400, 1000, 3000, and 8000 grit). The 400/1000 side handles chip repair and reshaping, while the 3000/8000 side takes the edge to a polished finish. The stones feature a non-slip silicone base to keep them steady on the bench.
The jig itself is CNC-machined from anodized aluminum with a stainless steel clamping screw. The included angle gauge measures the existing bevel on your chisel, and the angle fixture uses a positioning block with a groove to set the correct blade projection. The extended single roller spans the full width of the jig, keeping the blade level even on wider plane irons.
Multiple owners confirm that this setup reveals factory blade defects and allows quick correction — one user noted it turned a cheap block plane into a hardwood-capable tool. The angle fixture is off by roughly half a degree on some settings, but this is negligible for most sharpening tasks. For a beginner who needs stones and a jig in one purchase, this is the most complete package.
What works
- Includes four diamond grit stones (400/1000/3000/8000)
- Angle fixture with positioning block for fast setup
- Wide roller ensures blade remains level on stone
- Sturdy anodized aluminum and stainless steel build
What doesn’t
- Angles can be off by ~0.5° from fixture markings
- Small chisels may shift if not fully inserted into clamp
4. KAKURI Honing Guide KBS-50
The KAKURI KBS-50 is a traditional Japanese honing guide manufactured in Japan. Unlike the aluminum-bodied jigs common in the market, this unit uses a heavy-duty steel body with ashwood handles on both sides. The wooden grips allow you to exert downward pressure without touching the blade directly, making the sharpening process safer, especially on water stones.
The guide accommodates chisels from 1/8″ to 1-5/8″ (3–42 mm) and plane blades from 1-5/8″ to 2-3/4″ (42–70 mm). It is best suited for Japanese kanna plane blades and standard bench chisels. The single roller allows smooth travel along the stone, and the tension screw locks the blade firmly without a secondary clamp.
Experienced woodworkers appreciate the ergonomics — the handles provide excellent leverage for beveling corners on wide plane irons. However, the design lacks a 90° reference line, making it difficult to square the blade to the jig by eye. Thin chisels under 1/2″ can also be tricky to clamp securely due to the wide jaw opening. This is a specialized tool for those who prefer the Japanese sharpening tradition.
What works
- Excellent ergonomics with ashwood handles
- Heavy-duty steel body resists wear
- Designed specifically for Japanese kanna and chisels
- Safe operation — no direct contact with blade edge
What doesn’t
- No 90° reference mark for squaring the blade
- Struggles with chisels narrower than 1/2″
- Requires a full-size bench stone (finger-sized stones won’t work)
5. Sharp Pebble Honing Guide
The Sharp Pebble Honing Guide is a clean, single-wheel design machined from solid stainless steel with a bronze bearing. The single-roller configuration eliminates the stone-thickness issue inherent to two-wheeled guides — the angle remains consistent regardless of whether you use a thin diamond plate or a thick water stone.
The clamping mechanism uses a brass knurled knob with wrench flats for secure tightening. The jig works with chisels from 1/4″ to 1.96″ and plane irons from 1.41″ to 3.22″. Angle adjustment is projection-based: you refer to the included manual for the correct blade extension, then measure it with a ruler or caliper. The stainless body is extremely corrosion-resistant and easy to clean after wet sharpening.
Reviews note that the single-wheel design rolls extremely smoothly on all abrasive surfaces, and experienced woodworkers with decades of freehand sharpening report switching to this jig for its speed and repeatability. The only catch is that the interior faces of the clamp are flat, so chisels with tapered side bevels may not lock perfectly without shimming.
What works
- Single-wheel design eliminates stone-thickness variable
- Solid stainless steel construction with bronze bearing
- Smooth rolling action on wet stones and diamond plates
- Brass knurled knob with wrench flats for secure grip
What doesn’t
- Does not clamp tapered side-bevel chisels securely
- Requires separate measuring tool for angle setup
6. GOINGMAKE Honing Guide System (G8)
The GOINGMAKE G8 is the most affordable all-metal jig in this roundup, but it does not cut corners on core functionality. The body is machined from aluminum alloy with brass and stainless steel components. It includes an angle fixture with six settings (15/20/25/30/35/40° and 17/22/27/32/37/42°), plus a separate angle gauge to verify the blade’s existing bevel before setup.
The jig uses a dual-roller system with two short and two long brass rollers. This gives the blade excellent lateral stability, especially on wide plane irons. The clamping range covers 5/32″ to 3″, fitting nearly all common chisel sizes. An included plastic storage case keeps the kit organized between uses.
Owners consistently mention that the build quality exceeds expectations for the price point — the clamp holds blades firmly, the angle fixture is accurate, and the brass rollers roll smoothly without binding. A few users noted that the instructions could be clearer for absolute beginners, but the basic operation is intuitive enough to figure out after one or two attempts.
What works
- All-metal construction at an entry-level price point
- Includes angle fixture (6 settings) and angle gauge
- Dual brass rollers provide lateral stability
- Clamping range of 5/32″ to 3″
What doesn’t
- Instructions could be more detailed for beginners
- Storage case is plastic, not as durable as metal box
7. Tormek SE-77 Square Edge Jig
The Tormek SE-77 is not a standalone honing guide — it is an accessory jig designed specifically for Tormek wet-grinder systems (T-3, T-7, T-8). If you already own a Tormek, this jig dramatically improves the accuracy of sharpening chisels and plane irons by ensuring a perfect 90° angle between the blade edge and the grinding wheel.
The jig is constructed from precision-cast zinc with a black composite body. Two thumb knobs control the alignment: loosening them about half a turn allows you to introduce a slight camber (curvature) for plane irons, while tightening them locks the blade into a perfectly square edge. The jig attaches directly to the Tormek’s universal support bar, integrating seamlessly into the grinding workflow.
Users who upgraded from Tormek’s older square edge jig (pre-1997) report a vast improvement in alignment stability and repeatability. The SE-77 allows you to grind a camber and then return to square without needing to re-measure. This is a niche tool — it only works on Tormek sharpeners — but within that ecosystem, it delivers unmatched precision.
What works
- Guarantees true 90° edge on Tormek grinders
- Quick camber adjustment without losing square reference
- Precision-cast zinc body with sturdy thumb knobs
- Vast improvement over older Tormek square jigs
What doesn’t
- Only compatible with Tormek T-3, T-7, and T-8 systems
- Requires careful re-square after camber adjustment
- Higher cost than universal honing guides
Hardware & Specs Guide
Blade Projection vs. Bevel Angle
The distance the blade sticks out from the front of the jig directly determines the bevel angle. A longer projection produces a shallower angle (longer bevel); a shorter projection yields a steeper angle (shorter bevel). Most jigs include a chart or fixture to set this quickly. For a 25° bevel on a standard bench chisel, the projection is typically around 1-1/4″ from the jig’s front edge. Always measure from the stone side of the jig, not the top.
Roller Diameter and Material
Roller diameter affects how smoothly the jig tracks on the stone. Larger diameter rollers (typically 1/2″ to 3/4″) are less likely to catch on stone edges. Brass rollers are standard because brass is soft enough to not damage abrasive stones, yet hard enough to resist wear over hundreds of passes. Sealed ball-bearing rollers (like in HONGDUI models) provide the smoothest motion and prevent grit from fouling the axle.
Clamping Jaw Width and Capacity
A jig’s jaw width determines the maximum blade size it can hold. Most chisel jigs top out at 3″ to 3.22″ for plane irons. Narrower jaws (under 2″) limit you to chisels only. For woodworkers who sharpen both chisels and hand planes, look for a jig that accommodates at least a 2-3/4″ blade. The clamping screw should be threaded steel or brass — avoid plastic screws that strip under high clamping torque.
Angle Fixture vs. Projection Markings
Angle fixtures (also called positioning blocks) physically stop the blade at the correct projection for a given angle. They are faster and more repeatable than measuring with a ruler. Projection-based systems require you to measure the blade extension with a caliper or scale — this is more flexible for custom angles but slower for batch sharpening. If you sharpen the same chisels repeatedly, a fixture saves significant setup time per session.
FAQ
Can I use a honing guide with diamond stones or only water stones?
What is the difference between a honing guide and a grinding jig?
Do I need a separate angle gauge or can I rely on the jig markings?
Why does my dual-roller jig not stay on my narrow bench stone?
Can I sharpen tapered chisels or carving gouges with these jigs?
Final Thoughts: The Verdict
For most woodworkers, the best chisel sharpening system winner is the HONGDUI HD29 Grinding Guide because its extended jaws solve the stability problem that plagues short plane irons and chisels on bench stones, and the integrated blade positioning tool makes angle setup a one-step process. If you want an all-in-one package that includes diamond stones, grab the Gohelper LLT1059US. And for Tormek owners who need sub-millimeter square-edge precision on their wet grinder, nothing beats the Tormek SE-77.
