Chasing a ghost voltage on a 277-volt lighting circuit or trying to balance the legs on a 200-amp residential panel — your clamp meter is the single tool that separates a confident diagnosis from a frustrating guess. The right unit reads current without breaking the circuit, catches stray voltages that fool lesser meters, and wraps it all in a safety rating that matches the environment you work in.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I’ve spent years analyzing market data, comparing specifications, studying industrial safety standards, and cross-referencing aggregated owner feedback to identify the clamp meters that actual electricians trust on the job.
Whether you’re a commercial journeyman, a residential service tech, or an HVAC specialist who needs accurate capacitance readings, this guide cuts through the noise to find the best clamp meter for electricians across different budgets and job-site demands.
How To Choose The Best Clamp Meter For Electricians
Not every clamp meter is designed for the same scope of work. A unit that excels for an HVAC technician may lack the low-impedance mode a commercial electrician needs to kill ghost voltages, while a panel-focused meter might skip the microamp range required for flame-sensor testing. Focus on these four critical factors before you buy.
True RMS vs. Averaging Measurement
If your daily work involves variable-frequency drives, electronic ballasts, or any load that distorts the AC sine wave, a True RMS meter is non-negotiable. Averaging meters only read clean sine waves accurately, which means you could be off by 20–30% on a VFD-fed motor circuit. Every meter on this list above the entry-level tier includes True RMS, but double-check before you assume.
Safety Ratings — CAT III and CAT IV
The safety category stamped on the meter directly correlates with its ability to survive a transient voltage spike without failing catastrophically. For residential panels and commercial branch circuits, CAT III 600V is the minimum standard you should accept. For service entrance work or underground feeds, a CAT IV 300V meter provides the additional surge protection needed. Never use a meter rated below the circuit you’re testing — the meter is your last line of defense.
Low Impedance (LoZ) Mode
Ghost or stray voltages are a common nuisance on long wire runs where capacitance couples voltage from adjacent energized conductors. A LoZ mode puts a small load on the circuit, draining phantom voltages and showing you only the real, dangerous potential. This single feature can save an hour of head-scratching on a lighting control circuit.
Jaw Size and Accessories
The physical opening of the clamp jaw limits the conductors you can measure. Most standard meters offer a 1.2-inch jaw opening, which handles most THHN wire up to 300 MCM. If you routinely work on larger bus bars or parallel feeds, consider a meter with a larger jaw. Also evaluate bundled accessories — a line splitter for receptacle amp draws, a magnetic hanger for hands-free operation, and a thermocouple for temperature measurement can turn a good meter into a complete electrical toolkit.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Klein Tools CL700 | Premium | Ghost voltage elimination & general electrical | LoZ mode, IP40, 600A TRMS | Amazon |
| Fieldpiece SC440 | Premium | HVAC/R with inrush current | Inrush, microamps DC, temp | Amazon |
| UEi DL479 | Mid-Range | HVAC repair & capacitor testing | 600A AC TRMS, 60MΩ resistance | Amazon |
| UEi DL379B | Mid-Range | Industrial maintenance & safety | CAT IV 300V, magnetic mount | Amazon |
| Fluke 362 | Mid-Range | Compact DC current & solar | 200A AC/DC, 18mm jaw | Amazon |
| IDEAL 61-747 TightSight | Budget-Friendly | Breaker mapping with dual display | 400A TRMS, dual backlit displays | Amazon |
| Klein Tools CL120KIT | Budget-Friendly | DIY & homeowner electrical kits | 400A, includes GFCI tester & splitter | Amazon |
In‑Depth Reviews
1. Klein Tools CL700
The CL700 is the most complete all-around clamp meter Klein makes for electricians who troubleshoot beyond basic amp readings. Its Low Impedance (LoZ) mode is the standout feature — it drains ghost voltages on long runs where capacitance coupling gives false readings, showing only the real voltage present. That alone makes it indispensable for anyone working on lighting circuits or control wiring in commercial buildings.
True RMS is standard here, and the meter covers AC/DC voltage, 600-amp AC current, frequency, duty cycle, capacitance, diode testing, and temperature via the included thermocouple. The backlit LCD is clear even in dim panels, and the test lead holder on the side plus the optional magnetic hanger let you work hands-free. IP40 ingress protection and a 6.6-foot drop rating mean it survives the normal bumps and drops of a service truck.
HVAC techs have confirmed it handles capacitor microfarad readings accurately, making it a dual-purpose tool that crosses between electrical and HVAC work. The only real trade-off is the absence of DC amp measurement via the clamp — if you need DC current on solar or battery systems, you’ll need a companion meter for that range.
What works
- LoZ mode eliminates ghost voltage confusion instantly
- TRMS accuracy on distorted waveforms from VFDs and ballasts
- IP40 and 2-meter drop protection for real jobsite durability
- Capacitance measurement fine for HVAC capacitor checks
What doesn’t
- No DC amp measurement through the clamp
- Battery removal requires a screwdriver to access the compartment
2. Fieldpiece SC440
Fieldpiece designed the SC440 specifically for HVACR professionals who need a single meter that covers electrical and thermal testing without carrying a second tool. The inrush current measurement captures the startup surge on compressors and motors, which is critical for diagnosing hard-start conditions and locked-rotor scenarios. It also reads microamps DC, letting you check flame rectification on gas furnaces and boilers — a range most general clamp meters omit entirely.
True RMS sensing delivers accurate AC voltage and current readings on VFD-driven equipment and ECM motors. The meter includes temperature measurement via the included thermocouple, capacitance up to 1000 microfarads, resistance, frequency, and a non-contact voltage detector. The detachable test leads with alligator probe tips make one-handed work safer and easier when you’re balancing a meter on a duct or panel.
Users report the continuity beep is audible even near running equipment, a small but meaningful detail on a noisy roof. The silicone leads stay flexible in cold weather, and the included carrying case organizes everything. The only learning curve is that the meter defaults to voltage mode on power-up — you have to press the select button to reach amp and continuity functions, which takes a day to become muscle memory.
What works
- Inrush current capture for motor startup diagnostics
- Microamps DC for flame sensor testing on furnaces
- Detachable leads with alligator tips for safe one-handed use
- True RMS accuracy on ECM motors and VFD circuits
What doesn’t
- Must press select button after power-up to access amps and continuity
- Uses a 9V battery rather than common AAA cells
3. UEi DL479
The DL479 from UEi is built around the needs of HVAC/R service techs who need a reliable True RMS meter without paying for features they won’t use. It measures 600 amps AC through the clamp, handles 750 volts AC and 600 volts DC through the leads, and reads resistance up to 60 megohms — enough headroom for motor winding checks and ground fault isolation. The magnetic mount and integrated work light are practical additions for dim crawl spaces and dark mechanical rooms.
Capacitance measurement is accurate enough for start and run capacitor testing on compressors and fan motors. The included K-type thermocouple probe lets you check evaporator and condenser line temperatures directly, though some users note the temperature reading can be off by several degrees without calibration. The auto-ranging function is responsive, and the backlit dual display is easy to read in low light.
This meter is built by former Fluke engineers, and the quality shows in the lead strain relief and the solid rotary switch feel. The biggest functional gap is the lack of DC amp measurement through the clamp — you’re limited to DC microamps only, which restricts its use for solar or battery bank work. The dial is also stiff enough that one-handed operation takes some wrist strength.
What works
- True RMS reliability for commercial and residential HVAC circuits
- Magnetic mount and work light for hands-free jobsite use
- 60MΩ resistance range for motor and ground fault checks
- Capacitance testing covers most start and run capacitor ranges
What doesn’t
- No DC amp measurement through the clamp (microamps only)
- Stiff rotary dial makes single-handed operation difficult
- Temperature probe calibration can drift from factory spec
4. UEi DL379B
The DL379B earns a CAT IV 300V and CAT III 600V safety rating, making it one of the safest options at its tier for service entrance work and underground feeder testing. The higher surge-withstand capability of CAT IV means this meter can handle transient spikes that would damage a lower-rated unit, giving an extra layer of protection when you’re clamped around the main feeders. Input jack locks physically prevent you from plugging test leads into the wrong ports, eliminating a common source of meter damage.
It measures AC amps, AC/DC volts, AC microamps up to 2000µA, capacitance up to 2000µF, frequency, duty cycle, diode testing, continuity, and temperature via the included K-type probe. The dual backlit display is paired with a magnetic mount that holds the meter securely on steel panels, and the integrated work light illuminates dark breaker boxes. The kit includes a zippered pouch, test leads, batteries, and the thermocouple probe — everything needed out of the box.
Some users report that the capacitance accuracy is only around 3.5%, which is fine for identifying a bad capacitor but not precise enough for motor winding capacitance matching. The auto power-off saves battery life but triggers faster than some electricians prefer on long troubleshooting sessions. If you need higher precision capacitance, this may not be your primary meter for that parameter alone.
What works
- CAT IV 300V safety rating for service entrance and underground work
- Input jack locks prevent test lead misconnection damage
- Magnetic mount and work light for hands-free panel work
- Wide 2000µF capacitance range covers large run capacitors
What doesn’t
- Capacitance accuracy around 3.5% — not for precision matching
- Auto power-off timeout is shorter than some users prefer
5. Fluke 362
The Fluke 362 stands apart from the rest of this list because it deliberately measures DC amps through the clamp, something the Klein CL700 and UEi DL479 cannot do. If you work with photovoltaic arrays, battery banks, DC motor drives, or any system where you need to clamp around a DC conductor without breaking the circuit, the 362 is your tool. Its 200-amp AC/DC range covers residential solar strings and most light commercial battery systems.
The physical design is strikingly compact — the 18mm triangular jaw fits into tight spaces where standard meters won’t go, like crowded breaker panels or behind battery terminals. The body is thin enough for comfortable one-hand use, and the large display is readable at a glance. It measures up to 600 volts AC/DC, resistance to 3000 ohms, and includes continuity detection and data hold. The CAT III 600V safety rating is appropriate for branch circuit work.
Crucially, this version of the 362 is not a True RMS meter — it reads AC as RMS but uses averaging for DC measurement. For most DC solar and battery work this is perfectly adequate, but verify your specific application requirements. The continuity beep is also quite quiet; in a noisy mechanical room it’s easy to miss. If small size and DC clamp capability define your daily work, this is a focused tool that excels at its narrow mission.
What works
- Measures DC amps through the clamp — rare in compact meters
- 18mm triangular jaw fits in tight breaker panels and battery terminals
- Light body and thin profile for comfortable one-hand operation
- Fluke build quality and reliability reputation
What doesn’t
- Not True RMS — averaging AC measurement only
- Continuity beep is too quiet for noisy environments
- Limited to 200A and 3000Ω — not for heavy industrial testing

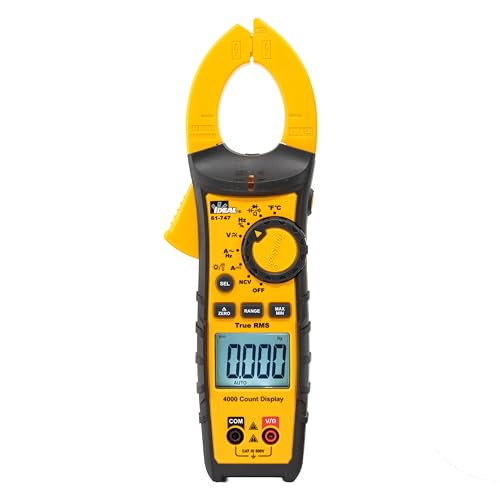

6. IDEAL 61-747 TightSight
IDEAL’s TightSight design places a second display on the bottom of the clamp jaw, so you can read measurements without twisting your wrist or repositioning the meter in tight panels. When you’re working in a crowded load center identifying which breaker feeds a specific circuit, this ergonomic feature saves time and reduces fatigue. The meter automatically maps breaker locations when used with the TightSight transmitter, cutting the guesswork out of circuit tracing.
True RMS measurement covers AC/DC voltage and AC/DC current up to 400 amps, plus resistance, continuity, capacitance, diode testing, temperature, and non-contact voltage detection from 40 to 600 volts. The dual backlit displays are clear in any light condition, and the integrated flashlight illuminates dark junction boxes. The rugged yellow and black housing is built for jobsite drops with reinforced corner bumpers.
The key differentiator of the 61-747 over the base 61-737 is its ability to measure DC current through the clamp, which opens up solar and battery diagnostics. Some users note that the NCV sensitivity can be inconsistent on shielded cables, and the included manual is sparse on advanced function details. For electricians who map circuits daily, the TightSight dual-display layout alone justifies the purchase.
What works
- Dual backlit displays — one on the jaw for tight panel reading
- Auto-breaker mapping reduces circuit tracing time
- DC current clamp measurement for solar and battery work
- Rugged housing with corner bumpers for daily jobsite use
What doesn’t
- NCV detection inconsistent on shielded or deep cables
- Manual provides limited guidance on advanced function menus
7. Klein Tools CL120KIT
The CL120KIT is the most accessible entry point into Klein’s clamp meter line, and it arrives as a complete electrical test kit rather than a bare meter. Along with the 400-amp auto-ranging clamp meter, you get a GFCI receptacle tester, a line splitter (allowing you to measure current draw on a plug-in device without splitting the cord), test leads, a carrying case, and batteries. For a homeowner, handyman, or apprentice electrician building their first tool kit, this bundle covers the most common household electrical checks in a single purchase.
The CL120 meter itself measures AC current through the clamp, AC/DC voltage and resistance through the leads, and includes continuity and a non-contact voltage detector. The backlit display is helpful in dim panels, and the auto-ranging function selects the correct measurement range automatically. The side test lead holder and optional magnetic hanger enable some hands-free operation. CAT III 600V safety rating makes it appropriate for residential branch circuits.
This is not a True RMS meter, and it does not measure DC amps, capacitance, frequency, or temperature. It is a basic AC-focused clamp meter bundled with useful accessories. The line splitter only handles up to 15 amps, so it won’t work for large loads. For pro electricians who need TRMS accuracy and advanced ranges, the CL700 is the better choice. For a comprehensive starter package that works for 90 percent of residential troubleshooting, the CL120KIT delivers strong value.
What works
- Complete kit includes GFCI tester, line splitter, leads, and case
- Line splitter measures plug-in device current without cord splitting
- Auto-ranging and backlit display make it beginner-friendly
- CAT III 600V safety suitable for residential panels
What doesn’t
- Not True RMS — inaccurate on VFD and electronic load circuits
- No DC amp, capacitance, frequency, or temperature measurement
- Line splitter limited to 15A — not for heavy loads
Hardware & Specs Guide
True RMS vs. Averaging
True RMS (Root Mean Square) meters calculate the heating value of an AC waveform regardless of its shape. Averaging meters assume a pure sine wave and apply a correction factor, which yields significant errors on non-linear loads from VFDs, LED drivers, and switching power supplies. If your work involves any circuit with electronic loads, True RMS is a requirement, not an upgrade.
CAT Safety Ratings
The category rating defines where the meter can be safely used. CAT II covers plug-in appliances. CAT III covers distribution panels, motor control centers, and branch circuits. CAT IV covers utility service entrances and underground feeds. The voltage rating (e.g., 600V) indicates the maximum steady-state voltage. Always select a meter whose category exceeds the highest energy circuit you test — the meter’s internal protection is your last barrier against arc flash.
FAQ
What does LoZ mode do on a clamp meter?
Can a clamp meter measure DC current?
Why does continuity sometimes beep but show a resistance reading?
Final Thoughts: The Verdict
For most electricians, the best clamp meter for electricians is the Klein Tools CL700 because it combines LoZ ghost-voltage elimination, True RMS accuracy, and a broad range of measurements (capacitance, frequency, temperature, IP40 durability) in a package that serves both general electrical work and HVAC capacitor testing. If you need DC clamp measurement for solar or battery diagnostics, grab the Fluke 362. And for HVACR specialists who require inrush current capture and microamp flame-sensor testing, nothing beats the Fieldpiece SC440.
