A roof is only as strong as its foundation, and for modern Class 4 shingles, that foundation is a high-performance underlayment. Skip the cheap felt and you gamble with every hailstorm. The right membrane sticks like glue, seals around every nail, and turns a roof deck into a watertight fortress.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. My work focuses on comparing material specifications, studying manufacturer test data, and analyzing aggregated owner feedback to separate real durability from marketing claims in the roofing and outdoor-building category.
Whether you are installing impact-resistant shingles or a metal standing seam, the membrane you choose determines how long your investment stays dry. After weeks of comparing ASTM certifications, mil thicknesses, and real-world adhesion reports, this guide delivers the critical data on the best class 4 shingles underlayment options on the market today.
How To Choose The Best Class 4 Shingles Underlayment
Selecting the right underlayment for impact-rated shingles requires more than grabbing the first roll at the hardware store. The membrane must handle high heat, resist UV degradation during installation delays, and seal around every nail for a lifetime.
Adhesion Method: Self-Adhering vs. Mechanical Fastening
Self-adhering membranes (often called peel-and-stick) use a rubberized asphalt layer that bonds directly to the roof deck. They seal around nail holes automatically, creating a watertight barrier even if a fastener backs out. Mechanically fastened synthetics (like Tyvek Protec) rely on staples or nails and a separate sealant for penetrations. For Class 4 shingle installations where the manufacturer warranty is a priority, self-adhering is almost always the recommended standard.
Material Thickness and Mil Specs
Thickness is measured in mils (thousandths of an inch) or millimeters. A 40-mil membrane is standard for most high-performance ice-and-water shields. Thinner synthetics around 16.5 mils are lighter and easier to handle but offer less puncture resistance during heavy foot traffic. For areas prone to hail or where the deck is walked on frequently during installation, thicker membranes (40 to 45 mils) provide reliable impact protection.
UV Exposure and High-Temperature Tolerance
Class 4 shingle projects sometimes face weather delays. Membranes with a UV exposure limit of 120 days allow for extended installation windows without degradation. High-temperature ratings (up to 250°F) prevent the membrane from slipping or softening when the sun beats down on a dark roof. Check the product’s top service temperature — budget options may soften or lose adhesion in extreme heat.
Warranty and Code Compliance
Not all underlayments are created equal in the eyes of building inspectors. Look for ASTM D1970 compliance (the standard for self-adhering, nail-sealable membrane) and ICC-ES approvals. Products like Grace Ice & Water Shield HT come with a manufacturer-backed SureStart warranty that aligns with premium shingle warranties. A 50-year limited replacement warranty signals a manufacturer that stands behind its material.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Grace Ice & Water Shield HT | Self-Adhering | Premium roof protection | 40 mil / 120 days UV | Amazon |
| Platinum HT-B Self-Adhering | Self-Adhering | 100% butyl bond | 41 mil / Lifetime warranty | Amazon |
| HydroShield Ice & Water HT | Self-Adhering | Skid-resistant surface | 40 mil / 120 days UV | Amazon |
| Amerimax Copper Flashing | Metal Flashing | Valley and chimney flashing | ~0.5 mm copper | Amazon |
| MFM Peel & Seal 4in Gray | Repair Roll | Small repairs and RV roofs | 45 mil / Carton of 9 | Amazon |
| Tyvek Protec 200 | Synthetic Felt | Secondary layering under tile | 16.5 mil / 10 squares | Amazon |
| SIPA Synthetic Underlayment | Synthetic Felt | Budget-friendly coverage | 100 GSM / 10 squares | Amazon |
In‑Depth Reviews
1. Grace Ice & Water Shield HT
The Grace Ice & Water Shield HT is the gold standard for self-adhering roof underlayment. Its aggressive rubberized asphalt bonds tenaciously to the deck and seals around nails automatically, meeting ASTM D1970 for watertight integrity. Multiple reviewers emphasize that it sticks so strongly that misapplication requires cutting the material away rather than peeling it back.
With a 40-mil thickness, a 120-day UV exposure limit, and a service temperature range of -40°F to 250°F, this membrane handles both scorching summer installations and northern winter freeze-thaw cycles. The slip-resistant blue polyethylene film makes it safer to walk on than bare asphalt. It is also backed by CertainTeed’s SureStart warranty, offering peace of mind for high-end shingle systems.
The main drawback is cost — this is a premium product with a premium per-roll price. There have also been isolated reports of rolls being slightly shorter than the stated 66.6 feet, which can create issues for a carefully planned project. Despite these points, the performance and adhesion strength are unmatched in this category.
What works
- Extremely strong adhesion that seals around nails
- 120-day UV exposure window for flexible scheduling
- Slip-resistant surface improves installer safety on steep roofs
- Manufacturer-backed SureStart warranty coverage
What doesn’t
- Very sticky — near impossible to reposition once applied
- Occasional roll length variances reported
- Higher cost per square foot than entry-level options
2. Platinum HT-B Self-Adhering Underlayment
The Platinum HT-B stands out for using 100% butyl instead of traditional rubberized asphalt. Butyl offers superior adhesion to both plywood and OSB, and it maintains flexibility longer in extreme cold. At 41 mils, it is slightly thicker than the standard 40-mil membranes, providing an extra margin of puncture resistance under foot traffic.
This membrane is compatible with low-slope materials like EPDM and TPO, making it versatile for roofs that mix asphalt shingles with flat sections. The split-release silicone liner allows for quick one-person application, and the 180-day UV resistance beats the industry standard by a full 60 days. Owners report that it stays tacky and secure even after weeks of exposure during slow construction schedules.
The main complaint involves inconsistent order fulfillment — one buyer received a single roll instead of two, and the product was not self-adhering as labeled in that specific instance. Quality control on packaging has been flagged. That said, when the correct product arrives, the performance matches or exceeds premium rivals.
What works
- 100% butyl formulation for superior cold-weather adhesion
- 41 mil thickness for extra durability
- 180-day UV resistance for extended project windows
- Compatible with EPDM, TPO, and asphalt shingles
What doesn’t
- Some orders have quality control or fulfillment issues
- Butyl surface is extremely sticky — can be messy if mishandled
- Heavier roll weight compared to synthetic felts
3. HydroShield Self Adhering Ice and Water Shield HT
HydroShield delivers a robust 40-mil bitumen membrane with a split-back release liner that speeds up installation significantly. The blue polyolefin film has a textured, skid-resistant surface that installers appreciate — especially on steep slopes where grip matters. It is ICC-ES listed and UL Classified, meeting ASTM D1970 for nail sealability.
Owners consistently report that the membrane stays put in high winds and that the UV exposure limit of 120 days provides ample time for the final shingle or metal installation. The material is very tacky — it bonds instantly to the deck, which is great for wind resistance but leaves zero room for repositioning. Several users noted that it is tough to cut cleanly and requires a very sharp knife.
The main downside is the extreme stickiness during installation. If the material folds over on itself, it is effectively ruined. Additionally, the blue surface becomes slippery when wet, so it is not safe to walk on after rain. For its price point, it competes head-to-head with Grace but lacks the same brand recognition in warranty structures.
What works
- Skid-resistant surface texture improves footing on dry roofs
- Split-back liner makes solo application faster
- Strong wind resistance and ASTM D1970 nail sealability
- 120-day UV exposure period is generous
What doesn’t
- Extremely sticky — near impossible to correct mistakes
- Blue surface becomes slick when wet
- Requires a sharp knife for clean cutting; tears if dull
4. Amerimax Copper Valley Flashing 14“ x 10‘
This Amerimax copper flashing is not a roof-wide underlayment — it is a precision accessory for valleys, chimneys, and termite shields. Made from hardened, durable copper about 0.5 mm thick, it is designed to be soldered or bent into permanent flashing details that outlast the shingles above them. Buyers have used it for everything from soldering professional stills to creating flower-arranging liners, which speaks to its metal quality.
For Class 4 shingle installations, a proper metal valley flashing is non-negotiable to prevent water from channeling behind the impact-resistant surface. The copper is easy to work with using phos-copper brazing rods, and it holds up to years of weather exposure without rusting. It is sold in a 14-inch by 10-foot roll, which is typically enough for one to two valleys on a standard residential roof.
The main complaint is about packaging — the roll arrives with minimal cushioning, and some buyers received bent edges that needed rolling out to flatten. The copper is also slightly stiffer than some lighter-gauge options, making it harder to bend into tight angles by hand. For pros with sheet-metal tools, this is a superior choice.
What works
- Pure copper for long-term corrosion resistance
- Thick enough for professional soldering and brazing
- Multi-use: flashing, termite shields, custom metal work
- Bendable yet strong for permanent roof details
What doesn’t
- Packaging is poor — edges can arrive bent or kinked
- Stiffer than some thinner-gauge copper flashing
- Not intended for large-area roof coverage

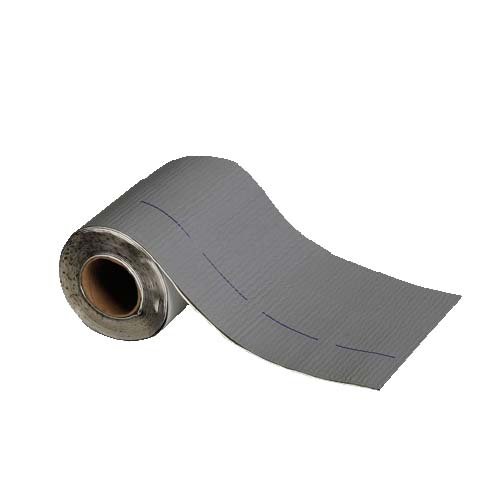

5. MFM Peel & Seal Self Stick Roll Roofing (Carton of 9, 4in Gray)
MFM’s Peel & Seal is a 45-mil self-adhering membrane sold in a carton of nine 4-inch-wide rolls. It is designed for repair work, RV roofs, and low-slope details rather than full-roof underlayment. At 45 mils, it is thicker than most primary ice-and-water shields, giving it excellent puncture resistance for small-area repairs.
Users have successfully used it to solve chronic leaks around flat roof edges and flashing transitions. Reviews note that it bonds well to treated lumber and aluminum flashing, and once applied, it is extremely difficult to remove — which is desirable for a permanent fix. The narrow 4-inch width makes it ideal for sealing seams, vents, and pipe penetrations without wasting material.
The biggest limitation is weather sensitivity. In cold temperatures (below 50°F), the adhesive becomes noticeably less tacky, and several users recommend warming the roll on a stove for a few seconds before application. This is not a full-roof solution, so it should be paired with a primary underlayment like Grace or Platinum for the main deck.
What works
- Thick 45-mil membrane for maximum puncture resistance
- Versatile for repairs, RV roofs, and flashing seams
- Sticks strongly to lumber, metal, and asphalt
- Narrow width reduces waste on detail work
What doesn’t
- Adhesive is less effective in cold weather
- Not designed as a full-roof primary underlayment
- Very difficult to reposition if applied incorrectly
6. Tyvek Protec 200 Roof Underlayment
The Tyvek Protec 200 is a synthetic non-woven underlayment that replaces traditional 15-pound or 30-pound felt. It is mechanically fastened (nailed or stapled) rather than self-adhering, so it does not offer nail-sealability on its own. At 16.5 mils, it is much thinner than peel-and-stick membranes but still holds a Class A fire rating and a 50-year limited replacement warranty.
This roll covers a full 10 squares (1,000 square feet), making it efficient for large roof areas. Installers praise its wrinkle-free lay-down and its ability to withstand foot traffic, mortar drops, and construction debris without tearing. It is Miami-Dade County approved for high-wind zones, so it meets code in hurricane-prone areas.
The major caveat is that Protec 200 does not self-seal around fasteners. For Class 4 shingle installations where water intrusion around nail holes is a concern, a separate ice-and-water shield must be applied at the eaves and valleys. It also offers only 180 days of UV exposure — shorter than some premium self-adhering products — so scheduling is tighter.
What works
- Class A fire rating and 50-year warranty
- Wrinkle-free installation and high tear resistance
- Lightweight — a 10-square roll weighs about 36 pounds
- Miami-Dade approved for high-wind regions
What doesn’t
- Does not self-seal around fasteners; requires separate sealant
- Thinner than peel-and-stick membranes
- UV exposure limit of 180 days requires coordinated timing

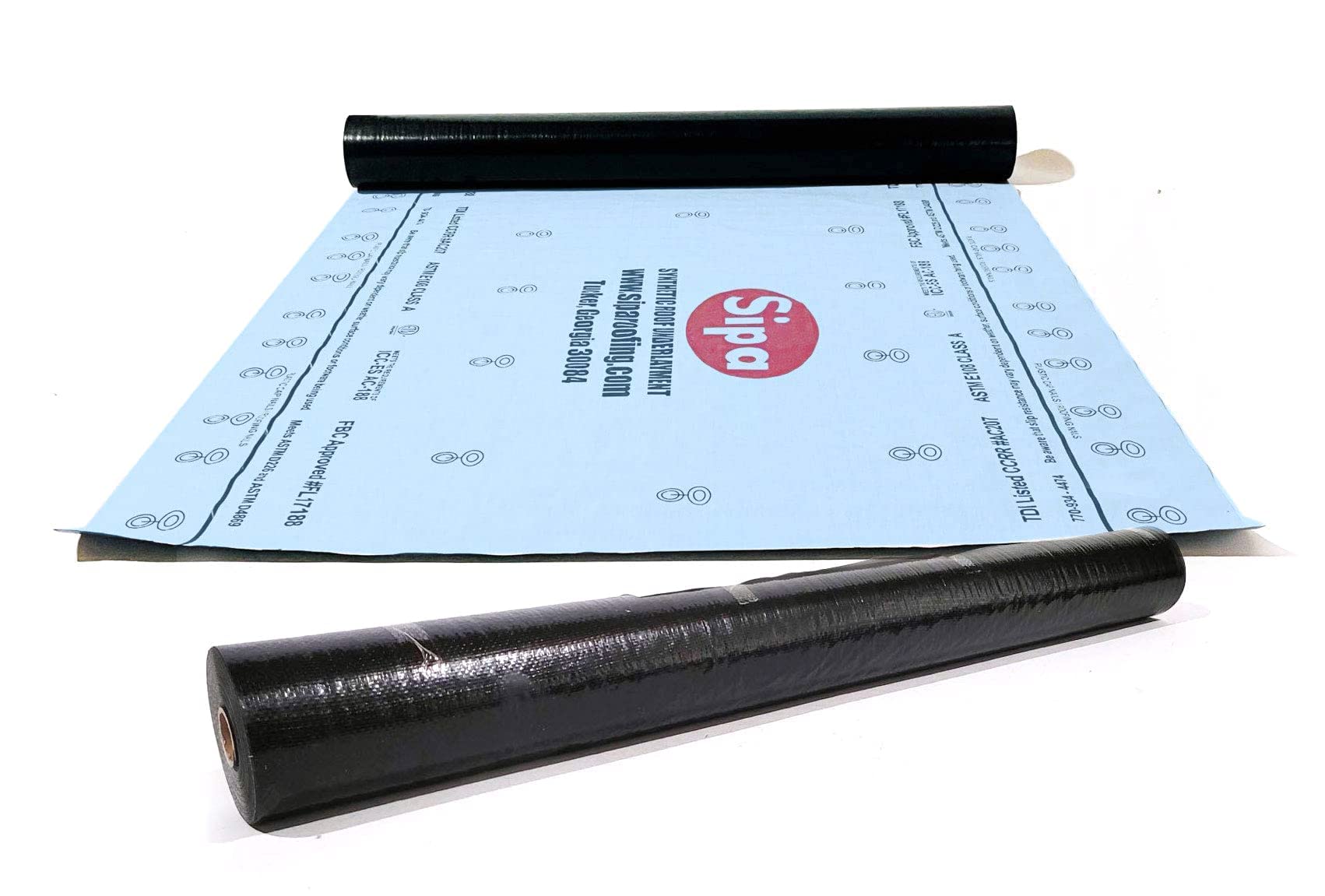

7. SIPA Synthetic Waterproof Roof Underlayment
The SIPA Synthetic is a budget-friendly mechanically fastened underlayment made from non-woven polypropylene laminated with PE and a UV-resistant adhesive. At 100 GSM (grams per square meter), it is lighter than heavy-duty synthetics but still water-resistant and capable of handling 60 days of UV exposure during installation. It covers 10 squares per roll, matching Tyvek’s coverage area.
Users on smaller projects — sheds, chicken coops, and small home roofs — report that it installs easily with ring-shanked nails and stays in place without buckling. The surface is not slippery when dry, which adds safety during application. It meets ASTM D4869 and D226 standards, so it qualifies as a code-compliant underlayment for asphalt shingles.
The primary shortcoming is longevity uncertainty. One reviewer noted that it is “just ok” and not what they expected. The 60-day UV exposure is shorter than both Tyvek and Grace options, so installation delays past two months could degrade the material. For a permanent Class 4 shingle roof, this might be acceptable as a secondary layer but not as the primary water barrier in critical zones.
What works
- Low cost per square foot for large-area coverage
- Easy to install with ring-shanked nails
- Non-slip surface improves safety on dry roofs
- Meets ASTM D4869 and D226 code requirements
What doesn’t
- Only 60 days UV exposure — tight installation window
- Thinner and less durable than premium synthetics
- Some users report average quality and uncertain longevity
Hardware & Specs Guide
Mil Thickness and Material Composition
The thickness of a roof underlayment directly impacts its puncture resistance and durability. Premium self-adhering membranes (Grace, Platinum, HydroShield) range from 40 to 41 mils and use rubberized asphalt or butyl. Thinner synthetics like Tyvek Protec 200 (16.5 mils) are lighter but less impact-resistant. For areas with heavy foot traffic during installation, at least 40 mils is recommended. The MFM Peel & Seal is the thickest at 45 mils, but it is designed for repairs, not full-roof coverage.
UV Exposure and Temperature Ratings
UV tolerance determines how long the underlayment can be left exposed before shingles are installed. Grace Ice & Water Shield HT and HydroShield both offer 120 days, while Platinum HT-B leads with 180 days. The SIPA budget option only offers 60 days, which may be insufficient for slow projects. High-temperature resistance (up to 250°F) prevents the asphalt from slipping under dark shingles on hot days. Service temperature ranges should span at least -40°F to 250°F for all-season reliability.
FAQ
Can I use a mechanically fastened underlayment with Class 4 shingles?
What does 40 mil thickness mean for roof underlayment?
Is copper flashing necessary under impact-rated shingles?
Do I need a full coverage underlayment or just ice and water shield?
Final Thoughts: The Verdict
For most homeowners and contractors installing an impact-resistant roof, the best class 4 shingles underlayment winner is the Grace Ice & Water Shield HT because it combines a 40-mil thickness, 120-day UV tolerance, and strong adhesion with a manufacturer-backed warranty for long-term assurance. If you want maximum UV exposure time and a slightly thicker membrane, grab the Platinum HT-B Self-Adhering Underlayment. And for a budget-friendly full-coverage option over a mechanically fastened base, nothing beats the Tyvek Protec 200 for sheer coverage area and fire rating.
