When the grid goes down and the electric submersible falls silent, a deep well hand water pump isn’t a luxury—it’s your household’s only lifeline to the aquifer below. The difference between a useless plastic toy and a reliable cast-iron workhorse comes down to maximum lift height, cylinder diameter, and the seal material between the piston and the bore. Most homeowners discover this the hard way during the first real emergency, watching a cheap pump fail to draw from a 40-foot static water level.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I’ve spent the last six years analyzing manual water-lift technology, comparing cylinder bore dimensions, diaphragm durability, and suction stroke mechanics from over 200 owner reports to separate the pumps that actually reach 30 feet from those that stall at 15.
After researching dozens of models across multiple price brackets, the following list represents the most dependable manual water access solutions available today. If you need a manual backup that consistently reaches deep groundwater, this is the definitive analysis of the best deep well hand water pump market.
How To Choose The Best Deep Well Hand Water Pump
Choosing the right manual water pump for a deep well isn’t about brand loyalty—it’s about matching the pump’s maximum lift rating to your well’s static water depth, then verifying that the materials and seal type can handle that lift across years of intermittent use. Three specific factors make or break the decision.
Maximum Lift Height and Static Water Level
Every hand pump is rated for a maximum vertical lift in feet, and that number is non-negotiable. A pump rated for 20 feet will not pull water from 25 feet down, regardless of how fast you pump. Measure your well’s static water level—the distance from ground level to the water surface when the well is at rest—and choose a pump rated for at least 5 feet more than that measurement. The VEVOR Pitcher Pump is rated for 20 feet, while the Boshart model can lift from up to 30 feet. For deeper wells, you need a pump that drops a cylinder or suction tube down into the water column, like the Flojak or Legacy Premium models, which use flexible piping to reach 25 to 50 feet.
Cylinder Material and Seal Durability
The material of the pump body and the internal sealing mechanism determines how long the pump will function without leaking air. Cast iron (found on the VEVOR and Boshart pitcher pumps) resists rust when painted properly and adds mass to prevent movement during operation. Plastic/polypropylene pumps (like the TERA PUMP rotary unit) are lighter, corrosion-free, and ideal for fluid transfer from drums, but they lack the robust seal assembly needed for repeated deep-well draws. Diaphragm and piston cup materials matter just as much: the Guzzler and Whale pumps use nitrile or rubber diaphragms that flex thousands of times before wearing, while the Nira 6B uses rustproof nitrile seals in a stainless steel and aluminum body designed for decades of service.
Connection Type and Installation Method
Before buying, confirm whether the pump connects to standard NPT pipe threads or requires a specific hose barb. Most cast-iron pitcher pumps use 1-1/4″ NPT connections, which thread directly onto galvanized or PVC well pipe. The Guzzler uses 1″ to 1-1/2″ smooth ends for hose, and the Flojak uses a flexible PEX tube that drops inside your existing well casing. If you have a standard 2-inch well cap, verify whether the pump assembly fits through the casing opening. Also consider whether the pump is above-ground (pitcher style) or down-well (drop-pipe style)—down-well pumps are the only option when the static water level is deeper than 25 feet and you lack a driven well point.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| VEVOR Hand Pitcher Pump | Cast Iron | Shallow wells up to 20 ft | 20 ft max lift, 1-1/4 in NPT | Amazon |
| Boshart Pe-Hp-110 | Cast Iron | Wells up to 30 ft, cold climates | 30 ft max lift, anti-freeze valve | Amazon |
| Flojak Emergency Well Pump | Drop-Pipe | Emergency backup for deep wells | 25 ft length, 1 GPM flow | Amazon |
| Legacy Premium Hand Pump | Drop-Pipe | Deep wells, emergency prep | 50 ft length, adjustable PEX | Amazon |
| Nira 6B Hand Pump | Industrial | High-volume fluid transfer | 10.6 GPM, rustproof nitrile | Amazon |
| Guzzler 500D Utility Pump | Diaphragm | Bilge/utility/shallow well priming | 10-12 GPM, acetal body | Amazon |
| Whale Gusher Urchin | Diaphragm | High-flow bilge/transfer | 14.5 GPM, compact design | Amazon |
| TERA PUMP Rotary | Rotary | Drum/barrel fluid transfer | 10 GPM, telescopic tube | Amazon |
| Whale Flipper Mk4 | Galley | Fresh/saltwater galley use | 1.85 GPM, 1/2 in hose | Amazon |
In‑Depth Reviews
1. VEVOR Well Hand Pitcher Pump
The VEVOR cast-iron pitcher pump sits at the sweet spot of the market: it delivers the classic above-ground aesthetic and real deep-well capability without crossing into the premium price bracket. The cast-iron body, weighing nearly 59 pounds, provides the mass needed to stay planted during vigorous pumping, and the rust-resistant coating means it survives rain and snow without blistering. With a 20-foot maximum lift rating and a 1-1/4″ NPT connection, it matches the most common shallow-well configurations on residential properties.
What sets this pump apart from cheaper imports is the extended base that raises the cylinder above potential standing water, and the PTFE tape and screw kits included in the box for immediate installation. The handle is contoured to reduce hand fatigue—a detail you appreciate after the tenth bucket. Owners who paired this with a well point at 18 feet report consistent flow from the first stroke after priming, which speaks to the quality of the leather or rubber piston cup seal inside the brass or cast-iron cylinder.
The only real limitation is the ceiling: 20 feet is the maximum lift. If your static water level sits at 22 feet, this pump will never draw water. For every buyer whose well is shallower than 20 feet, however, this is the most cost-effective cast-iron solution on the market, combining antique curb appeal with genuine, repeatable water delivery.
What works
- Heavy cast-iron construction resists corrosion and stays planted.
- 20 ft max lift covers most shallow residential wells.
- Ergonomic handle reduces arm strain over long sessions.
- Includes PTFE tape and all mounting hardware for quick install.
What doesn’t
- Cannot lift water from wells deeper than 20 feet static.
- Cast iron is heavy—transport to remote install sites is awkward.
- Piston cup may need replacement after heavy seasonal use.
2. Boshart Pe-Hp-110 Cast Iron Pitcher Pump
Boshart’s Pe-Hp-110 is the cast-iron pitcher pump for buyers whose static water level sits between 20 and 30 feet—territory where most above-ground pumps fail. The 3-inch diameter cylinder is wider than standard 2-inch models, which increases the volume of water drawn per stroke, so you fill a bucket faster even at depth. The standard 1-1/4″ pipe tap matches any US well pipe, and the entire assembly is built around a cast-iron body that shrugs off weather exposure.
The anti-freeze valve is this pump’s headline feature for northern climates. When temperatures drop below freezing, you raise the handle to its extreme height, which trips the valve and allows water to drain out of the cylinder, preventing expansion damage. Owners of cottages and off-grid cabins in freeze-thaw zones report using this pump through multiple winters without cracked castings, which is a direct result of that integrated drain feature. The pump is also adapted specifically for cisterns, not just driven wells, adding versatility for rainwater collection systems.
The trade-off is installation weight and the requirement that the well head be easily accessible. This pump sits above ground and needs to be bolted down—it’s not portable. For the buyer who needs reliable access to groundwater between 20 and 30 feet, and who faces actual winter freezing, this is the most purpose-built cast-iron option available.
What works
- 30 ft max lift is the best of any above-ground pitcher pump.
- Anti-freeze valve prevents winter cracking.
- 3-inch cylinder delivers higher volume per stroke.
- Fits both wells and cisterns with 1-1/4″ NPT.
What doesn’t
- Heavy and requires permanent mounting.
- No hose connection—pipe thread only.
- Price is firmly in the premium tier for a pitcher pump.
3. Flojak Emergency Backup Well Pump Kit
When your electric submersible dies and the static water level is 25 feet down, the Flojak Earthstraw is the simplest drop-in backup you can own. The entire assembly is pre-assembled—a flexible plastic suction tube with a foot valve, connected to a 3D-printed handle mechanism—so you remove your well cap, drop the tube into the casing, and start pumping in under a minute. The 25-foot length perfectly matches the most common U.S. residential well depth where the pump sits above the water level.
Owners who have tested this unit report that water appears within a few strokes after priming, and the flow rate of roughly 1 gallon per minute is enough to fill a 5-gallon bucket in five minutes—adequate for drinking, cooking, and basic hygiene during an outage. The materials feel robust in hand, the handle mechanism uses a dense plastic that shows no flex under pressure, and the foot valve holds its prime between uses. The fact that it’s made entirely in the USA adds confidence for buyers who prioritize domestic manufacturing.
The key limitation is depth: 25 feet is the maximum. Many wells are drilled deeper, with the pump sitting at 50 or 60 feet. The Flojak also uses a relatively narrow suction tube, which means it will not deliver the volume of a drop-pipe pump. For the buyer whose well depth is exactly in the 20–25 foot range, this is the most reliable, ready-to-use emergency pump available.
What works
- Completely pre-assembled—open box and install immediately.
- Foot valve holds prime between uses.
- Lightweight and portable for storage or bug-out bags.
- 100% made in the USA with quality materials.
What doesn’t
- Maximum 25 ft depth—not for deeper wells.
- Flow rate is slow at 1 GPM.
- Plastic handle may not survive decades of regular use.
4. Legacy Premium Emergency Hand Water Well Pump
The Legacy Premium hand pump is the only model on this list that reaches a 50-foot static water depth—necessary for wells where the electric pump sits below 30 feet. It uses a 50-foot flexible PEX pipe that you drop into the well casing, connected to a simple above-ground pumping mechanism. The length is adjustable: owners commonly shorten the pipe by disconnecting and trimming it, and the manufacturer provides a well-made instructional video for the process, which has been praised by DIY buyers.
This pump is designed exclusively as an emergency backup, not a daily driver. The flow rate is modest—it takes a couple of minutes to fill a gallon jug—but the peace of mind that comes from knowing you can access water from a 50-foot well without electricity is significant. Owner reports consistently highlight the simplicity of the one-piece design: there is no assembly, no priming ritual beyond pouring a cup of water into the top, and no complex mechanical parts that can fail. Several buyers confirmed that the pump works on the first attempt after following the simple instructions.
There are some caveats. A few owners reported that the unit did not work out of the box, with issues possibly related to manufacturing defects or improper installation. The PVC material feels utilitarian rather than premium, and the pump is not designed for heavy daily use. For the buyer who needs a true 50-foot emergency backup and is willing to verify installation carefully, this is the only widely available drop-in solution at this length.
What works
- 50 ft maximum depth is unmatched by any other hand pump.
- Adjustable PEX length for custom well depths.
- Simple one-piece design with no assembly needed.
- Lightweight at 7.75 pounds.
What doesn’t
- Some units arrive with manufacturing defects.
- PVC construction feels less durable than cast iron.
- Flow rate is slow—not for high-volume needs.
5. Nira 6B Hand Pump
Finnish engineering sets the Nira 6B apart—this pump has been manufactured in Finland since the 1960s, and original units from the 1970s are still in service. The entire body is constructed from aluminum and stainless steel with rustproof nitrile seals, meaning it can handle not only water but also light oils, diesel, and glycol-based fluids without degrading. The maximum flow rate of 40 liters per minute (roughly 10.6 GPM) is dramatically higher than any diaphragm or drop-pipe pump, making this the choice for situations where you need to move significant volume quickly.
The pumping action uses a forward-backward lever motion rather than an up-down stroke, which feels different but reduces the vertical clearance needed—useful in tight mechanical rooms or under decks. The Nira 6B connects via flanges at the top and bottom, making installation straightforward but permanent. Owners of waterfront saunas, agricultural operations, and industrial facilities praise its ability to move water from a pond, lake, or cistern hundreds of feet away without losing prime, provided the suction lift stays within the pump’s 8-meter (26-foot) rating.
The major catch is that this pump is explicitly not intended for drinking water, so you cannot use it as your primary household well pump without a separate filtration system. The price is also in the premium tier. For the buyer who needs a high-volume, multi-fluid, decades-long manual pump for non-potable applications, the Nira 6B is unmatched.
What works
- 10.6 GPM flow rate is class-leading for manual pumps.
- Aluminum and stainless steel construction is fully rustproof.
- Decades-long service life proven since the 1960s.
- Handles water, oils, diesel, and glycol.
What doesn’t
- Not certified for drinking water.
- Price is significantly higher than most hand pumps.
- Flange installation is less flexible than standard NPT.
6. Guzzler 500D Utility Hand Pump
The Guzzler 500D is the gold standard for diaphragm-style utility pumps, built by a family-owned American company since 1982. It uses a durable acetal plastic body—lighter and more corrosion-resistant than cast iron—combined with a rugged aluminum handle and a rubber diaphragm that delivers a flow rate between 10 and 12 GPM. The smooth ends accept hose from 1 inch to 1-1/2 inches in diameter, making it adaptable for bilge pumping, wastewater graywater removal, priming centrifugal pumps, and shallow well transfer.
Owner reports are extraordinary for a hand pump: one user reported that a Guzzler lasted 31 years on their boat before they needed a replacement. Another noted that it works exactly as prescribed for its intended use. The flow rate is high enough to move significant water, and the diaphragm design is self-priming up to about 10-12 feet of vertical lift, which covers many shallow well and cistern applications. The acetal body is impact-resistant and won’t rust, even in saltwater environments.
The primary disappointment comes from a minority of owners who experienced diaphragm tearing after just a few uses, though this appears to be batch-specific rather than a design flaw. The Guzzler is also not designed for deep well lift—its maximum suction lift is roughly 15 feet, so it cannot replace a pitcher pump for a 20-foot static water level. For the buyer who needs a rugged, portable, high-flow diaphragm pump for shallow water or waste water transfer, the Guzzler is the reference standard.
What works
- 10-12 GPM flow is competitive for a diaphragm design.
- Acetal plastic body resists saltwater and chemicals.
- Aluminum handle and USA manufacturing since 1982.
- Versatile hose connections from 1 to 1-1/2 inches.
What doesn’t
- Max suction lift ~15 ft—not for deep wells.
- Diaphragm can tear prematurely in some batches.
- Plastic body may flex under extreme cold.

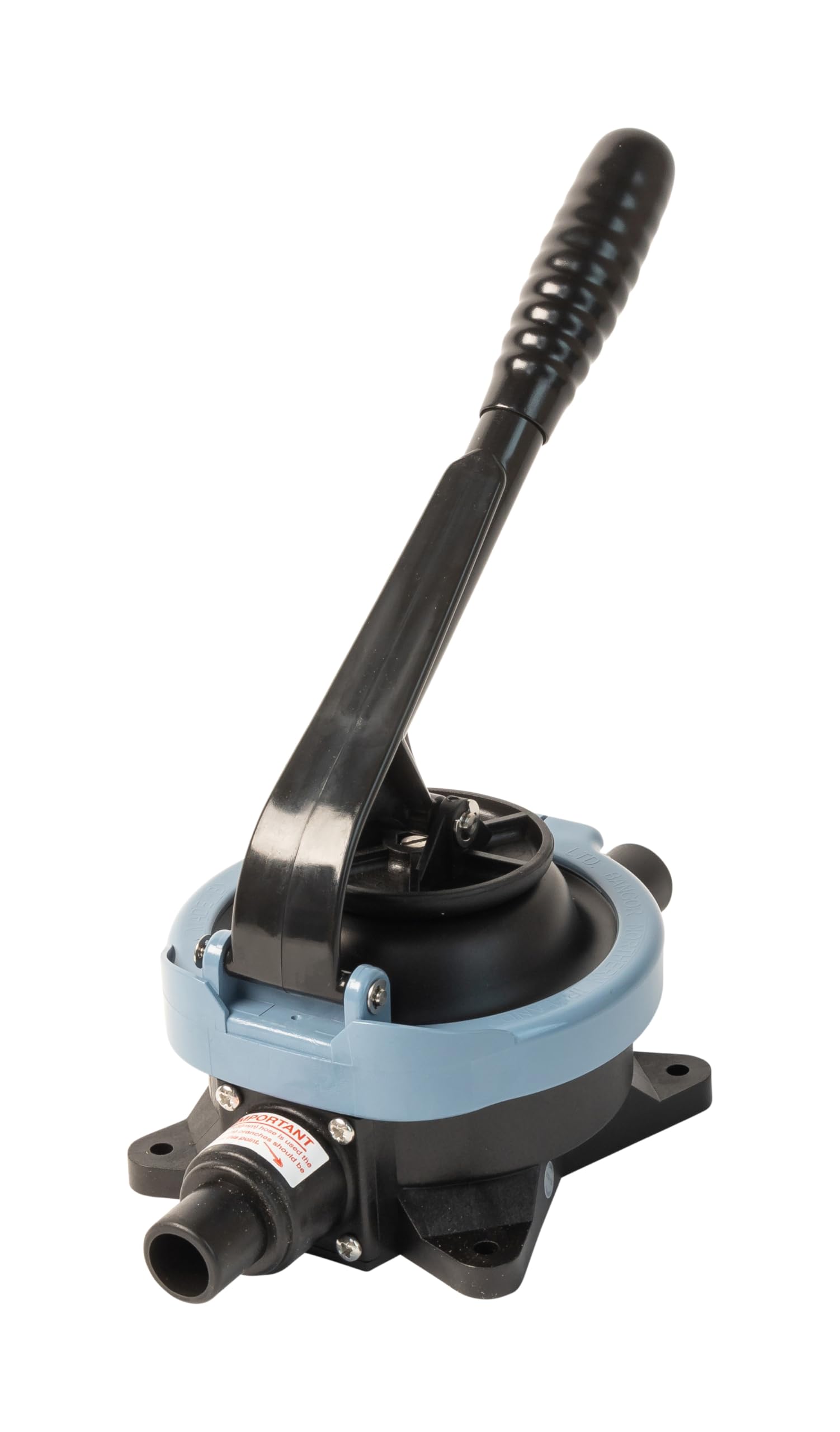

7. Whale Gusher Urchin Manual Bilge Pump
With a max flow rate of 14.5 GPM (based on 70 strokes per minute), the Whale Gusher Urchin is the highest-flow manual pump on this list. It is a compact diaphragm-style bilge pump designed originally for marine use, but its ability to clear water quickly makes it relevant for any situation requiring emergency dewatering or high-volume shallow transfer. The dual-size inlet/outlet accepts both 1-inch and 1-1/2-inch hose connections, and the pump head rotates via a removable clamp ring for flexible installation in tight spaces.
The Whale’s suitability as a primary bilge pump on boats up to 40 feet (with 1-inch hose) or up to 80 feet (with 1-1/2-inch hose) under ISO 15083 certification speaks to its reliability. The plastic construction is lightweight at just 1.32 pounds, and the 5-year warranty adds confidence for buyers who plan to keep it as a permanent backup. For off-grid cabin owners with a pond or cistern within 10-15 feet of vertical lift, this pump can move a surprising volume of water with minimal arm fatigue.
The trade-off is that the Whale is not built for deep suction lift. Its maximum lifting height is listed at 4 meters (about 13 feet), which is typical for diaphragm pumps. It also uses plastic components that may not survive years of direct sun exposure if left permanently mounted outdoors. For the buyer who needs a light, portable, high-GPM manual pump for shallow water transfer or backup bilge/dewatering, the Whale Gusher Urchin is the volume king.
What works
- 14.5 GPM flow rate is the highest in the category.
- Lightweight at 1.32 lbs—truly portable.
- Dual hose connections for 1″ or 1-1/2″ lines.
- 5-year warranty and ISO 15083 certification.
What doesn’t
- Max lift of 13 feet is unsuitable for deep wells.
- Plastic body may degrade with prolonged UV exposure.
- Not designed for drinking water applications.

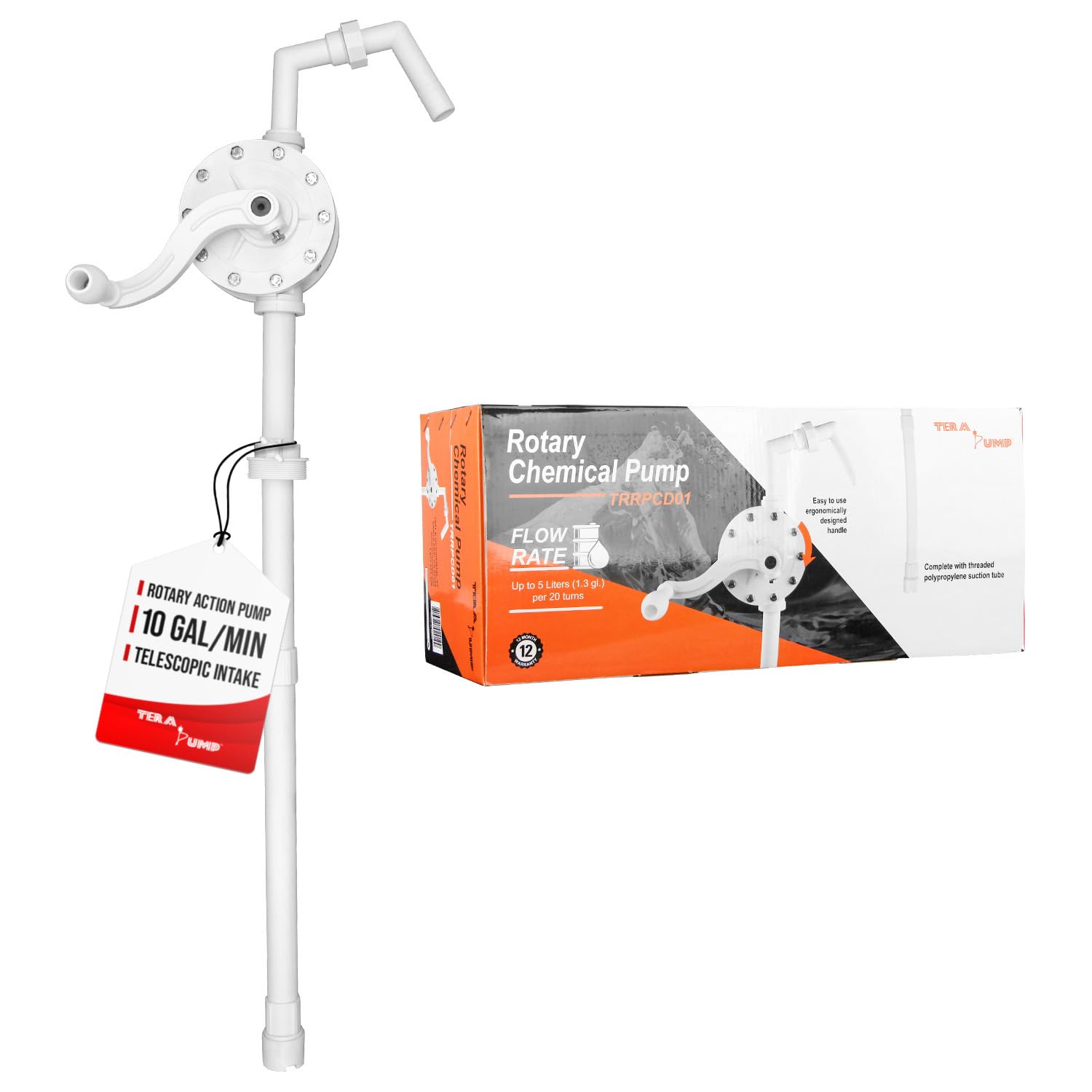

8. TERA PUMP Polypropylene Rotary Hand Pump
The TERA PUMP rotary hand pump is a specialized tool for transferring fluids from standard 15 to 55-gallon drums, not for lifting water from a well. Its polypropylene body resists corrosion from diesel exhaust fluid, antifreeze, detergents, urea, and water-based media, and it includes an adjustable telescopic suction tube that extends to roughly 45 inches to reach the bottom of tall barrels. The dual-directional rotary action delivers up to 10 GPM, and the built-in 2-inch NPS bung adapter screws directly into standard drum openings.
For the deep well buyer, this pump is relevant in an indirect way: if you store emergency water in 55-gallon drums, the TERA PUMP allows you to transfer that stored water into buckets or smaller containers without tipping the barrel or using electricity. The filtered suction tube prevents debris from entering your container, and the Viton seal handles aggressive fluids without swelling or leaking. Owners of automotive shops and farms report that this pump empties a 55-gallon barrel in about five and a half minutes at a comfortable crank speed.
The TERA PUMP is not designed for deep well application, and attempting to use it for vertical lift beyond a few feet will fail. It is a lateral transfer pump for vessels at the same or slightly higher elevation. For the buyer who stores emergency water drums or needs to dispense non-potable fluids from barrels, this is the most affordable, durable rotary pump on the market.
What works
- 10 GPM flow rate from a barrel is fast and efficient.
- Telescopic tube fits 15 to 55-gallon drums.
- Polypropylene and Viton seals handle harsh fluids.
- Built-in 2-inch NPS bung adapter for standard drums.
What doesn’t
- Not suitable for vertical well water lift.
- Plastic rotary vanes may wear with abrasive fluids.
- 1-year warranty is shorter than competitors.
9. Whale GP0418 Flipper Pump Mk 4
The Whale Flipper Pump Mk 4 is a hand-operated galley pump designed for fresh or saltwater use in marine, RV, and cabin settings where low, controlled flow is more important than volume. With a flow rate of 1.85 GPM and a 1/2-inch flexible hose connection, it delivers a gentle stream ideal for filling a kettle or washing hands, not for emergency well water retrieval. The compact design and simple lever action make it easy to install in tight counter spaces.
This pump is included on this list because many buyers searching for a deep well hand pump also need a secondary manual pump for the kitchen or sink during power outages. The Flipper Mk 4 can draw from a cistern or a jug, providing fresh water without needing electricity, and its plastic and rubber construction is resistant to both fresh and saltwater corrosion. Owners of boats and off-grid cabins use this pump as their primary galley water source for decades with minimal maintenance.
The Flipper is not a deep well pump—its maximum suction lift is limited to a few feet, and the 1/2-inch hose connection is too narrow for high-volume transfer. If you need a manual pump for your sink, not your well, this is a well-proven, low-flow solution. For the deep well buyer, consider this a complementary option for indoor use while the primary pitcher pump or drop-pipe pump handles the well.
What works
- Compact, corrosion-resistant design for galley installations.
- Smooth, low-flow lever action reduces splashing.
- Works with fresh and saltwater.
- Proven reliability from a trusted marine brand.
What doesn’t
- 1.85 GPM is too slow for emergency well filling.
- Limited to pump depths of a few feet.
- Not designed for outdoor or wellhead installation.
Hardware & Specs Guide
Maximum Lift Height (Feet)
This is the single most important spec for any deep well hand water pump. It represents the vertical distance the pump can lift water from the static water level to the spout. Above-ground pitcher pumps (VEVOR, Boshart) use atmospheric pressure and a piston within a cylinder, which limits them to about 20-30 feet at sea level. Drop-pipe pumps (Flojak, Legacy Premium) use a cylinder that sits down in the water column, allowing them to reach 25-50 feet or more by reducing the suction lift requirement.
Flow Rate (Gallons Per Minute)
Flow rate measures how much water the pump moves in one minute of steady operation, usually calculated at 60-70 strokes. The Whale Gusher Urchin delivers 14.5 GPM, which is ideal for emergency dewatering or filling storage tanks quickly. Drop-pipe emergency pumps like the Flojak and Legacy Premium deliver only 1 GPM—slow, but sufficient for drinking and cooking when the alternative is no water at all. Matching flow rate to your intended use (fast transfer vs. sustained backup) is critical.
FAQ
Can I use a cast-iron pitcher pump on a well deeper than its rated lift?
Do I need to prime a deep well hand pump every time I use it?
How does a drop-pipe emergency hand pump work inside my existing well?
Can a diaphragm pump like the Guzzler or Whale Gusher replace a pitcher pump for a deep well?
What does the NPT thread size mean for installation?
Final Thoughts: The Verdict
For most gardeners and off-grid homeowners whose well’s static water level sits at 20 feet or less, the best deep well hand water pump winner is the VEVOR Hand Pitcher Pump because it combines affordable cast-iron durability, a 20-foot lift rating, and true antique design that doubles as yard ornament. If your well is between 20 and 30 feet deep, grab the Boshart Pe-Hp-110 for its extended lift and freeze-resistant valve. And for the deepest emergency scenarios down to 50 feet, nothing beats the Legacy Premium Hand Pump for simply dropping a line to the aquifer.
