A smart misting system turns a scorching patio into a livable outdoor room, but most kits fail because they rely on weak plastic fittings, undersized tubing, or nozzles that clog in a single season. The difference between a setup that lasts five years and one that gets tossed after July comes down to three things: the nozzle material, the connector seal, and whether the line pressure matches your home’s water supply.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I’ve spent years studying consumer data, comparing specifications, and analyzing aggregated owner feedback across dozens of misting kits to separate the well-engineered systems from the frustrating ones.
After breaking down the materials, pressure ratings, and real-world performance of seven leading kits, I’ve confirmed exactly what separates a reliable long-term setup from a leak-prone headache. This guide to the best do it yourself misting system gives you concrete specs and honest trade-offs so you can buy with confidence — no guesswork required.
How To Choose The Best Do It Yourself Misting System
A misting system is a simple machine: it forces water through a tiny orifice to create a fine spray that evaporates and lowers ambient temperature. The hardware that accomplishes this — tubing, nozzles, connectors, and optionally a pump or timer — is what determines whether you get a cool, quiet patio or a damp, drippy mess. Here are the concrete specs to evaluate before you buy.
Nozzle Material and Orifice Size
Brass nozzles resist mineral buildup and corrosion far better than plastic or zinc options. Look for an orifice diameter around 0.4 mm to 0.5 mm — smaller holes produce a finer mist but are more prone to clogging without a filter. Kits that include a built-in water filter or a sediment screen reduce maintenance significantly.
Tubing Length, Diameter, and UV Resistance
Most DIY kits use 1/4-inch tubing. A 75-foot to 100-foot line is standard for a medium patio or pergola, but longer runs reduce pressure at the final nozzles. UV-stabilized polyethylene or PU tubing prevents cracking after a few months of direct sun. If your layout exceeds 75 feet, consider a kit that includes a booster pump.
Connector Type and Seal Quality
Push-fit connectors with an O-ring seal are fast to install and leak-resistant if the tubing is cut cleanly. Threaded brass adapters (3/4-inch NHT is standard) provide a more durable connection at the faucet. Avoid kits that use only push-fit plastic at the hose bib — that joint is the most likely leak point.
Pump or No Pump?
If your outdoor spigot delivers at least 40 PSI, a passive (pump-free) kit works fine for runs up to 75 feet. If you have low water pressure, need mist on a second story deck, or want portability away from a hose bib, a kit with a 12V DC pump and a reservoir gives you consistent pressure and independent placement.
Timer and Automation
Automated timers let you schedule mist cycles for cooling or plant irrigation without manual attention. Look for a timer with IP65 weather resistance, at least two independent daily programs, and a rain-delay feature. Note that most hose-end timers require standard AA alkaline batteries and do not support rechargeable lithium cells.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Mornajina Outdoor Misting Kit (Product 5) | Pump-driven | Boosting low water pressure | 12V DC 60W pump, 5 L/min flow | Amazon |
| homenote Automatic Misting System (Product 7) | Timer-equipped | Hands-off irrigation & cooling | Built-in timer, 91.8 ft tubing | Amazon |
| Ausic Portable Misting System (Product 6) | Portable/pump-driven | Misting away from a hose bib | 6000 mAh battery, 20L bucket | Amazon |
| Mellbree 100FT Kit (Product 4) | Expandable/passive | Complex custom layouts | 138 pieces, 30 brass nozzles | Amazon |
| Maotong 100FT Misting System (Product 3) | Value passive | Large-area coverage on a budget | 100 ft line, dual filtration | Amazon |
| homenote 75FT Pre-Assembled Kit (Product 1) | Pre-assembled/passive | Quick no-tool setup | 75 ft tubing, 28 brass nozzles | Amazon |
| Homasky Standing Mister (Product 2) | Standalone/passive | Portable targeted cooling | 5.3 ft adjustable height | Amazon |
In‑Depth Reviews
1. Mornajina Outdoor Misting Cooling System with Pump Kit
This is the only kit in the lineup that includes a self-priming 12V DC 60W pump, which delivers a flow rate of 5 L/min and a working pressure of 30 PSI at the nozzles. For anyone with a hose bib that struggles to push mist through more than 30 feet of line, this pump transforms the experience — it maintains consistent spray at the farthest nozzle even on a long run. The 49.2-foot misting line is shorter than most passive kits, but the pump lets you locate the reservoir and pump anywhere, then run the line wherever it is needed.
The 20 brass nozzles have a 0.4 mm orifice and use a sliding lock push-fit connection that mates with standard 1/4-inch tubing. The included PTFE tape and 3/4-inch brass adapter ensure a leak-free seal at the faucet if you choose to use it without the pump. At 450 PSI maximum pressure rating, the pump circuit is overbuilt for residential use, which adds a comfortable safety margin. The 0.01-ounce item weight listed on the spec sheet appears to be a data error — the actual kit with pump and power supply weighs roughly 3.7 pounds.
Owners report that the pump runs quietly and that the mist quality is noticeably finer than passive systems on the same tubing length. The trade-off is setup complexity: you have to connect the pump inlet to a water source and the outlet to the misting line, and the pump requires a standard AC outlet nearby. If your patio lacks an exterior receptacle, you will need an extension cord. For low-pressure situations or for anyone who wants guaranteed mist output regardless of municipal water pressure, this is the most capable option.
What works
- Built-in pump guarantees consistent pressure and fine mist
- Brass nozzles with 0.4 mm orifice resist clogging
- Can be used with or without the pump depending on water pressure
What doesn’t
- Shorter 49.2 ft misting line compared to passive kits
- Requires an AC outlet for the pump, limiting portability
2. homenote Automatic Misting Cooling System with Timer
The standout feature here is the IP65-rated water timer that allows up to three independent daily programs, each adjustable from one minute to almost 24 hours. This transforms the misting system from a manual faucet-twisting chore into a set-and-forget solution for both cooling and plant irrigation. The timer runs on two AA alkaline batteries (not included, and rechargeable lithium cells are explicitly not recommended), so it can be placed anywhere without a power cord.
The kit includes 91.8 feet of 1/4-inch UV-resistant polyethylene tubing, 24 brass misting nozzles, and a 3/4-inch NHT brass adapter with a leak-proof seal. The tubing is pre-assembled at the factory, so there is no cutting or fitting required — you simply uncoil it, attach it to the faucet, and clip it in place. The brass nozzles produce a fine mist that cools effectively without soaking furniture or floors, assuming your water pressure is above 40 PSI.
The timer does not support hourly or minute-by-minute watering frequencies — it is designed for daily or multi-day schedules — which makes it better suited for plant watering and consistent daily cooling than for intermittent event-based misting. Some users report that the rain-delay feature works well, pausing scheduled cycles when moisture is detected. For anyone who wants automated patio cooling during peak heat hours or consistent hydration for a greenhouse while traveling, this kit delivers the most convenience in the lineup.
What works
- Water timer with three independent daily programs
- Pre-assembled tubing with no cutting required
- IP65 waterproof rating on the timer module
What doesn’t
- Timer does not support hourly intervals for short cycles
- Cannot use rechargeable lithium batteries in the timer
3. Ausic Portable Misting Systems with 6000mAh Pump
This is the most portable option in the group, designed entirely around the concept of misting where there is no hose bib. The 6000 mAh rechargeable battery powers a German-engineered PCS pump that delivers 5 to 8 hours of continuous misting on a full charge. The pump sits inside a 20-liter foldable waterproof bucket that serves as both the water reservoir and the carrying case — fill the bucket, attach the 26-foot PU hose, and you have a fully self-contained cooling station that goes anywhere.
The pump offers four water volume settings (25%, 50%, 75%, 100%) and both continuous and intermittent mist modes. At the highest setting, the pump draws about 5 L/h, giving roughly four hours of runtime from the 20-liter tank. The intermittent mode cycles three seconds on and three seconds off, which effectively doubles battery life. The mist hose uses aluminum wire inside each nozzle position, so you can bend and lock the direction of each mist head individually — a useful detail for aiming at specific seating areas or plants.
The kit includes five Velcro ties and five leather clips for attaching the hose to umbrella ribs, patio fans, fence posts, or canopy frames. The trade-off for this portability is the tank capacity: 20 liters is enough for a few hours of heavy misting, but you will need a water source nearby to refill for all-day events. The automatic shutoff after four hours prevents dry-running damage, but it also means you cannot run it unattended for a full workday without resetting it. For tailgating, camping, or misting a specific seating area away from a spigot, this is the most versatile design available.
What works
- Fully portable with rechargeable battery and 20L reservoir
- Adjustable mist output with four volume levels
- Aluminum-reinforced hose allows directional nozzle aiming
What doesn’t
- Limited 26 ft hose length compared to passive kits
- 4-hour auto shutoff requires manual restart for longer sessions

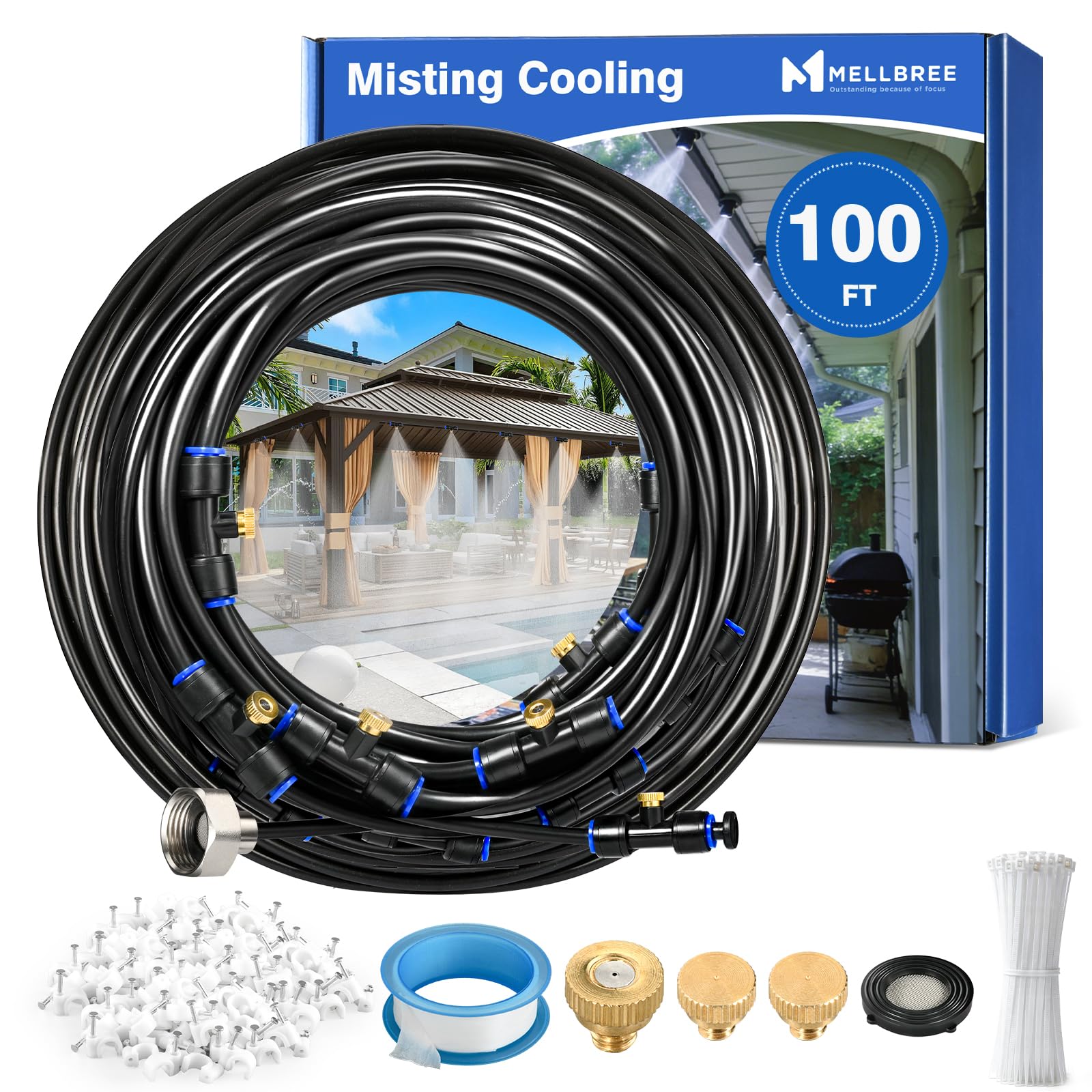

4. Mellbree 100FT Misting Cooling System
With 138 individual components — including 30 brass nozzles, 28 T-connectors, and 80 clamps — this kit is built for people who want to design a complex layout around a pergola, gazebo, fence line, or even an entire building perimeter. The sheer number of connectors means you can run multiple branches off a single feed line and place nozzles exactly where you want them. The 100-foot polyethylene tubing gives enough material to cover a very large patio or to split into two separate zones.
The brass nozzles produce an ultra-fine mist that the manufacturer claims cools by up to 68°F at the nozzle exit. In practice, the temperature drop depends on humidity and airflow, but the mist quality is consistently dry — it does not wet furniture or clothing under normal conditions. The 3/4-inch zinc-plated brass adapter uses a push-fit design with an O-ring that seals reliably, and the built-in fine mesh filter catches sediment before it reaches the nozzles.
The 80 clamps are a thoughtful inclusion: they keep the tubing tidy against rafters, umbrella ribs, or fence rails without sagging. The trade-off is installation time — with 138 pieces to connect and position, setup takes longer than a pre-assembled kit. Owners with average handyman skills report completing a full pergola installation in about 60 to 90 minutes. For large, irregular spaces where a single straight run of tubing would leave areas uncovered, this is the most configurable passive kit available.
What works
- Extremely customizable with 28 T-connectors and 80 clamps
- Brass nozzles produce fine, dry mist without wetting furniture
- Built-in filter reduces nozzle clogging from sediment
What doesn’t
- Requires significant time and effort to assemble all 138 pieces
- No pump or timer included; relies entirely on water pressure
5. Maotong 100FT Misting Cooling System
This kit delivers 100 feet of 1/4-inch PE tubing and 32 brass misting nozzles at a price that undercuts most 75-foot competitors. The dual filtration system — a sediment filter at the faucet connection plus an inline screen — is a rare inclusion at this price tier, and it directly addresses the most common customer complaint about misting kits: nozzles that clog within weeks. The filtration keeps the 0.4 mm brass nozzle orifices clear even with hard water or debris in the supply line.
The tool-free snap-fit connectors let you attach nozzles at any point along the tubing by simply pushing them into place. This design makes it easy to skip a nozzle where you do not need it or add extra nozzles if you source them separately. The UV-resistant tubing is rated for continuous outdoor exposure, which prevents the line from becoming brittle after a few months of sun. The maximum working pressure is rated at 60 PSI, which is standard for residential hose bibs.
The kit includes 139 pieces total, including tees, connectors, and a water filter, but the connector count is lower than the Mellbree kit — you get enough for a long straight run with a few branches, not a sprawling multi-zone layout. Some owners note that the push-fit connectors can be slightly difficult to remove once locked in place, so plan your nozzle positions carefully before finalizing. For large, simple layouts — a straight pergola, a long fence line, or a greenhouse ridge — this is the best value per foot of tubing and per nozzle.
What works
- 100 ft of tubing at a very competitive price
- Dual filtration system prevents nozzle clogs
- Tool-free snap-fit connectors for fast installation
What doesn’t
- Push-fit connectors are difficult to reposition once locked
- Not as many branch connectors as the Mellbree kit
6. homenote 75FT Pre-Assembled Misting Cooling System
The primary appeal of this kit is that it arrives fully assembled — the 75-foot 1/4-inch tubing comes with 28 brass nozzles already installed, spaced evenly at roughly 2.7-foot intervals. You simply uncoil it, connect the 3/4-inch solid brass adapter to your hose bib, and turn on the water. No cutting, no pushing connectors into tubing, no worrying about leaks at junction points. For someone who wants misting working within 10 minutes of opening the box, this is the fastest path.
The solid brass 3/4-inch NHT adapter and the brass nozzles both resist corrosion and mineral buildup. The manufacturer rates the tubing for a maximum of 120 PSI, which is well above typical residential water pressure, so there is minimal risk of bursting even if you have strong municipal pressure. The system can be used for both cooling and gentle plant watering — the fine mist provides even coverage without soil erosion or runoff.
The 75-foot length is ideal for a typical patio or pergola but may be too short for a large deck or a two-story installation. Because the nozzles are pre-installed, you cannot reposition them — what you get is a fixed spacing of about 2.7 feet. If your layout requires tighter nozzle spacing in one area and wider spacing in another, this fixed configuration may not suit your space. For a straightforward, hassle-free install where the standard spacing works, this is the most convenient entry point.
What works
- Fully pre-assembled with nozzles already installed
- Solid brass adapter and brass nozzles for durability
- Rated for 120 PSI, well above typical home water pressure
What doesn’t
- Nozzle spacing is fixed and cannot be customized
- 75 ft length may be too short for large decks or long runs
7. Homasky Standing Mister (5.3 FT Adjustable)
This is the only product in the roundup that does not require any permanent mounting or tubing routing. It is a freestanding tripod unit with a maximum height of 5.3 feet, adjustable down to 2.6 feet. You simply connect it to a garden hose, set it up wherever you want cooling, and move it to a different spot when needed. The nickel-plated brass nozzles are built into the stand itself, so there is no separate tubing to lay out or clip in place.
The stainless steel tripod base provides stability on grass, concrete, or decking, and it folds flat for storage or transport. The mist output is controlled by the faucet valve, and the stand covers a roughly circular area with a radius of about 6 to 8 feet depending on water pressure. The fine mist reduces airborne dust and odors in addition to providing evaporative cooling, which makes it useful for patio dining areas or near pet enclosures.
The main limitation is coverage — a single standing mister covers a relatively small area compared to a 75-foot line of nozzles. You would need multiple stands to cool a large deck or full patio. The tripod is also lightweight enough that a strong gust of wind can tip it over if the base is not weighted. For targeted spot cooling — next to a chair, near a grill station, or beside a pet bed — this is the most flexible and portable option. For whole-patio coverage, a linear tubing kit is the better choice.
What works
- Truly portable with no permanent installation required
- Adjustable height from 2.6 to 5.3 feet for different uses
- Nickel-plated brass nozzles resist corrosion
What doesn’t
- Covers a limited area compared to linear tubing kits
- Lightweight tripod can tip over in strong wind
Hardware & Specs Guide
Nozzle Materials and Orifice Sizes
All the kits reviewed here use brass or nickel-plated brass nozzles, which is the right choice for longevity. Brass resists the mineral scaling that blocks plastic nozzles and corrodes zinc alternatives. The standard orifice diameter across these kits is 0.4 mm to 0.5 mm. A 0.4 mm orifice produces finer mist droplets but requires filtered water to stay clear. If your water supply has visible sediment or hardness above 7 grains per gallon, look for a kit with an integrated filter, or add an inline sediment filter upstream of the misting line.
Pressure Requirements and Pump Assistance
Passive misting systems rely on your home’s water pressure to atomize the water. Most residential hose bibs deliver between 40 and 60 PSI, which is adequate for runs up to 75 feet with about 25 to 30 nozzles. Beyond that length or nozzle count, the pressure drop at the farthest nozzle reduces mist quality. A pump-driven system like the Mornajina kit boosts pressure to a consistent 30 PSI at the nozzles regardless of line length, which lets you run longer lines or compensate for low municipal pressure. The pump also enables portable use from a bucket or tank.
FAQ
How many nozzles can I run on a standard garden hose without a pump?
Will a misting system soak my patio furniture?
Can I leave the tubing outside during winter?
What is the difference between a push-fit connector and a threaded brass adapter?
Final Thoughts: The Verdict
For most gardeners and patio owners, the best do it yourself misting system winner is the homenote Automatic Misting System with Timer because it combines a generous 91.8-foot line, durable brass nozzles, and a programmable timer that makes daily cooling and plant irrigation truly hands-free. If you have low water pressure and need guaranteed mist output regardless of your hose bib, grab the Mornajina system with the 12V pump. And for portable spot cooling away from any faucet — at a campsite, sports sideline, or pool lounge — nothing beats the Ausic portable system with its rechargeable pump and integrated reservoir.
