That low spot in your yard turning into a mud pit after every storm isn’t just an eyesore — it’s a slow battle against erosion, foundation moisture, and standing water. The fix lies below the surface, where a proper outlet keeps water moving away from where it doesn’t belong. Getting the right components for that outlet determines whether your system works silently for years or turns into a clogged headache.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I’ve spent years analyzing drainage system specs, studying sediment failure points in field conditions, and cross-referencing owner feedback on hundreds of underground pipe setups to separate the reliable solutions from the temporary fixes.
After evaluating filter socks, pop-up emitters, and termination fittings across multiple installation scenarios and real-world durability reports, this guide breaks down the concrete specs that define a truly effective drainage ditch pipe solution for residential yard drainage.
How To Choose The Best Drainage Ditch Pipe Setup
An effective underground drainage system depends on more than just the main pipe. The components at the inlet, along the length, and at the termination point determine whether water flows freely or gets blocked by silt, roots, or debris. For a residential yard drain terminating at a ditch or low area, three component categories matter most: the filter sleeve over the perforated pipe, the pop-up emitter or termination cap at the outlet, and the compatibility of the fitting with the pipe type you’re using.
Filter Sock Material and Density
The fabric sleeve wrapped around a perforated drain pipe is the first line of defense against soil intrusion. Polyester filter socks with a tighter weave block fine sand and silt while still allowing water to pass through. Cotton-polyester blends offer a different stretch characteristic but may degrade faster in consistently moist soil. The key spec to check is the fabric’s water resistance rating and the actual thickness of the material — heavier fabric resists tearing during installation and lasts longer underground.
Outlet Fitting Design and Pipe Compatibility
The termination point of your drainage system determines where the water exits. Pop-up emitters with spring-loaded or dual-rod mechanisms allow the lid to open under water pressure and close when flow stops, preventing pests and debris from entering the pipe. The critical spec here is the fitting’s compatibility range — some models accept 4-inch SCH 40, SDR 35, and 3-to-4-inch corrugated pipe without adapters, while others only fit one pipe type. Slope drains with an integrated grate also block animal entry while directing water over a grade transition.
Installation Complexity and Joint Requirements
Some outlet fittings require gluing, screwing, or separate adapter purchases, which adds labor and potential failure points. Models with stepped shoulders that lock onto multiple pipe diameters allow a no-adapter, no-glue installation that saves time and reduces the chance of leaks. If you’re working in a tight trench or retrofitting an existing pipe, a fitting that slides directly onto the pipe end without extra steps reduces the overall installation headache.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Polylok 4-in-1 Slope Drain | Slope Drain | Grade transitions & animal blocking | 4″ SCH 40 / SDR 35 / corrugated | Amazon |
| Avanhitch Pop Up Emitter | Pop-Up Emitter | Flush lawn termination | Dual-rod spring-free mechanism | Amazon |
| ADS 0420HA Drain Sleeve | Filter Sock | Sediment blocking over pipe length | 4″ x 100′ polyester sleeve | Amazon |
| Cariff 04100-10 Fabric Sock | Filter Sock | Budget sediment filtering | 60% cotton / 40% polyester | Amazon |
| TooTcps Drain Sleeve Sock | Filter Sock | Light-duty sediment protection | 4″ x 100′ polyester 10-pack | Amazon |
In‑Depth Reviews

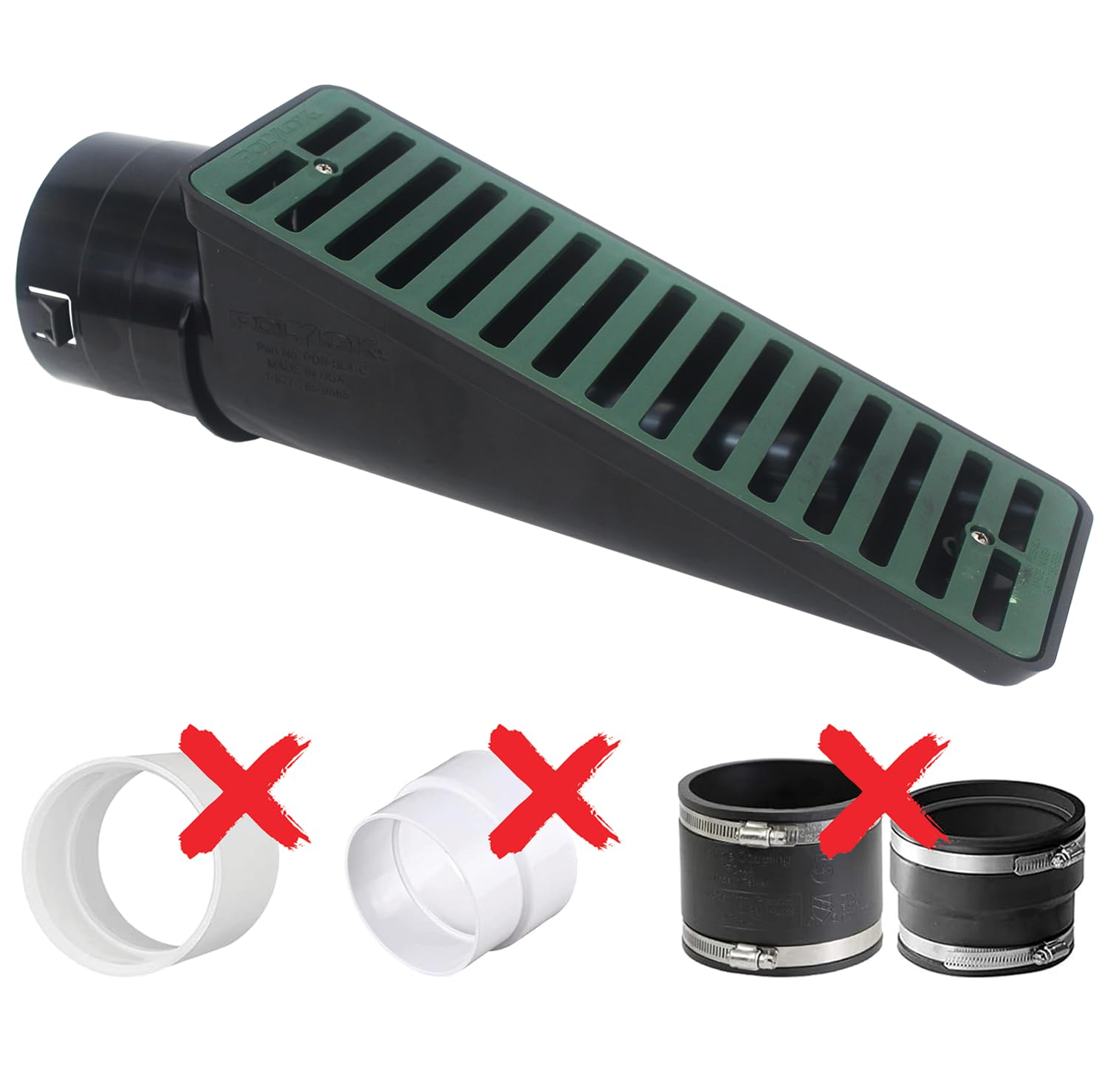

1. Polylok 4-in-1 Slope Drain
The Polylok Slope Drain solves the most common termination problem: a pipe ending at a slope where water needs to discharge cleanly without washing out the surrounding soil or getting crushed by mower traffic. This heavy-duty ABS unit accepts 4-inch SCH 40, 4-inch SDR 35, 4-inch corrugated, and 3-inch corrugated pipe all in one fitting — no adapters, no glue, no extra screws beyond the two stainless fasteners holding the removable grate. The integrated grate blocks animal entry while the green color blends into turf, and the UV inhibitor protects against sun exposure if the unit sits partially above grade.
Installation requires zero prep work: slide the pipe into the fitting, position the outlet over the slope, and backfill. The 14.73-inch length provides enough coverage to direct water over a small grade transition, and the removable grate allows easy debris cleaning when leaves or sediment accumulate. Users report that the heavy construction resists cracking under mower contact and solves the erosion problem at the pipe outlet immediately.
The main limitation is the lack of a pop-up lid — water flows freely out of the grate opening, which means the outlet stays visible at grade. For applications where a flush, hidden termination is preferred, this slope drain works best in areas where the pipe end is slightly above the ditch grade rather than buried flush with the lawn. The fit on 3-inch triple-wall pipe is not guaranteed, so verify your pipe type before purchasing.
What works
- Accepts four pipe types without adapters or glue
- Removable grate with stainless screws for easy cleaning
- UV-stabilized ABS resists cracking and sun damage
What doesn’t
- Grate opening stays visible above grade
- 3-inch triple-wall pipe fit not guaranteed

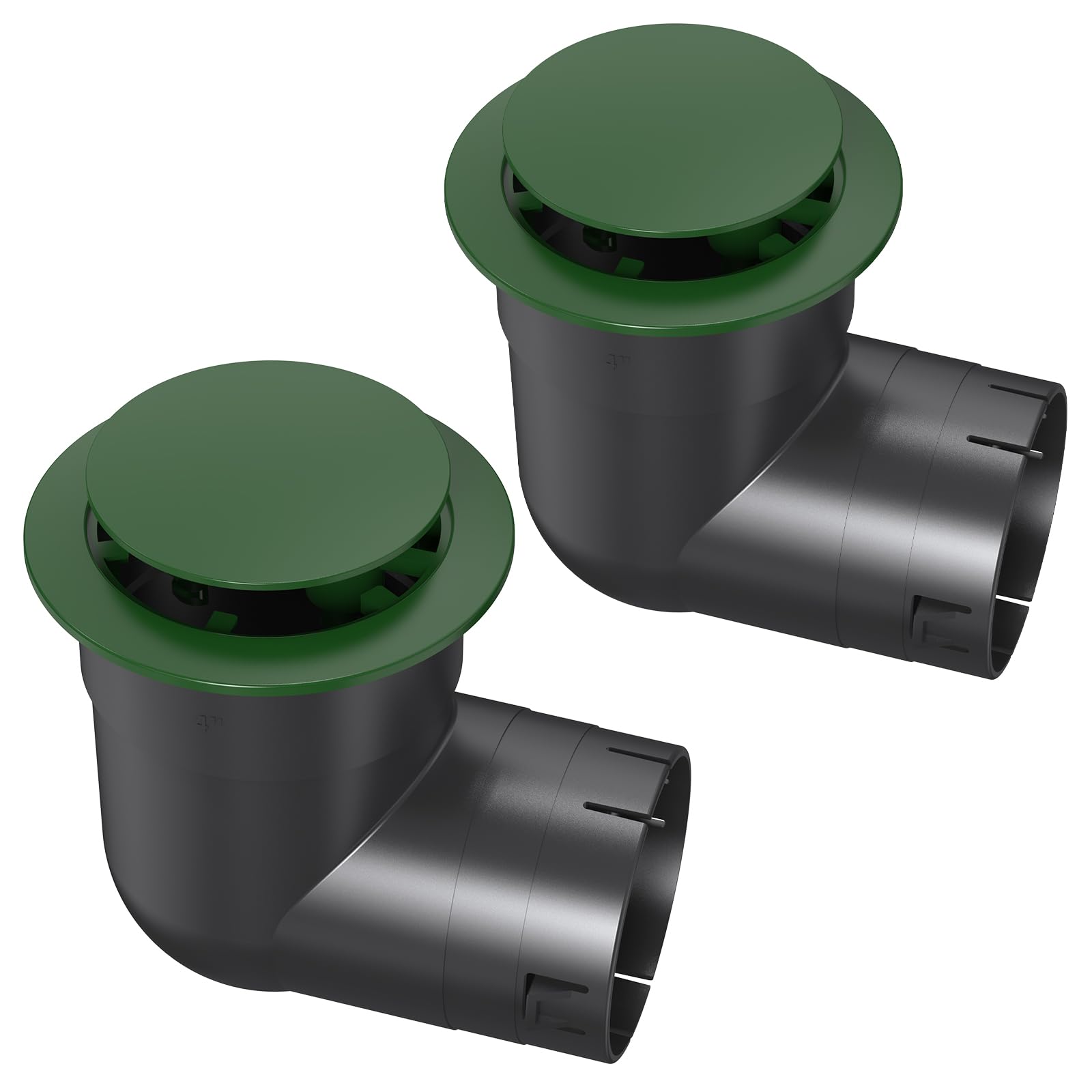

2. Avanhitch 4″ Pop Up Drainage Emitter
The Avanhitch Pop Up Emitter solves the dual problem of keeping the pipe outlet clean and maintaining a flush lawn surface. Its dual-rod guided mechanism controls vertical lid movement without the coil spring that corrodes or binds in traditional models. The lid returns to near-flush position after water flow stops, which means the mower can pass over without catching or damaging the unit. The stepped shoulders on the inlet accept 4-inch PVC D2729 S&D, 4-inch SCH 40, 4-inch SDR 35, and 3-to-4-inch corrugated pipe directly — no adapter ring required.
The integrated 90-degree elbow directs discharged water away from foundations and retaining walls, reducing erosion at the termination point. The textured lid surface resists scuffs from lawn equipment, and the low-profile design keeps the unit stable during heavy rain events. Users note that the installation is straightforward: cut the pipe to the desired height, slide the emitter onto the pipe end, and backfill around the unit. The lack of glue or fasteners speeds up the installation significantly compared to traditional glued PVC outlets.
Some users report that the fit on standard 4-inch corrugated pipe feels slightly loose — the locking feature helps, but the neck length is short, requiring the pipe to be angled upward to bring the emitter close to the surface. The unit is designed for use with yard drainage systems including downspouts, channel drains, and catch basins, but 3-inch triple-wall pipe is not recommended for fitment.
What works
- Spring-free dual-rod mechanism avoids corrosion and binding
- Flush lid reduces mower contact and damage risk
- Direct fit on multiple 4-inch pipe types without adapters
What doesn’t
- Fit on standard 4-inch corrugated can feel loose
- Short neck requires careful pipe angle for flush installation
3. Advanced Drainage Systems 0420HA 4″ x 100′ Drain Sleeve
The ADS 0420HA Drain Sleeve is the workhorse filter fabric for perforated 4-inch drain pipe installations that run long distances. This 100-foot roll of polyester sleeve slides over standard corrugated pipe and acts as a sediment barrier, preventing fine sand and silt from entering the perforations while allowing water to pass through freely. The material thickness is noticeably heavier than budget alternatives, which means it resists tearing during the installation process — especially important when pulling the sleeve over a full 100-foot pipe run.
Application is straightforward: bunch the sleeve into sections, slide it over the pipe, and pull it taut in 5-foot increments. The fabric breathes effectively enough to maintain drainage flow even in clay-heavy soil conditions. Users report that the sleeve fits snugly over 4-inch perforated pipe and stays in place during backfill without shifting or bunching. The 100-foot length covers one continuous run or can be cut to fit multiple shorter sections, though the lack of shorter length options means buyers with small projects end up with leftover material.
The key spec difference between this sleeve and lower-priced options is the fabric weave density — ADS uses a polyester formulation that balances water permeability with sediment retention. The sleeve is water-resistant but not waterproof, which is correct for drainage applications where water must exit the perforations. For residential yard ditches where the pipe runs through native soil without a gravel envelope, this sleeve provides reliable protection against pipe clogging over time.
What works
- Heavy polyester fabric resists tearing during installation over 100-foot runs
- Snug fit on 4-inch perforated pipe stays in place during backfill
- Effective sediment filtering without restricting water flow
What doesn’t
- No shorter length options — 100 feet may be excessive for small projects
- Cotton-polyester blends may stretch differently during installation
4. Cariff 04100-10 Fabric Sock (60% Cotton / 40% Polyester)
The Cariff 04100-10 Fabric Sock is a 60% cotton / 40% polyester blend designed for 4-inch corrugated drain pipe applications where basic sediment filtration is the goal. The cotton-polyester composition gives the sleeve a stretchy, almost spandex-like quality that conforms tightly to the pipe surface — users note that bunching the material into sections and pulling it over 5-foot increments works best, and the fabric handles moderate pulling force without tearing. The 100-foot roll covers standard residential runs without needing multiple rolls.
This sock filters out sand and sediment effectively enough for residential yard drainage in loam or sandy soil conditions, and it eliminates the need for special gravel backfill around the pipe. The manufacturer explicitly states not to use this product where water pressure is needed, which indicates the fabric is designed for gravity-flow drainage systems only. Users report that the fit is tight like a glove, providing a second layer of protection beyond the non-woven geotextile fabric often used around the trench.
The primary drawback is the cotton content — cotton degrades faster than pure polyester in constantly moist soil, which means the effective lifespan may be shorter in perpetually wet ditch conditions. The installation process also generates significant arm and hand fatigue because the stretchy fabric requires constant tension to slide over the pipe. For a budget-friendly solution that works out of the box on standard 4-inch corrugated pipe, this sock delivers solid performance for the price.
What works
- Stretchy fabric conforms tightly to pipe surface
- Eliminates need for special gravel backfill around pipe
- Made in the USA with decent tear resistance during install
What doesn’t
- Cotton content may degrade faster in constantly wet soil
- Installation requires significant arm effort to stretch over pipe sections
5. TooTcps Drain Sleeve 4 in. Dia. x 100 ft. L Polyester Filter Fabric Sock
The TooTcps Drain Sleeve offers a polyester filter fabric option for 4-inch diameter drain pipe at a value price point. The material thickness is noticeably more pronounced than some big-box store alternatives, which means it provides sturdy protection against sand and debris entering the pipe perforations. The 100-foot length comes bundled as a 10-pack, giving multiple short sections for small projects or the flexibility to cut custom lengths without wasting a full roll. The polyester construction is water-resistant and designed to handle underground moisture without rapid degradation.
Installation is straightforward — cut the sleeve to the desired length, slide it over the PVC, concrete, metal, or plastic pipe, and secure the ends with zip ties. Users report that the sleeve fits easily over standard 4-inch PVC pipe and stays in place during backfill. The fabric is less stretchy than cotton-polyester blends, which means it slides on with less arm fatigue but may not conform as tightly to irregular pipe surfaces. For residential drainage ditches where the pipe runs through standard soil without heavy clay, this sleeve provides reliable sediment protection.
The main limitation is the lack of a single continuous 100-foot piece — the bundle format provides multiple shorter sections, which requires joining or overlapping for long runs. Users also note that the fabric is not as stretchy as some alternatives, so getting a tight fit on corrugated pipe with deep ridges may require additional zip ties at frequent intervals. For small to medium residential projects where multiple short pipe sections are involved, this bundle format is actually an advantage rather than a drawback.
What works
- Polyester fabric thickness is stronger than some big-box store alternatives
- 10-pack bundle format works well for multiple short pipe sections
- Easy to cut and secure with zip ties — no special tools needed
What doesn’t
- Bundle format means no single continuous 100-foot piece for long runs
- Less stretchy than cotton-poly blends — requires more zip ties on corrugated pipe
Hardware & Specs Guide
Filter Sock Material Composition
The fabric wrapped around perforated drain pipe must balance water permeability with sediment retention. Pure polyester filter socks (like the ADS 0420HA) offer the longest underground lifespan and the highest tear resistance during installation, making them ideal for long pipe runs in native soil. Cotton-polyester blends (like the Cariff 04100-10) provide better stretch and conform more tightly to corrugated pipe surfaces, but the cotton content may degrade faster in perpetually moist conditions. The weave density determines the smallest particle size filtered — heavier fabric blocks fine sand and silt while lighter fabric allows more water flow but also more sediment passage.
Pop-Up Emitter Mechanism Types
The lid return mechanism on a pop-up drainage emitter determines whether the outlet stays closed after water flow stops. Traditional spring-loaded designs use a coil spring that corrodes over time and can bind with debris, preventing the lid from closing fully. Dual-rod designs (like the Avanhitch emitter) use guided vertical rods without a spring, eliminating the corrosion failure point and providing more consistent lid return. The lid height above grade is another critical spec — emitters that sit flush or near-flush reduce mower contact damage, while units that protrude above the surface are more likely to be broken by lawn equipment.
Pipe Compatibility on Termination Fittings
The number of pipe types a termination fitting accepts determines whether you need adapters or glue. The best multi-fit designs (like the Polylok slope drain) accept 4-inch SCH 40, 4-inch SDR 35, 4-inch corrugated, and 3-inch corrugated in a single fitting using stepped shoulders. Fittings that require separate adapters for each pipe type add cost and potential leak points at the adapter joint. Before purchasing, verify whether your specific pipe type — especially thin-wall corrugated or triple-wall SDR pipe — is listed as compatible by the manufacturer.
UV Resistance and Material Grade
Termination fittings that sit partially above grade are exposed to direct sunlight, which degrades standard ABS and PVC over time. Fittings with UV-stabilized additives (indicated by the manufacturer as UV-resistant or containing a UV inhibitor) maintain their structural integrity for years of sun exposure without becoming brittle. Heavy-duty ABS construction (as used in the Polylok slope drain) offers better impact resistance than standard PVC if the fitting is hit by a mower or stepped on, making it the preferred material for lawn-level terminations.
FAQ
Do I need a filter sock over my drainage ditch pipe if I use gravel backfill?
Can a pop-up emitter be installed on a pipe that terminates below grade in a ditch?
How do I measure the right diameter filter sock for my 4-inch pipe?
What is the difference between a slope drain and a pop-up emitter?
Final Thoughts: The Verdict
For most gardeners installing a residential drainage outlet, the drainage ditch pipe winner is the Polylok 4-in-1 Slope Drain because it accepts four pipe types without glue or adapters, blocks animals with a removable grate, and handles grade transitions without moving parts. If you want a flush, mower-friendly termination that hides the outlet in the lawn, grab the Avanhitch Pop Up Emitter. And for long perforated pipe runs where sediment protection is the priority, nothing beats the ADS 0420HA Drain Sleeve for reliable, heavy-duty filtering over the full pipe length.
