Hand-watering a raised bed or flower border during a dry spell is a daily chore that quickly turns into a battle against evaporation and uneven coverage. A drip sprinkler system eliminates that drudgery by delivering water directly to the root zone, but choosing the wrong kit means wrestling with leaky barbed fittings, clogged emitters, or tubing that kinks under the summer sun.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I’ve spent dozens of hours comparing component counts, tubing diameters, connector types, and pressure ratings across the most popular kits, cross-referencing owner feedback to separate the reliable setups from the frustrating ones.
Whether you are outfitting a 3×6 raised bed or a sprawling greenhouse, understanding the differences in tubing thickness, emitter variety, and quick-connect technology is the key to picking the right solution — and this guide breaks down the top contenders for the best drip sprinkler system for your specific garden layout.
How To Choose The Best Drip Sprinkler System
Every drip sprinkler system is a collection of tubes, connectors, and emitters, but the quality of those components determines whether installation takes 10 minutes or 90. Focus on these four factors to avoid buying a kit that leaves the far end of your garden dry.
Tubing Diameter and Length
The mainline tubing is the backbone of the system. Kits using 1/4-inch tubing are fine for small container gardens that sit close to the spigot, but any run over 30 feet benefits from a 5/16-inch or 1/2-inch mainline. Larger diameters maintain flow pressure at the distal emitters, preventing the common complaint of strong water at the first plant and a trickle at the last. Always check the included mainline length against your garden’s longest dimension.
Connector Type and Leak Resistance
Traditional barbed fittings require soaking the tubing in hot water to soften it, then forcing the barb into place — a process that is slow and prone to leaks if the tube does not seal perfectly around the barb. Newer quick-connect fittings use a push-to-lock mechanism that creates a tight seal instantly with no tools. If you plan to reconfigure your layout between seasons, a system with quick-connect tees and elbows saves hours of frustration.
Emitter Variety and Adjustability
A good kit includes at least two types of watering devices. Drip emitters deliver a slow, targeted soak for deep-rooted plants. Micro-sprays or misting nozzles cover wider areas for dense ground covers or beds of leafy greens. Vortex or adjustable emitters let you fine-tune the flow rate per plant, which is critical when mixing tomatoes (heavy drinkers) with herbs (light feeders) in the same bed.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Rain Bird LNDDRIPKIT | Premium Kit | Landscapes & trees | Pressure-compensating drippers | Amazon |
| MIXC 247 FT | Premium Kit | Large greenhouse layouts | 50ft 1/2″ + 197ft 1/4″ tube | Amazon |
| Garden Grid 3×6 | Specialty Grid | Precise raised-bed coverage | 16 streams per square foot | Amazon |
| Bonviee 230FT | Mid-Range Kit | Timer-ready setups | 197ft 1/4″ + 33ft 5/16″ tube | Amazon |
| MIXC 230FT | Mid-Range Kit | Flexible configuration | 197ft 1/4″ + 33ft 1/2″ tube | Amazon |
| Landtouch 40FT + 100FT | Value Kit | Budget-friendly expansion | 200 GPH flow rate on 1/2″ line | Amazon |
| Thiswing 50FT | Entry Kit | Small patio beds | 5/16″ tubing + copper nozzles | Amazon |
In‑Depth Reviews
1. Rain Bird LNDDRIPKIT
Rain Bird’s reputation in commercial irrigation carries into this 108-piece kit, which is the only option on this list featuring pressure-compensating technology. That means every dripper, micro-bubbler, and micro-spray delivers the same flow rate regardless of elevation changes or distance from the spigot — essential for sloped lots or long runs of 50 feet or more.
The kit includes three distinct watering device types, giving you the flexibility to ring a tree with slow-drip bubblers, line a flower border with micro-sprays, and add point-source drippers to individual perennials. The barbed-and-threaded fittings are more traditional and require a bit of manual assembly, but the clog-resistant design of each emitter means you will rarely need to disassemble for cleaning.
At roughly 50 total inches of hose, this is not a kit for covering a huge vegetable garden. It is a precision tool for a medium landscape bed or mixed shrub border where uniformity matters more than raw square footage. Buyers who add a hose timer appreciate that the industry-standard threads accept any Rain Bird or third-party controller.
What works
- Pressure-compensating emitters ensure equal water delivery across the entire run.
- Three emitter types (dripper, bubbler, spray) cover diverse plant needs in one box.
What doesn’t
- Total hose length is short compared to other kits in this price tier.
- Barbed connectors take longer to install than modern quick-connect designs.

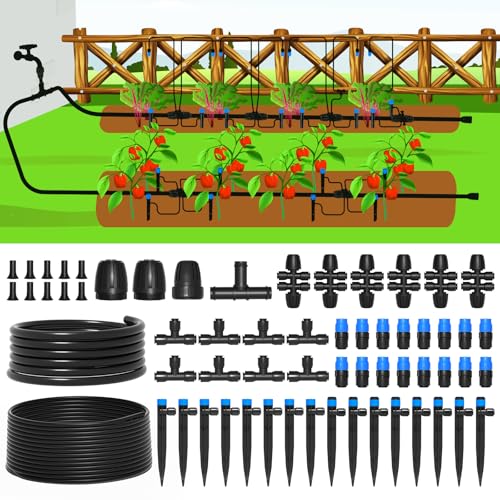

2. MIXC 247 FT Drip Irrigation System
MIXC steps up its offering with 247 total feet of tubing, headlined by a 50-foot section of 1/2-inch mainline that handles high-volume distribution to branch lines. The 197 feet of 1/4-inch drip tubing then serve as secondary runs, supporting up to 32 emitters without significant pressure drop — a critical advantage for a greenhouse or L-shaped garden where the tap sits at one end.
The quick-connector design here uses lock barbed tees that click into place rather than requiring brute force. Installation from box to active watering can happen in under 15 minutes if the layout is simple. Three emitter types are included: drip streams, vortex emitters, and blue mist nozzles, giving you spray coverage for leafy greens and focused drip for root crops within the same configuration.
At 3.6 kilograms, this kit has a substantial feel, and the 1/2-inch mainline resists kinking better than thinner tubing when curved around bed corners. The maximum pressure rating of 60 PSI is standard, but the large mainline means you can run longer lateral lines than a 1/4-inch-only system would allow.
What works
- Large 1/2-inch mainline maintains strong pressure over long distances.
- Quick-connect lock barbed tees install without tools and resist leaks.
What doesn’t
- Vortex emitters can clog if water source has sediment without a filter.
- No pressure regulator included, so high house pressure may need a separate add-on.
3. Garden Grid Watering System 3×6
The Garden Grid takes a fundamentally different approach: rather than a spool of tubing and a bag of fittings, this is a pre-assembled polypropylene grid that drops into a 3×6 raised bed. Each square foot of the grid delivers 16 gentle streams at soil level, eliminating the guesswork of emitter placement that plagues traditional kits.
Setup is genuinely two minutes — you set the grid in the bed, connect a standard garden hose to the included fitting, and turn the water on. The UV-resistant material is rated to survive seasons of full sun and freezing winters without cracking. Original units from 2013 are reportedly still in service, which speaks to the durability of the injection-molded construction.
The trade-off is absolute lack of customization. You cannot redirect water away from a section that is fallow or increase flow to a single heavy-feeding plant. The grid also only works inside a rectangular bed measuring 33.5 by 66 inches. For gardeners committed to square-foot gardening who want a zero-fuss solution, this is the most reliable option available.
What works
- Pre-assembled design installs in two minutes with no tools or planning.
- 16 water streams per square foot provide extremely even coverage across the entire bed.
What doesn’t
- Not adjustable — you cannot increase flow to one plant over another.
- Only fits a specific raised bed dimension (33.5×66 inches).
4. Bonviee Drip Irrigation System 230FT
Bonviee’s 230-foot kit splits its tubing into 197 feet of 1/4-inch drip tube and 33 feet of 5/16-inch mainline, a diameter that sits between the standard 1/4-inch and the heavy 1/2-inch. This middle-ground sizing is smart for raised beds that are 40 to 60 feet from the tap, as the 5/16-inch line maintains enough pressure to feed multiple 1/4-inch branches without the bulk of 1/2-inch tubing.
The push-to-connect fittings are among the easiest to use on this list — you push the tube into the fitting until it clicks, and a built-in locking ring holds it in place. The kit explicitly states compatibility with automatic hose timers, so you can screw a timer onto the faucet, set the schedule, and leave the system to run unattended during a vacation. Three types of adjustable stake sprayers let you dial from a gentle drip to a full spray pattern.
One note: the button-controlled sprayers are simple to operate but can be knocked out of adjustment if bumped during weeding. The plastic construction of the connectors feels adequate for seasonal use, though gardeners in regions with hard freezes may want to store the components indoors over winter.
What works
- Timer-compatible design allows fully automated watering schedules.
- Push-to-connect fittings install quickly and create reliable seals.
What doesn’t
- Sprayer nozzles can shift position if bumped during garden maintenance.
- Plastic fittings may become brittle after multiple freeze-thaw cycles.
5. MIXC 230FT Quick-Connect Drip Irrigation System Kit
This MIXC kit covers 230 feet with a 33-foot 1/2-inch mainline and 197 feet of 1/4-inch branch tubing, providing the same 1/2-inch backbone advantage as the larger MIXC kit but in a shorter total run. For gardeners with a medium-sized vegetable plot or a set of three 4×8 raised beds, this is often the most cost-effective way to get a 1/2-inch mainline.
The quick-connector technology here uses a barbed tee system with a locking collar, rather than pure push-to-connect. It still installs rapidly — the company claims 10 minutes from box to operation — and the locking mechanism prevents the tubing from pulling loose under pressure. Three emitter styles are included: drip streams, vortex emitters, and blue mist nozzles, giving the same configuration options as the premium MIXC kit.
With a maximum pressure rating of 827 PSI (likely a misprint in the spec sheet — the practical limit matches similar plastic systems around 60 PSI), the plastic fittings are standard quality. The 1/2-inch mainline is the key differentiator here, as most kits at this price point use only 1/4-inch or 5/16-inch mainlines, which limits total coverage area.
What works
- 1/2-inch mainline at this price point provides better pressure than comparable kits.
- Locking barbed connectors stay secure under working water pressure.
What doesn’t
- Included emitter stakes are short and may not hold well in loose soil.
- No pressure regulator included despite high-pressure rating claims.
6. Landtouch Drip Irrigation System 40FT + 100FT
Landtouch combines 40 feet of 1/2-inch mainline with 100 feet of 1/4-inch branch tubing, a split that delivers a maximum 200 GPH flow rate through the mainline. That is enough volume to water a moderate vegetable garden or a series of flower beds in two or three zones without running multiple timers.
The kit comes with 92 pieces including vortex emitters, spray emitters, misting nozzles, and tee connectors, all using quick-connect fittings rather than traditional barbs. Installation time is dramatically shorter than barbed systems, and the 1/2-inch mainline can be buried under mulch for a cleaner look. The plastic construction is lightweight, and the 80 PSI maximum pressure rating gives a comfortable margin above typical household water pressure of 50 to 60 PSI.
Where this kit cuts corners is in the feel of the fittings — the plastic is thinner than the Rain Bird or MIXC options, and the 1/4-inch tubing can kink if bent too sharply around bed corners. For a first-time drip user who wants to learn without a large investment, this is a functional starting point, but the components may not survive more than two or three seasons of outdoor exposure.
What works
- 1/2-inch mainline provides high flow capacity for a low price.
- Quick-connect fittings make the kit accessible for first-time users.
What doesn’t
- Thinner plastic fittings and tubing feel less durable than premium options.
- 1/4-inch branch tubing kinks easily if routed around tight corners.
7. Thiswing 360° Adjustable Drip Irrigation System 50FT
Thiswing’s 50-foot kit is the shortest on this list, but it brings a unique material advantage: the 16 adjustable nozzles use solid copper heads rather than plastic. Copper is more resistant to UV degradation and physical impact than plastic nozzles, and the built-in metal tubing in each nozzle can be bent and fixed at any 360-degree angle, allowing you to aim the spray precisely where needed.
The 5/16-inch tubing is a step up from common 1/4-inch lines, providing better water flow to the end of the 50-foot run. The pneumatic tee connection system replaces traditional socket connections with a plug-and-play design that is less likely to leak or pull apart. The kit includes a pipe cutter, fixing nails, and cable ties — small niceties that reduce the number of tools you need to gather before starting.
This kit is best suited for a small patio garden, a single raised bed, or a roof-cooling misting setup. The copper nozzles are a genuine differentiator at this price point, but the short 50-foot tubing length means you cannot expand it to cover a large in-ground plot without buying additional components.
What works
- Solid copper nozzles resist UV damage and physical impact better than plastic alternatives.
- 5/16-inch tubing provides stronger water flow than standard 1/4-inch lines.
What doesn’t
- Short 50-foot total tubing limits coverage to small garden areas only.
- No pressure regulator means high house pressure may cause misting rather than drips.
Hardware & Specs Guide
Tubing Diameter and Flow Capacity
1/4-inch tubing handles roughly 2 to 4 gallons per minute (GPM) per 100 feet. Step up to 5/16-inch tubing and the flow increases to about 5 to 7 GPM per 100 feet. 1/2-inch mainline tubing can carry 8 to 12 GPM over the same distance, making it essential for any layout where the water source is more than 30 feet from the farthest emitter. Larger diameters also reduce friction loss, which means the pressure at the last emitter stays close to the pressure at the first.
Pressure-Compensating vs. Non-Compensating Emitters
Pressure-compensating (PC) emitters contain a diaphragm that maintains a constant flow rate across a range of inlet pressures, typically from 15 to 50 PSI. Non-compensating emitters deliver more water at higher pressure and less at lower pressure, which creates uneven watering on slopes or long runs. For any system longer than 50 feet or installed on uneven ground, PC emitters are the difference between a uniform soak and dry patches at the far end of the bed.
FAQ
Can I connect a drip sprinkler system to a hose timer?
How do I prevent clogging in the emitters?
What is the maximum run length for 1/4-inch drip tubing?
Should I bury the drip tubing underground?
Final Thoughts: The Verdict
For most gardeners, the best drip sprinkler system winner is the MIXC 247 FT because its 1/2-inch mainline supports long runs without pressure drop and its quick-connect fittings make installation genuinely fast. If you want precision uniformity across a sloped landscape, grab the Rain Bird LNDDRIPKIT. And for a dedicated 3×6 raised bed with zero assembly effort, nothing beats the Garden Grid.
