A heavy e-bike hauling you and your gear needs brakes that deliver consistent, powerful stopping force every time you squeeze the lever. The difference between a safe emergency stop and a scary skid comes down to the hydraulic system, rotor size, and piston count packed into your brake set.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I’ve spent hundreds of hours comparing brake specifications, studying hydraulic line pressures, and analyzing aggregated owner feedback across dozens of e-bike brake models to find out which sets actually stop a 70-plus-pound machine with a rider on top.
This guide breaks down the best options for every type of setup. Whether you need motor cut-off sensors for a commuter or 4-piston calipers for a heavy cargo rig, you’ll find the best ebike brakes for your build right here.
How To Choose The Best Ebike Brakes
Buying brakes for an electric bike isn’t the same as buying for a standard pedal bike. Your e-bike carries more weight, hits higher average speeds, and often includes a motor cut-off switch that needs to integrate with the braking system. Ignoring these factors leads to poor stopping distance or a failed sensor connection.
Piston Count: 2-Piston vs 4-Piston
The piston count in a caliper determines how evenly the brake pads clamp the rotor. A 2-piston design pushes the inner pad into the rotor while pulling the caliper body to bring the outer pad in as well. A 4-piston design uses two opposing pairs, applying more even force and greater total surface pressure. For e-bikes weighing over 50 pounds, 4-piston brakes are a clear upgrade for consistent fade-free stopping.
Rotor Size and Thickness
Most stock e-bikes ship with 160mm or 180mm rotors that are 1.8mm thick. Upgrading to a 2.3mm thick rotor adds thermal mass, which reduces brake fade during long descents or repeated hard stops. Thicker rotors also resist warping under the higher heat loads generated by a heavy e-bike. Stick with 180mm rotors if you ride a commuter or cargo bike; 203mm rotors make sense for downhill or extreme cargo loads.
Motor Cut-Off Sensor Compatibility
E-bike brakes need to interrupt the motor’s power the instant you squeeze the lever. This is done with a 2-pin or 3-pin sensor built into the lever, which sends an on/off signal to the controller. Before buying a brake set, check your bike’s connector type and whether the sensor uses a normally open or normally closed circuit. Many premium brake sets include detachable sensors that fit both pin configurations, but you may need to rewire the connector to match your bike’s harness.
Pre-Bled vs Manual Bleeding
Pre-bled brakes arrive filled with mineral oil and sealed, so you simply mount the calipers, attach the levers, and squeeze out any air pockets. Manual bleeding requires a kit, extra oil, and some mechanical patience. For a weekend upgrade with no specialized tools, pre-bled kits are the fastest route to working hydraulic brakes. If you plan to internally route hoses through the frame, expect to cut the line and re-bleed the system regardless of whether the kit started pre-bled.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| DYISLAND 4-Piston Set | Premium | Heavy e-bikes and cargo riders | 2.3mm thick rotors | Amazon |
| CooMeng Zoom HB876E | Premium | High-power mid-drive builds | 4-piston caliper | Amazon |
| DYISLAND LD-200 | Mid-Range | Commuters needing motor cut-off | 2-pin sensor | Amazon |
| JKSPORTS MT200 | Mid-Range | Entry-level hydraulic upgrade | Pre-bled 800/1450mm | Amazon |
| TOBWOLF Kit | Mid-Range | Budget dual-brake replacement | Ceramic pads | Amazon |
| SHIMANO MT201 | Mid-Range | Rear-only replacement | Name-brand reliability | Amazon |
| PETCHOR HB-100 | Budget | Budget mechanical-to-hydraulic upgrade | Line-pulling hybrid | Amazon |
In‑Depth Reviews

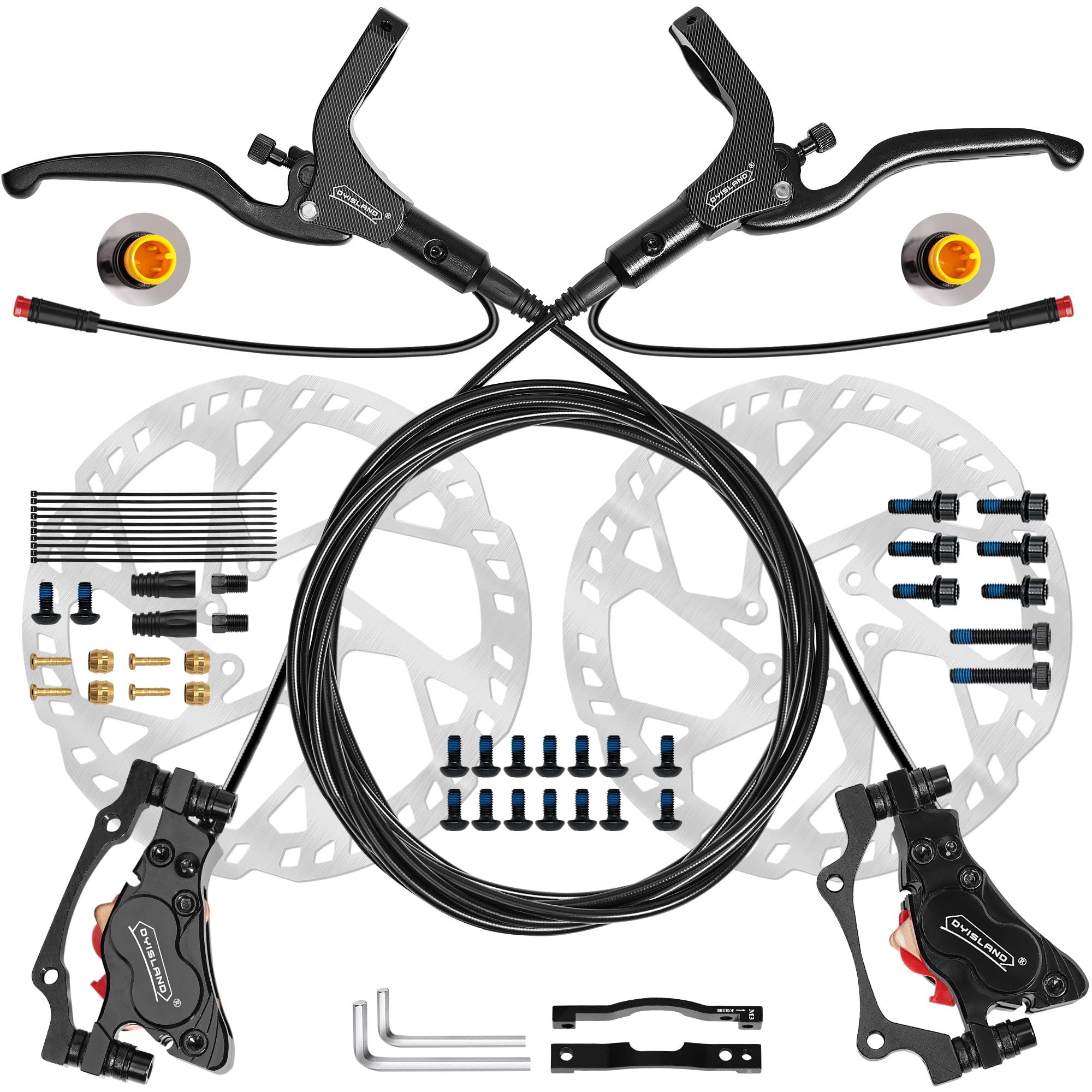

1. DYISLAND 4-Piston Hydraulic Disc Brake Set
The DYISLAND 4-piston set stands out because it uses rotors that are 2.3mm thick — nearly 30% thicker than the standard 1.8mm rotors found on most e-bikes. This extra thermal mass resists warping during long, heavy braking and keeps the sintered-metal pads from glazing when you need to scrub speed repeatedly on a steep descent. The brake pads themselves are oversized, with a friction area of 34.7mm long by 20mm wide, which translates to more contact patch and shorter stopping distances on a heavy cargo bike or commuter.
Installation is straightforward thanks to pre-bled hoses. The front line measures 1100mm and the rear runs 1900mm, which is long enough for most fat-tire frames and step-through cruisers. The 3-pin motor cut-off sensor is detachable, so you can wire it into your controller without splicing the main harness. Owners report that the brakes work right out of the box — no bleeding required — and that one-finger braking is enough to bring a 70-pound e-bike to a controlled stop.
On the downside, these brakes are only compatible with bikes that have the disc rotor on the left side. The 3-pin connector may not match bikes that use a 2-pin harness; you’ll need to confirm your connector type or plan to cut and splice the sensor wires. A few users mention that the rear hose arrives disconnected at the lever end and takes care to reconnect without introducing air bubbles.
What works
- Thick 2.3mm rotors resist heat fade and warping effectively
- Oversized sintered pads provide strong, consistent bite
- Pre-bled lines and included hardware simplify installation
What doesn’t
- 3-pin connector may require rewiring for 2-pin systems
- Only compatible with left-side disc rotor frames
2. CooMeng Zoom HB876E 4-Pistons E-Bike Brake Set
The Zoom HB876E is built around a 4-piston caliper that clamps a 180mm rotor with enough force to lock the wheels on a 70-pound e-bike carrying a 240-pound rider. Owners with mid-drive conversions and heavy hub-motor cruisers consistently describe the stopping power as a night-and-day improvement over stock mechanical disc brakes. The pre-bled mineral oil system is ready to mount, but many users still perform an optional bleed to dial in the lever feel and purge any micro bubbles trapped during shipping.
Compatibility is a strong point here. The set includes adapters for both 2-pin and 3-pin motor cut-off connectors, and the wiring harness can be re-pinned to match Bafang, Bosch, or generic controller protocols. The front hose is 950mm and the rear is 1850mm, a good fit for 26-inch to 29-inch frames. The red anodized lever looks aggressive and provides a reach-adjustment screw so you can dial in the bite point for gloved or bare fingers.
The most common issue is a leaking hose where it connects into the lever. This seems to be a quality-control variance rather than a design flaw; Amazon replacements are typically free of the defect. A few owners also note that the caliper pistons are physically smaller than Shimano or Magura units, though actual stopping performance in real-world riding remains excellent. If you get a good set, these brakes deliver confidence-inspiring one-finger braking that transforms a sketchy e-bike into a predictable stopper.
What works
- Massive stopping power for heavy riders and high-speed e-bikes
- Works with both 2-pin and 3-pin connectors after simple rewiring
- Reach-adjustable lever improves comfort and modulation
What doesn’t
- Occasional quality issues with leaking hose fittings
- Replacement parts for individual components are hard to find
3. DYISLAND LD-200 2-Piston Hydraulic Disc Brake Set
The LD-200 bridges the gap between basic cable-actuated brakes and full 4-piston systems by offering a 2-piston hydraulic caliper with a built-in 2-pin motor cut-off sensor at a price that undercuts most name-brand alternatives. The kit includes everything you need for a front-and-rear swap: two levers, two calipers, pre-bled hoses, a pair of BH59 connectors, mounting screws, and even a bleed block. The hoses are pre-filled with mineral oil, so you can mount the calipers, connect the levers, and bleed only if air enters the system.
Owners who installed these on Lectric XP models and other folding e-bikes report a clear upgrade in modulation and power over the stock mechanical brakes. The 2-pin sensor reliably cuts motor power on brake application, which is essential for safe throttle-only operation. The sintered-metal pads provide stronger bite than resin pads and last longer under the higher heat loads of an e-bike stop. Lever reach is adjustable via a small screw, letting you tune how far you have to pull before the pads contact the rotor.
The caliper mounting holes are spaced at 74mm, which is standard for most disc mounts, but the brake travel can feel short if you pair it with rotors thinner than 1.9mm. Some owners also note that the paint on the lever body chips and can rust in wet conditions. For a commuter or light trail bike that needs reliable hydraulic braking with motor cut-off, the LD-200 delivers a compelling performance-to-cost ratio.
What works
- 2-pin sensor cuts motor power reliably during braking
- Sintered-metal pads offer durable bite for e-bike speeds
- Complete kit with tools, connectors, and bleed block included
What doesn’t
- Short lever travel may feel vague with thin rotors
- Paint on levers can chip and show rust over time
4. JKSPORTS OEM Shimano MT200 Hydraulic Disc Brake Set
The JKSPORTS MT200 set is an OEM-level Shimano brake system — the same BR-MT200 calipers and BL-MT200 levers that ship on many factory e-bikes and mountain bikes. The front hose is 800mm and the rear is 1450mm, which suits 26- to 29-inch frames with standard external routing. The set arrives pre-bled and sealed, so you can install it in under an hour without touching mineral oil. The lever feel is tactile and predictable, with Shimano’s trademark modulation that lets you feather the brakes rather than slamming them on.
Reviewers who swapped out mechanical disc brakes for this set saw an immediate improvement in stopping power and consistency. The resin pads (B01S compound) provide good initial bite and quiet operation, though they wear faster than sintered options if you ride in wet or gritty conditions. The calipers are 2-piston units, so the clamping force is lower than a 4-piston design, but for a lightweight commuter or a bike ridden at moderate speeds, the MT200 is more than sufficient. The lever reach is adjustable with a small hex key, a feature usually reserved for more expensive Shimano lines.
The biggest drawback is the lack of mounting hardware. The set does not include the bolts needed to attach the caliper to the adapter or the bracket to the frame. You’ll need to reuse your existing hardware or buy a cantilever bolt set separately. Additionally, if you need internal routing, you must cut the hose, install a new olive and barb, and bleed the system — which defeats the pre-bled convenience. For a simple external-route replacement, this is a reliable, well-proven brake set.
What works
- Authentic Shimano quality with smooth modulation and reliability
- Pre-bled and sealed right out of the box for quick installation
- Reach-adjustable lever allows fine-tuning of bite point
What doesn’t
- No mounting bolts included; you must supply your own
- Resin pads wear faster than sintered compounds on e-bikes
5. TOBWOLF 1 Pair MTB Disc Brake Set with Ceramic Pads
The TOBWOLF set uses ceramic brake pads instead of resin or sintered metal, which means they produce less dust and do not score the rotor surface over time. The pads are paired with stainless steel 6-bolt rotors that have large vent holes for heat dissipation. The calipers are made from CNC-machined aluminum alloy, and the kit includes both front and rear hoses: 81cm for the left-front lever and 147cm for the right-rear lever. The 2-piston hydraulic design is a standard left-front, right-rear layout common on most Asian and European e-bikes.
Owners who installed these brakes on custom e-bike builds — including small wheelie bikes and modded fat tire cruisers — report that the braking force is dramatically stronger than any cable-actuated system they had previously. The ceramic pads stay quiet even after bedding in, with no squealing or chattering. The rotors are noticeably rigid: one reviewer mentioned that drilling new mounting holes was difficult because the steel resisted deformation. For the price, the overall build quality feels more substantial than what you’d expect at this price tier.
On the downside, the screw holes on the rotors may not align perfectly with every hub flange, requiring you to drill your own mounting pattern in some cases. The lever finish can also be inconsistent, and the brake lines are long for small frames. If you’re upgrading a 20-inch folding bike, you’ll have a lot of excess hose to manage. Still, for a budget-conscious buyer who wants ceramic pads and a full hydraulic system, the TOBWOLF set delivers measurable gains in stopping power.
What works
- Ceramic pads provide strong bite without damaging the rotor
- Stainless steel rotors are rigid and resist bending
- Noticeably improves stopping force over mechanical brakes
What doesn’t
- Rotor screw holes may not align perfectly with every hub
- Hose length is long for small frames, requiring careful routing
6. SHIMANO MT201 Disc Brake Set Rear
The SHIMANO MT201 is a single-rear-brake solution for riders who only need to replace the back stopper. This is a common scenario: many e-bike rear brakes wear faster due to continuous motor drag, or the stock rear brake fails while the front still works fine. The kit includes the BL-MT201 lever, the BR-MT200 caliper, a pre-bled 1700mm hose, and the necessary olives and connector inserts. The 1700mm length is generous enough to route inside or outside almost any frame, including long-travel fat bikes and touring e-bikes.
Shimano’s mineral oil system is famously consistent: the lever feel stays the same whether you’re hot or cold, and the modulation is smooth enough to avoid locking up the rear wheel accidentally on loose surfaces. Owners who installed this on a Macfox e-bike and other factory builds note that it dramatically outperforms the original mechanical or unbranded hydraulic units. The B01S resin pads included are quiet and bite well from the first squeeze, though they will wear faster under the constant application of throttle-and-brake city riding.
The absence of mounting hardware is the only real frustration. The caliper needs cantilever bolts or standard disc bolts to attach to your frame’s adapter, and neither is included in the box. If you’re replacing a failed rear brake on a compatible frame, measure your existing hose length against 1700mm before buying — this hose is long enough for most bikes, but a small-frame step-through may end up with a coil of excess hose to zip-tie.
What works
- Shimano reliability with smooth, consistent modulation
- 1700mm hose fits most frames including large and long-travel bikes
- Pre-bled system installs quickly and cleanly
What doesn’t
- No mounting bolts included for caliper or adapter
- Resin pads wear faster than sintered on e-bikes
7. PETCHOR HB-100 Line Pulling Hydraulic Disc Brake Calipers
The PETCHOR HB-100 uses a hybrid approach — a cable pulls a hydraulic mechanism inside the caliper body instead of a traditional cable-pulled mechanical caliper or a full hydraulic lever-and-hose system. This design allows you to keep your existing mechanical brake levers and cables while getting hydraulic clamping force at the wheel. The aluminum caliper housing contains built-in brake oil and a small cylinder that drives two brake pads inward when the cable tension increases. The result is stronger, more even pad pressure than a pure mechanical caliper without replacing your levers.
Riders who installed these on budget e-bikes report a huge improvement over the stock mechanical brakes that need constant adjustment. The 2-piston clamp provides instant braking with enough power to skid the tires, and the fine-tuning screw on the caliper lets you dial in the cable tension to match your preferred lever feel. The black finish resists corrosion, and with two calipers included (front and rear), this is one of the most affordable ways to upgrade braking performance on a lower-cost e-bike.
The major caveat is the installation process: you must not remove the yellow shipping pad inside the caliper before installation, and you must never squeeze the brake lever while the caliper is off the rotor. Doing so forces the pistons out and causes permanent oil loss or internal damage. The cable-driven hydraulic actuation also adds complexity — if your existing cable housing is worn, you will need new cables and housing for consistent pull. For mechanically inclined owners on a tight budget, the HB-100 delivers hydraulic-style stopping power without the expense of a full lever-and-hose system.
What works
- Affordable hydraulic upgrade using existing mechanical levers
- Fine-tuning screw adjusts cable tension for personalized feel
- Significant improvement in stopping power over stock mechanical calipers
What doesn’t
- Installation error can permanently ruin the caliper
- Requires new cables and housing for best performance
Hardware & Specs Guide
Piston Count and Caliper Design
The number of pistons inside the caliper determines how evenly the brake pads press against the rotor. A 2-piston caliper uses one piston on each side of the caliper body. When the lever is squeezed, hydraulic pressure pushes the inner pad into the rotor, and the caliper body slides to bring the outer pad in as well. A 4-piston caliper uses two pistons on each side, distributing clamping force across a wider area. This reduces brake fade on heavy e-bikes by spreading the thermal load and allowing the pads to maintain consistent contact pressure. For e-bikes over 50 pounds, 4-piston calipers provide a measurable reduction in stopping distance.
Rotor Thickness and Heat Management
Standard bicycle disc rotors are 1.8mm thick, which is sufficient for lightweight pedal bikes. E-bikes generate more heat due to higher speeds and greater mass, which can cause 1.8mm rotors to warp or fade under repeated heavy braking. Upgraded rotors use 2.3mm or even 2.5mm thickness, adding thermal mass that absorbs heat without distorting. Thicker rotors also pair better with sintered-metal pads, which operate effectively at higher temperatures than resin pads. Always check rotor compatibility: most 2.3mm rotors use a 6-bolt mounting pattern, while some budget sets use center-lock. If your hub is center-lock, you will need an adapter to use 6-bolt rotors.
FAQ
What is the difference between 2-pin and 3-pin e-bike brake sensors?
Can I install 4-piston brakes on any e-bike?
Do I need to bleed pre-bled brakes before installation?
What does motor cut-off mean and why does my e-bike need it?
Final Thoughts: The Verdict
For most e-bike owners, the best ebike brakes overall are the DYISLAND 4-Piston Set because the 2.3mm rotors and oversized sintered pads handle the heat and weight of a modern electric bike without fade. If you need a motor cut-off sensor at a lower entry price, the DYISLAND LD-200 gives you reliable 2-pin braking with minimal setup effort. And for a heavy mid-drive build where stopping power is non-negotiable, the CooMeng Zoom HB876E 4-piston calipers deliver the most bite for the money.
