A garden hose that trickles rather than sprays turns watering into a test of patience. Whether you are fighting low municipal water pressure, running a long hose line to the backyard, or trying to power a sprinkler system, a booster pump is the mechanical fix that transforms a weak stream into a forceful, usable flow. The right unit matches your specific water source, hose length, and desired pressure—without wasting time on underpowered options.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I track market trends in outdoor irrigation systems, comparing GPM ratings, PSI thresholds, and motor durability across brands to help gardeners make informed hardware decisions based on real spec data.
This guide breaks down flow rates, pressure settings, and installation requirements so you can confidently select the best garden hose booster pump for your property without guessing or overspending.
How To Choose The Best Garden Hose Booster Pump
A booster pump is not a one-size-fits-all purchase. The wrong flow rate or pressure switch setting leaves you with either a useless dribble or a system that short-cycles and burns out. Focus on these five specifications to narrow your options.
Flow Rate (GPM) and Your Hose Diameter
The pump’s gallons-per-minute rating must match the volume your hose can carry. A standard 5/8-inch garden hose has a maximum flow ceiling around 10–12 GPM at typical household pressure. Oversizing a pump beyond that limit does not increase performance—it just forces the pump to deadhead or cycle unnecessarily. For most home gardens, a pump rated between 4 and 8 GPM provides a strong, consistent stream without exceeding hose capacity.
Pressure Output (PSI) and Application
Different watering tasks demand different pressures. Drip irrigation systems work well in the 20–40 PSI range. Sprinklers and general hose use perform best at 40–60 PSI. Misting systems for cooling patios or greenhouses often require 70–160 PSI to create a fine fog. Check the pressure switch setting on the pump—some models let you adjust it, others are fixed. Choose a PSI range that aligns with your primary use case.
Pump Type: Submersible, Diaphragm, or Jet
Submersible pumps sit directly in a water source like a rain barrel or sump pit—they push water up and out but are not designed for inline boosting. Diaphragm pumps are self-priming, can run dry without immediate damage, and handle debris better; they are common in RV and garden irrigation setups. Jet pumps are mounted above ground and use suction to pull water from a shallow well or tank, making them ideal for whole-property pressure boosting when a consistent water supply is already available.
Self-Priming Capability and Lift Height
If your water source sits below the pump (e.g., a rain barrel or cistern), a self-priming pump is essential. The maximum lift height—usually 8 to 25 feet for most residential models—tells you how far the pump can pull water upward. A pump that is not self-priming will burn out trying to draw water from a source at a lower elevation. Always confirm the pump can handle the vertical distance between your water tank and the pump inlet.
Construction Materials and Thermal Protection
Exposure to moisture and outdoor elements requires corrosion-resistant materials. Stainless steel housings and aluminum mounting bases last longer than all-plastic bodies. A thermal overload switch that shuts the motor down when it overheats is a non-negotiable safety feature, especially if the pump runs unattended. Confirm that the strainer filter is included and made of stainless steel mesh—this prevents debris from clogging the internal valves.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Truper PRES-1 | Inline Jet | Whole-house pressure boost | 1 HP / automatic pressure switch | Amazon |
| LANCHEZ Shallow Well Pump | Jet Pump | Shallow well / tank feed | 115V / stainless steel housing | Amazon |
| Aquastrong 1.6 HP | Shallow Well Jet | Lawn sprinkler / irrigation | 1320 GPH / 1.6 HP portable | Amazon |
| Dreyoo 5.5 GPM 70 PSI | Diaphragm | High-pressure misting / sprinklers | 5.5 GPM / 70 PSI automatic | Amazon |
| Dreyoo 4 GPM 45 PSI | Diaphragm | RV / low-pressure garden boost | 4 GPM / 45 PSI self-priming | Amazon |
| Orbit Arizona Mist 92100 | Misting Pump | Patio mist cooling systems | 1.1 GPM / 160 PSI | Amazon |
| Green Expert 1/3 HP | Submersible | Rain barrel / sump drainage | 2000 GPH / last-inch drain | Amazon |
In‑Depth Reviews
1. Truper PRES-1 High-Performance Pressure Booster Pump
The Truper PRES-1 is a serious piece of hardware built for permanent installation. Its 1 HP motor and automatic inline pressure switch maintain consistent household pressure without manual intervention. When a faucet opens, the pump engages; when flow stops, it shuts off—no float switches or timers required. The housing is heavy-duty metal, designed to handle continuous duty cycles for utility and irrigation alike.
Installation requires plumbing knowledge: you cut into your main water line and attach the inlet and outlet ports. The unit includes a pressure tank to prevent short cycling, which is a critical detail that cheaper inline pumps often omit. The tank buffers the pressure so the motor does not kick on every time a small volume of water is drawn, prolonging the pump’s lifespan significantly.
At this power level, the Truper delivers enough pressure to run multiple sprinkler zones simultaneously or to compensate for long hose runs exceeding 100 feet. It is not portable—once installed, it lives near your water main—but for anyone dealing with chronically low house pressure who wants a set-and-forget solution, this is the most reliable choice in the lineup.
What works
- Integrated pressure tank reduces short cycling
- 1 HP motor handles high-demand irrigation
- Automatic on/off with no manual operation
What doesn’t
- Requires permanent plumbing installation
- Heavy and not portable
- Higher upfront investment than portable units

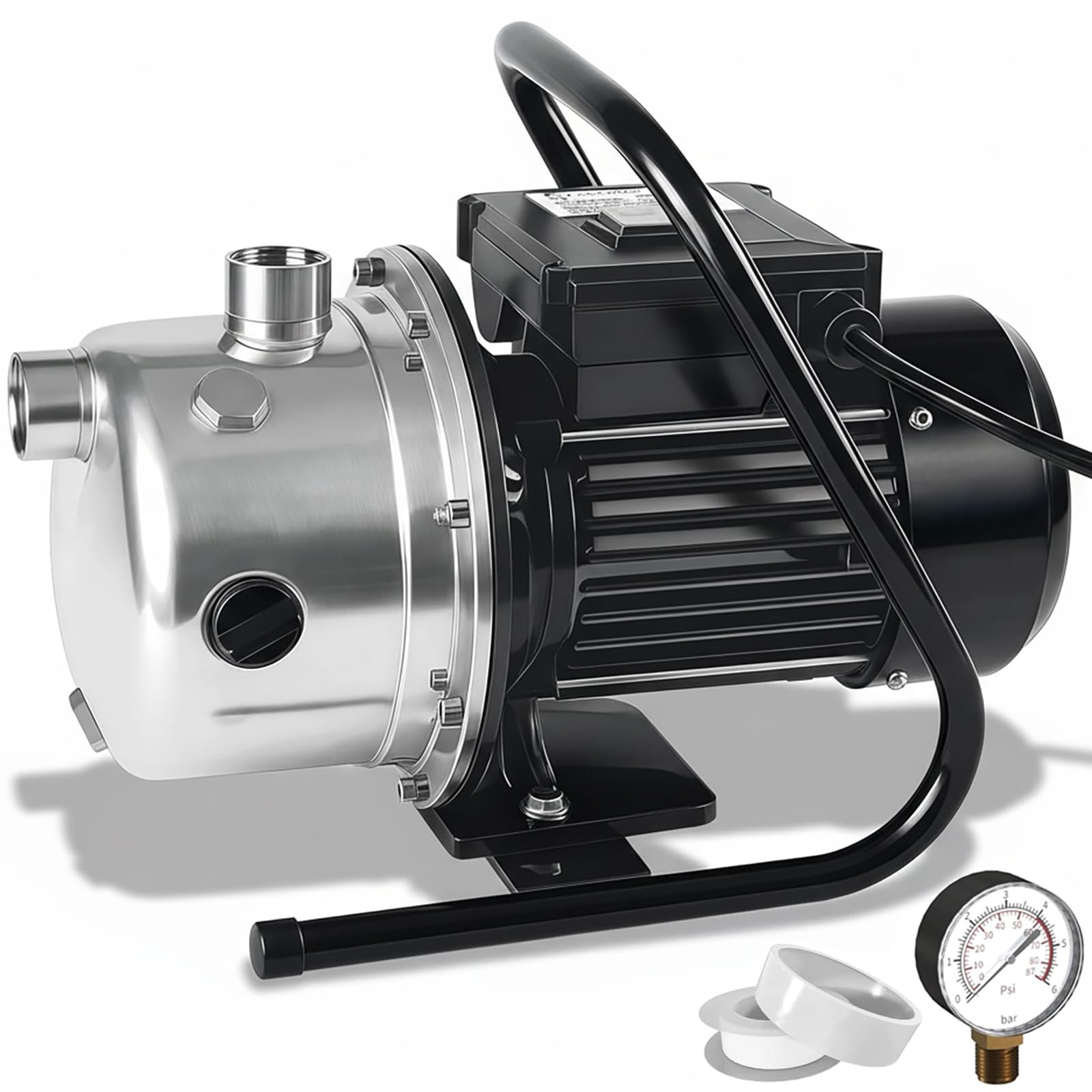

2. LANCHEZ Shallow Well Pump
The LANCHEZ shallow well pump is built around a corrosion-resistant stainless steel body that stands up to outdoor exposure and mineral-rich water. As a jet-style pump, it sits above ground and uses suction to pull water from depths up to 25 feet, making it a strong candidate for drawing from a cistern, rain tank, or shallow well to feed your garden irrigation system.
This unit operates on standard 115V household current and includes a pre-charged pressure tank that maintains steady water delivery without constant motor cycling. The tank is a major advantage for garden watering—when you open a hose bib, the stored pressure delivers water immediately, and the pump refills the tank only as needed rather than running every time the nozzle opens.
The pump inlet and outlet are threaded for standard garden hose fittings, simplifying connections compared to models that require PVC cement or compression fittings. It is not designed for submersible use or for boosting existing house pressure inline; rather, it excels at pulling water from a separate source and pushing it through your hose network. For off-grid tank-fed gardens, this is a rugged, long-term solution.
What works
- Stainless steel body resists rust and corrosion
- Integrated pressure tank prevents short cycling
- Standard garden hose threading for easy setup
What doesn’t
- Not for inline boosting—requires separate water source
- Suction lift limited to 25 feet
- Heavier than portable diaphragm pumps
3. Aquastrong 115V Shallow Well Garden Pump
The Aquastrong 1.6 HP shallow well pump delivers an impressive 1320 gallons per hour—enough to run a large lawn sprinkler or supply multiple hoses at once. Its portable design includes a built-in handle, making it easy to move from a rain barrel setup to a wellhead as needed. The stainless steel construction matches the LANCHEZ in corrosion resistance, and the jet impeller design handles water containing small debris without clogging immediately.
This pump is self-priming up to 15 feet, which covers most shallow well and above-ground tank applications. The integrated thermal overload protection shuts the motor down before overheating if the pump runs dry, a common cause of failure in this category. The discharge port is threaded for standard garden hose connections, and the unit includes a strainer to keep sediment out of the impeller.
Where the Aquastrong stands out is its flow-to-dollar ratio—you get near-premium output at a mid-range investment. Users report consistent pressure at distances up to 150 feet of hose, which is a realistic use case for large vegetable plots or lawn coverage. The noise level is typical for a jet pump (noticeably louder than a diaphragm pump), so placement near living spaces is not ideal.
What works
- High 1320 GPH flow for large-area watering
- Portable with handle for moving between sources
- Thermal overload protects against dry running
What doesn’t
- Audible motor noise during operation
- Self-priming limit is 15 feet
- No integrated pressure tank
4. Dreyoo 5.5 GPM 70 PSI Booster Pump
The Dreyoo 5.5 GPM model is a diaphragm-style pump that combines high flow with high pressure—a rare pairing at this price point. The automatic pressure switch activates at 70 PSI, making it ideal for powering misting systems, high-output sprinklers, or running water through a long series of drip emitters where pressure drop is a concern. The diaphragm design allows it to run dry without seizing up, a safety net absent in many impeller-based pumps.
The unit includes both brass fittings and a stainless steel strainer, giving you corrosion-resistant connection points straight out of the box. The galvanized mounting base provides a stable platform, and the pump operates more quietly than a jet pump of equivalent flow, which is a meaningful benefit if the pump lives near a patio or garden shed. It self-primes reliably within seconds, even after the pump has been drained and stored.
For gardeners who need moderate flow with high pressure—particularly those running overhead sprinklers that struggle with low municipal pressure—this pump hits a sweet spot. It is not designed for continuously running a whole-house system, but for targeted garden boosting, the 5.5 GPM output easily handles two hoses running simultaneously without noticeable drop.
What works
- High 70 PSI output for misting and sprinklers
- Dry-run safe diaphragm design
- Includes brass fittings and stainless steel strainer
What doesn’t
- No pressure tank—cycles on every draw
- Not suitable for continuous whole-house duty
- Aluminum base can corrode in saltwater environments
5. Dreyoo 4 GPM 45 PSI Diaphragm Pump
The 4 GPM version of the Dreyoo diaphragm pump is a scaled-down cousin of the 5.5 GPM model, optimized for lower-demand applications. Its 45 PSI pressure switch is well matched to standard garden hoses and drip irrigation runs, delivering a steady stream without overpowering the system. The self-priming diaphragm design means it can be placed next to a rain barrel or water tank and pull water upward without manual priming.
This pump is noticeably compact and lightweight—5.8 pounds—which makes it easy to store in a shed or carry between watering stations. The included strainer and hose fittings allow for immediate connection to a garden hose, and the CE certification confirms basic safety standards for dry-run and thermal overload protection. The aluminum mounting base is adequate for stationary use but may not hold up as well in damp environments over many years.
For the gardener with a single rain barrel who wants to boost pressure enough to run a soaker hose or a small oscillating sprinkler, this pump provides the simplest path. It does not have the power to drive misting systems or long hose runs beyond 75 feet, but for basic garden bed watering, the 4 GPM flow is more than sufficient to turn a trickle into a usable stream.
What works
- Lightweight and portable at 5.8 pounds
- Self-priming diaphragm—no manual priming
- Good match for rain barrel and drip systems
What doesn’t
- 45 PSI may not satisfy high-pressure sprinkler users
- Aluminum base susceptible to corrosion over time
- Limited flow at distances over 75 feet of hose
6. Orbit Arizona Mist 92100 Booster Pump
The Orbit Arizona Mist 92100 is a purpose-built pump for high-pressure mist systems, not general garden hose boosting. Its standout spec is the 160 PSI output, which is more than triple the pressure of a standard garden booster. At that pressure, the pump forces water through misting nozzle orifices to create the fine fog that cools patios, greenhouses, and outdoor dining areas effectively.
Installation is straightforward thanks to Orbit’s slip-lock fittings—no threading or seal tape required. The pump connects directly between your water source and the mist line, and it activates automatically when water flow is detected. The submersible-style design means it can sit in a decorative fountain or small reservoir, though most users mount it inline near a hose bib. The maximum flow rate is only 1.1 GPM, which is intentional—misting systems do not need high volume, they need high pressure to atomize the water.
This is not a pump for filling buckets or running sprinklers; it is a niche tool for a specific cooling application. If you have a misting system that currently produces a wet spray instead of a fog, the Orbit is the upgrade that solves that problem. For general garden irrigation, look at a higher-GPM model—but for misting, nothing else in this list comes close to matching its pressure output.
What works
- 160 PSI output creates true fine mist
- Slip-lock fittings for quick installation
- Automatic operation with flow detection
What doesn’t
- Very low GPM—not for general watering
- Designed specifically for misting systems
- No built-in strainer or filter included
7. Green Expert 1/3 HP Submersible Sump Pump
The Green Expert 1/3 HP pump is a submersible unit designed for moving large volumes of water from a flooded source, not for inline pressure boosting. With a maximum flow of 2000 GPH at zero lift, it can empty a rain barrel or sump pit quickly. The unique flow sensor switch allows it to drain water down to 1/25 inch—a feature that matters for basement flood cleanup but is less relevant for garden hose pressure.
It includes a set of adapters for connecting to both 3/4-inch garden hoses and larger 1.5-inch discharge hoses, giving you flexibility in how you route the water. The pump is lightweight at 8.8 pounds with a 25-foot power cord, so it reaches distant outlets without an extension cord. The manufacturer explicitly warns against using expandable hoses with this pump, as they restrict flow and can cause the motor to overwork.
If your goal is simply to move water from a collection tank to a garden bed and you do not need high pressure, this pump works fine. However, it is not a booster pump in the conventional sense—it does not increase line pressure; it only moves water from one location to another. Gardeners seeking actual pressure increase for sprinklers or misters will find the flow sensor and submersible design limiting.
What works
- Very high flow rate for water removal tasks
- Lightweight and portable with long power cord
- Multiple hose adapter options included
What doesn’t
- Not a pressure booster—only moves water
- Submersible design not for inline use
- Expandable hoses incompatible with its flow
Hardware & Specs Guide
Pressure Tank vs. No Tank
A pressure tank stores a volume of water under pressure and releases it when a faucet opens, allowing the pump to cycle on only when the tank pressure drops below a threshold. Pumps without a tank (like the Dreyoo diaphragm models) cycle on every time you open a valve, which can lead to faster wear if you run water in short bursts all day. For frequent, brief watering sessions, a tank-equipped pump (Truper, LANCHEZ) greatly extends motor life.
Dry-Run Protection
When a pump runs without water, the internal components heat up rapidly and can seize within minutes. Diaphragm pumps tolerate dry running better than impeller-based pumps, but no motor is designed to run dry indefinitely. Models with thermal overload protection (Green Expert, Aquastrong, Dreyoo) will shut off automatically before damage occurs. If your water source is inconsistent—a rain barrel that runs low—prioritize a pump with dry-run protection.
Self-Priming Distance
Self-priming pumps can lift water from a source below the pump inlet, which is essential when drawing from a rain barrel or cistern. The maximum lift height ranges from 15 to 25 feet for most residential models. If the vertical distance between your water source and the pump exceeds the rated lift, the pump will not draw water at all. Measure this distance before buying—guessing leads to a non-functional setup.
Inlet/Outlet Thread Standards
Garden hose threads (GHT) measure 3/4 inch and are the standard for outdoor faucets and hose fittings. Some booster pumps use NPT (National Pipe Thread) instead, which requires adapters to connect to a garden hose. Check whether the pump includes GHT adapters or expects you to buy them separately. Units like the Dreyoo and Green Expert include multipurpose adapters; the Truper and LANCHEZ require standard plumbing fittings.
FAQ
Can I use a booster pump with a rain barrel to get sprinkler pressure?
What is the difference between GPM and PSI in a booster pump?
Can I leave a garden hose booster pump running overnight?
Why does my pump turn on and off rapidly every time I open the hose?
Final Thoughts: The Verdict
For most gardeners, the best garden hose booster pump winner is the Dreyoo 5.5 GPM 70 PSI because it delivers the highest pressure in a portable diaphragm design that self-primes, runs dry safely, and connects to standard garden hoses without permanent plumbing. If you need whole-house pressure boosting with a tank, grab the Truper PRES-1. And for drawing water from a shallow well or cistern to power a sprinkler system, nothing beats the Aquastrong 1.6 HP Jet Pump.
