Voltage drop is the silent killer of a well-planned landscape lighting layout. Choose an undersized or copper-clad aluminum (CCA) cable, and your path lights at the far end of the run will barely glow while the fixtures near the transformer burn at full intensity. The difference between a professional-grade installation and a frustrating dim-result often comes down to a single specification: the gauge and conductor purity of the wire running from your transformer to every fixture.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I’ve spent years analyzing market data, comparing gauge-versus-length performance charts, reading through hundreds of verified owner reports, and studying the material science behind direct-burial cable jackets to understand what separates a five-year install from a one-season failure.
This guide breaks down the key decisions in choosing a best landscape lighting cable, from conductor purity to burial ratings and the real-world impact of gauge selection on system brightness.
How To Choose The Best Landscape Lighting Cable
Selecting the right low-voltage landscape cable comes down to three variables: conductor material, wire gauge, and jacket construction. Ignoring any one of these can lead to voltage drop, premature corrosion, or physical damage from ground contact. Here’s what matters most.
Pure Copper vs. Copper-Clad Aluminum (CCA)
Pure copper offers lower electrical resistance per foot compared to CCA, meaning less voltage drop over longer runs. CCA wires use an aluminum core with a thin copper coating — they are lighter and cheaper, but the higher resistance forces your transformer to work harder and reduces brightness at distant fixtures. Worse, aluminum expands and contracts at a different rate than copper, which can loosen connections over time. For a permanent outdoor installation, 100% pure bare copper is the only choice that ensures consistent performance and corrosion resistance.
Gauge Selection: 12 AWG, 14 AWG, or 16 AWG
The American Wire Gauge (AWG) number describes the conductor thickness. Smaller numbers mean thicker wire and lower resistance. A 12 AWG cable handles longer runs (over 100 feet) and higher total wattage without significant voltage drop. 14 AWG works well for moderate runs of 50–100 feet with a few fixtures. 16 AWG is best suited for short daisy-chains under 50 feet or for individual fixture connections off a larger trunk line. Using a gauge that’s too thin for your total length leads to dim lights and a system that may not meet code requirements.
Direct Burial Rating and Jacket Material
Landscape lighting cable must withstand moisture, UV exposure, temperature swings, and physical abrasion from soil and rocks. A direct burial rating means the jacket is thick enough to be buried without a conduit. Look for PVC insulation rated from -40°F to 140°F — this prevents cracking in freezing winter and softening in direct summer sun. Cables with a flexible jacket are easier to route around curves and through tight spaces, but the jacket must remain tough enough to resist digging tools and animal activity.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Zonegrace 12/2 265ft | Premium | Large-scale extended runs | 12 AWG pure copper, 265ft | Amazon |
| Elite 12/2 100ft | Premium | High-performance trunk lines | 12 AWG, UL listed, 65 strands | Amazon |
| uboory 14/2 250ft | Mid-Range | Longer 14 AWG runs | 14 AWG pure copper, 250ft | Amazon |
| GREATIDE 14/2 100ft | Mid-Range | Moderate-length main lines | 14 AWG, ETL listed, 100ft | Amazon |
| SUNVIE 16/2 100ft | Mid-Range | Short fixture daisy-chains | 16 AWG pure copper, 100ft | Amazon |
| EP 16/2 100ft | Budget | Value-focused 16 AWG runs | 16 AWG, ETL listed, 100ft | Amazon |
| SUNVIE Fastlock2 Connectors | Accessory | Tool-free wire taps | 14-18 AWG, screw terminal | Amazon |
In-Depth Reviews
1. Zonegrace 12AWG 2-Conductor Direct Burial Wire, 265ft
This 265-foot spool of 12 AWG pure copper is the definitive answer for homeowners running long trunk lines across a large property. The thick PVC jacket is rated for direct burial and resists cuts and abrasion during trenching. Verified owners have measured the resistance at just 0.91 ohms over the full 265 feet, confirming genuine 12 AWG copper with no gauge fudging — a rare transparency in this category.
The ETL listing adds a layer of safety compliance that contractors look for, and the multi-strand construction offers enough flexibility to navigate around tree roots and landscape edging. At this gauge and length, you can power a dozen or more 4W LED fixtures across runs exceeding 100 feet without noticeable voltage drop. The spool is well-wound and ships without tangles, saving setup time.
The jacketing, while durable, is slightly stiffer than some 14 AWG competitors, which makes it less ideal for tight-radius bends around corners. Additionally, if your total run is under 80 feet, 265 feet may leave you with significant leftover material. For the buyer planning a comprehensive system, however, this cable delivers industrial-grade performance at a value that outperforms big-box store pricing.
What works
- True 12 AWG pure copper with verified resistance reading
- 265-foot spool minimizes splices on large properties
- ETL listed for compliance and safety
What doesn’t
- Stiffer jacket makes tight-radius bends harder
- Oversized for small yards under 80 feet of run
2. Elite 12/2 Landscape Lighting Wire, 100ft, UL Listed
The Elite 12/2 cable carries UL listings under standards UL 1581, UL 13, and UL 1493, making it one of the most certified options in its segment. With 65 strands of pure copper, it offers excellent flexibility for a 12 AWG wire — you can route it around planter beds and along fence lines without fighting the cable. This is a premium trunk-line wire designed for homeowners who want a single, reliable backbone from the transformer to a junction point.
Owners consistently praise the easy-strip insulation and the fact that the wire holds its form after bending, reducing the need for constant re-routing during installation. The 100-foot length is ideal for average suburban front-yard to mid-yard runs, and the direct burial rating means you can lay it in a shallow trench without conduit. The price undercuts local hardware stores while matching or exceeding their build quality.
Being a California-based brand with transparent certification data adds peace of mind for buyers who value traceability. The only limitation is the 100-foot length — if your property requires runs of 150 feet or more, you will need to splice a second spool, which introduces a potential failure point. For standard residential layouts, this cable is an upgrade that justifies every penny.
What works
- Multiple UL certifications for safety compliance
- 65-strand copper construction offers superior flexibility for 12 AWG
- Easy-to-strip insulation saves installation time
What doesn’t
- 100-foot length may require splicing for very long runs
- Premium positioning means budget buyers may look elsewhere

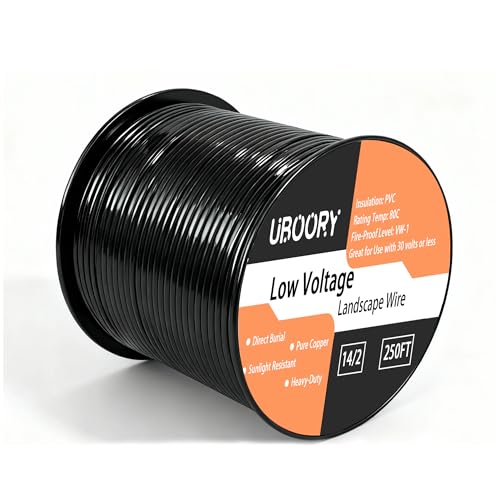

3. uboory 14/2 Low Voltage Landscape Wire, 250 Feet
This 250-foot spool of 14 AWG pure copper fills a specific niche: buyers who need a longer run than 100 feet but don’t require the full thickness of 12 AWG. The 14-gauge conductor handles moderate loads well, and the direct burial rated PVC jacket is built for sunlight and moisture exposure. The multi-strand core makes the cable easy to terminate at connectors and transformers without fatigue.
Reviews highlight the spool size as a major value advantage — covering a backyard loop of 200 feet with a single continuous cable eliminates splice points. The wire is clearly marked along the jacket, which simplifies polarity identification during installation. Owners report that the cable strips cleanly with standard tools and holds up well to weather after burial.
The 250-foot length, while excellent for coverage, can be heavy and somewhat stiff to unreel in tight spaces. Also, for high-wattage halogen fixtures or runs that approach 200 feet, 14 AWG may still experience a measurable voltage drop; switching to 12 AWG would be the safer call in that scenario. For LED landscape systems drawing under 150 watts total, this is a smart, cost-effective choice.
What works
- Long 250-foot spool reduces the need for splices
- Pure copper conductors maintain brightness over distance
- Jacket resistance to sun and moisture holds up in burial
What doesn’t
- 14 AWG may drop voltage on very long or high-wattage runs
- Heavy spool can be cumbersome to handle alone

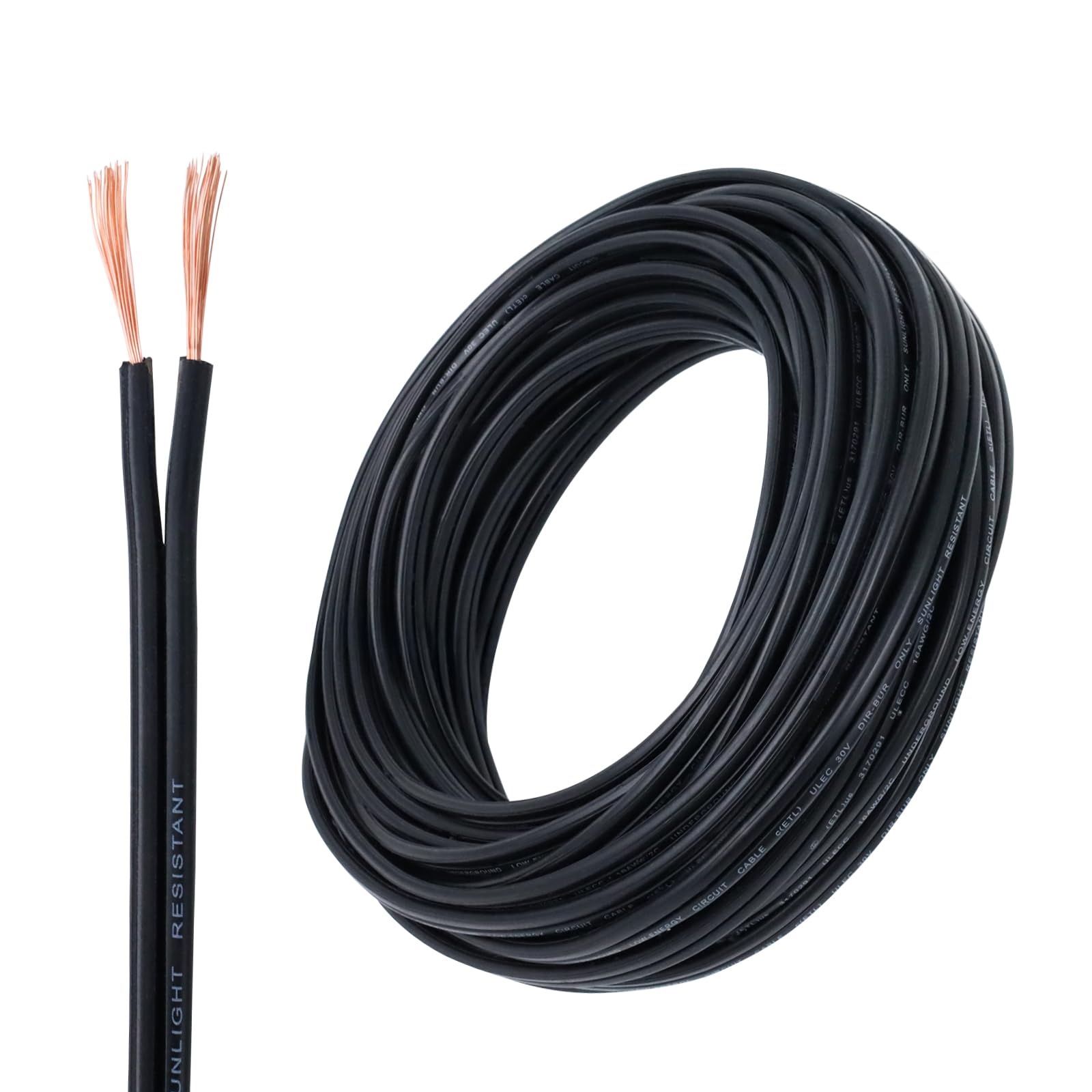

4. GREATIDE 14/2 Low Voltage Landscape Lighting Wire, 100 Feet
The GREATIDE 14/2 cable hits a sweet spot for the typical residential landscaper. At 100 feet of 14 AWG pure copper, it is suitable for the main distribution line in a medium-sized front or backyard. The ETL listing provides the same safety confidence as UL, and the insulation is rated from -40°F to 140°F, ensuring performance across seasonal extremes. Owners describe the insulation as easy to strip, though some advise a gentle hand to avoid nicking the conductor.
This cable works well as a backbone run for up to six to eight low-wattage LED fixtures spaced 10 to 15 feet apart. The multi-strand copper remains flexible enough to tuck under edging and curve around planting beds. The wooden spool packaging is sturdier than many cardboard alternatives, preventing tangles during unwinding. For the price per foot, it offers genuine 14 AWG copper with no CCA substitution.
Experienced users note that the jacket is softer than some premium brands, which makes it easier to work with but potentially less resistant to sharp rocks in a shallow trench. If your soil contains a lot of construction debris or sharp stones, you may want to oversize to 12 AWG with a thicker jacket or run the cable in a protective conduit. For clean garden soil, this wire is a solid choice.
What works
- Good balance of gauge, length, and price for medium yards
- ETL listed and 100% pure copper
- Flexible enough for easy routing in garden beds
What doesn’t
- Softer jacket may be vulnerable in rocky soil
- 100-foot limit requires splicing for larger properties

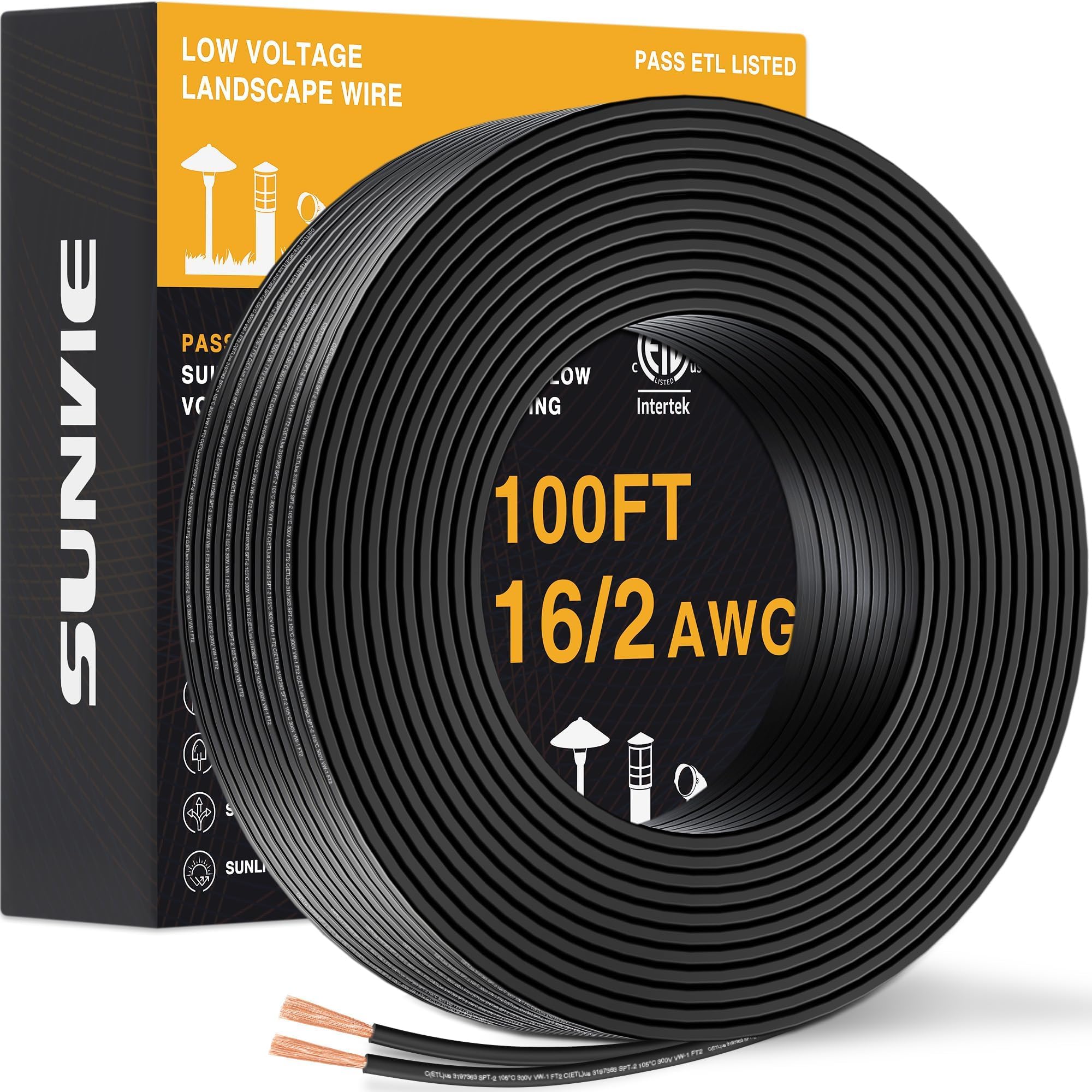

5. SUNVIE 100FT 16/2 Low Voltage Landscape Wire
The SUNVIE 16/2 cable excels as a secondary or branch wire for individual fixture runs off a thicker 12 or 14 AWG trunk line. Its 16-gauge pure copper construction keeps it lightweight and highly flexible, making it ideal for threading through tight spaces like under deck boards, along fence rails, or through narrow planting beds. The SPT-2 black PVC insulation is VW-1 fire rated and suitable for direct burial, though short runs are its natural habitat.
Owners appreciate the easy-strip jacket and the fact that the wire lies flat once laid, without coiling up. The 100-foot length gives you plenty of slack to loop fixtures across a patio or around a garden. SUNVIE’s reputation for consistent build quality comes through here — the insulation feels robust for a 16-gauge cable and resists cuts from zip ties and staples during surface mounting.
The main limitation of 16 AWG is voltage drop on longer distances. If you try to run this cable 80 feet to the last light on a circuit, you will see a noticeable dimness compared to the first fixture. Keep branch runs under 50 feet and the total circuit wattage low, and this wire performs perfectly. It is not suitable as a sole trunk line for a full landscape design.
What works
- Lightweight and highly flexible for tight routing
- VW-1 fire-rated insulation adds safety
- Good length for short branch runs and daisy-chains
What doesn’t
- 16 AWG limits run length before voltage drop occurs
- Not suitable as a primary trunk cable for large systems
6. EP 16/2 Low Voltage Landscape Lighting Wire, 100 Feet
The EP 16/2 cable is the entry-level workhorse that proves you don’t need to overspend for a reliable short-run connection. Its 16-gauge pure copper conductors are ETL listed, and the jacket is rated for direct burial, UV exposure, and temperatures from -40°F to 140°F. For a small garden with three to four path lights daisy-chained within 40 feet of the transformer, this cable delivers exactly what’s needed without excess cost.
Owners have tested this wire in exposed conditions, noting that it withstands animal traffic and incidental branch contact without damage. The 30-strand construction keeps the wire flexible enough to route around stepping stones and planters. Multiple reviews confirm the copper is genuine — not CCA — at a price point where many competitors cut corners. The 100-foot spool provides enough coverage for a modest layout.
The trade-off for the low entry cost is limited headroom. If you decide later to add more fixtures or extend the run, the 16 AWG will cap your options. The insulation, while functional, is thinner than premium 12 or 14 AWG cables and requires more care during burial to avoid cuts from sharp debris. As a starter cable for a simple, fixed layout, it represents excellent value.
What works
- Pure copper at a very accessible price point
- Flexible and easy to work with in small layouts
- ETL listed with wide temperature tolerance
What doesn’t
- Thinner jacket offers less protection in rocky trenches
- 16 AWG limits future expansion of the lighting system
7. SUNVIE Fastlock2 Low Voltage Wire Connector, 24 Pack
This 24-pack of Fastlock2 connectors is an accessory that changes how you approach low-voltage wiring installation. Instead of stripping, splicing, and taping each connection, you simply press the fixture wire into the channel and screw down the top — no cutting of the main cable is required. The nickel-plated brass pins pierce the insulation to make contact, and the nylon and fiberglass housing resists corrosion in damp soil conditions.
DIYers report that these connectors save hours on a typical 12-fixture installation. The compatibility with 14 to 18 AWG main cable and 16 to 22 AWG fixture tails covers the vast majority of residential landscape lighting setups. The patented screw design provides a more secure grip than push-in alternatives, reducing the chance of a loose connection that blinks out over time.
The critical limitation is that these connectors are not designed for 12 AWG cable. The screw mechanism cannot clamp onto the thicker 12-gauge insulation reliably, and multiple owners report stripped threads when attempting to force the fit. If your trunk line is 12 AWG, you will need a different connector type. For 14 AWG or 16 AWG systems, these are among the most convenient and reliable connectors available.
What works
- Tool-free installation dramatically speeds up wiring
- Corrosion-resistant materials hold up in buried environments
- 24-pack covers a full lighting layout in one purchase
What doesn’t
- Not compatible with 12 AWG main cable
- Plastic threads can cross-thread if over-tightened
Hardware & Specs Guide
AWG Gauge and Current Carrying Capacity
The American Wire Gauge standard is inverse: lower numbers carry more current with less resistance. 12 AWG wire handles up to 20 amps in low-voltage applications and is recommended for runs exceeding 80 feet. 14 AWG is rated for up to 15 amps and suits runs of 50 to 100 feet. 16 AWG is safe for up to 10 amps but should be limited to runs under 50 feet to prevent voltage drop. Always check your transformer’s output rating and total fixture wattage before selecting a gauge.
Direct Burial vs. Conduit Rating
Cables labeled “direct burial” have a thicker, UV-stabilized PVC jacket that can be placed directly in a trench without conduit. This jacket must resist moisture absorption, soil acidity, and physical abrasion. Standard indoor wire or speaker wire will degrade within one season when buried. The NEC requires low-voltage landscape cables to be buried at least 6 inches deep, and many local codes mandate direct burial rated cable for any underground installation. Always verify the jacket temperature range — quality cables are rated from -40°F to 140°F.
FAQ
Can I use 16 AWG wire for the main run from my transformer to the first fixture?
What happens if I mix solid and stranded landscape lighting cable in the same system?
How deep should I bury landscape lighting cable for direct burial?
Final Thoughts: The Verdict
For most gardeners, the best landscape lighting cable winner is the Zonegrace 12 AWG 265ft because it provides the thickest conductor gauge at a spool length that covers the vast majority of residential systems without needing splices. If you want a UL-certified premium cable for a standard 100-foot layout, grab the Elite 12/2 100ft. And for a budget-friendly short-run project where the total distance stays under 50 feet, nothing beats the value of the EP 16/2 100ft.
