Drilling a drainage hole into a glazed ceramic pot feels like defusing a bomb — one slip in pressure or the wrong bit geometry, and the planter splits in half. The brittle nature of fired clay demands a bit that cuts rather than hammers, stays cool to avoid thermal shock, and maintains a centered pilot to prevent the walking that leads to surface cracks.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I’ve spent years cross-referencing carbide grades, diamond-bonding densities, and flute geometries to pinpoint which masonry bits actually survive contact with porcelain, stoneware, and terra cotta without chipping the entry point.
Whether you are converting a thrift-store vase into a planter or adding overflow holes to a premium orchid pot, choosing the right bit defines success. This guide breaks down the five critical options available, so you can confidently pick the masonry drill bit for ceramic pot that delivers clean holes without the heartbreak of cracked clay.
How To Choose The Best Masonry Drill Bit For Ceramic Pot
Ceramic is not concrete. It doesn’t crumble — it fractures. The best bit for a block wall will shatter a flowerpot. You need a tool engineered for brittle, high-fired materials with a glazed surface that resists penetration. Here is what separates a pot-friendly bit from a pot-destroying one.
Tip Material: Diamond vs. Tungsten Carbide
Diamond-welded tips excel on the hardest glazes found on premium ceramic planters. They grind through the glossy layer rather than chiseling it, reducing the risk of edge chips. Carbide tips, especially YG8X-grade tungsten, handle unglazed terra cotta and soft stoneware well and are more cost-effective when drilling multiple pots in a session. For glazed porcelain, diamond is the safer bet.
Shank Design: Hex vs. Round
A hex shank locks into the chuck without slipping, which matters enormously on the curved, uneven surface of a pot where a round shank can twist and walk, scratching the glaze. Hex shanks also transfer torque more efficiently at the low RPMs required for ceramic drilling, so the bit does not bind and jerk.
Flute Geometry and Chip Evacuation
Reverse spiral flutes pull water into the hole for cooling while ejecting the powdery ceramic dust. Standard forward spirals pack debris into the cut, increasing heat and friction. Look for bits with a core-ejection slot or side grooves that clear chips, allowing the cutting edge to stay in contact with fresh material rather than grinding through its own tailings.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| DEWALT DW5572 | Diamond Tip | Glazed porcelain & thick ceramic | Diamond welded tip | Amazon |
| WildBossy 10pc Set | Carbide Tip | Multi-size kit for terra cotta & brick | 135° split point | Amazon |
| BGTEC Diamond Core Kit | Diamond Core | Dry drilling on hard tile & stoneware | 1/4″ round core shank | Amazon |
| BGTEC Carbide Set (5-12mm) | Tungsten Carbide | Varied hole sizes in unglazed pottery | YG6X cemented carbide | Amazon |
| toolant 3/16″ Hex Set | Carbide Set | Budget-friendly bulk for cinder block | 0.19″ cutting diameter | Amazon |
In‑Depth Reviews
1. DEWALT Tile Drill Bit, Diamond Tip, 1/4-Inch (DW5572)
The DEWALT DW5572 uses a diamond-welded tip that grinds through the hardest porcelain glaze without grabbing, which is the primary failure mode on ceramic pots. Its reverse spiral flute pulls water into the cut zone continuously, keeping the ceramic cool enough to prevent thermal shock cracking. The core-ejection slot clears the plug after penetration, so you don’t have to wrestle a stuck bit out of a freshly drilled hole.
Real-world users report drilling a dozen holes through 1/2-inch thick porcelain tile and still having a functional tip, which speaks to the diamond bonding’s longevity on abrasive glazes. The 1/4-inch diameter is ideal for standard planter drainage holes, and the bit handles the curved profile of a pot without walking when used with a tape or template starter.
On the downside, starting the hole demands patience — the diamond tip does not bite instantly on a smooth glaze. Several reviewers found success pre-scratching the entry point or using duct tape to stop the walk. It is a single bit, so you pay a premium for one hole size rather than a kit.
What works
- Diamond tip survives multiple holes in high-fired porcelain
- Reverse spiral clears dust and delivers cooling water
- Core slot removes the waste plug cleanly
What doesn’t
- Requires careful starting technique to prevent walking
- Only one size — no bit variety in the package
2. WildBossy Concrete Carbide Drill Bits Hex Shank Set (10PCS)
The WildBossy set spans ten sizes from 5/32-inch to 1/2-inch, making it a complete solution if you drill pots of varying wall thicknesses. The carbide tips are tungsten steel, grade unknown but user-tested on both masonry blocks and cast iron with no edge rollover. The 135-degree split point is a meaningful upgrade over standard 118-degree points — it self-centers on the glaze and reduces the walking that scratches the pot’s surface.
Hex shanks lock into the chuck with zero rotational play, which is critical when drilling the concave surface of a round pot where a round shank would slip and skid. Reviewers confirm the bits cut quickly through brick and concrete, and the set includes a storage case that keeps the sizes organized for repeated use on different pot types.
The primary limitation for ceramic work is that the bits are optimized for hammer mode on concrete; using them on a pot requires switching to rotary-only and keeping a water spray handy. Without water, the carbide overheats on dense glaze, and the cutting edge dulls faster than a dedicated diamond bit would.
What works
- Ten-size range covers every common pot hole diameter
- 135° split point centers reliably on glazed surfaces
- Hex shank eliminates chuck slip on curved pots
What doesn’t
- Hammer-mode design not ideal for delicate ceramic glazes
- Carbide edge degrades faster without water cooling
3. BGTEC Dry Diamond Drill Bit Set, 10pcs 1/4″ 6mm Hole Saw
The BGTEC diamond core bits use vacuum-brazed diamond particles on a steel body, which cuts faster than electroplated diamond on hard ceramic because the brazing holds larger diamond grit. The wax core embedded inside provides built-in lubrication for dry drilling, a genuine advantage when you’re working on a pot indoors without a water source nearby. Side grooves and a hole in the bit wall eject the stone chips so the diamond surface stays clear.
Each bit is a 1/4-inch (6mm) core, and the ten-pack gives you backups for multiple pots or frequent use. User reports confirm one bit can survive five holes through 1/2-inch porcelain tile when kept wet, and the dry-drilling wax core reduces heat buildup enough to use short bursts without immediate water. The round shank fits standard three-jaw chucks, though it lacks the anti-slip security of a hex shank on curved surfaces.
The main drawback is the 6mm fixed diameter — it only drills one hole size. For standard planter drainage, 1/4-inch is adequate, but larger pots may require a wider hole that this kit cannot deliver. Additionally, the core design requires a perfectly perpendicular entry angle; tilting the bit can snap the diamond ring.
What works
- Wax core allows dry drilling without immediate water cooling
- Vacuum-brazed diamond outlasts electroplated bits on glaze
- Side grooves eject ceramic dust efficiently
What doesn’t
- Only 6mm diameter — single hole size only
- Round shank can slip on curved pot surfaces
4. BGTEC Masonry Drill Bits, 10pcs 5MM*2+6MM*4+8MM*2+10MM+12MM Tungsten Carbide Tip
This BGTEC set delivers five different diameters (5mm, 6mm, 8mm, 10mm, 12mm), giving you precise hole-size control for pots from tiny succulents to large citrus planters. The YG6X cemented tungsten carbide is harder than standard YG8 carbide, resisting the abrasive wear of unglazed terra cotta and soft stoneware over repeated drilling sessions. The precision crosshead tip design reduces slippage on the initial contact point, a frequent source of glaze scratching.
Reviewers consistently mention drilling through glossy porcelain tile for shower hardware and getting clean, chip-free holes when using water cooling every 20-30 seconds. The bits transition from pointing to full diameter smoothly, so the hole entry stays neat without cratering. The quick-fit hex shank is compatible with impact drivers and standard chucks, giving you flexibility on the drill choice.
The limitation is that YG6X carbide, while tough, does not match diamond for longevity on the hardest glazes. Users report bits wearing by the third hole through dense porcelain; using water extends life but does not eliminate the wear. This set is best for gardeners drilling multiple unglazed pots rather than occasional high-fired porcelain work.
What works
- Five hole sizes from 5mm to 12mm cover all pot needs
- Crosshead tip prevents walking on smooth glaze
- YG6X carbide is noticeably harder than budget-grade bits
What doesn’t
- Carbide edge dulls faster than diamond on porcelain glaze
- Requires consistent water cooling for best results

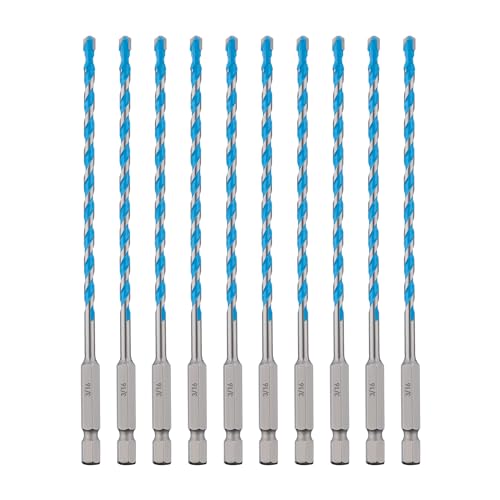

5. toolant 3/16″ Concrete Drill Bit Set & Masonry Drill Bit Set, Shockproof Hex Shank (10PCS)
The toolant set packs ten 3/16-inch bits with YG8X tungsten carbide tips and shockproof hex shanks designed to absorb the vibration of hammer drilling on concrete. For ceramic pots, the hex shank is the standout feature — it locks into the chuck so tightly that even on a smooth, sloped pot shoulder the bit stays centered without scratching the glaze. The 118-degree cutting angle is standard but works well on unglazed terra cotta and soft ceramic.
User data shows these bits drilling 93 holes through an 1850s stone basement wall (with some difficulty on variable-hardness rock) and excelling on cinder block. The ten-pack makes them disposable enough to treat as consumables — when a bit dulls on a pot, you have nine more ready. The set’s price point is low enough that replacing the entire pack costs roughly the same as two premium single bits.
The trade-off is clear: the YG8X carbide is harder than cheap steel but not diamond-grade. On high-fired porcelain or thick glazed stoneware, these bits glaze over after a few holes, slowing the drilling speed noticeably. They are best suited for gardeners working with soft ceramic, unglazed terra cotta, or brick planter liners where aggressive carbide is sufficient.
What works
- Ten identical bits provide replaceable consumable supply
- Hex shank grips chuck securely on slippery pot surfaces
- Shockproof structure dampens vibration in thin-walled pots
What doesn’t
- 118° point wanders on super-hard glazes without pilot hole
- Carbide wears faster than diamond on dense porcelain
- Only one size — no hole-diameter options
Hardware & Specs Guide
Diamond Tip vs. Carbide Tip
The cutting medium defines how the bit interacts with the glaze. Diamond-welded or vacuum-brazed diamond grit grinds away the hard glaze layer particle by particle, generating less impact force and reducing the risk of radial cracks. Carbide tips (YG6X, YG8X) rely on a sharp edge to shave the material, which works fine on unglazed ceramic but can grab and spall the glaze edge on porcelain. For high-fired planters with a glassy finish, diamond is the safer material.
Shank Geometry and Torque Transfer
A hex shank engages the full length of the chuck jaws, distributing clamping force evenly and preventing the rotational slip that causes the bit to walk across the glaze. Round shanks concentrate clamping at three points and allow micro-rotation under load, which on a curved pot surface translates into a scratched arc around the intended hole. For optimal control on ceramic, prioritize hex or quick-fit shanks over traditional round ones.
Flute Design and Heat Management
Ceramic fractures from localized heat, not just impact. Reverse spiral flutes pull coolant water into the cut while ejecting the powdered ceramic waste, keeping the temperature below the cracking threshold. Forward spiral flutes pack the debris into the hole, trapping heat and cook the glaze. Bits with side grooves or core-ejection slots provide additional chip clearance, which is especially useful when drilling deeper holes in thick pot walls.
Cutting Angle and Point Style
Standard 118-degree points require downward pressure to bite, which can push the bit sideways on a slippery glazed surface. A 135-degree split point or crosshead tip splits the cutting force into two contact points that self-center, reducing the tendency to skid. For ceramic pot drilling, a split point is a meaningful upgrade because it reduces the number of failed starts and the accompanying scratches before the hole even begins.
FAQ
Can I use a regular wood drill bit on a ceramic pot?
Should I use hammer mode on a ceramic pot?
How do I stop the drill bit from walking on the glaze?
Do I need water to drill a ceramic pot?
What size hole should I drill for a planter drainage?
Final Thoughts: The Verdict
For most gardeners, the masonry drill bit for ceramic pot winner is the DEWALT DW5572 because its diamond-welded tip and reverse spiral flute deliver the cleanest, most controllable hole on glazed ceramic without the anxiety of cracking. If you want a multi-size kit that covers every project from terra cotta to brick, grab the WildBossy 10pc Set for its self-centering split point and hex shank stability. And for budget-friendly bulk drilling of unglazed pots where you expect bit wear, the toolant 3/16″ Hex Set gives you ten consumable bits that handle soft ceramic without breaking the bank.
