The right metal trench drain transforms a waterlogged driveway or pooling patio into a dry, stable surface that stands up to seasonal rain, heavy vehicles, and decades of freeze-thaw cycles without warping or corroding away.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I’ve spent countless hours cross-referencing load ratings, hot-dip galvanizing processes, ductile iron metallurgy, and real-world owner feedback to separate the grates that truly protect your foundation from those that simply look tough on a spec sheet.
This guide breaks down the seven strongest contenders you can buy today, focusing on material integrity, weight capacity, and corrosion resistance so you can choose the best metal trench drain for your driveway, garage, or commercial project without wasting time on gimmicks.
How To Choose The Best Metal Trench Drain
Choosing a metal trench drain means balancing the load rating against the specific material, the surface finish, and the overall depth of the channel. A grate that looks identical on a product photo can vary by thousands of pounds in capacity and decades in service life depending on the alloy and the galvanizing process used in manufacturing.
Load Rating: The Weight Your Grate Must Bear
The most critical specification is the load class. Residential driveways and light vehicle traffic (passenger cars, SUVs, small trucks) demand a minimum Class B rating (around 175 psi or 12.5 metric tons). Commercial parking lots, truck paths, or industrial floors require Class C or D ratings. A metal trench drain specified as “B125” has passed testing for 125 kN (approximately 28,000 lbs) of static load, making it safe for low-speed light-duty vehicles. Pushing a C-rated grate into a driveway is overkill; a B-rated grate under a heavy delivery truck is dangerous.
Material: Ductile Iron, Galvanized Steel, or Alloy Steel
Ductile iron offers superior impact resistance compared to standard cast iron without becoming brittle in cold climates. The natural oxidation layer that forms on ductile iron actually protects the underlying metal from further rusting, unlike regular iron that flakes and peels. Galvanized steel (particularly hot-dip galvanized) provides a sacrificial zinc coating that protects the steel core even if the surface is scratched. Alloy steel blends carbon steel with other elements for extra strength, but it relies entirely on the galvanizing for corrosion protection. If the galvanizing is thin or poorly applied, the steel core rusts from the inside out.
Open Area and Flow Rate
The total open surface area per linear foot determines how fast water enters the drain. A perforated grate with small circular holes typically has 15–25% open area, while castellated or slotted grates can reach 30–40%. However, larger openings also let in bigger debris. For driveways near trees, a smaller perforation pattern (around 5–8 mm) keeps leaves and acorns out while still handling heavy rain. For patios or pool surrounds, a wider slot pattern improves flow and reduces standing water.
Channel Depth and Modular Expansion
A shallow channel (3–4 inches deep) works for flat patios with gentle slopes, but driveways and areas with significant water runoff need a deeper profile (5 inches or more) to carry water away quickly without overflowing. Modular systems that snap together allow you to extend runs to any length. Check whether the side and bottom outlet knockouts match your local drain pipe size (3-inch or 4-inch are standard in the US). Some kits include pre-drilled anchor holes for securing the channel into concrete, which is essential for preventing floatation during pouring.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| MOSINSBO Cast Iron Drain Grate 20×12 | Ductile Iron | Garage floor & light vehicle access | B-Class load, 28,100 lbs capacity | Amazon |
| NDS Pro Series Channel Drain Kit 39 in. | Galvanized Steel | Long driveway runs & modular setups | 59 GPM per foot flow rate | Amazon |
| TIDFOLGHTTHOR Galvanized Steel Grate 36×12 | Alloy Steel | High-traffic driveways & commercial floors | B125 class, hot-dip galvanized | Amazon |
| DuuMuut Galvanized Steel Grate 24×24 | Carbon Steel | Large openings & square sump covers | B-Class load, hot-dip galvanized | Amazon |
| Natotela Galvanized Steel Grate 2-Pack | Alloy Steel | Catch basins & concrete curb inlets | B125 class, 27,500 lbs each | Amazon |
| AVSIILE Linear Shower Drain 24 in. | 304 SS | Indoor shower & bathroom floors | 18.5 GPM flow rate, CUPC listed | Amazon |
| Source 1 Drainage Channel Drain 3-Pack | Plastic channel | Budget-friendly residential runs | 3-pack kit, galvanized steel grates | Amazon |
In‑Depth Reviews
1. MOSINSBO Cast Iron Drain Grate 20×12
The MOSINSBO 20×12-inch drain grate is cast from ductile iron — a material that bridges the gap between standard cast iron and steel by offering superior tensile strength without becoming brittle. Its B-Class load rating of 28,100 lbs means a fully loaded SUV or a light-duty pickup can roll over it at low speed (≤5 km/h) without risking deformation or cracking. The black lacquered finish gives it a clean modern look that blends into asphalt driveways and concrete garage floors without screaming “industrial hardware.”
Owners consistently praise the heft and solid feel of this unit, noting that it deadens the hollow sound of older plastic grates completely. The natural oxidation process of ductile iron forms a protective patina over time that halts further rust progression — unlike regular iron that sheds rust in flaking layers. The reinforcement bars on the underside add rigidity, and the 19.7 x 11.8-inch true dimensions fit standard 20×12-inch catch basin openings without needing to cut or shim the frame.
For a garage floor or a residential driveway where the primary concern is vehicle weight and longevity, this grate delivers the highest strength-to-cost ratio in the line-up. It requires a solid concrete or masonry surround to achieve its full load rating, but once set, it will outlast the plastic alternatives by decades. The 120-day warranty is shorter than some competitors, but the build quality is high enough that most users won’t need it.
What works
- Ductile iron resists cracking better than standard cast iron in cold climates
- Rust-resistant oxidation layer forms naturally without paint peeling
- True 20×12 inch dimensions fit standard basin openings without cutting
What doesn’t
- Lacquered finish can chip if dropped during installation
- Warranty period is only 120 days, shorter than most mid-range options
- Weight (approx. 30 lbs) makes handling and alignment a two-person job
2. NDS Pro Series Channel Drain Kit 5-1/2 x 39-3/8 in.
The NDS Pro Series kit is the go-to solution for homeowners who need to run a continuous trench drain across a long driveway or patio. Each 39.375-inch channel section delivers 59 GPM of water flow per linear foot, thanks to the deep 5-inch profile and the galvanized steel grate that sits flush with the channel body. The open surface area of 19.32 square inches per linear foot means heavy downpours are captured quickly without water sheet-flow across the pavement.
Installation flexibility is a standout feature: the bottom outlet accommodates both 3-inch and 4-inch PVC sewer and drain pipe fittings, while side and end outlet knockouts let you route water in whichever direction the slope demands. The interlocking clips snap the sections together without needing separate fasteners, and the modular design allows you to cut channels to custom lengths with a standard saw. The Class B load rating (175 psi) makes it safe for light passenger vehicle traffic, though it is not designed for repeated heavy truck crossings.
User reports consistently note that the polypropylene channel body won’t bond with standard PVC cement, so you must rely on mechanical connections and a solid concrete encasement to prevent lifting. The galvanized grates snap in and out without screws, which makes seasonal debris cleaning simple. For a medium- to large-scale project where flow volume and modular expandability matter more than raw point-load capacity, this kit provides an excellent balance of performance and ease of installation.
What works
- 59 GPM per foot flow rate handles heavy runoff without backup
- Bottom outlet fits both 3-inch and 4-inch standard drain pipe sizes
- Snap-in galvanized steel grates require no screws for removal
What doesn’t
- Polypropylene body resists adhesive bonding, requiring mechanical connections
- Not rated for repeated heavy truck or commercial vehicle traffic
- Channel sections cannot be glued together, potential for shifting if not properly anchored

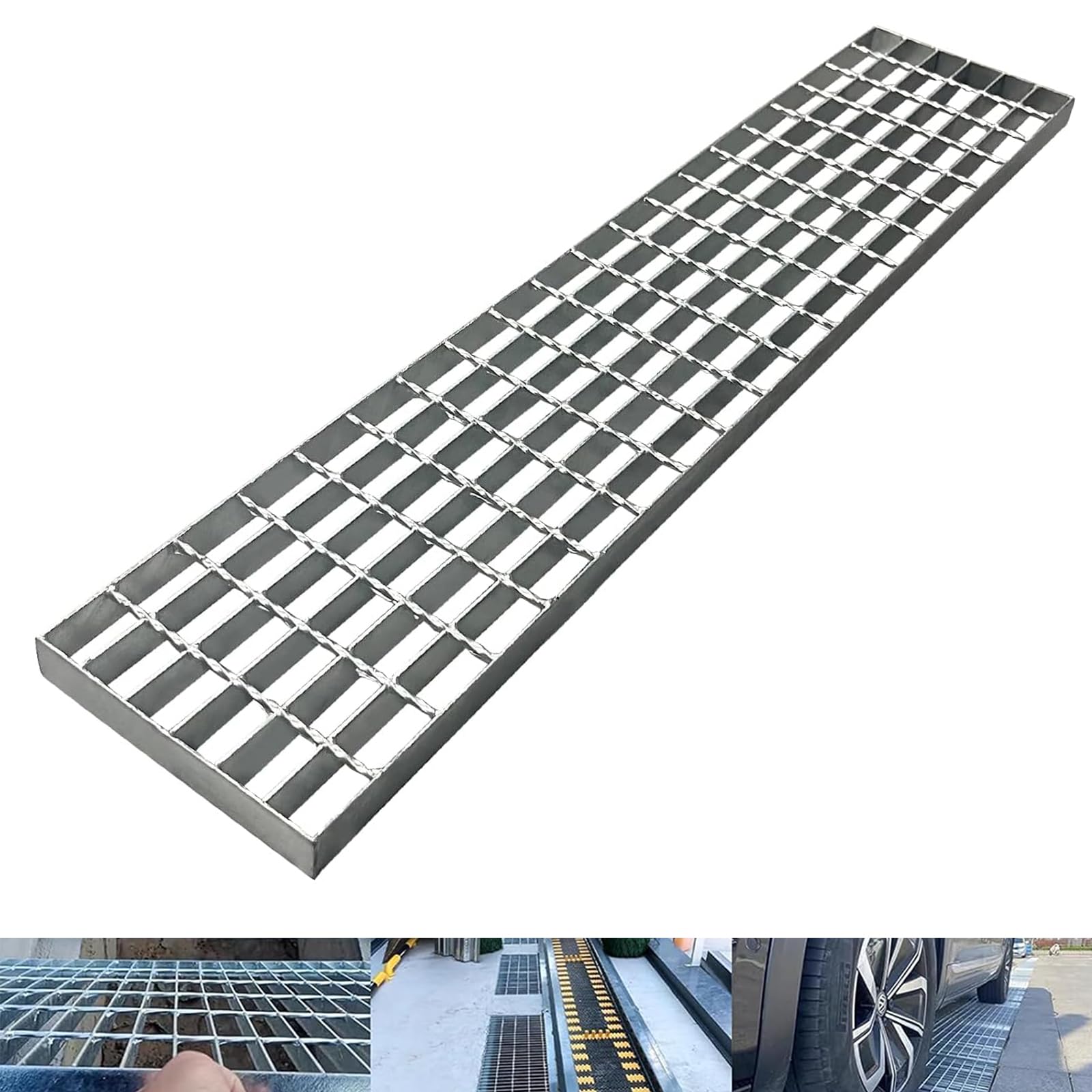

3. TIDFOLGHTTHOR Galvanized Steel Driveway Trench Drain Grate 36×12
The TIDFOLGHTTHOR 36×12-inch grate is manufactured from high-quality carbon steel and then finished with a hot-dip galvanizing process that deposits a thick zinc layer onto the entire surface—including the interior edges of every perforation. This level of coverage is what separates a grate that resists rust for 15+ years from one that shows orange streaks within two seasons. The B125 load rating confirms it has passed testing for 125 kN (approximately 28,000 lbs), making it suitable not just for residential driveways but also for light commercial parking lots and factory floors.
Reinforcement is built into the design with thickened welded bars running the length of the grate. The grid pattern uses precisely spaced perforations that balance high flow capacity with debris exclusion—leaves and small stones are stopped at the surface while water passes through freely. Owners have used this grate for unconventional applications like wheelchair ramps and shoe-scraping mats, which speaks to the rigidity of the frame. The silver galvanized finish is uniform and smooth, with edges that are ground down to prevent cuts during handling.
The main trade-off is that the 36-inch length requires a precisely cut opening in the concrete or asphalt. It cannot be cut shorter due to the welded grid construction, so you must measure your basin or trench width before ordering. For high-traffic driveways, garage entries, or commercial settings where a single long span is needed, this grate offers the best load capacity and corrosion protection in its size class.
What works
- Hot-dip galvanizing covers all surfaces including hole interiors for maximum corrosion resistance
- B125 certified load rating suitable for commercial and residential vehicle traffic
- Thickened welded reinforcement bars prevent warping under heavy loads
What doesn’t
- Fixed 36-inch length cannot be cut shorter for non-standard openings
- Heavier than many alternatives, requiring careful lifting and alignment
- Galvanized surface shows scuff marks from tires more readily than darker finishes
4. DuuMuut Galvanized Steel Drain Grate 24×24
The DuuMuut 24×24-inch square grate fills a specific niche that long rectangular grates cannot: large sump pits, wide catch basins, or retrofit applications where an existing square opening needs a metal cover. The carbon steel construction is calcination-treated for internal stress relief, which reduces the risk of warping after years of thermal cycling. The hot-dip galvanized surface produces a glossy silver finish that resists fading and aging even under direct UV exposure.
The grid spacing is wider than many competing grates, which increases water throughput but also allows smaller debris to pass through. For areas subject to leaf fall or gravel scatter, a finer perforation pattern might be preferable. Owners have reported using this unit as a highly effective outdoor doormat due to its rigid grid scraping action—the square shape fits standard entryway widths. The anti-slip surface is particularly effective in wet conditions because water drains immediately through the grid rather than pooling on top.
Installation is straightforward for a square opening, but the 23.6 x 23.6-inch true dimensions mean you need to account for a tight fit. Some users noted slight sizing variances that required grinding the opening edges. For a garage floor drain, a commercial kitchen floor, or a patio sump cover where a large square footprint is needed, this grate provides heavy-duty protection with a clean modern aesthetic.
What works
- Large 24×24 square format fits wide catch basins and pit openings
- Anti-slip grid surface performs well in rain and snow
- Calcination heat treatment reduces long-term warping risk
What doesn’t
- Some units have slight dimensional variance, requiring opening adjustment
- Wide grid spacing allows small stones and acorns to pass through
- Glossy galvanized surface shows dirt and tire marks easily
5. Natotela Galvanized Steel Drain Grate 12 in. (2 Pack)
The Natotela 2-pack delivers two 12 x 12-inch grates made from alloy steel with a hot-dip galvanized finish, each rated for B125 loads up to 27,500 lbs. This is the most cost-effective way to cover multiple catch basins or concrete curb inlets in a single purchase. The perforated design uses small round holes that effectively block leaves and large debris while maintaining a drainage rate sufficient for typical residential runoff. Each grate weighs approximately 11.9 pounds, which is manageable for one-person installation.
The manufacturing process uses twisted steel bars welded to the frame for added structural rigidity. Each bar is thickened and widened compared to standard stamped grates, which prevents the grid from spreading apart under repeated vehicle crossings. Owners have used these grates for shoe-scraping steps, downspout splash block covers, and even as protective covers for 4-inch drain pipes against large rocks. The silver finish is uniform with no sharp burrs along the edges, though the hot-dip coating can be scratched if dragged across rough concrete.
The one downside is that the 12-inch size is relatively small, so it works best for individual catch basins rather than long trench runs. If you need to cover multiple separate drain points, this two-pack represents excellent value without compromising on load capacity. For a yard, lawn, or driveway with isolated low spots, these grates provide the same B125 protection as larger single units at a fraction of the per-square-inch cost.
What works
- Two grates in one pack offer best per-unit value for multiple basins
- B125 load rating matches premium single-grate performance
- Thickened twisted steel bars prevent grid spreading under load
What doesn’t
- 12-inch size limits use to individual catch basins, not long trench runs
- Hot-dip coating can scratch if dragged across abrasive surfaces
- Small round holes may clog faster than slotted designs in muddy runoff

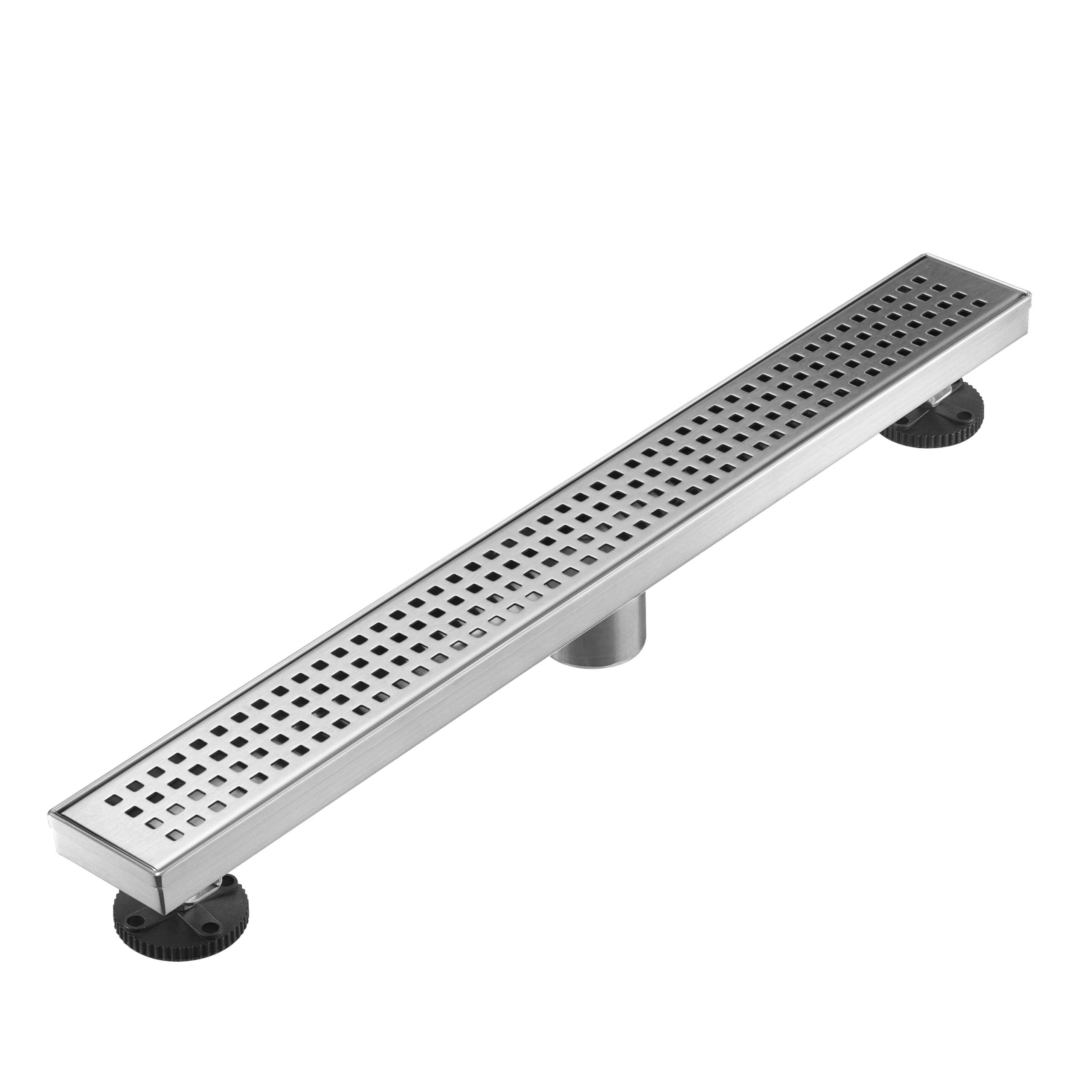

6. AVSIILE Linear Shower Floor Drain 24 in. Brushed Nickel
While most of this guide focuses on heavy-duty outdoor grates, the AVSIILE linear shower drain is the ideal metal trench drain solution for indoor bathroom applications. Constructed entirely from 304 stainless steel with a brushed nickel finish, it resists corrosion from soap scum, hard water, and cleaning chemicals far better than plated brass or plastic alternatives. The 24-inch length fits standard walk-in shower pan widths, and the 2.75-inch wide channel sits nearly flush with the tile floor for a seamless modern look.
The deep slope design uses an X-pressed pattern on the channel floor that directs water from the sides toward the central outlet, eliminating standing water inside the channel. The included hair and debris lift-out strainer catches particles before they reach the plumbing line, reducing the frequency of drain snaking. Adjustable feet on both sides level the drain to the tile surface, and the threaded adaptor with a rubber O-ring creates a leak-proof seal with most 2-inch PVC or ABS drain bases. The CUPC listing confirms compliance with North American plumbing codes.
The brushed nickel finish is elegant but does show water spots and fingerprints more readily than a satin or matte finish. Installation requires precise tile cutting and subfloor preparation, but the included leveling system makes alignment manageable. For a master bath remodel or new construction where a linear drain design is desired, this unit offers professional-grade build quality at a price well below what specialty tile stores charge.
What works
- Full 304 stainless steel construction resists bathroom chemical corrosion
- Adjustable feet and threaded adapter simplify tile-level installation
- Hair catcher strainer prevents clogs without chemical drain cleaners
What doesn’t
- Brushed nickel finish shows water spots and fingerprints quickly
- Requires precise subfloor preparation and tile cutting
- Not rated for vehicle or heavy foot traffic beyond bathroom use
7. Source 1 Drainage Trench & Driveway Channel Drain with Galvanized Steel Grate (3-Pack)
The Source 1 Drainage 3-pack is the budget-conscious entry point into metal trench drains, combining a plastic (polypropylene) channel body with removable galvanized steel grates. Each channel section is 4.5 inches wide and 5 inches deep, with a bottom outlet that connects to 3-inch or 4-inch drain pipe. The kit includes three interlocking channels, one end cap, and one end outlet—enough to cover approximately 9 feet of linear drainage if you use all three sections end to end.
The steel grates snap into the channel without screws, which makes cleaning straightforward: lift the grate, clear debris from the channel, and snap it back in place. The grates themselves are galvanized and provide the metal contact surface for vehicle tires, while the plastic body keeps the overall system lightweight and easy to cut with a standard saw. Owners who have installed these in concrete report that the grates stay firmly in place and withstand repeated vehicle crossings from SUVs and light trucks.
The plastic channel body is the limiting factor: prolonged UV exposure can make polypropylene brittle over time, and the material cannot support the same point-load as a full metal channel. For a residential driveway that sees occasional car traffic and where cost is the primary constraint, this system works well. For a commercial setting or a driveway with daily heavy truck traffic, a fully metal channel would be a safer long-term investment.
What works
- 3-pack covers up to 9 linear feet for a low entry cost
- Snap-in galvanized steel grates simplify debris cleanup
- Lightweight plastic body is easy to cut and handle during installation
What doesn’t
- Plastic channel body can become brittle from long-term UV exposure
- Not suitable for heavy commercial or high-frequency truck traffic
- Grates may unlock if channel is not securely anchored in concrete
Hardware & Specs Guide
Load Class & Traffic Suitability
The load class of a metal trench drain determines which vehicles can safely cross it. Class A (A15) is pedestrian-only. Class B (B125) supports passenger cars, SUVs, and light vans up to 125 kN (approx. 28,000 lbs) at speeds under 5 km/h. Class C (C250) handles delivery trucks and service vehicles. Class D (D400) is for roadways and heavy truck traffic. For a standard residential driveway, B125 is the minimum grade you should accept. Using a lower-rated grate in a driveway risks cracking under a heavy SUV, especially during winter when frozen concrete amplifies point loads.
Hot-Dip Galvanizing vs. Paint/Electroplate
Hot-dip galvanizing immerses the steel grate in molten zinc at about 840°F, creating a metallurgically bonded coating that covers every surface, edge, and interior hole. This coating is typically 3–5 mils thick and self-heals minor scratches through sacrificial corrosion. Paint or electroplating, in contrast, coats only the visible surfaces and chips off when scratched, leaving bare steel exposed to rust. For outdoor trench drains buried in concrete or soil where moisture is constant, hot-dip galvanizing is the only finish that reliably prevents rust for 10+ years without maintenance.
Open Surface Area & Flow Velocity
The open surface area of a grate (expressed in square inches per linear foot) directly determines how quickly water enters the drain. A grate with 15–20 sq. in./ft of open area handles moderate rainfall, while 25+ sq. in./ft is needed for heavy downpours or areas with large roof drainage contributions. The shape of the openings also matters: long slots allow debris to pass through more easily than small round holes, but they also let in more sediment. For a driveway near trees, a perforated pattern with 5–8 mm holes balances flow capacity with leaf exclusion.
Channel Material & Thermal Expansion
Metal grates are paired with either plastic (polypropylene/PVC) channels or metal channels. Plastic channels are lightweight, easy to cut, and inexpensive, but they expand and contract more with temperature changes, which can create gaps between sections over time. Metal channels (steel or cast iron) have a thermal expansion coefficient much closer to concrete, reducing movement and maintaining tight joints across seasons. For long runs (over 15 feet), metal channels are recommended to prevent separation and misalignment during freeze-thaw cycles.
FAQ
Can a B125 rated trench drain handle my F-150 driving over it daily?
Does ductile iron rust faster than galvanized steel outdoors?
How deep should the concrete encasement be for a driveway trench drain?
Can I install a metal trench drain without pouring new concrete?
Final Thoughts: The Verdict
For most homeowners, the best metal trench drain overall is the MOSINSBO Cast Iron Drain Grate 20×12 because it combines ductile iron toughness, a B-Class load rating that handles residential vehicles, and a protective patina finish that stops rust progression better than painted alternatives. If you need a complete modular channel system for a long driveway run, the NDS Pro Series Channel Drain Kit delivers superior flow volume and flexible pipe connections. And for the absolute strongest single-span grate for a high-traffic commercial or residential entry, the TIDFOLGHTTHOR Galvanized Steel Grate 36×12 with its B125 certification and full hot-dip galvanizing is the weapon of choice.
