A leaking pond liner doesn’t just waste water — it wastes the labor, the rock work, the plantings, and the ecosystem you’ve carefully built. The single most common failure point in a backyard water feature is the liner itself, and choosing the wrong polyethylene (PE) thickness or reinforcement type guarantees a tear, a pinhole, or a complete structural breakdown within the first two seasons. This guide breaks down exactly which PE formulation and mil rating will hold water reliably for your specific pond size and application.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I’ve spent years analyzing aggregated owner feedback, comparing manufacturer specification sheets, and studying horticultural and aquaculture data to separate marketing weight from real-world durability in pond containment materials.
Whether you’re lining a small goldfish pond or a large koi habitat, understanding the difference between LLDPE, reinforced PE, and standard HDPE is the difference between a one-time install and a recurring headache. This guide walks you through the structural trade-offs so you can confidently choose the best pe pond liner for your water feature without guessing based on price alone.
How To Choose The Best PE Pond Liner
Not all polyethylene liners are created equal. The material class, thickness, reinforcement structure, and edge finishing all determine whether your liner survives the first sharp rock contact or a freeze-thaw cycle. Here are the three most decisive specifications to evaluate.
Mil Thickness & Puncture Resistance
Thickness is measured in mils (thousandths of an inch). A 14.5 mil liner is adequate for small decorative ponds with minimal rock contact, but it demands careful site prep—any buried root or sharp stone edge can become a failure point. For ponds deeper than 18 inches or those receiving heavy rockwork, 20 mil is the functional baseline. The 28 mil reinforced liners offer the highest puncture resistance, especially against roots and animal claws, though they are heavier and require two-person installation.
Material Structure: LLDPE vs. Reinforced PE vs. HDPE
LLDPE (Linear Low-Density Polyethylene) is flexible and conforms easily to irregular shapes, but its single-layer structure can develop pinholes over time under UV stress. Reinforced PE liners sandwich a woven HDPE scrim between two PE layers—this provides superior tear resistance and dimensional stability, meaning the liner won’t stretch or distort under water pressure. Standard HDPE is stiff and difficult to fold without creasing, making it less forgiving for complex pond geometries.
Edge Finishing & Anchoring Provisions
A plain-cut edge frays and can propagate a tear. Hemmed edges with reinforced buttonholes allow you to stake the liner securely into the ground before adding water or rocks, preventing the liner from slipping or bunching during installation. Liners without these features must rely entirely on heavy border stones for anchoring, which is less secure on steep or uneven banks.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| VIVOSUN 13.5×20 ft | Standard PE | Small ponds under 800 gal | 14.5 Mil LLDPE | Amazon |
| Reinforced PE 15×20 ft | Reinforced PE | Medium koi/duck ponds | 28 Mil + Woven Scrim | Amazon |
| CooCure 15×20 ft | Reinforced PE | Medium irregular ponds | 28 Mil Hemmed Edges | Amazon |
| Happybuy LLDPE 15×20 ft | LLDPE | Goldfish ponds & waterfalls | 20 Mil UV-Stabilized | Amazon |
| CooCure 20×20 ft | Reinforced PE | Large koi/duck ponds | 28 Mil Buttonholes | Amazon |
| MYFAMIREA 20×25 ft | Reinforced PE | Large irregular ponds | 28 Mil 18 Buttonholes | Amazon |
| Froidesente HDPE 20×30 ft | HDPE | Very large aquaculture | 20 Mil HDPE | Amazon |
In‑Depth Reviews
1. MYFAMIREA 20 x 25FT Pond Liner
The MYFAMIREA liner hits the sweet spot between thickness, flexibility, and anchoring practicality. Its 28 mil three-layer construction—two woven HDPE outer layers sandwiching a PE core—delivers the highest puncture resistance in this roundup without the board-like stiffness of solid HDPE. Owners consistently report that it survives rough installs involving dogs and heavy rocks with zero leak development even after months of exposure.
This allows secure staking every two feet or so, critical for large or steep-sided ponds where the liner’s own weight can cause sagging before water pressure sets it. The 20×25 ft size covers substantial footprint without requiring a seam.
No liner is indestructible, and a small subset of users report tearing during aggressive installation or minor surface leaks. The woven structure, while tough, can delaminate if folded repeatedly in the same crease. The weight of 26.5 pounds means solo installation is challenging—plan for a helper.
What works
- Exceptional 28 mil three-layer puncture resistance
- 18 hemmed buttonholes for reliable edge anchoring
- Survives heavy use from dogs and rock stacking
What doesn’t
- Heavy at 26.5 pounds; difficult to maneuver solo
- Crease weakness may form if folded repeatedly
2. CooCure 20x20FT Reinforced PE Pond Liner
The 20×20 ft CooCure uses the same reinforced PE construction as its 15×20 ft sibling but adds enough square footage for larger koi ponds or duck habitats without stepping up to a higher price tier. At 28 mil with a woven HDPE core, it resists sharp stone punctures better than any non-reinforced LLDPE liner at this size and price point, making it a solid choice for DIY builders who prefer a margin of error.
Installation feedback consistently praises its flexibility relative to HDPE; the material bends into irregular contours without cracking, and owners note that it stays pliable after a short sun warm-up. The four corner buttonholes provide basic anchoring, though users on uneven banks have had to drill additional holes because the grommets are not reinforced as heavily as the liner material itself—some have reported corner grommet failure under tension.
The primary risk with this liner is the same as any reinforced PE: a delamination or manufacturing defect can create a pinpoint leak. A few owners report discovering pinhole leaks after the first fill, typically at spots where the black coating was incomplete. The liner is also prone to bunching if the pond bottom is not perfectly smooth and pleated correctly.
What works
- 28 mil reinforcement handles sharp stone contact well
- Flexible enough for irregular pond shapes
- Heavy-duty material with good tensile strength
What doesn’t
- Corner grommets weaker than the liner fabric
- Reports of occasional pinhole manufacturing defects
3. Happybuy LLDPE Pond Liner 15×20 ft
The Happybuy LLDPE liner represents a meaningful step up from entry-level 14.5 mil sheets while remaining accessible for medium-budget pond projects. At 20 mil, it offers noticeably higher tear and puncture resistance than thin liners, and the LLDPE formulation provides superior flexibility compared to standard HDPE—critical when conforming to waterfall contours or curved pond edges. Owners of goldfish ponds with extensive rock borders consistently report zero ripping during assembly.
UV stability is a genuine strong point here: the material is advertised with a 50-year lifespan in buried conditions and roughly ten years under direct sunlight, which aligns with long-term owner reports from similar-spec LLDPE installations. The smooth surface makes cleaning straightforward and prevents debris from snagging, though this also means the liner can be slippery when wet—take care when walking on it during installation.
The biggest trade-off with LLDPE is its vulnerability to long-term pinhole development. Multiple owners who initially praised the liner’s toughness reported slow leaks appearing after a year or more, caused by gradual UV degradation or interaction with sharp underlying debris. The material is also prone to permanent crease folds if not laid out smoothly on the first attempt.
What works
- 20 mil LLDPE blends flexibility with strong tear resistance
- Excellent UV stability for above-ground pond edges
- Smooth surface is easy to clean and maintain
What doesn’t
- Pinhole leaks can develop after 12+ months of exposure
- Requires flawless underlayment to prevent long-term punctures

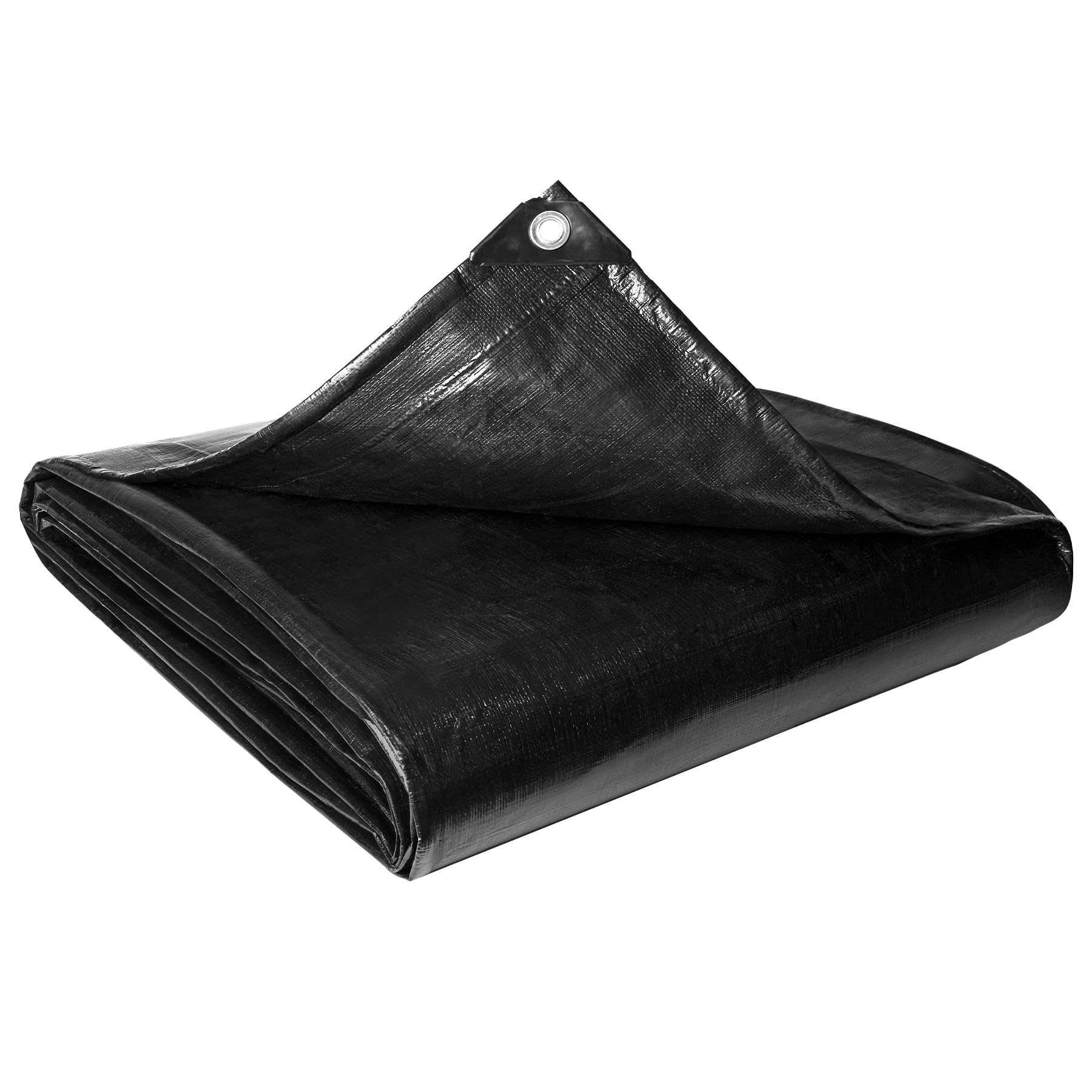

4. Reinforced PE Pond Liner 15 x 20 FT
This 15×20 ft reinforced PE liner delivers the same 28 mil three-layer construction as other premium contenders but distinguishes itself with 14 hemmed buttonholes and a notably pliable feel straight out of the package—no extended sun warm-up required. Owners of medium-sized koi ponds say the material drapes across irregular bottoms with far less fighting than stiff HDPE alternatives, reducing installation time significantly.
The woven HDPE middle layer provides excellent tensile strength so the liner doesn’t stretch under water load, and the hemmed edges resist fraying even when tensioned around rocks. The heavier 17-pound weight is a telltale sign of the reinforcement—this is a serious sheet of material. Multiple owners report successful year-long use with dogs and heavy rain runoff without any leak development.
However, a handful of critical reviews identify this as a product that functions more like a heavy tarp than a true pond liner, with some units failing within weeks due to water loss through uncoated sections or seam gaps. The inconsistency suggests batch variability, so inspect the liner immediately upon arrival and pool-test before final installation if possible.
What works
- Pliable out of the box with no extended sun-curing needed
- 14 buttonholes provide ample anchoring points
- Woven reinforcement eliminates stretch under water weight
What doesn’t
- Some units have coating defects causing rapid water loss
- Two-person installation strongly recommended due to weight
5. CooCure 15x20FT Reinforced PE Pond Liner
The smaller 15×20 ft variant from CooCure offers the same reinforced PE build with a woven middle layer at a slightly lower cost per square foot, making it an excellent choice for ponds in the 600–800 gallon range that still demand robust puncture resistance. Its flexibility is a consistent point of praise—owners emphasize how easily it conforms to irregular dirt shapes without fighting the material.
The four corner buttonholes are present, but like its larger sibling, the grommets themselves are not as robust as the liner material. Some users needed to reinforce them with washers or drill additional holes for a taut fit. The 28 mil thickness gives you confidence when placing heavy border stones directly on the edge, and the hemmed finish prevents unrolling tears at the perimeter.
Leak reports exist but are less frequent than with budget-tier options. The most common failure scenario involves a small uncoated spot at the edge of the hem or a crease fracture after extreme cold. CooCure includes tips about underlayment and avoiding supercooling, which indicates the liner has a real temperature sensitivity floor—do not install when ground or air temps are below freezing.
What works
- Excellent flexibility for irregular pond geometry
- 28 mil thickness handles rock borders confidently
- Hemmed edges prevent fraying propagation
What doesn’t
- Corner grommets are the weakest structural point
- Temperature sensitive; can become brittle in freezing conditions

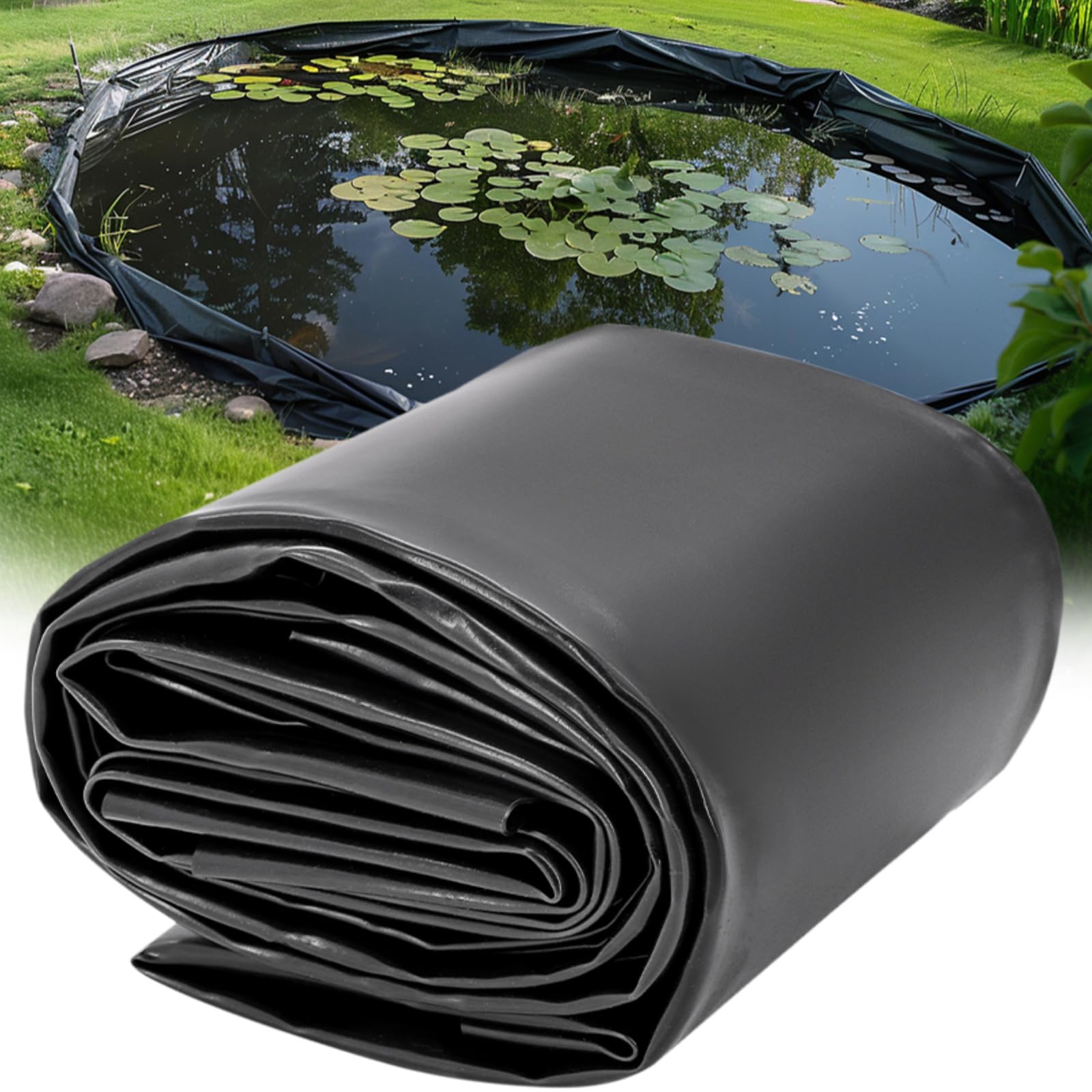

6. Froidesente 20 x 30 FT Pond Liner
The Froidesente liner takes a different approach from the reinforced PE options—it uses a solid 20 mil HDPE sheet with no woven scrim, prioritizing a massive 20×30 ft coverage area for large-scale aquaculture or duck ponds. This size eliminates the need for seaming in most residential applications, and the 20 mil thickness is adequate for wide, gently sloped ponds where point loads from sharp rocks are minimal.
HDPE’s stiffness is both an asset and a liability. It holds its shape well and cuts cleanly without fraying, but owners consistently report difficulty folding it into tight angles without creating permanent creases that can develop into stress fractures over time. The included gardening gloves are a small but practical bonus for handling the heavy 45-pound roll.
The primary risk here is puncture: without reinforcement, a single gnome or earthworm under the liner has been enough to cause slow leaks for some owners. If your pond bottom is anything other than perfectly smooth sand or fabric underlayment, the Froidesente may disappoint. Successful installations come from owners who prioritized a thick, defect-free underlay and used border stones rather than stakes for anchoring.
What works
- Massive 20×30 ft coverage eliminates seaming needs
- HDPE is rigid and cuts cleanly for precise fitment
- Good puncture resistance on smooth, prepared surfaces
What doesn’t
- Stiff material prone to permanent crease damage
- Some owners report leaks from minor ground imperfections
7. VIVOSUN 13.5 x 20 Feet Pond Liner
The VIVOSUN 14.5 mil LLDPE liner is the entry-level workhorse for small, low-risk water features. At this thickness, it is not intended for heavy rock borders or deep ponds with high water pressure—its sweet spot is shallow planter ponds, preformed pond repairs, and decorative water gardens holding under 800 gallons. Owners who have used it to line raised beds or repair old preformed shells report excellent short-term results.
The LLDPE material is notably flexible; following the 10–15 minute sun-warming recommendation genuinely improves how easily it drapes around rounded curves. Install is a one-person job for most smaller layouts, and the black coloring effectively hides soil stains while blocking light penetration that encourages algae growth. For the price, the value proposition is strong if you keep expectations aligned with the thickness rating.
The primary concerns are durability and puncture resistance. Multiple owners report the liner failing catastrophically within a month when exposed to even moderately sharp stones or aggressive roots. This is not a set-and-forget product—it requires a smooth, padded underlayment and careful handling to last beyond a single season. For permanent koi or duck ponds, a thicker or reinforced option is a more reliable investment.
What works
- Very affordable for small pond projects or repairs
- Flexible LLDPE conforms easily to rounded shapes
- Lightweight and simple one-person installation
What doesn’t
- 14.5 mil is prone to punctures from stones and roots
- Inconsistent quality control; some units fail quickly
Hardware & Specs Guide
Mil Thickness
Mil measurements range from 14.5 (entry-level) to 28 (heavy-duty). Every 10 mil increase roughly doubles puncture resistance. For ponds deeper than 24 inches or those with rock edges, 20 mil is the minimum safe baseline. The 28 mil reinforced liners resist tears from roots, claws, and dropped stones far more effectively than any single-layer sheet at any thickness.
Material Chemistry: LLDPE vs. Reinforced PE
LLDPE is a single homogeneous sheet—flexible and forgiving during install but vulnerable to UV-driven pinhole degradation over years. Reinforced PE adds a woven HDPE scrim between two PE layers, creating a composite that resists tear propagation. This reinforcement also makes the liner dimensionally stable: it will not stretch or sag under water load the way LLDPE can.
Buttonhole Density & Placement
Buttonholes (grommeted holes in the hemmed edge) allow temporary staking before rocks are placed. Liners with 14–18 holes distributed every 2–3 feet offer significantly better edge control than models with only four corner holes. Hemmed edges also prevent tear propagation from the perimeter, which is the most common failure mode for cut-to-shape liners.
Weight & Handling Considerations
A 15×20 ft 28 mil reinforced liner weighs roughly 17–21 pounds, while a 20×30 ft non-reinforced HDPE liner can exceed 45 pounds. The heavier the liner, the more likely you need two people to unfold it without creating folds or dragging it across sharp objects. Plan your installation crew and work surface accordingly before the roll arrives.
FAQ
Can I install a PE pond liner without underlayment?
How long does a PE pond liner last before needing replacement?
Is reinforced PE pond liner safe for fish and plants?
Why did my pond liner leak after a winter freeze?
Final Thoughts: The Verdict
For most gardeners building a medium to large koi or duck pond, the best pe pond liner winner is the MYFAMIREA 20×25 ft because its 28 mil three-layer reinforcement and 18-buttonhole hemmed edge provide the highest puncture resistance and most reliable anchoring at a reasonable weight. If you want maximum coverage without seaming, grab the Froidesente 20×30 ft HDPE. And for a budget-friendly small pond or raised planter repair, nothing beats the value of the VIVOSUN 14.5 mil LLDPE.
