Dragging hoses and wrestling with tripod sprinklers every evening wastes time and never delivers even coverage — the grass near the house gets drenched while the far corner stays brown. A pop‑up sprinkler system solves this by hiding flush in the turf when not in use, rising only when water flows, so you get the convenience of professional in‑ground irrigation without trenching the whole yard.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. For this guide I spent hours dissecting flow rates, pop‑up heights, gear‑drive vs. spray patterns, and owner feedback across seven different pop‑up systems to find which units actually deliver uniform watering without constant fiddling.
Whether you are retrofitting an existing zone or building from scratch, the right choice comes down to pressure, coverage radius, and arc adjustability — which is exactly what you will get from this breakdown of the best pop up sprinkler system options on the market right now.
How To Choose The Best Pop Up Sprinkler System
Selecting the wrong pop‑up sprinkler head leads to dry patches, over‑spray onto sidewalks, and premature failure of the retraction spring. The following four criteria will narrow your choice to the correct head type for your lawn’s geometry and your existing water supply.
Pop‑Up Height: Clearing the Grass
The riser height is the distance the sprinkler stem rises above ground when active. A 3‑inch or 4‑inch pop‑up works for fine fescue or Bermuda that’s mowed short, but tall fescue or St. Augustine cut at 3–4 inches requires a 5‑inch or 6‑inch pop‑up so the spray pattern clears the leaf canopy. If the head cannot rise above the grass, the water stream is blocked, creating a ring of dead turf around each head.
Gear‑Drive Rotor vs. Fixed Spray Nozzle
Gear‑drive rotors (like the Orbit Voyager II or K‑Rain K1) rotate a single stream across the arc, delivering water over 15–35 feet with a low precipitation rate that reduces runoff on clay soil. Fixed spray nozzles (like the Rain Bird 1800 series) throw a fan pattern up to 15 feet and are better for small strips, narrow beds, and areas under 18 feet wide. Mixing the two types on the same zone causes uneven watering because their precipitation rates differ.
Pressure Regulation and Nozzle Options
High water pressure above 60 PSI causes fixed spray heads to mist, wasting water and creating uneven coverage. Pressure‑regulated models (Rain Bird 1804APPRS with built‑in 30 PSI regulator) eliminate this problem. Gear‑drive rotors are less sensitive to pressure variation but still benefit from a pressure‑regulated valve at the zone level. Also check whether the head ships with a matched‑precipitation nozzle set — this ensures each head in the zone puts down the same water depth regardless of arc setting.
Inlet Size and Installation Method
All pop‑up sprinklers reviewed here use a 1/2‑inch NPT female inlet, which threads directly onto 1/2‑inch PVC risers or swing‑joint assemblies. Models with a bottom inlet filter (like the Orbit Voyager II) resist clogging from debris in well water or older pipes. Above‑ground conversion kits (RESTMO, Quick‑Snap) use a 3/4‑inch garden hose thread and spike into the soil — these are a gate‑way to pop‑up watering without committing to full underground PVC.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Orbit Voyager II 10‑Pack | Gear‑Drive Rotor | Large zones up to 35 ft spacing | 4‑in pop‑up, 3 GPM, 40‑360° arc | Amazon |
| Rain Bird 1806VAN 5‑Pack | Fixed Spray | Tall‑grass beds & narrow strips | 6‑in pop‑up, 0‑360° variable arc | Amazon |
| K‑Rain K1 Smart Set 5‑Pack | Mini Rotor | Small‑medium lawns, 15‑30 ft range | 4‑in pop‑up, 2.5 GPM nozzle, 40‑360° | Amazon |
| Rain Bird 1804APPRS 4‑Pack | Pressure‑Regulated Spray | High‑pressure water supplies | 4‑in pop‑up, 30 PSI regulator, 15 ft | Amazon |
| Toro 53458 5‑Pack | Fixed Spray | Small lawns & shrub zones | 4‑in pop‑up, 15 ft 180° nozzle | Amazon |
| Quick‑Snap QSK‑741 | Above‑Ground Rotor | DIY retrofit without trenching | 5‑in pop‑up, 5,000 sq ft, hose‑connect | Amazon |
| RESTMO 3‑Pack Kit | Above‑Ground Spray | Odd‑shaped beds & small yards | 5‑in riser, 800 sq ft per head, 10‑360° | Amazon |
In‑Depth Reviews
1. Orbit Voyager II Gear Driven Pop‑Up 10‑Pack
The Orbit Voyager II dominates this comparison because it packs ten gear‑drive rotors with matched‑precipitation nozzles at a per‑head cost that undercuts nearly every other premium rotor. Each head adjusts from 40 to 360 degrees in precise increments using the included tool, and the radius trims down to 75% of the maximum 35‑foot throw — ideal when you need to dial back coverage to avoid landscaping features. The 4‑inch pop‑up clears most turfgrass, and the bottom inlet filter catches sediment before it reaches the gear train.
Owner feedback consistently calls out how much easier these are to adjust compared to competing rotors, and the low precipitation rate means less runoff on clay or sloped lawns. The ten‑head bundle covers a full zone without supplementing from another product line, which simplifies installation and ensures uniform water distribution across the entire zone. Each unit ships with eight extra high‑efficiency nozzles so you can fine‑tune the flow rate to match your specific spacing.
At this price point you get professional‑grade gear‑drive performance without the brand premium of some competitors. The only real compromise is the 4‑inch pop‑up — lawns cut taller than 4 inches may need a 6‑inch riser for the spray to clear the grass canopy fully.
What works
- Ten‑pack provides complete zone coverage in one purchase
- Gear‑drive design delivers even, low‑runoff watering up to 35 ft
- Easy arc and radius adjustment with included tool
What doesn’t
- 4‑inch pop‑up may be too short for very tall turfgrass varieties
- Plastic housing feels less robust than all‑metal competitors
2. Rain Bird 1806VAN 1800 Series 6‑Inch Pop‑Up 5‑Pack
The 6‑inch pop‑up riser on the Rain Bird 1806VAN solves one of the most common frustrations with standard 4‑inch heads: the spray never rises high enough to clear tall fescue or St. Augustine, leaving a wet, matted ring around each head. With a full 6 inches of rise, the variable‑arc nozzle sits well above the leaf canopy and delivers a clean 0‑360° pattern up to 15 feet. The textured adjustment collar requires no tools, making on‑the‑fly changes fast during a watering test.
Rain Bird’s 1800 series is the most widely installed pop‑up platform in residential irrigation, and the 1806VAN leverages that ecosystem — every nozzle, riser, and seal is interchangeable with existing 1800 bodies. The stainless‑steel retraction spring ensures the head drops flush every time, and the pressure‑activated wiper seal blocks dirt ingress that causes weeping leaks. The 5‑pack provides good value for replacing an entire tall‑grass zone.
Some users report a single stray stream that shoots beyond the main spray pattern, making edge‑of‑sidewalk definition slightly imprecise. This tends to happen at extreme arc settings and can be mitigated by swapping to a different nozzle from Rain Bird’s MPR series.
What works
- 6‑inch rise clears even very tall turfgrass without blocking spray
- Tool‑less arc adjustment speeds up installation and tune‑up
- Fully compatible with any existing 1800 series body and parts
What doesn’t
- Occasional stray stream at extreme arc settings
- Fixed spray pattern limits maximum throw to 15 ft
3. K‑Rain K1 Smart Set Rotor 4‑Inch Pop‑Up 5‑Pack
The K‑Rain K1 eliminates the most tedious part of rotor setup: adjusting the arc while the head is wet or buried. The patented top‑arc adjustment ring lets you change the pattern from 40° to 360° in seconds without removing the cap or digging around the body, and degree markings on the ring give you a clear read of the current arc setting. Each head ships with a 2.5 GPM preinstalled nozzle that throws 15–30 feet, making it a bridge between short‑range sprays and full‑size rotors.
The reversing mechanism carries a 35‑year track record and runs smoothly even with dirty water, while the rubber cover seals the adjustment port against debris. The 4‑inch pop‑up is standard, but the distance range (15 to 30 feet) covers the gap between fixed sprays and big 35‑foot rotors, so it fits small to medium lawns perfectly. Owners consistently report these match or exceed name‑brand performance at a notably lower per‑head cost.
The plastic construction is robust but lacks the brass nozzle options offered by some premium brands. For most residential water supplies the included 2.5 GPM nozzle delivers adequate coverage, but if you need a higher or lower flow you will have to source third‑party nozzles.
What works
- Top‑arc adjustment is fast and works in wet conditions
- Degree markings on the ring provide clear arc feedback
- Bridges the gap between spray heads and full‑size rotors
What doesn’t
- Limited nozzle choices in the box — only one GPM rating included
- Plastic body, not all‑metal
4. Rain Bird 1804APPRS Pressure Regulated 4‑Pack
If your water pressure pushes above 60 PSI, standard pop‑up spray heads turn every cycle into a fog machine — water evaporates before it hits the turf, and overspray drifts onto driveways and siding. The Rain Bird 1804APPRS integrates pressure‑regulation technology (PRS) directly into the head body, holding output at a constant 30 PSI regardless of supply fluctuations. The result is heavy droplet distribution that resists wind drift and reduces water usage by as much as 50% compared to non‑regulated heads.
The dual‑spray nozzle delivers enhanced close‑in watering that eliminates the dry ring near the head base, a common complaint with older spray designs. The stainless‑steel retraction spring and co‑molded wiper seal keep the head popping up and retracting reliably season after season. With ICC‑ES and EPA WaterSense certification, this head qualifies for water‑utility rebates in many regions.
The 4‑pack is enough for a small zone, but larger lawns will need multiple packs or a switch to a gear‑drive rotor. The 4‑inch pop‑up also means tall grass may block the pattern unless you mow shorter.
What works
- Integrated pressure regulator eliminates misting and overspray
- Qualifies for WaterSense rebate programs
- Dual‑spray nozzle waters close to the head with no dry ring
What doesn’t
- Only 4 heads per pack — need multiple packs for full zone
- 4‑inch pop‑up may be too short for tall grass varieties
5. Toro 53458 570 Series 4‑Inch Pop‑Up 5‑Pack
The Toro 570 Series delivers a no‑frills, reliably performing pop‑up spray head at a per‑head cost that appeals to budget‑conscious homeowners replacing multiple heads at once. Each unit ships with a preinstalled 180‑degree, 15‑foot nozzle, so you do not need to buy nozzles separately — just thread it onto a 1/2‑inch riser and test. The ratchet riser mechanism allows fine height adjustment after the head is buried, which saves you from digging up and repositioning a misaligned head.
The superior spring and seal design prevents the head from staying partially popped up after the zone shuts off, eliminating the constant dripping that wastes water and attracts insects. Owner reviews consistently highlight how straightforward these are to install and adjust, especially compared to older Toro models that required disassembly to change the arc pattern.
The 4‑inch pop‑up is standard and works well with closely mowed turf, but if your lawn is kept at 3.5 inches or taller the 180‑degree half‑circle pattern may struggle to clear the grass on the closed side of the spray. The nozzle is also non‑adjustable — you get 180° fixed, so quarter‑circle or full‑circle coverage requires swapping the nozzle.
What works
- Very easy to install with no nozzle assembly needed
- Ratchet riser levels the head without digging it up again
- Reliable retraction spring stops post‑cycle dripping
What doesn’t
- Fixed 180° nozzle limits flexibility for odd‑shaped zones
- 4‑inch pop‑up is marginal for taller grass heights
6. Quick‑Snap QSK‑741 In‑Ground 5‑Inch Pop‑Up Sprinkler
The Quick‑Snap QSK‑741 is the most accessible entry point to pop‑up watering for anyone not ready to trench PVC pipe across their yard. This single‑unit sprinkler connects directly to a standard garden hose via its built‑in quick‑connect fitting, pops up 5 inches when water flows, and retracts flush into the lawn when the water shuts off — you can mow straight over it. The rotating stream covers up to 5,000 square feet from a single head, which is enough for a medium front lawn.
Installation takes minutes: dig a hole deep enough for the body, drop it in, and attach the hose. No gluing, no threading risers, no running pipe. The 5‑year warranty provides peace of mind that the moving parts will hold up season after season. Owners who use multiple units report they simply run separate hoses from a splitter at the spigot rather than daisy‑chaining, which avoids the pressure loss that plagues series‑connected above‑ground systems.
The minimum arc is around 40 degrees, which can cause overspray onto fences or patios in narrow side yards. The rotor also lacks the fine‑arc detents of dedicated gear‑drive heads — adjustments rely on feel and may drift slightly as soil settles around the body over several seasons.
What works
- Instant pop‑up convenience with zero PVC work required
- 5‑inch rise clears most turfgrass without blocking spray
- Massive 5,000 sq ft coverage from one head
What doesn’t
- Minimum 40° arc limits use in narrow strips
- Arc adjustment can drift as soil settles
- You need separate hoses for multiple units — no daisy‑chain

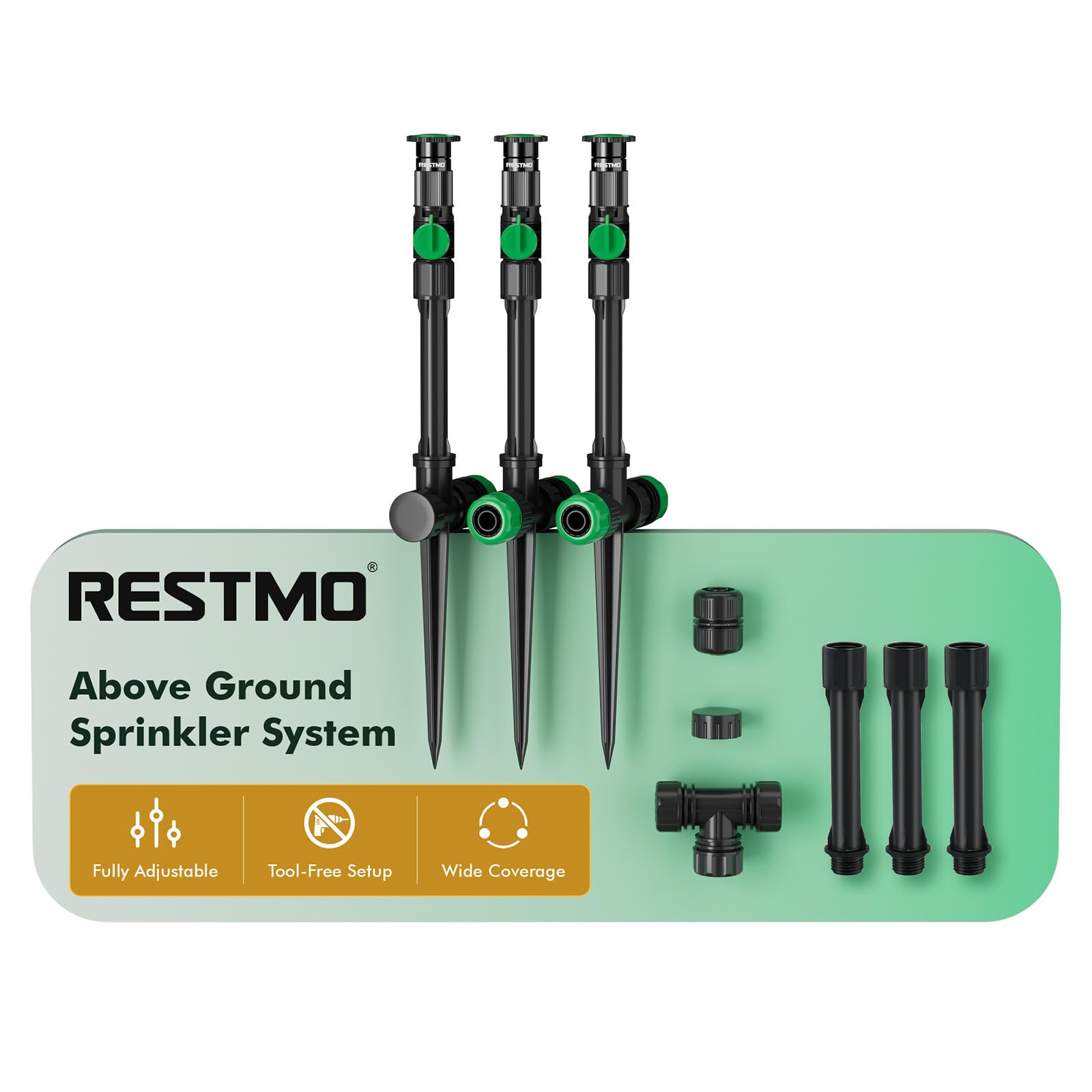

7. RESTMO ARC‑N‑RANGE Adjustable Sprinkler Set 3‑Pack
The RESTMO ARC‑N‑RANGE set is an above‑ground spike system that mimics the adjustability of in‑ground pop‑ups without any digging. Each of the three sprinklers mounts on a 5‑inch riser and a metal spike, and you connect them in series using the included 1/2‑inch hose connectors and a 3‑way manifold. Every head adjusts from 10 to 360 degrees with independent flow control, so you can set one head to a 90° corner pattern and another to full circle in the same circuit.
At 50 PSI each head covers up to 800 square feet, but the daisy‑chain configuration means pressure drops progressively — the third head delivers noticeably less throw than the first. The kit includes generous spare fittings, gaskets, and an end cap, making it easy to customize the layout or expand later. Owners praise the tool‑free setup and the ability to reposition heads without permanent commitments.
This is not a true in‑ground pop‑up — the spike sits above soil level, and the system relies on surface‑laid hose between heads. For a fully hidden installation you would still need underground pipe, but as a low‑commitment, highly adjustable alternative to dragging a single sprinkler around, it delivers strong flexibility.
What works
- Full 10‑360° arc and flow control on each head
- Tool‑free assembly with enough fittings for custom layouts
- Metal spikes hold position reliably even on slopes
What doesn’t
- Pressure drops significantly when daisy‑chaining three heads
- Surface hoses remain visible — not a fully hidden solution
Hardware & Specs Guide
Pop‑Up Height vs. Grass Clearance
Pop‑up height is measured from the top of the body to the top of the extended riser. For common warm‑season grasses (Bermuda, Zoysia) mowed to 1–2 inches, a 4‑inch pop‑up is sufficient. For tall fescue or St. Augustine kept at 3–4 inches, a 6‑inch pop‑up (Rain Bird 1806VAN) ensures the spray clears the leaf canopy. If grass blocks the stream, the head creates a donut‑shaped dry zone around itself.
Gear‑Drive vs. Fixed Spray Precipitation Rates
Gear‑drive rotors (Orbit Voyager II, K‑Rain K1) apply water at roughly 0.3–0.5 inches per hour — low enough to soak into clay soils without runoff. Fixed‑spray heads apply water at 1.5–2.0 inches per hour, making them better suited for sandy soils or small areas where run time is short. Mixing the two on one zone causes uneven watering: the spray zone saturates while the rotor zone remains dry.
FAQ
What is the ideal water pressure for a pop‑up sprinkler system?
Can I mix gear‑drive rotors and fixed spray heads on the same zone?
How deep should I bury a pop‑up sprinkler body?
Final Thoughts: The Verdict
For most gardeners, the best pop up sprinkler system winner is the Orbit Voyager II 10‑Pack because it delivers ten gear‑drive rotors with matched nozzles at a per‑head cost that crushes the competition, covering a full zone with low‑runoff, even watering up to 35 feet. If you need a 6‑inch pop‑up to clear tall turfgrass, grab the Rain Bird 1806VAN 5‑Pack. And for a no‑trench, hose‑connected alternative that still offers professional pop‑up convenience, nothing beats the Quick‑Snap QSK‑741.
