A power washer pump head is the hydraulic heart of a gas pressure washer, and when it fails, the entire machine becomes a heavy paperweight. The most common failure mode isn’t a dead engine—it’s a worn pump head that has lost pressure, developed a leak, or seized from freezing water.
I’m Mohammad Maruf — the founder and writer behind Gardening Beyond. I have analyzed hundreds of owner reports, studied pump head compatibility charts across engine platforms, and cross-referenced flow rate tolerances to build this guide on the best replacement options available.
No two replacement jobs are the same because shaft diameters, inlet/outlet configurations, and mounting patterns differ between brands. The goal of this article is to help you identify precisely which power washer pump head matches your engine platform and cleaning demands.
How To Choose The Best Power Washer Pump Head
Selecting the right pump head begins with knowing your engine’s shaft diameter and mounting bolt pattern. A pump that looks identical on paper can be completely incompatible if the shaft size or hole spacing does not match your engine.
Shaft Diameter Is Non-Negotiable
The two common shaft diameters for horizontal gas engines are 3/4 inch and 7/8 inch. Measure your old pump’s shaft bore with a caliper or check the owner’s manual. Installing a pump with the wrong shaft key size will cause vibration and rapid wear, and it may not even bolt onto the engine flange.
PSI and GPM Balance
Your engine’s horsepower determines how much pump it can drive. A 6 hp engine typically handles 2.5 GPM at 3000 PSI. If you install a pump rated for 3.1 GPM on the same engine, you will see a pressure drop because the engine cannot supply enough rotational force to maintain both flow and pressure simultaneously.
Inlet and Outlet Orientation
Most replacement pumps come in rear-inlet/rear-outlet or front-inlet/rear-outlet configurations. Check whether your pressure washer frame has clearance for the hose routing. A rear-inlet pump is the most common fit for Honda GCV and GX series engines, while some older Craftsman and Troy-Bilt models require a front inlet.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| CANPUMP CF 3030 G | Triplex | Prosumer & light commercial use | 3.1 GPM triplex plunger | Amazon |
| AR ANNOVI REVERBERI RMV25G30D-EZ | Axial | Generac and Honda GX owners | EZ start thermal relief valve | Amazon |
| Pump Head for Briggs SRMW2.4G28 | OEM Head | Briggs & Stratton specific platform | 2.3 GPM compatible | Amazon |
| YAMATIC 7/8″ Vertical | Vertical | GCV160/GCV190 engines | 7/8″ shaft vertical mount | Amazon |
| TOOLCY 3/4″ Horizontal | Horizontal | Simpson MSH3125 owners | 3300 PSI / 2.5 GPM | Amazon |
| Tool Daily 3/4″ Horizontal | Horizontal | Complete kit with fittings | 2.4 GPM thermal relief | Amazon |
| VEVOR 3/4″ Horizontal | Horizontal | Budget-friendly refresh | 3400 PSI max rating | Amazon |
In‑Depth Reviews
1. CANPUMP CF 3030 G
The CANPUMP CF 3030 G is a triplex plunger pump, not an axial cam design, which means it uses three independent plungers driven by a forged steel crankshaft. This construction produces smoother water flow and significantly longer service life than axial pumps at the same pressure range. With a max flow of 3.1 GPM at 3000 PSI, this head can drive a 16-inch surface cleaner without noticeable pressure drop, something axial pumps often struggle to sustain.
The forged brass manifold, ceramic-coated stainless steel plungers, and German-made packing seals give this pump a commercial-grade feel. It ships prefilled with SAE 15W-40 oil and includes a sight glass for checking oil level and contamination. The external unloader valve is detachable and pressure-adjustable, with a built-in detergent injector and water filter, making maintenance simpler than integrated unloader designs.
Owner reports confirm that this pump bolts directly onto Honda GX160 and GX200 engines with the standard SAE J609 flange. Some users had to use a 90-degree fitting to clear the frame on specific models, so check your frame clearance before ordering. At 18.4 pounds, this is a heavy unit, but that weight reflects the robust triplex construction.
What works
- Triplex plunger design outlasts axial pumps significantly
- External unloader with detergent injector eases pressure tuning
- Sight glass for oil level inspection without dipstick
What doesn’t
- Heavier than axial pumps at over 18 lb
- Does not include mounting bolts for some engines
- Input/output orientation may require frame modification on some washers
2. AR ANNOVI REVERBERI RMV25G30D-EZ
The AR RMV25G30D-EZ is a horizontal axial cam pump built by Annovi Reverberi, an Italian manufacturer that supplies OEM pumps for many major pressure washer brands. The “EZ Start” feature reduces the internal compression load during startup, so the engine does not struggle to turn over on cold starts. This is a genuine engineering advantage for users with older engines or smaller pull-start motors.
Rated at 3000 PSI and 2.5 GPM at 3400 RPM, this pump matches the output of most residential gas washers in the Honda GC/GS and Generac engine categories.
Multiple owner reviews confirm a direct fit on Generac 3000 PSI units with Honda engines. The only recurring complaint is that the included mounting bolts are hex head rather than the Allen head bolts some engine flanges require. Reusing the original bolts or swapping to Allen heads solves that issue in under five minutes.
What works
- EZ Start reduces pull-start effort on cold engines
- OEM-grade build from a trusted Italian manufacturer
- Thermal relief valve prevents overheating during bypass
What doesn’t
- Comes with hex bolts, some engines require Allen heads
- Axial cam design has shorter service life than triplex
- No sight glass for oil level monitoring
3. Complete Pump Head for Briggs SRMW2.4G28
This is a complete pump head assembly made by AR Annovi Reverberi specifically for Briggs & Stratton pump models SRMW2.4G28 and SRMW2.3G28. It is not a universal replacement — it is an OEM-compatible upper head section that includes the unloader valve, manifold, and internal valving. If your Briggs pump body is intact but the head assembly has failed, this part avoids replacing the entire pump unit.
The build uses a metal manifold construction rather than plastic, which is important because the unloader valve threads into the head and sees the full cycling pressure every time the trigger releases. Plastic threads on budget heads often strip here. The 2.3 GPM flow rating is slightly lower than the 2.5 GPM standard, which matches the actual output of many older Briggs engines that cannot sustain a full 2.5 GPM at rated RPM.
Owners who bought this as a direct replacement report that the part bolted on without modifications and solved pressure loss problems from worn internal seals. One caveat: the product does not include a spacer that some older pump bodies use, so check if your old assembly had one before discarding it.
What works
- OEM-specific compatibility for Briggs SRMW series
- Metal manifold avoids plastic thread failure
- Fractions of the cost of a full pump assembly
What doesn’t
- Only fits specific pump models, not universal
- Missing spacer bushing required on some units
- No printed installation instructions included
4. YAMATIC 7/8″ Vertical Pressure Washer Pump
The YAMATIC vertical pump head is designed for engines with 7/8-inch shafts and rear-facing inlet/outlet ports. This configuration is common on Honda GCV160 and GCV190 engines found in Ryobi, Husky, Craftsman, and Troy-Bilt pressure washers. The vertical orientation means the pump body hangs below the engine, which can improve clearance on frames where a horizontal pump would interfere with the frame crossbar.
This pump delivers 3000 PSI at 2.5 GPM and includes an adjustable unloader valve so you can dial the pressure down to match lighter cleaning tasks like car washing. The thermal relief valve protects against overheating during idle bypass, and the double-seal system is rated for 150 hours of running time. The kit comes with a siphon hose, mounting bolts, shaft key, and nozzle tips.
User reports highlight an easy 10-minute installation on Honda GCV160-powered units. One owner noted that this pump raised their pressure from 2500 to 3000 PSI compared to the original. The pump does not work with engines that have an idle-down feature, because the RPM drop can cause the unloader to behave unpredictably.
What works
- Adjustable unloader for pressure tuning
- Double-seal system rated for 150 hours runtime
- Includes nozzle tips and siphon hose in the kit
What doesn’t
- Not compatible with idle-down engine features
- Requires frame drilling if engine has front inlet/outlet
- Spacers may be needed for older Troy-Bilt frames
5. TOOLCY 3/4″ Horizontal Pressure Washer Pump
The TOOLCY horizontal pump head is built for engines in the 180cc to 225cc range producing 6 to 8 hp. It is rated at 3300 PSI and 2.5 GPM, which puts it at the higher end of the residential axial pump class. The maintenance-free crankcase eliminates the need for oil changes or pre-filling gear oil, a convenience for users who do not want to deal with pump lubrication schedules.
The die-cast aluminum housing has a surface treatment to resist rust, and the brass fittings handle the high-pressure side without corrosion issues. The pump comes with three matched nozzle tips (0°, 25°, and soap) so you can adjust the spray pattern to the cleaning task. The diagonal bolt hole spacing is 3-5/8 inches with a 2-9/16 inch center-to-center distance, which fits the standard SAE pattern on Honda, Simpson, and Karcher engines.
Owner feedback is consistently positive on ease of installation — most report a 5 to 10 minute swap. The warranty coverage from TOOLCY is decent for this price tier, but the 150-hour service life rating is below a premium triplex pump. This pump is a strong choice for reviving a mid-range gas washer that needs a second lease on life.
What works
- Maintenance-free crankcase with no oil change needed
- Three matched nozzle tips included
- Rust-resistant aluminum housing with brass fittings
What doesn’t
- 150-hour service life rating is modest
- Not compatible with 7/8-inch shaft engines
- No thermal relief valve for bypass protection

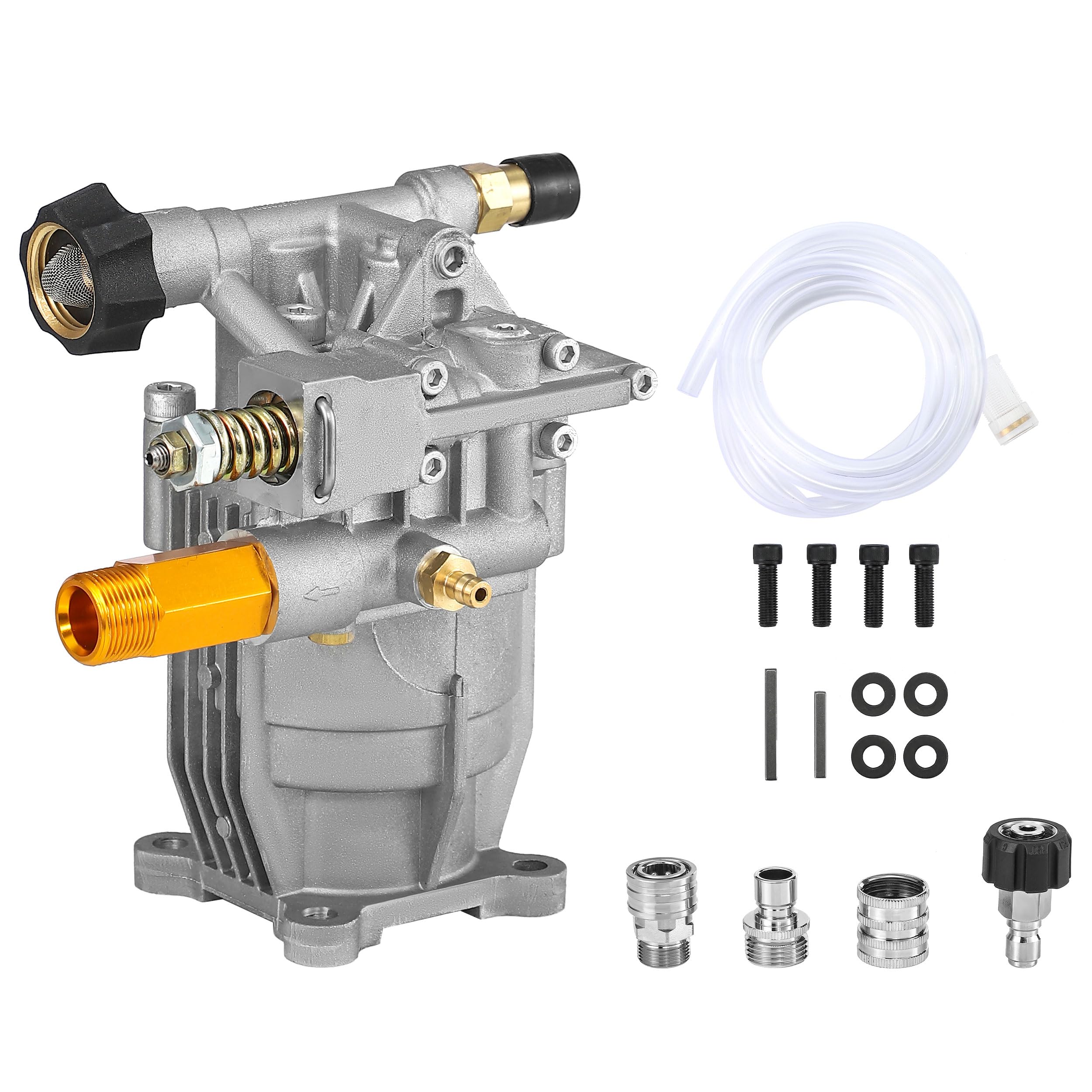

6. Tool Daily 3/4″ Horizontal Pressure Washer Pump
The Tool Daily pump head is a horizontal axial design rated at 2600 to 3000 PSI with a 2.4 GPM flow rate. What makes this pump stand out at its price point is the package contents: it includes an M22 adapter, quick-disconnect fittings, a chemical injector siphon hose, four flange bolts, keyways, and four gaskets. You can literally unbox this kit, bolt it onto your engine, and connect your hoses without a trip to the hardware store.
The aluminum alloy body is paired with a built-in thermal relief valve, which vents water when the pump runs in bypass mode for too long. This prevents seal damage on hot days when you are working with the trigger released for extended periods. The pump is compatible with Generac, Briggs & Stratton, Homelite, Troy-Bilt, Simpson, and Karcher engines that use a 3/4-inch horizontal shaft.
Owners report a straightforward installation on Generac and Honda-powered machines. One user noted a slight pressure increase of 300 PSI over their original pump. The instructions included in the box are generic and reference a different pump model, so first-time installers should look up a pressure washer pump replacement video before starting.
What works
- Complete mounting hardware and adapter fittings included
- Built-in thermal relief valve protects seals
- Chemical injector siphon hose for soap application
What doesn’t
- Instructions reference a different pump model
- 2.4 GPM is slightly below the 2.5 GPM standard
- Not compatible with vertical engines or electric washers
7. VEVOR 3/4″ Horizontal Pressure Washer Pump
The VEVOR horizontal pump head is one of the most affordable options in the 3/4-inch shaft category, but it does not skimp on the rated output. With a max pressure of 3400 PSI and a flow rate of 2.5 GPM, this pump matches or exceeds the specs of pumps costing nearly twice as much. The one-piece pump head design improves sealing compared to multi-piece assemblies, and the metal shaft sleeve prevents oil from leaking past the crankshaft.
The pump uses a maintenance-free crankcase, so there is no gear oil to check or change. The kit includes a 3.3-foot siphon tube, mounting hardware, two shaft keys, and a nozzle needle for cleaning clogged spray tips. The SAE bolt pattern fits most 196cc to 230cc engines from RYOBI, Honda, Briggs & Stratton, Subaru, PowerStroke, and Simpson.
Customer reviews mention that the pump bolted up easily to SurmountWay and Might M pressure washers. The manual has a mislabeled oil drain location image, but since the crankcase is maintenance-free, this does not affect operation. A few users noted that the mounting screws were slightly too long and had to be swapped for the original fasteners. Overall, this is a capable budget option for extending the life of an older pressure washer.
What works
- High max pressure rating of 3400 PSI
- One-piece pump head for better sealing
- Includes siphon tube and two shaft keys
What doesn’t
- Mounting screws may be longer than needed
- Manual contains an incorrectly labeled oil drain image
- Still requires continuous water flow during operation
Hardware & Specs Guide
Shaft Diameter and Keyway Width
Every pump head is machined to accept either a 3/4-inch or 7/8-inch crankshaft. The keyway width is typically 3/16 inch on 3/4-inch shafts. Inserting the wrong key size or forcing a pump onto an incorrectly matched shaft will cause the key to shear and the pump to spin freely without driving the pistons. Always measure the shaft with a caliper before ordering.
Thermal Relief Valves and Bypass Protection
When the spray gun trigger is released, the pump recirculates water internally through the bypass circuit. Without a thermal relief valve, the water temperature inside the pump rises rapidly and can damage seals within minutes. Pumps with TRVs bleed a small amount of hot water onto the ground, keeping internal temperatures within safe limits during extended trigger-off periods.
FAQ
How do I know if my pressure washer needs a 3/4-inch or 7/8-inch shaft pump?
Can I install a higher PSI pump on my engine to get more pressure?
What does a thermal relief valve do on a replacement pump head?
Final Thoughts: The Verdict
For most gardeners looking for a durable and easy-to-install power washer pump head the winning choice is the AR ANNOVI REVERBERI RMV25G30D-EZ because it combines an OEM-grade build from a trusted manufacturer with the EZ Start feature that reduces starter cord strain on cold mornings. If you want triplex plunger longevity and higher flow for surface cleaners, grab the CANPUMP CF 3030 G. And for a budget-conscious refresh of a worn-out gas washer, nothing beats the VEVOR 3/4-inch horizontal pump.
